PRODUCT DESCRIPTION

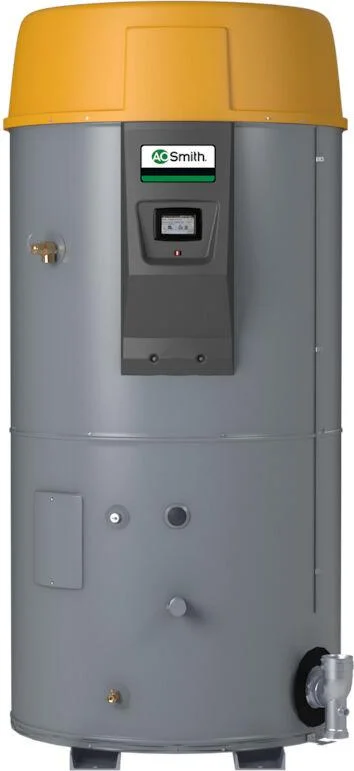

The Cyclone(R) LV (Large Volume) provides a significant amount storage which can eliminate the need for multiple tanks, saving space. It integrates the Cyclone helical coil heat exchanger into a large ASME-certified storage tank with capacity to 250-gallons. Models are available from 150,000 to 500,000 Btu/h and deliver thermal efficiencies to 96%. The modulating burner adjusts the firing rate to the specific demand,further increasing efficiency and energy cost savings. Cyclone LV is ideal for any commercial application with short period peak demand such as hotels, arenas, convention centers and schools. Cyclone is the industry leader in high efficiency commercial water heating. Cyclone LV modulating models adjust firing rate to the specific demand further increasing efficiency and money savings. BTHL-199A uses up to 199,900 BTU/h of gas to deliver 230 GPH at 100(degree)F rise. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.
Specifications
Nominal Gallon Capacity
250 Gallons
Rated Storage Volume
243.9 Gallons
Thermal Efficiency
95%
Maximum BTUs
199,900
Power Source
GAS
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Location
BOTH
Water Connection Size
1.5"
ASME Certified
Yes
ASME Stamp
HLW
Amperes
5
Destination Country
US
Digital Display
true
ENERGY STAR(R) Certified
true
Fuel Source
NATURAL
Height to Gas Valve
90.13
Height to T&P
62.62
Installation Type
INDOOR
Minimum BTUs
78,000.00
Application
SPECIALTY
Recovery Rise at 90(degree)F
256
Shipping Height
101"
Shipping Length
52.5"
Shipping Width
56"
Side Loop
No
Vent Material
PVC, CPVC, Polypropylene,AL29-4C Stainless
Voltage
120
Type
Water Heater
Height
91.5"
Diameter
42.13 in."
Shipping Weight
1120lbs
