PRODUCT DESCRIPTION

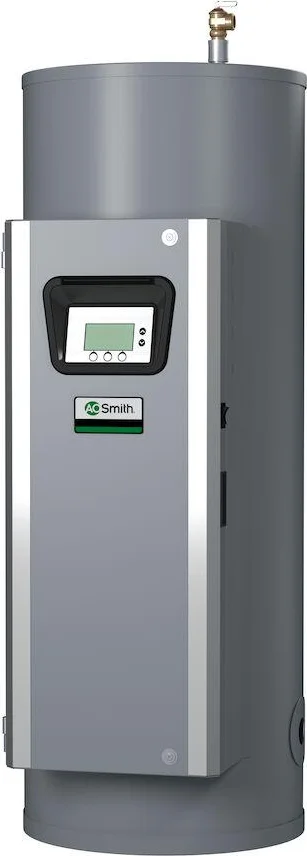

Custom Xi heavy duty commercial electric water heaters are available with storage capacities from 5 to 119 gallons. All tanks feature ASME tank construction. With input choices as high as 90 kW on 50 through 119 gallon models, the DSE Custom Xi series can be used for maximum-demand hot water supply service or as boosters for supplying sanitizing rinse water for dish washing. A. O. Smith offers the largest commercial product selection available, including the most specified commercial unit in the U.S. We offer more than 500 different commercial models, including gas fired, oil-fired and electric configurations, ranging in capacities from 5 to 10,000 gallons, with input range from 50,000 BTU to the equivalent of 4,000,000 BTU. Our comprehensive line is the natural fit for spec jobs requiring everything from the smallest commercial installation up to the largest multi-structure complex.
Specifications
Nominal Gallon Capacity
10 Gallons
Rated Storage Volume
9.8 Gallons
Power Source
ELECTRIC
Limited Tank Warranty
3 Years
Limited Parts Warranty
1 Years
T&P Relief Valve
Yes
Water Connection Location
BOTH
Water Connection Size
0.75"
ASME Certified
Yes
ASME Stamp
HLW
Amperes
28.85
Blanket Included
No
Destination Country
US
Height to T&P
26.25
Installation Type
INDOOR
Max Wattage
6,000
Number of Elements
1
Application
SPECIALTY
Shipping Height
28.13"
Shipping Length
24.13"
Shipping Width
27.63"
Side Loop
No
Voltage
208
Type
Water Heater
Height
28.13"
Diameter
18 in."
Width
18.75"
Shipping Weight
119lbs
