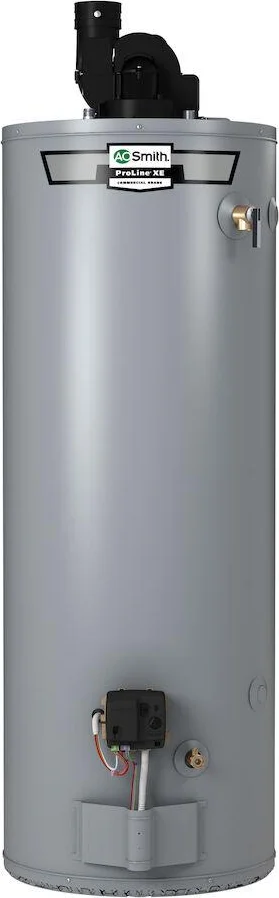

A. O. Smith ProLine(R) XE 50-Gallon Power Direct Vent Tall Natural Gas Water Heater

SKU: GPDT50L
  • Height: 59.00"
  • Depth: 22.00"
  • Energy Star Rated: no
  • Ignition Type: Electronic Hot Surface Igniter
A. O. Smith | Authorized Dealer
Pre-Order

PRODUCT DESCRIPTION


 •Delivers 81-gallon first hour rating
 •45,000 BTU input power direct vent design delivers up to 0.72 Uniform Energy Factor
 •Patented eco-friendly Green Choice(R) Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
 •Automatic pilot relight system shuts reduces gas consumption and eliminates nuisance pilot outages
 •Includes side mounted recirculation taps for easy installation with combination space heating/potable water heating applications
 •Patented Blue Diamond(R) glass tank lining protects against corrosion
 •DynaClean(TM) automatic cleaning system protects against sediment build-up
 •Stainless steel CoreGard(TM) anode rod protects against corrosion longer than ordinary anodes
 •6-year limited tank and parts warranty

The ProLine(R) XE 50-Gallon Power Direct Vent Natural Gas Water Heater features a two-pipe combustion system that draws clean air from outside the home, eliminating any worries about indoor ventilation. Featuring a 50-gallon (nominal) tank and a 45,000 BTU gas burner, the GPDT-50L Power Direct Vent delivers a first hour rating of 81 gallons and a recovery rate of 41 gallons per hour. This model features a 0.72 Uniform Energy Factor and carries a 6-year limited warranty. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine(R) XE water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard(TM) anode rod, Blue Diamond(R) glass lining and DynaClean(TM) automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith s ProLine(R) water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

Specifications

Nominal Gallon Capacity

50 Gallons

Rated Storage Volume

48 Gallons

UEF

0.72

Maximum BTUs

45,000

Power Source

GAS

Limited Tank Warranty

6 Years

Limited Parts Warranty

6 Years

T&P Relief Valve

Yes

Water Connection Location

TOP

Water Connection Size

1"

Emissions

Low NOx

First Hour Rating

81 Gallons

ASME Certified

No

Amperes

5

Blanket Included

No

Destination Country

US

Flue Diameter

4.00

Fuel Source

NATURAL

Height to Gas Valve

12.00

Height to T&P

51.75

Ignition Type

Electronic Hot Surface Igniter

Installation Type

INDOOR

Application

RESIDENTIAL

Product Tier

ProLine(R) XE

Shipping Height

69.88"

Shipping Length

31.2"

Shipping Width

23.4"

Side Loop

Yes

Voltage

120

Type

Water Heater

Height

59"

Diameter

22 in."

Shipping Weight

195lbs

Vent Type

Power Direct Vent
