PRODUCT DESCRIPTION

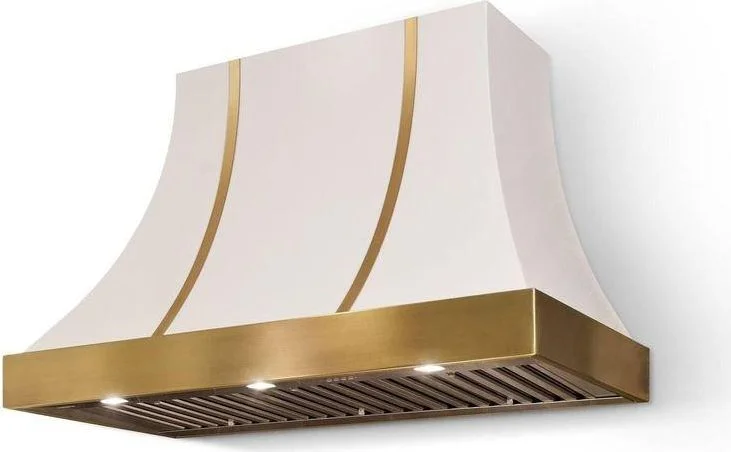

Developed in partnership with two storied European brands, AGA & La Cornue, the Cascade is classical, elegant and exquisite in form.
Specifications
Models:
36" & 48
Hood Style:
Concave
Product Dimensions:
Hood Width x Depth x Height 36"W x 24"D x 30"H (600 cfm/8" collar) 48 W x 24"D x 30"H (1200 cfm/10" collar)
Banding:
Hood Style available with and without Banding
Product Weight:
36" (30"H) : 97 lbs 48 (30"H) : 124 lbs
Electrical Requirements:
600 CFM models draw approx. 2.7 Amps 1200 CFM models draw approx. 5.4 Amps
Hood Sone Level:
Ranges from 1.5-7
Electrical Volts
120V
Heat Sensor
No
Installation Type
Wall Mount
Sabbath Mode
No
Product Depth
24.00 Inch
Primary Energy Type
Electric
Number of Electrical Plugs
1
Product Weight
97.00 Pound
Universal Product Code (UPC)
767459005061
Global Trade Item Number (GTIN)
767459005061
Product Series Title
Cascade
Removable Grease Filter
Yes
Primary Warranty Short Description
2 Years Parts and Labor
Product Clearance Required: Back
0.00 Inch
Star K Certified
No
Ship Width
30.00 Inch
Recirculating Kit
No
Residential or Commercial Product
Residential Use
Heat Lamps
No
Brand
AGA
Selling Unit
Each
Product Clearance Required: Right Side
0.00 Inch
Product Clearance Required: Front
0.00 Inch
Product Width
36.00 Inch
Product Dimensions (WxDxH)
36 Inch X 24 Inch X 30 Inch
Minimum Installation Height Above Cooktop
30.00 Inch
Product Height
30.00 Inch
Electrical Phase
1PH
Ship Method
LTL Common Carrier
Product or Accessory
Product
Outdoor or Indoor Use
Indoor Only
Maximum Installation Height Above Cooktop
36.00 Inch
Exterior Trim Finish Color
Polished Chrome
Dishwasher Safe Filter
Yes
Exterior Finish Color
Gloss Black
Ship Weight
142.00 Pound
Exhaust Duct Width
8.0 Inch
Freight Class (NMFC)
70
Air Movement CFM
600.00 Cubic foot per minute
Control Type
Push Button
Electrical Connection Type
Cord and Plug
Electrical Total Amperage
2.70 Ampere
Prop 65 Warning
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
Product Clearance Required: Left Side
0.00 Inch
Countries Certified for Sale
Canada, United States
Product Clearance Required: Top
0.00 Inch
Dedicated Circuit Required
No
Ship Depth
42.00 Inch
Remote Control
No
Energy Star Certified
No
Electrical Plug Type
NEMA 5-15
Number of Fan Speeds
3
Professional Installation Required
Yes
Electrical Hertz
60.00 Hertz
Number of Lights
2
Number of Ducts
1
Fan Motor Location
Internal
Exhaust Duct Run Maximum
30.00 Feet
Model
AH3630CAC-BLK-PC
Hood Type
Wall Hood
Ship Height
42.00 Inch
Country of Origin
United States (USA)
Bright LED lighting offers natural looking, 3000K color spectrum. The 36" hood features 2 lights, the 48" hood features 3 lights.
Large 3 speed blower operates at lower RPM reducing the sound level.
Dishwasher safe, commercial style baffle filters for effectively removing airborne contaminants. Detergent inlet holes and grease exit holes in baffle filters for superior dishwasher cleaning.
Electronic touch controls for 3 speed blower and LED lights.
LED light bulbs draw only 6 watts each and energy efficient motors draw only 2.5 amps.
Mounting bars at top and bottom allow for attaching to stud supports. Open top and back design for centered duct location or offset top duct and/or rear offset discharge.
