PRODUCT DESCRIPTION

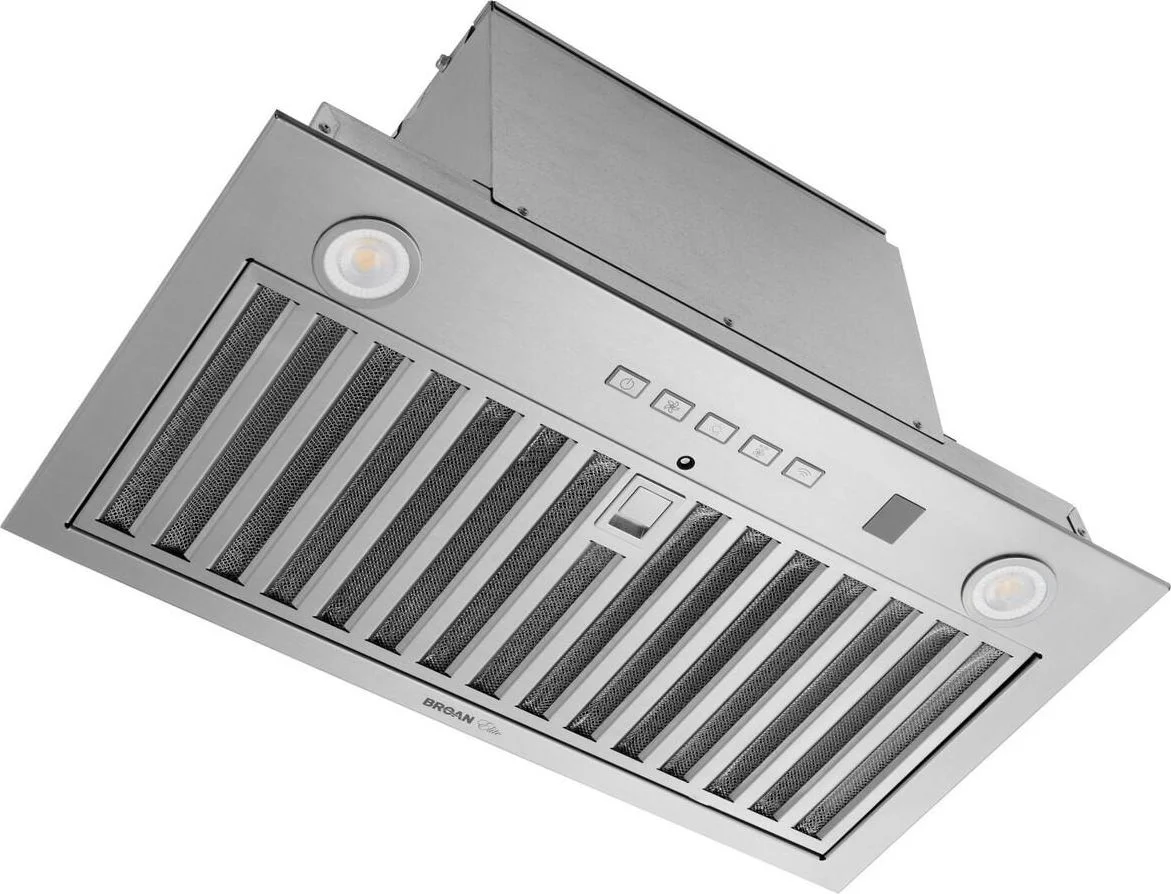

From the leader in residential indoor air quality this Broan Elite(R) custom range hood insert features SmartSense(R). SmartSense(R) enables automated ventilation using infrared sensing which will automatically sense when it needs to turn on/off or adjust the speed based on the heat of the range. While the voice control capabilities also make it easier than ever to improve air quality in the kitchen. Through the WiFi connection with Alexa or Google Assistant you can control the range hood with voice commands - "Turn my range hood up to fan speed 3".
The kitchen is the most polluted room in the house regardless of type of cooking appliance; everything from smoke, odors and chemicals are in the air. The range hood is often forgotten as the primary and most effective way to get the pollutants out of the home and improve the air we breathe. With SmartSense(R) you don t have to think about turning the ventilation on, you can just trust that your range hood will do it for you. This range hood is HVI certified providing powerful ventilation with 650 Max Blower CFM to remove the pollutants and improve the air you breathe. While ventilating the kitchen air this range hood is still extremely quiet at a sound level of 0.5 sones on normal speed, which is as loud as whispers.
This built-in range hood insert also offers a custom appearance while protecting cabinetry with stainless steel liners. Bright 2-level, heat resistant LED lighting making even the worst cook s recipe look great. The 4-speed back-lit soft touch control has an easy to clean surface. The EZ1 Installation System allows for 1-person installation, making installation fast for both the professional and DiY installers. At Broan-NuTone we believe that better quality of air means better quality of life.
Specifications
Filter Type
Hybrid Baffle
Heat Sentry(TM)
Yes
HVI Certified
Yes
Lighting Type
LED
Sound Level (Sones)
0.5
UL Listed
Yes
ADA Compliance
Yes
Damper Included
No
ENERGY STAR(R) certified
No
Light Bulbs Included
Yes
Light Levels
2
Material
Steel
Nightlight Or Nighlight Setting
No
Ductless Recirculation Capable
Yes
Ductless Filter Or Kit Included
No
Remote Operation Capable
No
Speed Levels
4
Switch Control Type
Tap Touch
Rated Voltage
120
Boost Mode
No
Minimum Height Above Cook Top
24
Rated Amps
4
Product Depth
11.4375
Product Height
10.5625
Product Width
21.375
Built-In Timer
No
CFM
650
Diameter
3 1/4 in x 10 in (H-V) or 6 in round (V) or 8 in round (V)
Duct Direction
Horizontal/Vertical
Bulb (Recommended Type)
Integrated LED Module
Light Color Temp
3000
Manufacturer Warranty
1 year
SmartSense(R) Auto Operation: adjusts the fan speed based on the heat coming from your range along with auto shut-off
Voice Control via WiFi: The voice control feature allows for handsfree operation to effectively remove odor and pollutants while cooking by simply using Alexa or Google Assistant
Powerful Ventilation: Quickly remove smoke, odors, and cooking pollutants with the 650 Max Blower CFM, which is powerful enough for use even with a gas range
EZ1 Installation System: Easy single person installation in half the time for both professional and DiY installers
4-Speed back-lit soft touch control features a smooth, easy-to-clean surface
Bright 2-level, heat resistant LED modules enhance your cooking experience
Dishwasher-safe hybrid baffle filter offers superior grease capture
Works with optional stainless LB30SS and LB36SS liners
Optional non-duct recirculation kit and filters available for indoor exhaust recirculation to suit your needs
Works with optional universal make-up air dampers
ADA compliant, remote operation is possible using a standard UL approved wall switch. Requires ADA adapter kit, HAWRK5 (sold separately)
