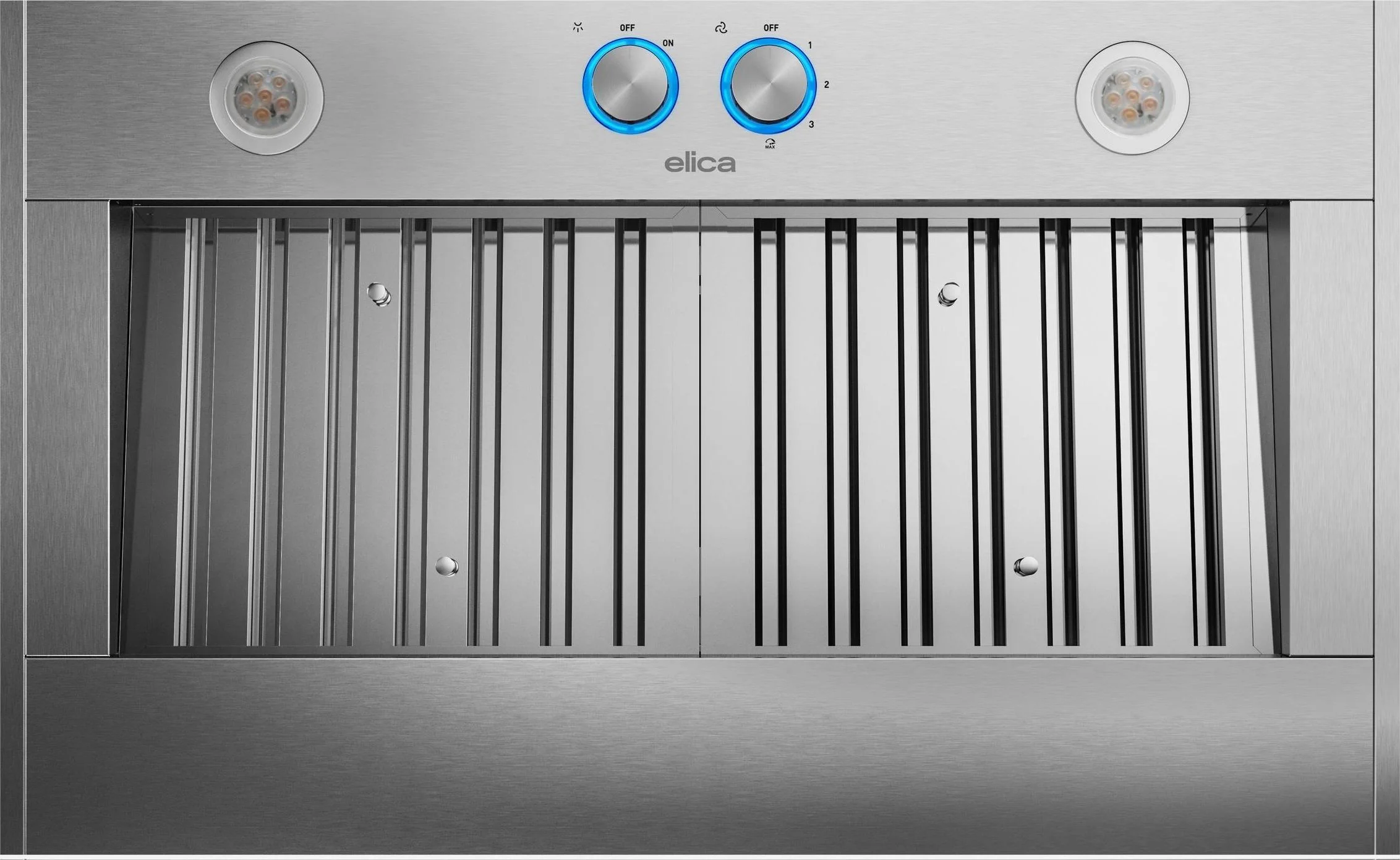

Elica 21" Ducted Insert Hood, Pro Series in Stainless Steel

SKU: EAR628S4
Seasonal Savings
  • Width: 21.00"
  • Energy Star Rated: No
  • Height: NaN"
  • Weight: NaN lbs
  • Type: Ducted
  • Remote Control: NO
  • ADA Compliant: NO
  • Series: Pro Series
Elica

Authorized

Dealer

In StockONLY 1 LEFT
Hurry up! Price rises by $130
4Days0Hrs22Min56Sec
$1,279.00
Was $1,409.00
Save $130.00
or
1279
Financing loading...
Sign in / Sign up to earn 1,279 points (
$31.98
)

color: Stainless Steel

Elica EAR628S4

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

Featuring heavy-gauge Stainless Steel "Seamless" construction, Arezzo delivers superior quality and Italian craftmanship. with fully retractable knobs with blue backlighting, that can be hidden when not in use to not interfere with the hood aesthetics. Arezzo is available with a 600 CFM blower in 28 1/2" and 34 1/2" width and equipped with a 1200 CFM blower for widths of 34 1/2", 40 1/2" and 46 1/2" for extraordinary ventilating power. Easy maintenance, higher efficiency, and a cleaner kitchen are ensured by Elica's patented professional Baffle Filters, which capture a higher percentage of contaminants and hold larger volumes of grease than traditional baffle filters. _x000D_ Damp location installation approved.

Specifications

general specification

Warranty
3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)
31.70
NET WEIGHT (kg)
22.70
CARTON LENGHT (mm)
900.00
CARTON HEIGHT (mm)
421.00
CARTON WIDTH (mm)
699.00
VOLUMEN (M3)
0.30
SHIPPING WEIGHT (lb)
69.89
NET WEIGHT (lb)
50.04
CARTON LENGHT
35.43
CARTON HEIGHT
16.57
CARTON WIDTH
27.52
COUNTRY OF MANUFACTURE
MX
QTY PACKAGE
1.00
INTENDED APPROVED USE
Residential use
Finish
Stainless Steel
Material
Stainless Steel
Color
inox
Type of Ventilation
Vented
HOODS FEATURES
Hush system,Heat guard,Grease collectors,Professional performance,Seamless look,
WIDTH (IN)
28
WIDTH (CM)
71.00
AIRFLOW (M3/H)
1020.00
CFM (MAX)
600.00
db (min)
36.00
db (max)
56.00
SONES
1.7 - 7.0
EXHAUST VERSION
Convertible with Kit
EXHAUST SIZE
Round 6"
DUCT SHAPE
Round
EXHAUST LOCATION
Top Only
RECTANGULAR DUCTH HEIGHT
NA
RECTANGULAR DUCT WIDTH
NA
Round duct diameter
6"
ELECTRIC (VOLTS)
120.00
AMPERAGE
4.1 A
HERTZ
60.00
WATTS
463.00
LIGHTING
LED 2 x 6.5 ww 3000 KK
BULB TYPE
LED
BULB INCLUDED
YES
NUMBER OF LIGHTS
2.00
BULB WATTS
6.50
KELVINS
3000.00
GREASE FILTER TYPE
Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER
YES
FILTER MATERIAL
Stainless Steel
BLOWER TYPE
Interior Unit
CONTROL TYPE
Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL
YES
NUMBER OF SPEEDS
4.00
REMOTE CONTROL
NO
POWER SOURCE
Hardwired
OUTDOOR USE
NO
SMUDGE RESISTANT
NO
PANEL READY
NO
RECIRCULATION KIT NEEDED
NO
CFM REDUCTION
Yes w/kit
DIMENSIONS (CM)
72 x 56 x 30
DIMENSIONS_x000D_ (INCH)
28 3/8" x 22 x 11 7/8
ADJUSTABLE HEIGHT
NO
Minimum Overall Height - Top to Bottom
11 7/8
Maximum Overall Height - Top to Bottom
16 15/16
Overall Height - Top to Bottom
11 7/8
Overall Width - Side to Side2
28 1/2
Overall Depth - Front to Back
22"
Hood Height
11 7/8
Min - Max Compatible Ceiling Height (Cover electronic cooking)
NA
Min - Max Compatible Ceiling Height ( Cover gas cooking)
NA
Minimum Height Above Cooktop (ELECTRIC)
= 24
Minimum Height Above Cooktop (GAS)
= 30
Maximum Height Above Cooktop
36"
Chimney Width - Side to Side
NA
Chimney Depth - Front to Back
NA
Chimney Height - Top to Bottom
NA
HUSH SYSTEM
3.00
SEAMLESS LOOK
4.00
GREASE COLLECTORS
5.00
PROFESSIONAL PERFORMANCE
1.00
HEAT GUARD
2.00
TOTAL PRODUCT PLUS
5.00
RECIRCULATION KIT
NA
Long Life Recirculating Carbon Filter
NA
Recirculation (400 CFM) 2 round carbon filters
NA
Recirculation (400 CFM) Contains 6 deflector & 3 carbon filters
NA
Recirculation (600 CFM) Contains 6 deflector, 3 flat carbon filters & clips
NA
Recirculation (600 CFM) Contains 6 deflector & 2 carbon filters
NA
Recirculation (600 CFM) 2 round carbon filters
NA
Recirculation (600/1200 CFM) 4 round carbon filters
KIT0192765
Recirculation (600 CFM) 6 " round deflector
KIT0195736
Recirculation (600 CFM) 6 round Deflector
NA
Recirculation (1200 CFM) 4 round deflector
KIT0192765
Recirculation 4 round carbon filters
NA
Recirculation(8 round deflector)
KIT0192763
Long Chimney Ext/Chimney extension
NA
Chimney extension Can reach 8 8 - 12 4 (ducted), 9 0 -12 8 (recirculating)
NA
Chimney extension Can reach 7 9 - 10 9 (ducted), 8 1 -11 1 (recirculating)
NA
Chimney extension Reaches ceiling heights 8 5 -12 1 (ducted), 9 1 -12 5 (recirculating)
NA
Chimney extension Reaches ceiling heights 7 5 -10 3 (ducted), 8 2 -10 11 (recirculating)
NA
Long Chimney Extension(6 )
NA
Long Chimney Extension(11 )
NA
Long Chimney Extension(12 )
NA
Long Chimney Extension(13 )
NA
Long Chimney Extension_x000D_ (6 with grates)
NA
TELESCOPIC DUCT COVER
NA
DUCT TRANSITION
NA
TRANSITION REDUCER KIT 10 round down to 8 round - attaches to 10 round transition
KIT0185271
BACKDRAFT DAMPER
NA
NON RETURN VALVE
NA
UPGRADE FILTER
NA
RECIRCULATION DUCT COVERS
NA
RECIRCULATION DEFLECTOR
NA
RECIRCULATION FILTERS
NA
CFM REDUCTION KIT
KIT0185752
BACKSPLASH KIT
NA
INTERNAL BLOWER
NA
INLINE BLOWER (1200CFM)
NA
EXTERNAL BLOWER (1200 CFM)
NA
INLINE BLOWER SHELL KIT (600 CFM)
NA
INLINE BLOWER SHELL KIT
NA
EXTERNAL BLOWER SHELL KIT
NA
HEAT LAMPS
NA
SPACER/LINER
NA
Hood Liner for 29
NA
Hood Liner for 30
NA
Hood Liner for 35
NA
Hood Liner for 36
NA
Hood Liner for 48"
NA
WALL MOUNT BRACKET
NA
HIGH CEILING EXTENSION KIT
NA
REMOTE CONTROL KIT
NA
Duct cover extension 6
NA
Duct cover extension 18
NA
ELECTRONIC CFM REDUCTION BYPASS
KIT0185752
REDUCTION BYPASS
KIT0185099
ETL
YES
UL listed
YES
AHAM verified
NO
TITLE 24
NO
Prop65_x000D_ Disclosure
YES
ENERGY STAR
NO
WIFI CAPABLE
NO
COMERCIAL USE APPROVED
NO
ADA COMPLIANT
NO
APP CAPABLE
NO
VENTILATION DIRECTION
HORIZONTAL
SMART COMPATIBLE
NO
FITLER INDICATOR LIGHT
NO
HEAT SENSOR
YES
CHAROCAL FILTER
NO
VERSION ADVANCES
NA
NOM CERTIFICATION
NA
CERTIFICATIONS
Ul, cUL

GS1

GTIN
00190603002058
EAN
0190603002058
UPC
190603002058
