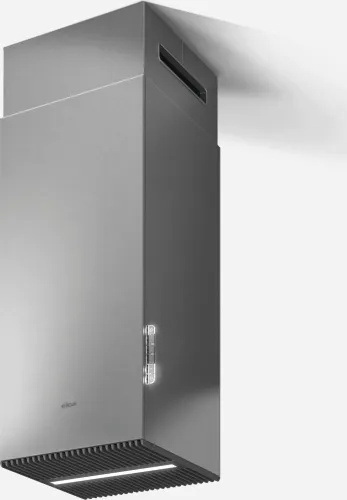

Elica 13" Ducted Hood in Stainless Steel

Width

12.5 , 48 , 70

Sones

Min 1.74 Max 7

Extraction capacity

600 CFM

Warranty

3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com

SHIPPING WEIGHT (kg)

37.00

NET WEIGHT (kg)

29.10

CARTON LENGHT (mm)

781.00

CARTON HEIGHT (mm)

413.00

CARTON WIDTH (mm)

1074.00

VOLUMEN (M3)

0.30

SHIPPING WEIGHT

81.57

NET WEIGHT

64.15

CARTON LENGHT

30.75

CARTON HEIGHT

16.26

CARTON WIDTH

42.28

COUNTRY OF MANUFACTURE

PL

QTY PACKAGE

1.00

INTENDED APPROVED USE

Residential use

Finish

Stainless Steel

Color

inox

Type of Ventilation

Convertible

HOODS FEATURES

Long life filter, Special Materials, Led Light, Maintenance alarm, Total Integration, Comfort silence

WIDTH (IN)

13"

WIDTH (CM)

32.00

AIRFLOW (M3/H)

1020.00

CFM (MAX)

600.00

db (min)

36.00

db (max)

55.00

SONES

1.8 - 6.8

EXHAUST VERSION

Convertible with Kit

EXHAUST SIZE

Round 6"

DUCT SHAPE

Round

EXHAUST LOCATION

Top Only

RECTANGULAR DUCTH HEIGHT

NA

RECTANGULAR DUCT WIDTH

NA

Round duct diameter

6"

ELECTRIC (VOLTS)

120 V/60 Hz

AMPERAGE

3.8 A

HERTZ

60.00

WATTS

460.00

LIGHTING

Strip LED 1 x 7 ww 3500 KK

BULB TYPE

Strip LED

BULB INCLUDED

YES

NUMBER OF LIGHTS

1.00

BULB WATTS

7.00

KELVINS

3500.00

GREASE FILTER TYPE

Sophisticated Black Iron Grates + 6 Layer Mesh Filter

DISHWASHERSAFE FILTER

YES

FILTER MATERIAL

Iron

BLOWER TYPE

Interior Unit

CONTROL TYPE

Sensitive Touch Control with Backlight

SPEED CONTROL

YES

NUMBER OF SPEEDS

3 + booster

REMOTE CONTROL

NO

POWER SOURCE

Power Cord

OUTDOOR USE

NO

SMUDGE RESISTANT

NO

RECIRCULATION KIT NEEDED

YES

CFM REDUCTION

No

DIMENSIONS

32 x 32 x 83

DIMENSIONSinches

ADJUSTABLE HEIGHT

YES

Minimum Overall Height - Top to Bottom

33"

Maximum Overall Height - Top to Bottom

49"

Overall Height - Top to Bottom

33 - 49

Overall Width - Side to Side2

13"

Overall Depth - Front to Back

13"

Hood Height

33"

Minimum Compatible Ceiling Height

7'9"

Maximum Compatible Ceiling Height

10'1"

Minimum Height Above Cooktop (ELECTRIC)

= 24

Minimum Height Above Cooktop (GAS)

= 30

Maximum Height Above Cooktop

36"

Chimney Width - Side to Side

11 13/20"

Chimney Depth - Front to Back

12"

Chimney Height - Top to Bottom

49

RECIRCULATION KIT NUMBER

CFC0141725AUL

CHIMNEY EXTENSION NUMBER

NA

TELESCOPIC DUCT COVER

-

DUCT TRANSITION

-

TRANSITION REDUCER KIT

-

BACKDRAFT DAMPER

-

NON RETURN VALVE

-

UPGRADE FILTER

-

CFM REDUCTION KIT

-

BACKSPLASH KIT

-

INTERNAL BLOWER

-

INLINE BLOWER

-

EXTERNAL BLOWER

-

INLINE BLOWER SHELL KIT

-

EXTERNAL BLOWER SHELL KIT

-

HEAT LAMPS

-

SPACER/LINER

-

WALL MOUNT BRACKET

-

HIGH CEILING EXTENSION KIT

-

REMOTE CONTROL KIT

-

cUL listed

YES

UL listed

YES

AHAM verified

YES

TITLE 24

YES

Prop65Disclosure

YES

ENERGY STAR

NO

WIFI CAPABLE

NO

COMERCIAL USE APPROVED

NO

ADA COMPLIANT

NO

APP CAPABLE

NO

VENTILATION DIRECTION

HORIZONTAL

SMART COMPATIBLE

NO

FITLER INDICATOR LIGHT

YES

HEAT SENSOR

NO

CHAROCAL FILTER

YES

CERTIFICADO NOM

Activo

DIMENSIONS inches

13" x 13" x 33 - 49

Prop65 Disclosure

YES

GTIN

00190603003888

EAN

0190603003888

UPC

190603003888

Long life filter

Special Materials

Led Light

Maintenance alarm

Total Integration

Comfort silence
