PRODUCT DESCRIPTION
Specifications
Product Model
MUDAMPER10
Product Name
Make-Up Air Damper
Product Type
Range Hood Damper
Color
Galvanized
Application/Usage
Vent Hood
Part Number
MUDAMPER10
Category
Hoods/Ventilation
UPS Shippable
Y
Shipping Weight
10
UPC Code
8015139911365
Product Dimensions English

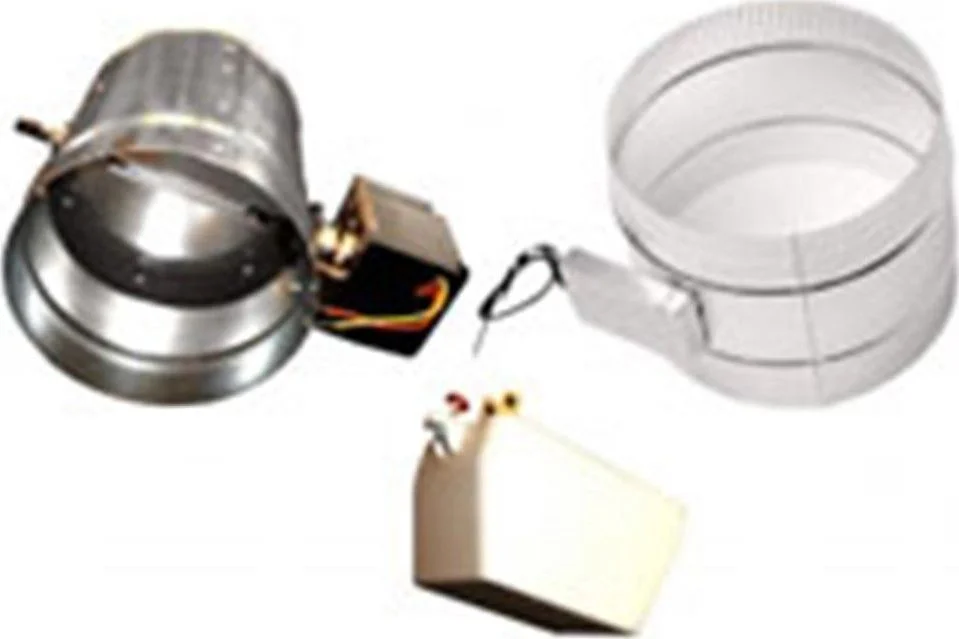

AIR FLOW SWITCH ASSEMBLY (Located inside Range Hood Ducting): 6 In. (h) x 10 In. (diameter)AUTOMATIC MAKEUP AIR DAMPER (Located inside Fresh Air Ducting): 8 In. (h) x 10 In. (diameter)
Faber MUDAMPER10 10-In. Make-Up Air Damper
24 Vac, 60 hz ac motor on damper
Fresh air damper opens automatically when hood is operating, closes shut when fan is turned off
Switch assembly attaches directly above the hood inside ducting
Can be installed in all ducting configurations (vertical, horizontal, down or after elbows)
Switch assembly fits inside all faber chimneys, compatible with all models over 300 cfm
Simple installation: no drilling, calibrations or measuring required
Designed and engineered to withstand heavy cooking contaminants (grease, steam, smoke and steam)
Can be combined with most other hvac components and is a universal makeup air solution
Reliable mechanical air switch prevents service issues and false tripping of system
Meets IRC (international residential code) M1503.4
Recommended CFM: over 600 up to 1200 CFM
