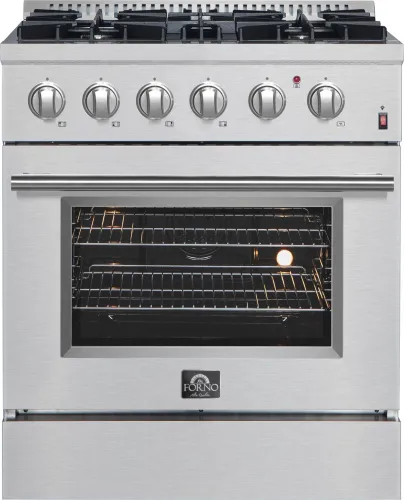

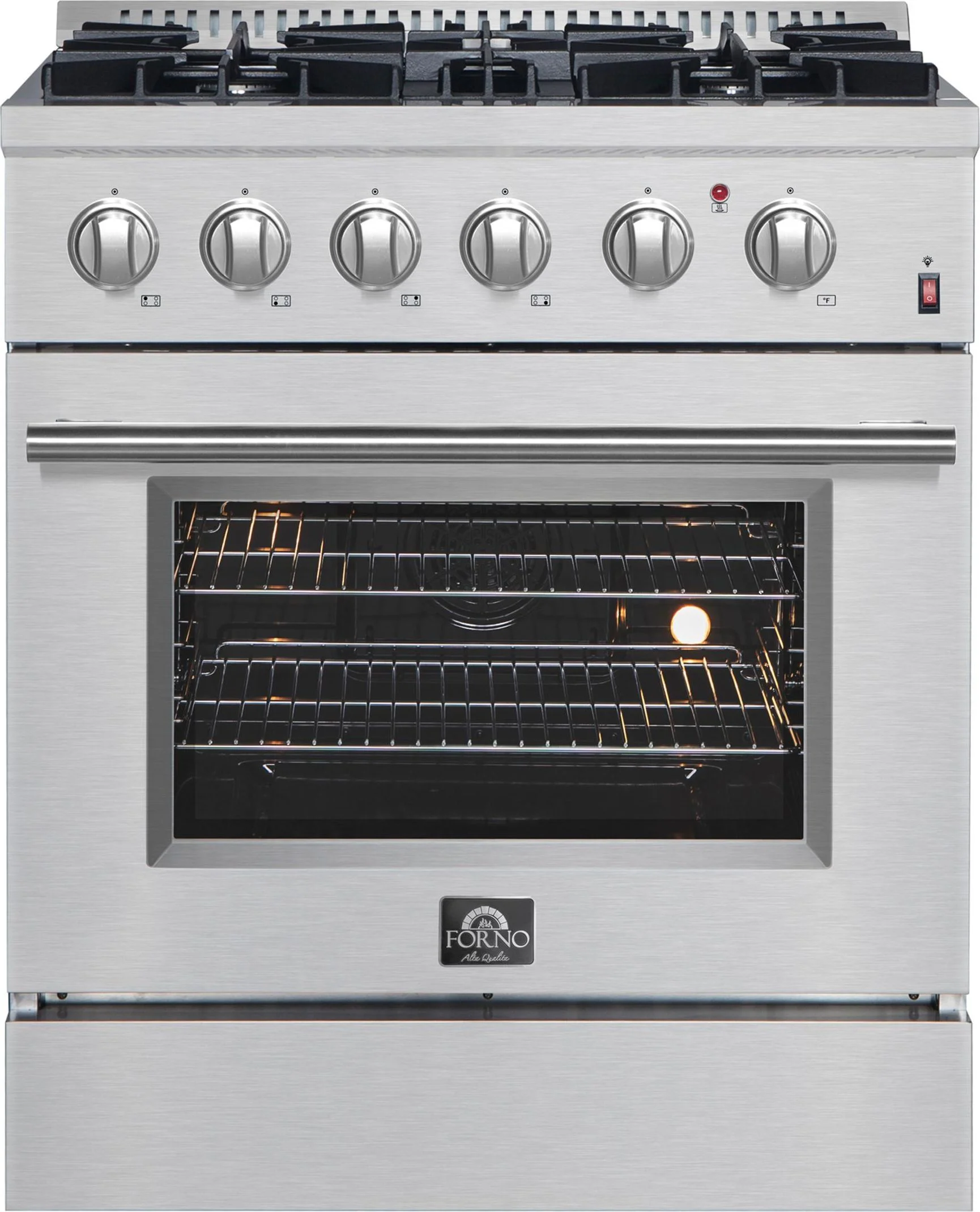

Forno 30" Freestanding Dual Fuel Range, 4.3 cu. ft. Capacity

Brand Name

FORNO

Collection Name

Alta Qualita

Product UPC

686136961783

Serie's Name

Marco

ADA Compliant

No

Adjustable Height

Yes

Air Fryer Basket

No

Antique Brass Kit

No

App Compatibility

No

App Monitoring

No

Auto Re-Ignition

Yes

Automatic Convection Conversion

No

Bake Element

Yes

Bluetooth Compatibility

No

Broiler

Dual Element

Broiler Location

Oven

Bulb Type

G9

Bulb Wattage

25.00

Burner Fuel

Gas

CEE Tier Qualified

Not rated

Carton Depth Box 1

29.5

Carton Height Box 1

43.5

Carton Weight Box 1 (LBS)

213

Carton Width Box 1

32

Carton includes a Export Pallet

Yes

Certificate of Conformity (GCC)

Does not apply

Circuit Breaker Amperage (A)

30

Clock

No

Color/Finish

Stainless Steel

Commercial Warranty

No

Control Location

Front of burner

Control Lockout

No

Control Panel Material

Stainless Steel

Control Type

Knobs

Convection Oven

Yes

Convection Type

True Convection

Cook time Option

No

Cooking Surface Control Type

Manual

Cooking Surface Ignition Type

Electronic

Cooktop Hot Surface Indicator

No

Cooktop Surface Structure

Grate; Deep Recessed

Country of origin

China

Cutout Depth (INCH)

25

Cutout Height (INCH)

36

Cutout Width (INCH)

30

Cutout dimensions W x D x H (inch)

30 x 25 x 36

Delay Start

No

Depth (no Door)

24.33

Depth To the Knobs (INCH)

28.00

Depth Without oven door

24.33

Depth with Door Open 90 (IN)

44.5

Display Screen

No Display

Door Colour/Finish

Stainless-Steel

Door Lock

No

Door Material

Glass; Stainless Steel

Door Panel Material

Stainless steel

Double Oven Structure

Does not apply

Dual-Ring Burner

No

Electric Heat Configuration (oven)

Radiant

Fingerprint-Resistant

No

Frequency (Hz)

60

Front Center BTU

0

Front Left BTU

9000

Front Left Center BTU

0

Front Right BTU

15000

Front Right Center BTU

0

Fuel Type

Gas

Gas Heat Configuration (cooktop)

Sealed Burner

Gas Type

Natural Gas

Hidden Bake Element

Yes

ISTA 6A

Yes

Illuminated knob

No

Installation Kit

No

Installation Type

Freestanding

Interior Finish Type

Black Enamel

Interior Light

Yes

Interior Light(s) Type

Halogen

Knobs Color/Finish

Zinc Coated

LP Kit Included

Yes

LP gas convertible

Yes

LTL or Parcel

LTL

Legs Height Adjustment (INCH)

1.00

Leveling Legs

yes

Light(s) Control

Oven light switch

Main Oven Bake Wattage

2000

Main Oven Broil Wattage

2800

Main Oven Capacity

4.32

Main Oven Function

Low Bake,Broil,Convection Bake,Convection Broil,Convection High Bake

Main Oven Interior Depth (IN)

16.00

Main Oven Interior Height (IN)

15.00

Main Oven Interior Width (IN)

23.00

Main Oven Outside Broil Wattage

1800

Main Oven Overall Wattage

3600

Main Oven True Convection Wattage

1500

Main Oven Type of Convection

Single Fan

Main Oven Usable Interior (W x D x H)

23x16x15

Main Oven inside Broil Wattage

1000

Main oven racks Size (W x D) (Inches)

24 x 15

Manufacturer Name

CTM Household Appliances INC.

Market

CANADA,USA

Maximum Counter Height (IN)

36.50

Middle Burner BTU

0

Minimum Counter Height (IN)

35.50

Model Number

FFSGS6197-30

Needs to be shipped on a pallet

No

Number of Box

1

Number of Burners/Cooking Zones

4

Number of Dual-Ring Burner

0

Number of Knobs

6

Number of Leveling legs

4

Number of Lights

2

Number of Oval Burner

0

Number of Ovens

1

Number of Power Cord

1

Number of Rack Positions

6

Number of Racks

2

Number of pallet

1

Oval Burner

No

Oven Fuel

Electic

Oven Ignition Type

Electronic

Oven Preheating Indicator

Yes

Oven Racks Type

Standard

Overall Bake Wattage

2000

Overall Broil Wattage

2800

Overall Oven Capacity (Cubic Feet)

4.32

Overall True Convection Wattage

1500

Plug included

Yes

Plug-in

Yes

Power Cord Included

Yes

Power Cord Length (ft)

5.00

Power Cord Location

Left Lower Back

Power Cord Plug Type

NEMA 14-50P

Primary Material

Steel

Product Depth (INCH)

29.00

Product Depth With Handle (IN)

29

Product Description (more detailed) <= 100 characters

Marco 30-inch Dual Fuel Range Stainless Steel, 4 Burners, 4.32 cu.ft. True Convection Oven

Product Description (more detailed) > 100 characters

Marco 30-inch Dual Fuel Range Stainless Steel, 4 Sealed Burners - 37,000 BTU, 4.32 cu.ft. True Convection Oven

Product Dimensions W x D x H (inches)

30 x 29 x 37

Product Height

37

Product Height With Backsplash (IN)

37.00

Product Name (Short & Sweet) < 36 Characters

Marco 30" Dual Fuel

Product Overall Weight (lbs)

174.40

Product Type

Dual Fuel Ranges 1 Oven

Product Width (IN)

30

Racks Material

Electroplated

Rear Center BTU

0

Rear Left BTU

9000

Rear Right BTU

4000

Rear Right Center BTU

0

Reversible Griddle

No

Rotisserie Kit

No

Sabbath Mode

No

Safety Listing

cETLus safety listing

Shipping Depth Box 1 (with pallet)

48

Shipping Height Box 1 (Height carton + 6-inch of the pallet)

49.5

Shipping Lenght Box 1 (with pallet)

48.00

Shipping Method

LTL

Shipping Weight Box 1 (Carton Weight + 35 lbs)

248

Shipping Width Box 1 (with pallet)

40

Smudge Resistant

No

Star-K Certified

Not rated

Storage Drawer

No

TAA Compliant

No

Temperature Gauge

No

Timer

No

Title 20 - California Regulation

Yes

Total Cooktop BTU Output

37000

UPLR Compliant

Yes

Volts

240

Warranty Script (English)

Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances.

Warranty Type

Limited

Warranty on Labor

2 years

Warranty on Parts

2 years

Wok Support

No

label

Forno Marco 30-Inch Dual Fuel Range, Stainless Steel, 4 Burners, 37,000 BTU, True Convection Oven, Energy Efficient

Product Depth (in)

29

Product Height (in)

37

Product Width (in)

30

Carton Weight Box 1 (lbs)

213.00

GTIN

00686136961783

EAN

0686136961783

UPC

686136961783

4 sealed burners with 37,000 BTU offer versatile cooking options

The range includes a versatile 4,000 BTU burner

Continuous Cast Iron Grates provide heat distribution

Total stove-top out of 37,000 BTU

Stove-top ranging from 4,000 to 15,000 BTU

Accommodate a 24" x 15" baking sheet

Features 4 sealed burners with a combined total output of 37,000 BTU, providing powerful and versatile cooking options

Stainless steel side panels allow for install at end of counter for long lasting beauty.

Legs can be adjusted to accommodate counter heights between 35.5 and 36.5 inches, ensuring a perfect fit in your kitchen

Experience peace of mind with FORNO products, backed by a 2-year warranty covering labor and parts. Our commitment ensures your satisfaction and confidence in the reliability of our appliances, delivering quality and performance you can trust.

The range includes a versatile 4,000 BTU burner ideal for delicate cooking tasks like simmering sauces, and a powerful 15,000 BTU burner perfect for rapid boiling and intense searing

Continuous Cast Iron Grates provide even heat distribution and stable cookware mobility

Deep recessed black enamel range top cavity contains spills for quick clean-ups

4.32 Cu.Ft. True Convection Fan Oven with a total of 6,300 watts of combined convection, baking, and broiling power.

Insulated Oven Door with a 3-Layer Glass Window and Smooth Friction Hinges

Features a sleek black enamel oven interior with two halogen lights for enhanced visibility and an easy-to-clean surface

Spacious oven racks can easily accommodate a 24" x 15" baking sheet, perfect for larger baking tasks.

Equipped with a professional-style handle and zinc-coated metal control knobs with bezel rings for enhanced durability and a sophisticated look
