Forno 36" Ducted Hood

Brand Name

FORNO

Collection Name

Alta Qualita

Product UPC

686136950916

Serie's Name

Biagio

ADA Compliant

No

Adjustable Height

No

Air Discharge Direction

Vertically Upward

Air Flow Speed 1

795

Air Flow Speed 2

765

Air Flow Speed 3

1020

Air Flow Speed 4

0

Backsplash Dimensions W x H (inch)

N/A

Backsplash Included

No

Blower Material

Metal

Bulb Type

GU10

Bulb Wattage

2.50

CEE Tier Qualified

Not Rated

CFM speed 1

350

CFM speed 2

450

CFM speed 3

600

CFM speed 4

0

Carton Depth Box 1 (Inch)

22

Carton Height Box 1 (Inch)

33

Carton Weight Box 1 (LBS)

99

Carton Width Box 1 (Inch)

41

Carton includes a Export Pallet

Yes

Certificate of Conformity (GCC)

No

Charcoal Filters

No

Chimney Extension Kit

No

Chimney Short Kit

No

Circuit Breaker Amperage (A)

15

Clean Filter Alert

No

Clock

No

Color/Finish

Stainless Steel

Commercial Warranty

No

Control Location

Front

Crown Molding

No

Cutout Depth (INCH)

11.97

Cutout Height (INCH)

18

Cutout Width (INCH)

35.63

Cutout dimensions W x D x H (inch)

35.63 x 11.97 x 18

Damper

Yes

Damper Size

8

Damper Type

8-in Round

Decibel Speed 1 (dB)

52.00

Decibel Speed 2 (dB)

56.00

Decibel Speed 3 (dB)

63.00

Decibel Speed 4 (dB)

0.00

Digital Display

Yes

Dimmable Lighting

Yes

Dishwasher Safe Filters

Yes

Display Type

LED

Duct Type

8-in Round

Duct length (inch)

59.50

ENERGY STAR Unique ID

0

Energy Policy Act 1992 Compliant

Yes

Energy Star Certified

No

Exhaust Vent Location

Top

File/Certification Number

4002621

Filter Material

Stainless Steel

Filter Type

Baffle

Fingerprint-Resistant

No

Hardware Finish

Stainless Steel

Heat Sensors

No

Heating Lamp Included

No

Heating Lamp Maximum Wattage

0

Heating Lamp Type

N/A

Heating Lamp Wattage

0.00

ISTA 6A

Yes

Installation Kit

Yes

Installation Type

Undercabinet,Wall Mounted

Light(s) Control

Knob activated

Lighting Color

White

Market

CANADA,USA

Maximum CFM

600

Maximum Decibel (dB)

63.00

Maximum Sones

7.00

Minimum CFM

350

Minimum Decibel (dB)

52.00

Minimum Height from Cooktop

25.00

Minimum Sones

3.00

Model Number

FRHWM5009-36

Motor(s) Power (Watts)

80

Needs to be shipped on a pallet

Yes

Number of Blower(s)

1

Number of Box

1

Number of Heating Lamp

N/A

Number of Lights

2

Number of exhaust Vent

1

Power Cord Included

Yes

Power Cord Length (ft)

4.00

Power Cord Location

Top

Power off Function

Yes

Power off Information

5 minutes

Primary Material

Steel

Product Depth (INCH)

24.00

Product Description (more detailed) <= 100 characters

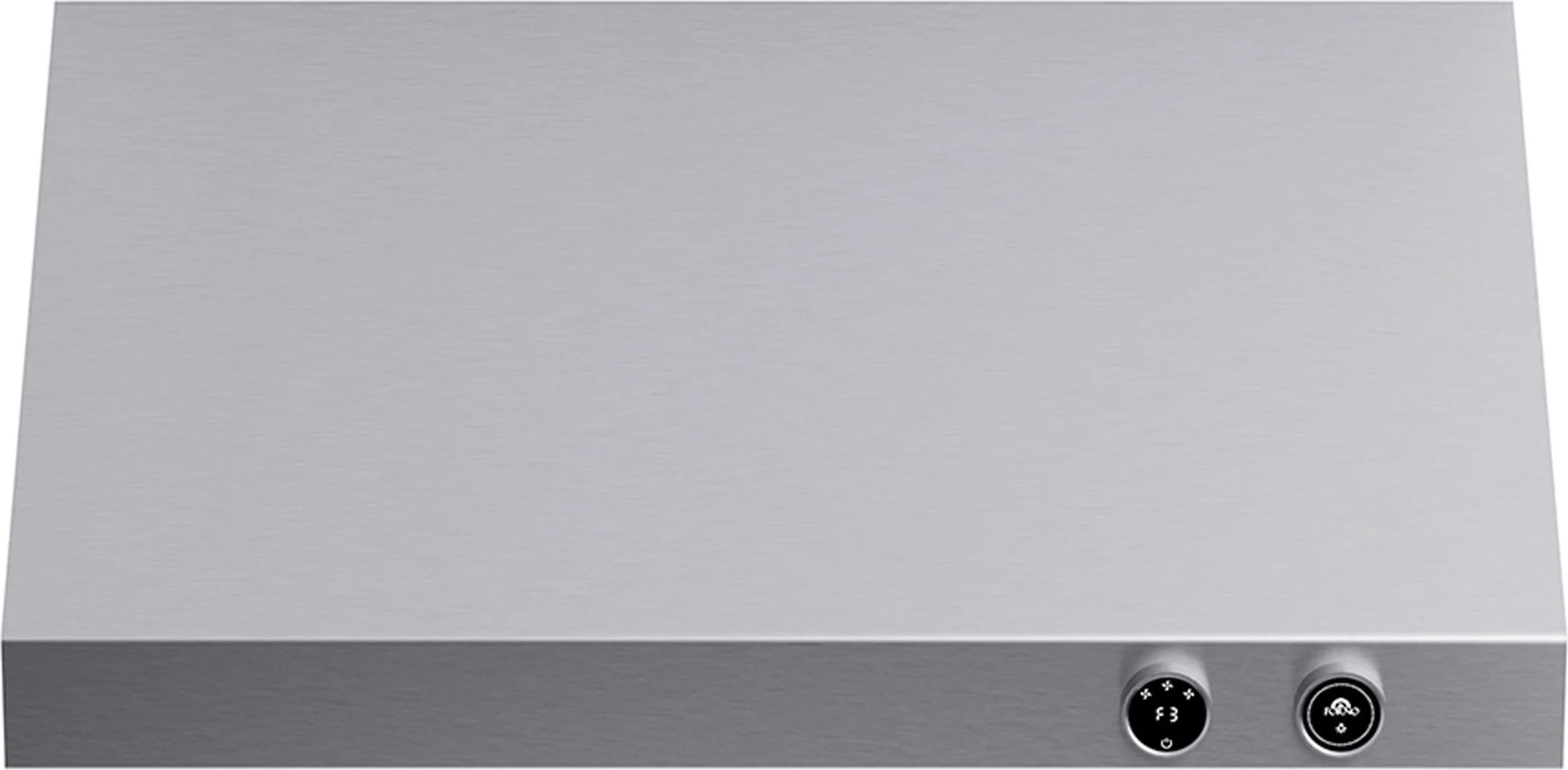

Forno Biagio 36" Wall Mounted Range Hood Stainless Steel, 600 CFM, Knob Control, Baffle Filter

Product Description (more detailed) > 100 characters

Forno Biagio 36" Wall Mounted Range Hood Stainless Steel, 600 CFM, Knob Control, Baffle Filter

Product Dimensions W x D x H (inches)

35.5x22x14.7

Product Height

18

Product Name (Short & Sweet) < 36 Characters

Biagio 36" Range Hood

Product Overall Weight (lbs)

66.00

Product Width (IN)

35.5

RPM Speed 1

500

RPM Speed 2

630

RPM Speed 3

800

RPM Speed 4

0

Range Hood Shape

Rectangle

Rangehood Chimney

No

Rated Power (W)

180

Remote Control

No

Removable Grease Filter

Yes

Required Assets

75.0

Reversible Blower

No

Running Amperage (A)

2

Sabbath Mode

No

Safety Listing

cETLus safety listing

Shipping Depth Box 1 (with pallet)

48

Shipping Height Box 1 (Height carton + 6-inch of the pallet)

39

Shipping Method

LTL

Shipping Weight Box 1 (Carton Weight + 35 lbs)

134

Shipping Width Box 1 (with pallet)

40

Smudge Resistant

Yes

Sones Speed 1

3.00

Sones Speed 2

4.00

Sones Speed 3

7.00

Sones Speed 4

0.00

Speed Control

3

Speed Control Type

Knob

Star-K Certified

Not Rated

TAA Compliant

No

Title 20 - California Regulation

Yes

UPLR Compliant

Yes

Vent Fan

Yes

Vent Location

Top

Vent Style

External

Vent Type

Ducted

Volts

120

Warming Shelves Dimensions W x D x H (inch)

N/A

Warming selve included

No

Warranty Script (English)

Experience peace of mind with FORNO products, backed by a 2-year warranty covering labor and parts. Our commitment ensures your satisfaction and confidence in the reliability of our appliances, delivering quality and performance you can trust.

Warranty Type

Limited

Warranty on Labor

2 Years

Warranty on Parts

2 Years

Wi-Fi Compatibility

No

label

Forno Biagio 36-Inch Wall Mounted Range Hood, Stainless Steel, Heavy Duty

GTIN

00686136950916

EAN

0686136950916

UPC

686136950916

Powerful Dual Motor 600 CFM

Optimized for 36" Cooktops

Heavy-Duty Baffle Filters

3-Speed Fan Control

Ducted Ventilation System

Sleek Stainless Steel Finish

Efficient Single Motor (600 CFM): Provides reliable ventilation for smoke, odors, and grease.

Power-Off Delay (5 min): Touch the power button once to activate a 5-minute delay; touch it again to turn off the range hood.

Versatile Installation: Suitable for wall-mounted or under-cabinet setups.

Dishwasher-Safe Baffle Filters: Just pop them in the dishwasher for hassle-free maintenance.

Optimized for 36" Cooktops: Ensures comprehensive steam and odor capture.

Heavy-Duty Baffle Filters: Traps grease effectively, easy to clean.

3-Speed Fan Control: Versatile settings for different cooking needs.

Quiet Operation: Operates at low noise levels.

Effortlessly adjust fan speed and lighting with intuitive knob controls for precise cooking.

Bright, dimmable LED lights provide clear, customizable visibility for a well-lit cooking experience.

Durable Stainless Steel: Resists stains, heat, and rust for lasting beauty.

Ducted Ventilation: Ensures efficient air expulsion during heavy cooking.
