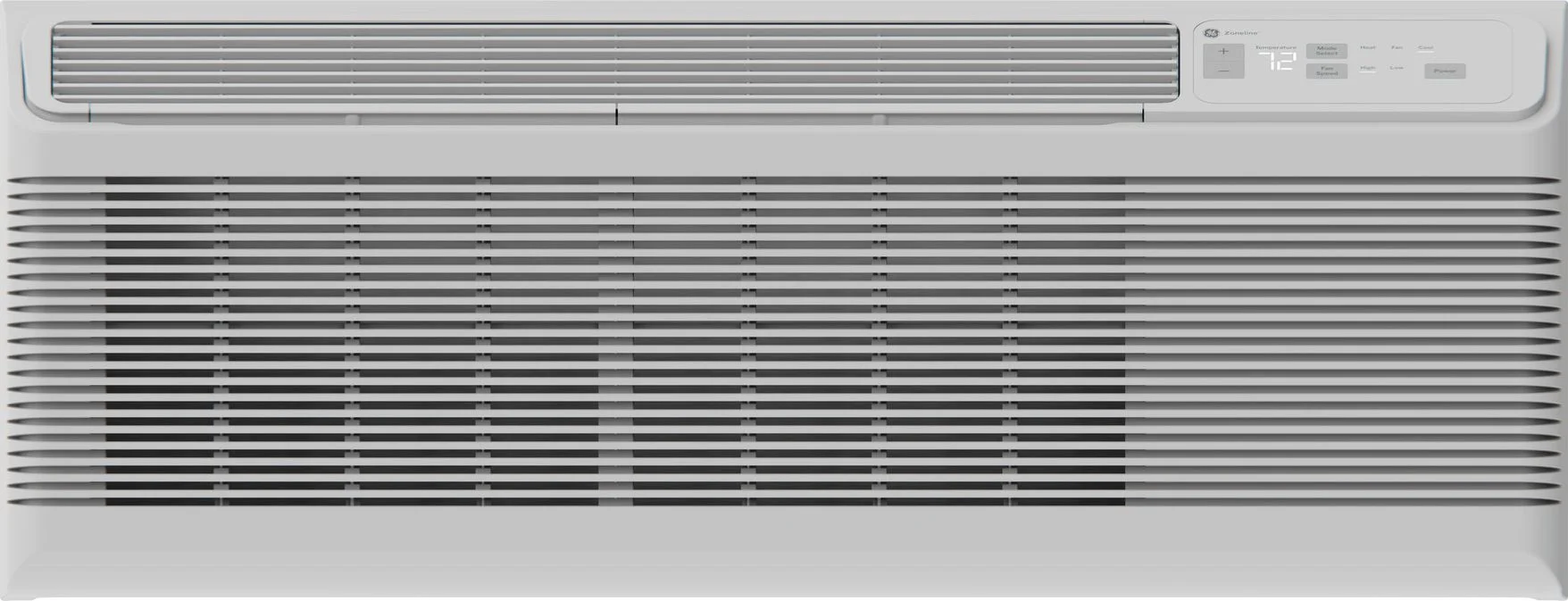

GE Zoneline(R) Heat Pump Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt in Gray On White

Name: GE AZHS12DCXXA Zoneline(R) Heat Pump Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt
Brand: GE
SKU: AZHS12DCXXA
Price: 1570.00 USD
Availability: InStock

SKU: AZHS12DCXXA

0 Questions & 0 Answers

Weight: 104.00 lbs
Width: 42.00"
Height: 16.00"
Depth: 20.81"
Cooling Capacity: 12100 BTU

Authorized

Dealer

In StockOnly 3 left

$1,570.00

Financing loading...

$39.25

)

color: Gray On White

Designed & Assembled in America

Estimates for:

Protect Your Item

2 Year $83.99

3 Year $131.99

4 Year $155.99

5 Year $195.99

Decline

30-Days Free Returns or Exchanges

PRODUCT DESCRIPTION

R454B - Most environmentally friendly refrigerant on the market
Heat pump down to 25(degree)F
Boost heat option
Electronic touch controls with LED display
Quiet Operation - baked on mastic sound barrier
Corrosion protection package
SMC basepan and bulkhead
Electronic temperature limiting
Fresh air vent
Designed & Assembled in America
Date of Manufacture - 2025 or later

Features

Designed & Assembled in America

Date of Manufacture - 2025 or later

capacity

7 items

CFM Indoor Fan Low

305

CFM Indoor Fan High

440

Cooling EER (BTUH / Watt)

11.6/11.6

Cooling BTUH (MIN)

11900 Btu

Cooling BTUH (MAX)

12100 Btu

Dehumidification (pts./hr.)

3.1 (High Speed)

Vent CFM (high fan at zero ESP)

43.2

appearance

1 item

Color Appearance

Grey White

warranty

3 items

Warranty Notes

See written warranty for full details

Parts Warranty

Limited 2-year entire appliance

Labor Warranty

Limited 1-year entire appliance
Limited 5-year sealed system

power / ratings

9 items

Heating - Reverse Cycle - Watts

835/815

Cooling - Amperes

4.7/5.1

Cooling - Watts

1035/1020

Heating BTUH

10600 / 10600

Heating - Electric - Heater Amps

3.7/3.5

Voltage (MAX)

230 V

Cooling - Amperes; L.R.

29.5

Cooling - Amperes; F.L. - Cooling

4.5/4.9

Voltage (MIN)

208 V

accessories

1 item

Accessories Required for Installation

Outdoor Grille
RAB42 - Wall Case

weights & dimensions

5 items

Overall Height

16 in

Overall Depth

20.8125 in

Net Weight

104 lb

Overall Width

42 in

Approximate Shipping Weight

114 lb

features

31 items

Louver Style

Reversible

Refrigerant Charge (oz.)

30.5

Sensible Heat Ratio

0.75

Power Factor

Product Type

Packaged Terminal Air Conditioners (PTAC)

Chassis Type

Slide-In

Temperature Limiting

Electronic 24-Step

Filter Type

Rigid Frame
Slide-Out

Fan Speed Control

Yes

Freeze Sentinel

Yes

Temperature Range

60 - 85 F

Heat Sentinel

Yes

Heat - Cool

Yes

Control Type

Standard Microcomputer
Tactile touch pad with LED Display

Electronic Micro Computer Control

Yes

Fan Cycle Switch

Yes

Central Desk Control Compatibility

Yes

Rotary Compressor

Yes

Manual Vent Control

Hidden

Heating - Reverse Cycle - COP

3.6/3.7

Venting Features

Concealed Manual Vent Control
Outdoor Vent Control - 3 Positions
Vent Air Filter

Heating System

Heat Pump With Backup Resistance Heat

Vent Control

3-position

Fan Motor

Zoneline Features

"Smart Fan" Fan Cycle Control
Auto Power Recovery
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Sentinel
Random Twist/Length Segment Tangential Blower
Remote Thermostat Compatibility
Universal Heaters

Fan Speed Selections

Hi/Low Cooling
Hi/Low Fan Only
Hi/Low Heating

Discharge Grille

2-position

Refrigerant Type

R454B

Heat Pump

Yes

Corrosion Treated

Yes

Designed & Assembled in America

GS1

3 items

GTIN

00084691942658

EAN

0084691942658

UPC

084691942658

Documents

Quick Specs

PDF

Accessory Guide

PDF

Use and Care Manual

PDF

Quick Reference Guide

PDF

Installation Instructions

PDF

Architect and Engineering Manual

PDF
