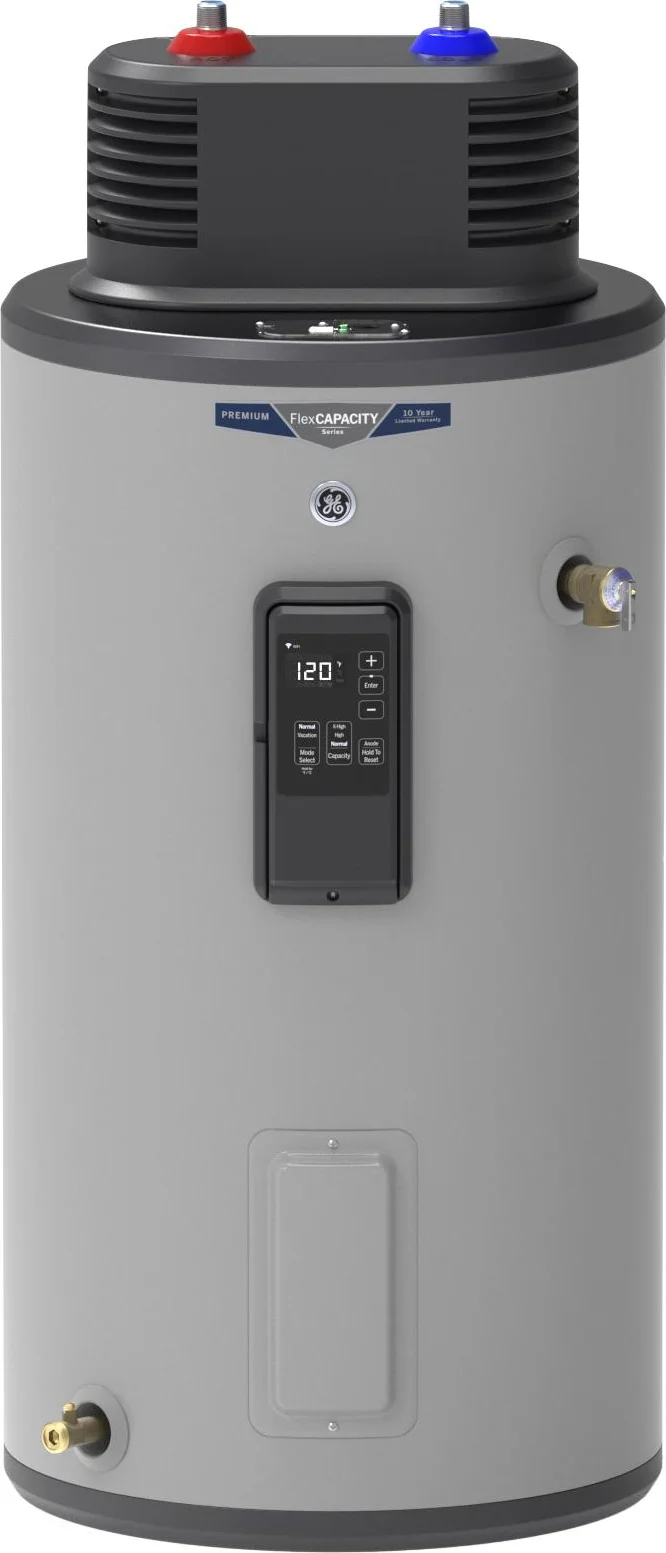

PRODUCT DESCRIPTION
Features
Real Capacity
Get the most hot showers from the only water heater that holds a true 30 gallons of water (Compared to 30 gallon electric steel tank water heaters per DOE rated gallon capacity)
Built-in WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Anode Sensing
Notifies you when your anode rod needs replacing to help extend the life of your tank
Flexible Capacity
Choose from three capacity settings to enjoy up to 60% additional hot water when you need it* *vs comparable water heaters without mixing valve at 120(degree)F set and 58(degree)F water temperature
Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion
Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Household Size
Provide hot water for the whole family up to 4 persons on X-High setting
Leading Performance
Live comfortably with this best in class unit that delivers 59 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Specifications
Unit Capacity
30 Gallons
Effective Capacity at X-High Setting (gallons)
48
Color Appearance
Gray
Integrated Energy Factor
0.92
Heating - Electric - Heater Watts
5500/5500
Electrical Connection
Direct-Wire
Operating Water Pressure
20-125 PSI
Element Type
Stainless Steel
Volts/Hertz
240V; 60Hz
First Hour Rate (FHR)
59 Gallons
Voltage (MAX)
240 V
Electrical Circuit Required
208V/240V 60 Hz Dedicated 30 Amp Min.
Warranty Notes
See written warranty for full details
Parts Warranty
10-year limited
Labor Warranty
1-year limited
Product Height (to top of water inlet/outlet connections)
49.875 in
Approximate Shipping Weight
121 lb
Overall Width
22 in
Overall Height
49.875 in
Product Height (to top of unit)
48.375 in
Net Weight
111 lb
Product Diameter
22 in
Overall Depth
22 in
Connection Sizes - Water Inlet (MNPT)
3/4"
Connection Sizes - Hot Water Outlet (MNPT)
3/4"
Control Type
Electronic with Digital Display
EcoBalance Compatible
Yes
Fuel Type
Electric
Configuration
Short
Operating Modes
Normal Vacation
Electronic, Integrated Mixing Valve
Yes
Drain Valve Type
Brass
Temperature Setting Factory Default
120(degree) F
Sensing Anode
Yes
Product Type
Electric Flexible Capacity
WiFi Connect
Built-In
Family Size
1-3 People 2-4 People 3-5 People
Water Connection Location
Top
Overheat Protection
Yes
Vacation Setting
Yes
Effective Capacity Settings
Normal/High/X-High Flexible Capacity
Diagnostic Feedback
Yes
Temperature Setting
100-140(degree) F Range
GTIN
00084691846543
EAN
0084691846543
UPC
084691846543
