PRODUCT DESCRIPTION
Features

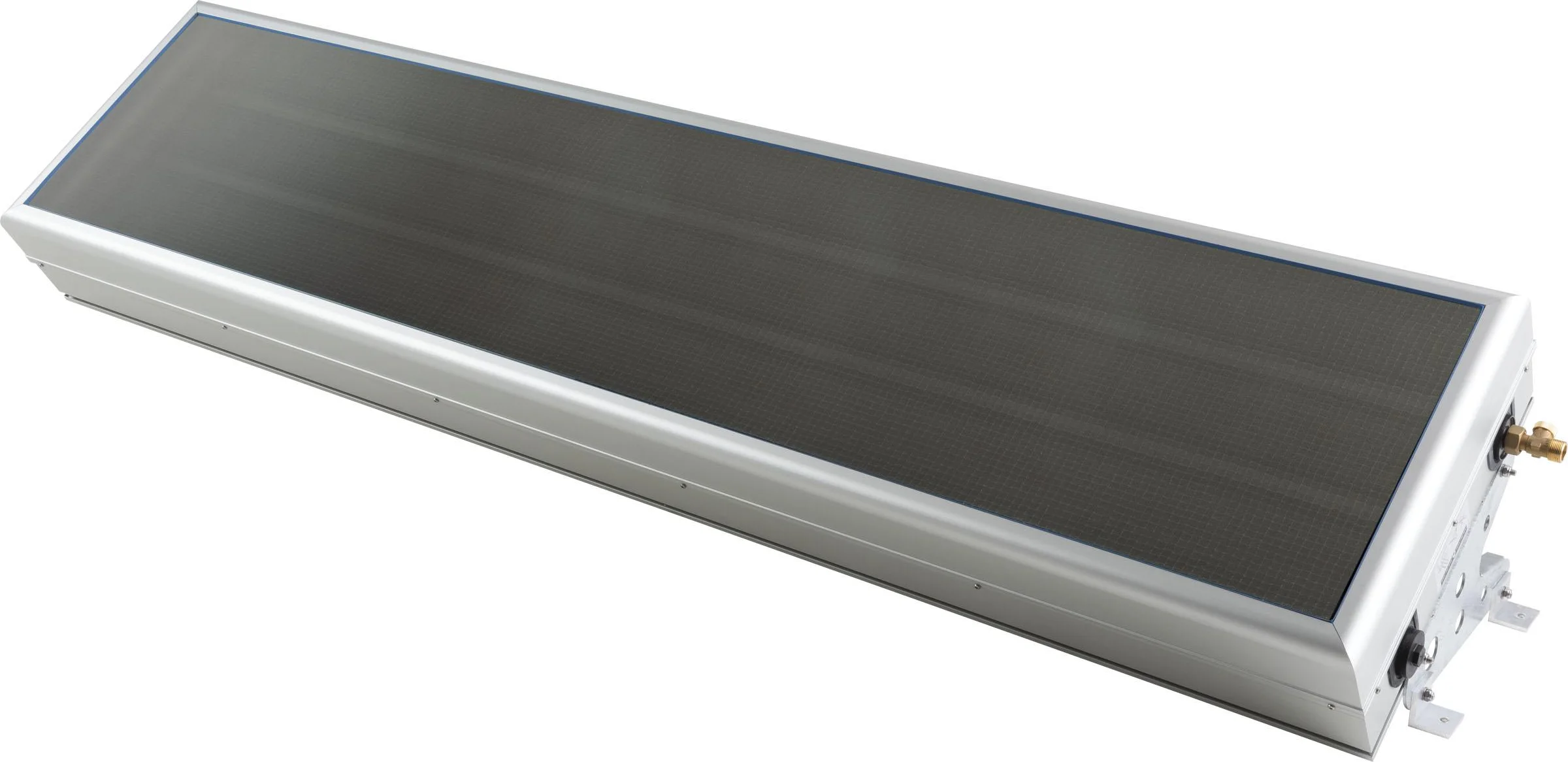

Solar glass
Water is efficiently heated in the integrated storage tank the moment sunlight hits the solar glass
Clear heat insulation
Totally transparent insulation delivers maximum heat retention
One-of-a-kind design for versatile installation
Accommodate any roof style with a unit that's easy to set up
Innovative frame
Aluminum profiles and rigid foam insulation at the sides and rear of the solar collector provide total durability
Internal tank coating
Resilient internal coating offers maximum corrosion resistance and trouble-free performance
Storage tank
Integrated into the solar collector, the tank maintains hot water temperatures even if the sun isn't shining. The pipes in the tank have a 24-gallon capacity rating, enough to satisfy the needs of the home
Serpentine system
Water is heated and stored directly in the solar collector, making hot water available as soon as it's heated by the sun
Specifications
Unit Capacity
24 Gallons
Color Appearance
Gray
Parts Warranty
10-year limited
Weight (with mount, with water) (lb)
281
Approximate Shipping Weight
88 lb
Collector outer dimensions (inches)
86x20x8
Net Weight
77.2 lb
Weight (with mount, no water) (lb)
83
Max height, mount 45/30 (inches)
19/17
Net Collector Area (ft )
10
Gross area (ft)
12
Max. operating pressure (psi)
60
Heat transfer medium
Water
Volume hot water storage tank (gal)
24
Thermal insulation - storage tank (inches)
1.2
Product Type
Solar
Collector Inclination Angle from horizontal (degrees)
10 to 75
Cold/hot water connections (inches)
3/4 MNPT
GTIN
00084691845959
EAN
0084691845959
UPC
084691845959
