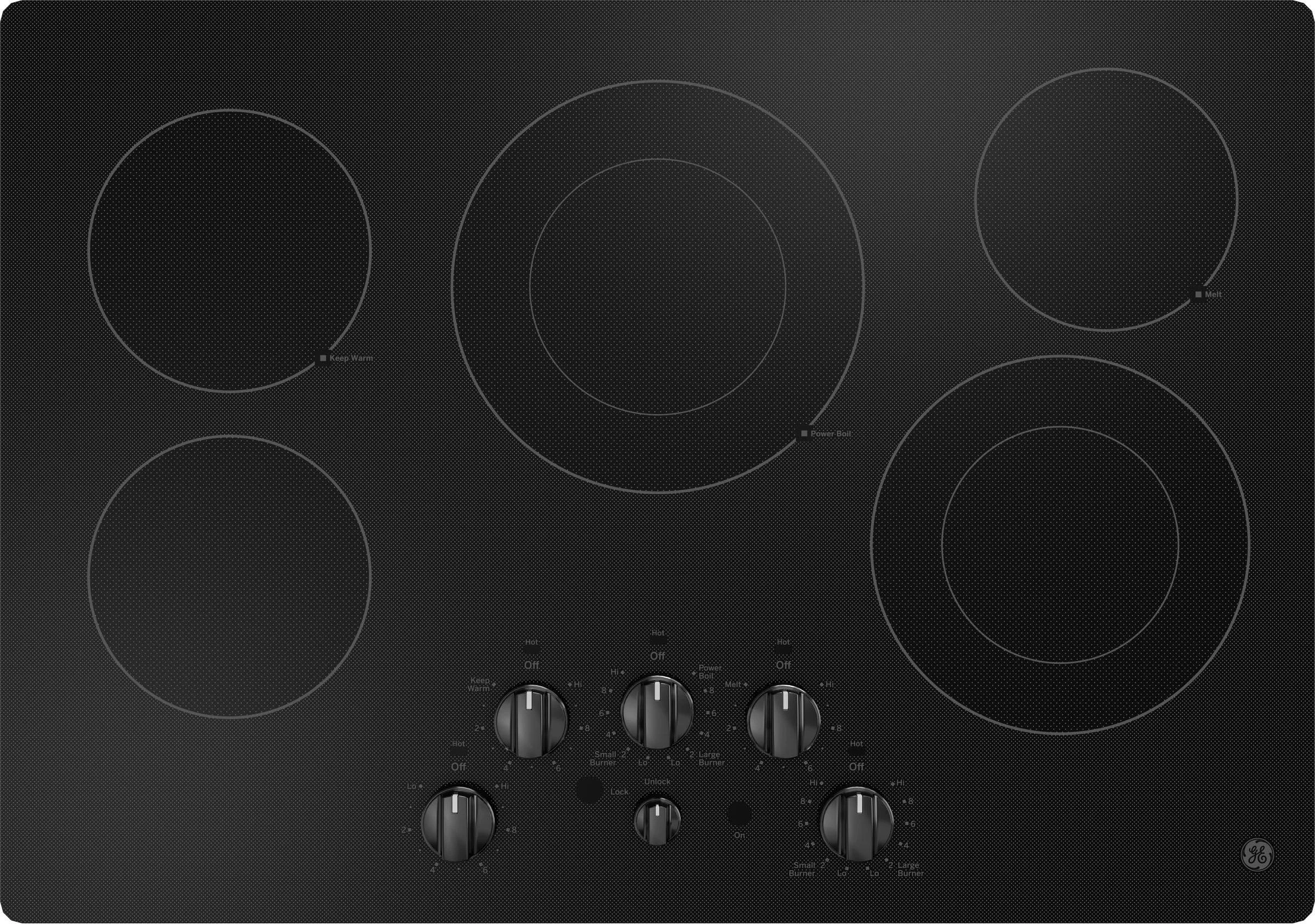

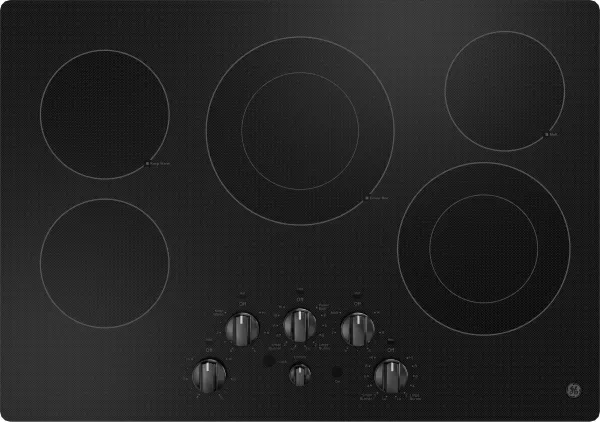

GE 30" Electric Cooktop, 5 Elements in Black

Color Appearance

Black

Frameless

Yes

Control Knobs

Gloss Black

Recommended Circuit Breaker (Amps) at 240V

40

Max. Connected Load (kW) at 240V

9.6

Max. Current Draw (Amps) at 240V

40.0

Max. Connected Load (kW) at 208V

7.2

Electrical Requirements

208/240V ; 60Hz ; 40A

Recommended Circuit Breaker (Amps) at 208V

40

Max. Current Draw (Amps) at 208V

34.6

Hertz

60

Parts Warranty

Limited 1-year entire appliance

Warranty Notes

See written warranty for full details

Labor Warranty

Limited 1-year entire appliance

Cooktop Size

30 in

Overall Height

3.25 in

Cutout Depth (in)

19 5/8 in

Cabinet Width

30 in

Approximate Shipping Weight

40 lb

Overall Width

29.75 in

Net Weight

35 lb

Cutout Width (in)

28.5

Overall Depth

21.375 in

Cutout Height (in)

4

Filler trim kit

JXTR32B (not included)

Cooktop Burner Type

5 Ribbon Smoothtop

Melt Setting

Yes

Fuel Type

Electric

Power Boil Burner

Yes

Element - Left Front

7" 1500W

Indicator Lights

5 Hot Surface Red Surface Element "ON"

Dual Ring Burners

Yes

Element - Right Front

8"/5" 2200W Dual-ring

Control Location

Front Center

Cooktop Type

Radiant Smoothtop

Cooktop Control Features

Keep-Warm Setting Melt Setting

Timer

Yes

Element - Left Rear

7" 1500W (Keep Warm)

Control Type

Knob (Infinite switch)

Element - Center

9"/6" 3100W Dual Ring Power Boil

Element - Right Rear

6" 1200W (Melt)

Product Type

Cooktop

Easy Clean Surface

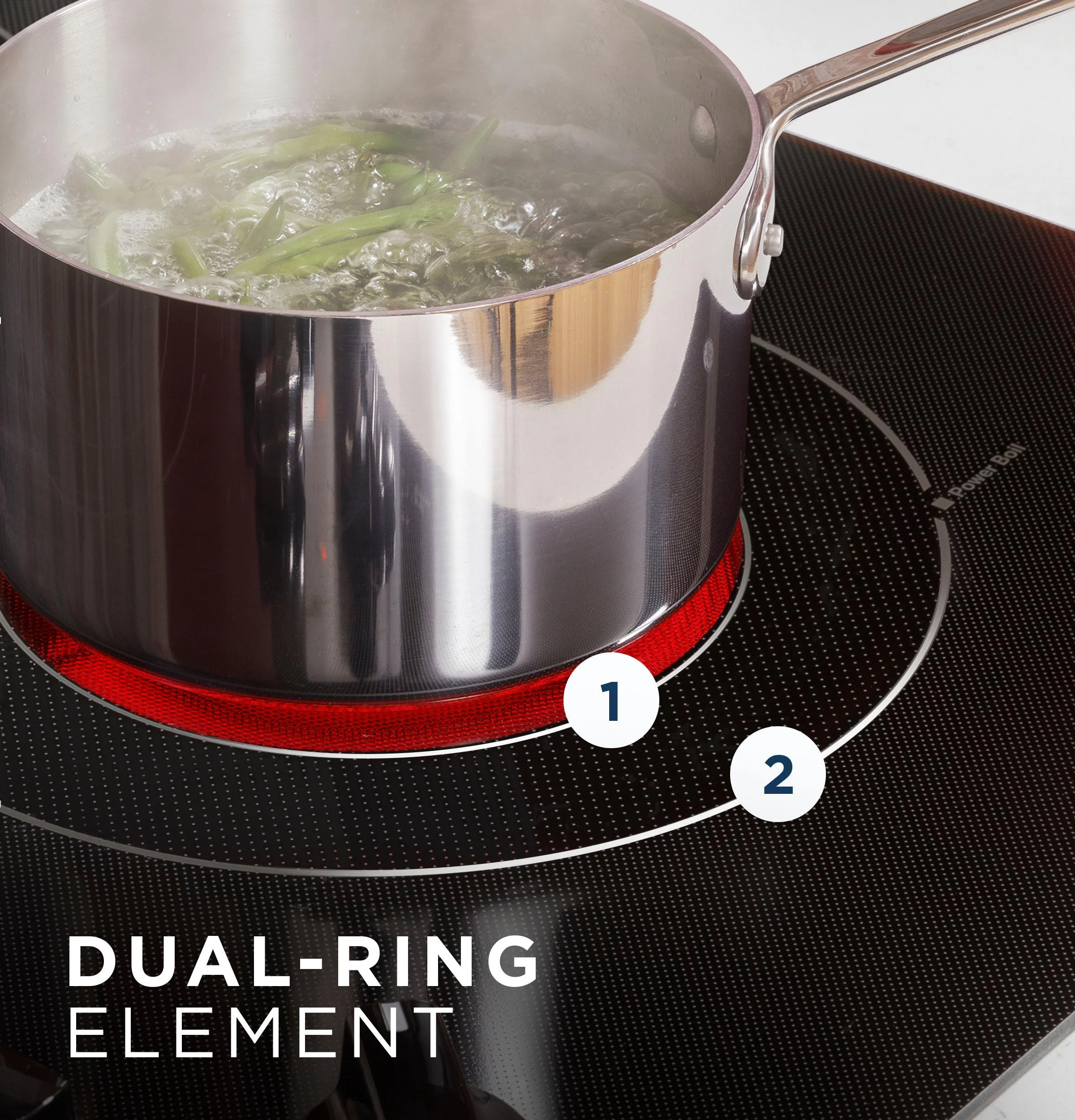

Power Boil on Dual-Ring Element (3,100W)

Additional Power Boil Dual-Ring Element (2,200W)

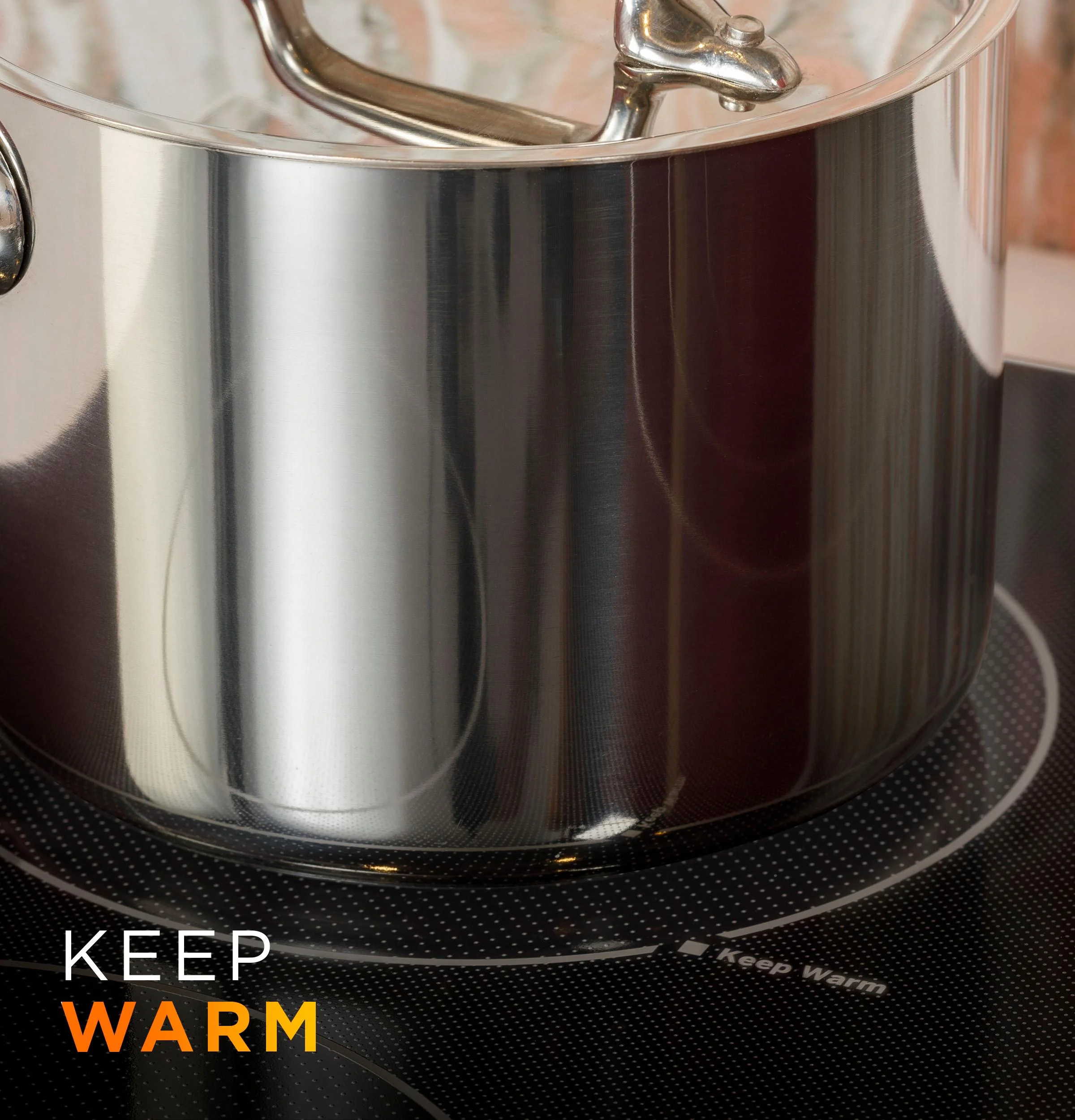

Keep Warm Setting

Control Lock

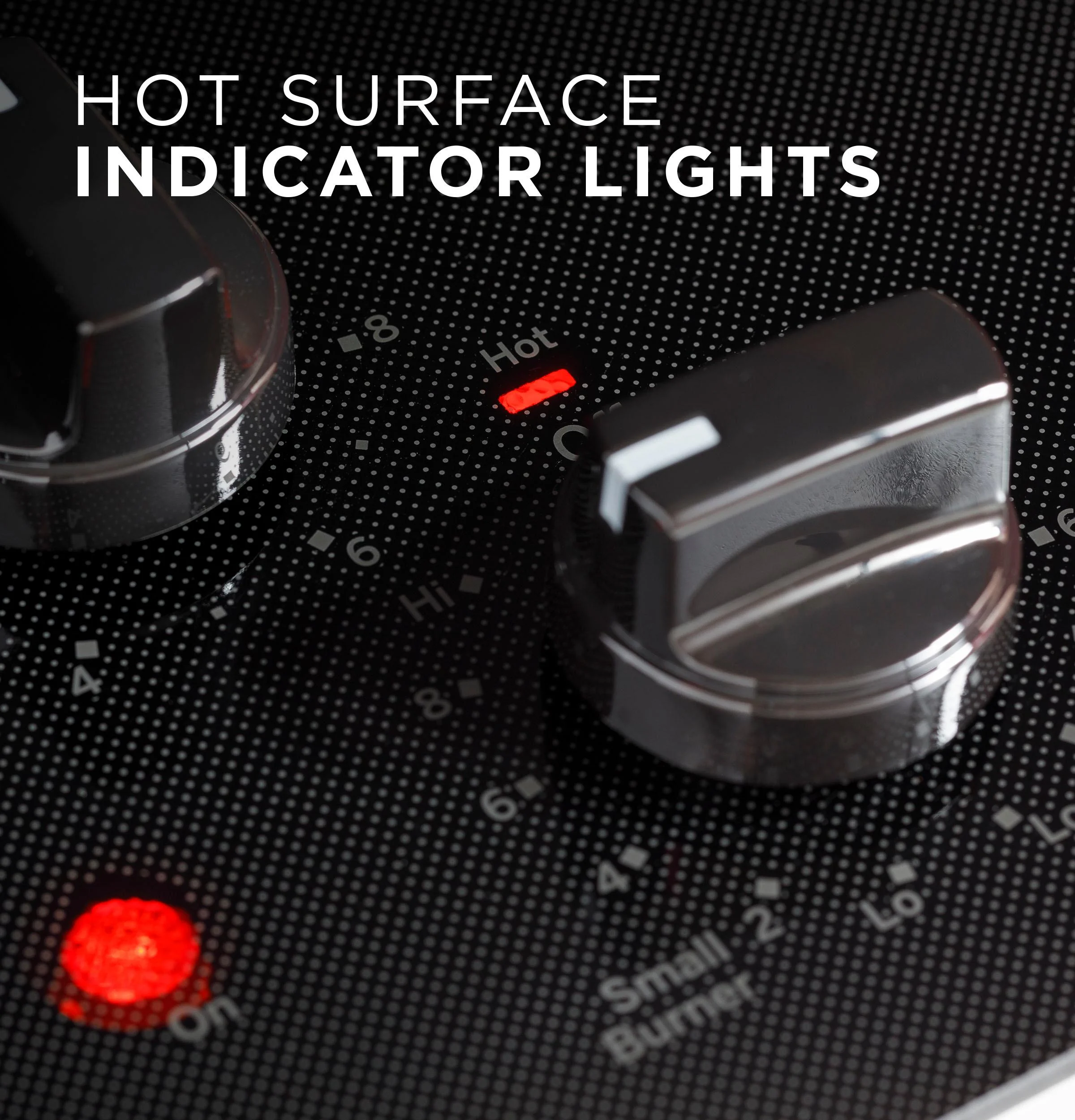

Hot Surface Indicator Lights

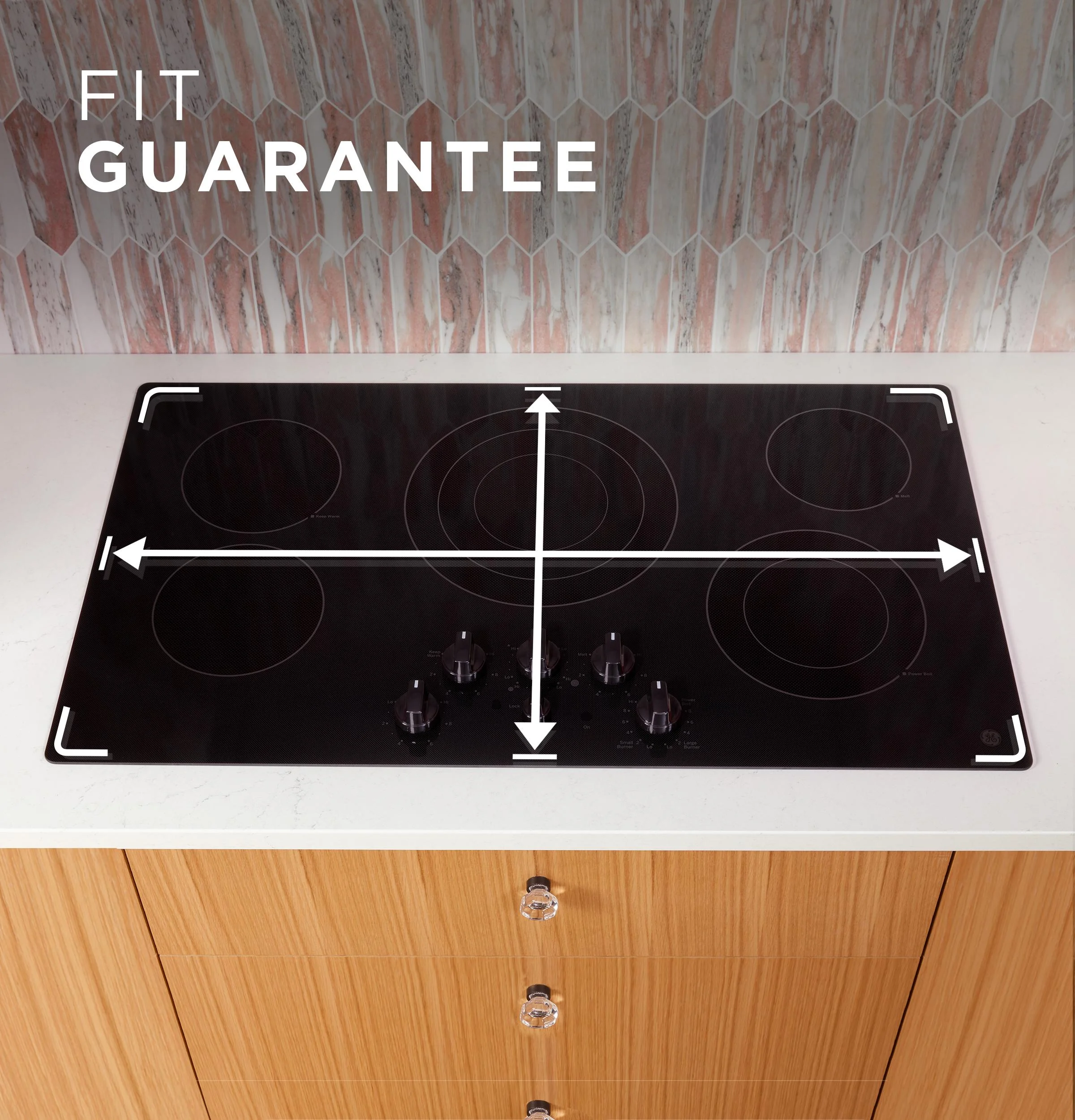

Fit Guarantee

Flexible Cooktop

GTIN

00084691897026

EAN

0084691897026

UPC

084691897026
