PRODUCT DESCRIPTION
Specifications
Door Panel Color
Custom Panel Required
Panel Capability
Integrated
Door Appearance

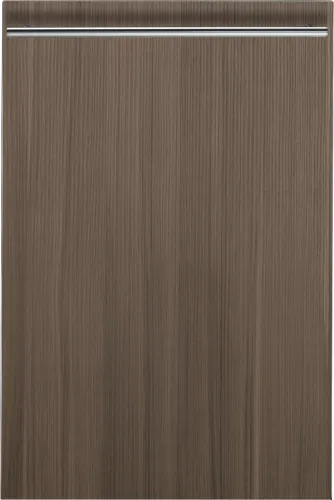

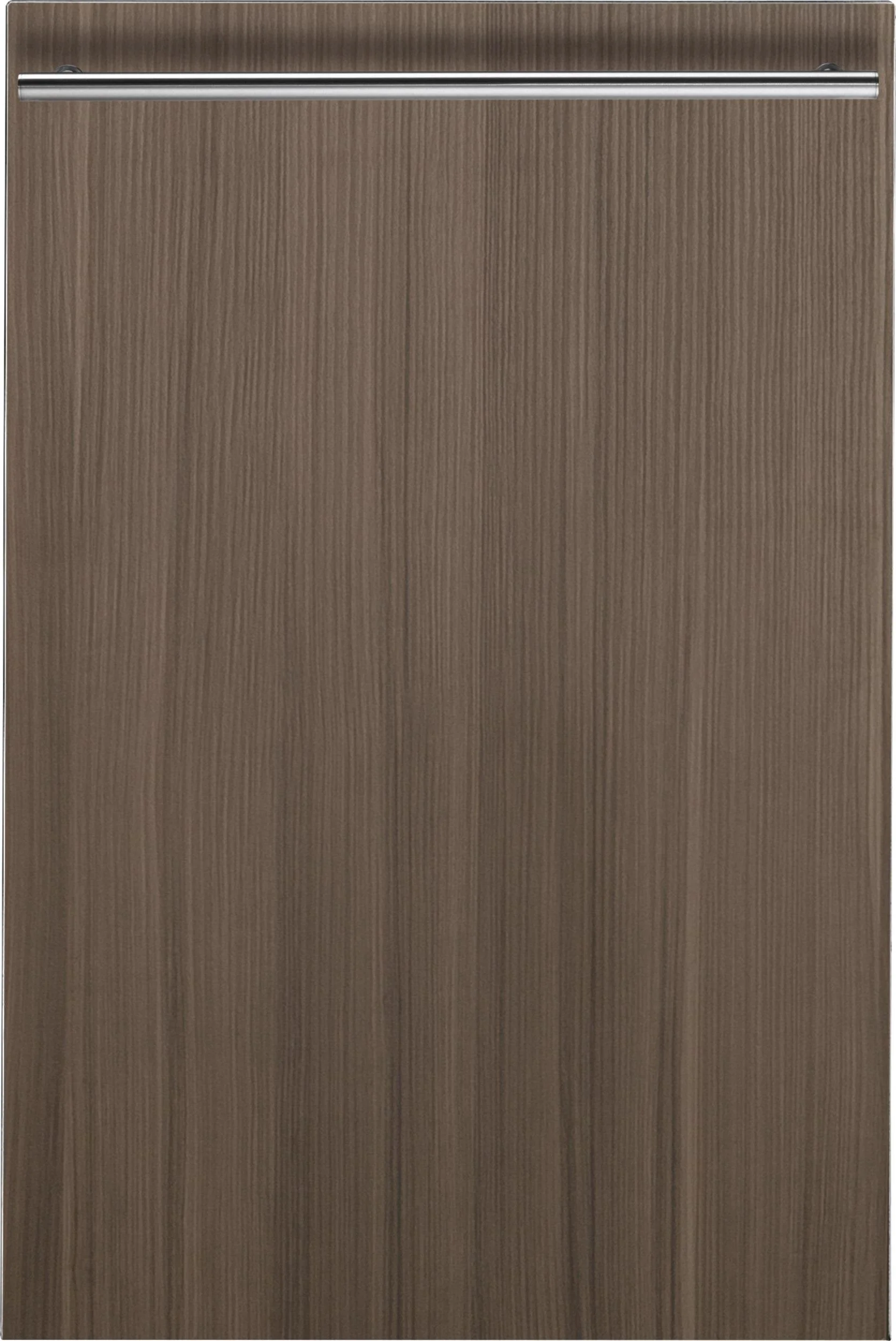

Fully integrated door for custom panels
Color Appearance
Custom Panel and Handle Required
Handle Design
Handle required
Design Style
European Stainless Steel
Power Connection
Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Energy Consumption (kWh/year)
240
Electrical Requirements
120V ; 60Hz ; 10A
Calrod Heater Watts
1100
Hertz
60
Watts
1200
Labor Warranty
Limited 2-year entire appliance
Warranty Notes
See written warranty for full details
Parts Warranty
Limited 2-year entire appliance
Door Insulation
Insulation Mastic
Quiet Package
47 dBA
Outer Wrap
U-Blanket
Motor Type
Single Speed
Quiet Features
Sealed Toe Kick Tub Collar Trim
Cabinet Depth
24 in
Height w/ Legs Retracted - Minimum Height
32.375 in
Cutout Height (in)
32 1/2 in
Cutout Width (in)
17 3/4 in
Overall Depth
23 in
Cabinet Width
18 in
Net Weight
71 lb
Overall Width
18 in
Approximate Shipping Weight
84 lb
Overall Height
32.375 in
Cutout Depth (in)
23.625 in
Height w/Legs Extended - Maximum Height
34.625 in
Depth with Door Open
23.125 in
Depth Without Handle
23 in
Wash System
3-Level Standard
Sensor
Clean Sensor
Lower Rack
1 Rack handle Nylon
Leveling System
Leveling Legs
OU Certified
No
Number of Place Settings
8
Custom Panel Ready
Integrated Panels
Dishwasher Options
Automatic Hot Start Child Lock Delay Start 1-12 Hr. Sani (Certified to NSF Standard 184) Start/Reset TempBoost
Latch
Pull with Handle
Number of Options
5
Style
Built-In Top Control
Water Filtration System
3-Stage Manual Clean Filtration
Rack Features
1 Piece Mid Silverware Basket w/ 1 Cell Cover 1 Plastic Utility Shelf - Upper Ball-Tipped Tines Fold-Down Tines - Lower
Racking Material
Nylon
Floor Protection
Yes
Dishwasher Cycles
AutoSense Heavy Wash Light Wash
Dispenser
Rinse Aid with Indicator and Adjustment
Control Type
4 Pushbuttons Fully Integrated Electronic Top Controls
Dishwasher Drying Features
Condensate Dry
Wash Arms
2 with Upper Nozzle
Wash System Features
Automatic HotStart Automatic Temperature Control Dual Pump Flood Control System Piranha(TM) Hard Food Disposer
Exterior Style
Custom Panel
Product Type
Built-In
Upper Rack
1 Rack handle Adjustable Nylon
Dishwasher Control Features
3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators Audible End-of-Cycle Signal Cycle Countdown Last Cycle Memory Start/Reset Pad
Number of Cycles
3
Tub and Door Liner
Stainless Steel
Sabbath Mode
Yes
Collection
EcoBalance
Custom Panel Model
Hidden, Integrated Electronic Controls
Three-Level Wash System
Nylon Gray Racks with Ball-Tipped Tines
Piranha(TM) Hard Food Disposer
47 dbA
GTIN
00084691931447
EAN
0084691931447
UPC
084691931447
Cabinet Depth
24 in
Height w/ Legs Retracted - Minimum Height
32.375 in
Cutout Height (in)
32 1/2 in
Cutout Width (in)
17 3/4 in
Overall Depth
23 in
Cabinet Width
18 in
Net Weight
71 lb
Overall Width
18 in
Approximate Shipping Weight
84 lb
Overall Height
32.375 in
Cutout Depth (in)
23.625 in
Height w/Legs Extended - Maximum Height
34.625 in
Depth with Door Open
23.125 in
