PACKAGES
PRODUCT DESCRIPTION
Specifications
Control Location
Front
Control Type
Knobs
Infinite Heat Controls
Yes
Ignition Type
Direct Spark Ignition
Number of Open Bays
N/A
Cooktop Surface Material
Stainless Steel
Digital Display
No
Griddle Included
Optional Accessory
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
ADA Compliant
ADA Height and Side Reach Compliant
UL
Yes
prop65
Standard
Power Cord Included
Yes
Width
36 in.
Height
3.69 in.
Length
21 in.
Weight
69 lbs.
Carton Depth
25
Carton Height
12 1/16
Carton Width
44 7/16
Cutout Depth (in)
19 15/16
Cutout Height (in)
5 1/4
Cutout Width (in)
34 1/2
Gross Weight
69
Maximum Height
4
Net Weight
0.0
Cutout Depth Max(IN,inches)
20.0000
Cutout Depth(IN,inches)
19.9375
Cutout Height(IN,inches)
5.2500
Cutout Width Max(IN,inches)
35.2500
Cutout Width(IN,inches)
34.5000
Maximum Height(IN,inches)
4.0000
Carton Depth(IN,inches)
25.0000
Carton Height(IN,inches)
12.0625
Carton Width(IN,inches)
44.4375
Cutout Height Min(IN,inches)
5.2500
Gross Weight(LB,pounds)
69
Number of Boxes
1
Shipping Width
41 in.
Shipping Height
8.69 in.
Shipping Length
26 in.
Shipping Weight
109 lbs.
Total of Shipping Weight
109 lbs.
Source
Calculation
Cubic Feet Measurement
1.61 ft³
Dimensional Weight
20.06 lbs.
Total of Cubes
1.61 ft³
Total of Dimensional Weight
20.06 lbs.
Automatic Pan Detection
No
Fuel Type
Gas
Installs Over Built-In Oven
Yes
LP Convertible
Yes - Kit Included
Power Outage Compatible
Yes
Cutout Depth
19.938
Cutout Depth Max
20
Cutout Height
5.25
Cutout Width
34.5
Cutout Width Max
35.25
carton depth
25
carton height
12.04
carton width
44.41
gross weight
69
net weight
0
Center Rear Element-Burner Power
19, 000 BTU
Center Rear Element-Burner Type
Dual
Cooktop Element Style
Sealed Burner
Cooktop Type
Standard
Left Front Element-Burner Power
9, 100 BTU
Left Front Element-Burner Type
Burner
Left Rear Element-Burner Power
9, 100 BTU
Left Rear Element-Burner Type
Burner
Number of Cooking Element-Burners
5
Power Boost
No
Right Front Element-Burner Power
12, 000 BTU
Right Front Element-Burner Type
Burner
Right Rear Element-Burner Power
5, 000 BTU
Right Rear Element-Burner Type
Simmer
Grate Details
Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Number of Grates
3
Downdraft Vent
No
Combination Match with Oven
KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
19,000 BTU Multiflame Burner

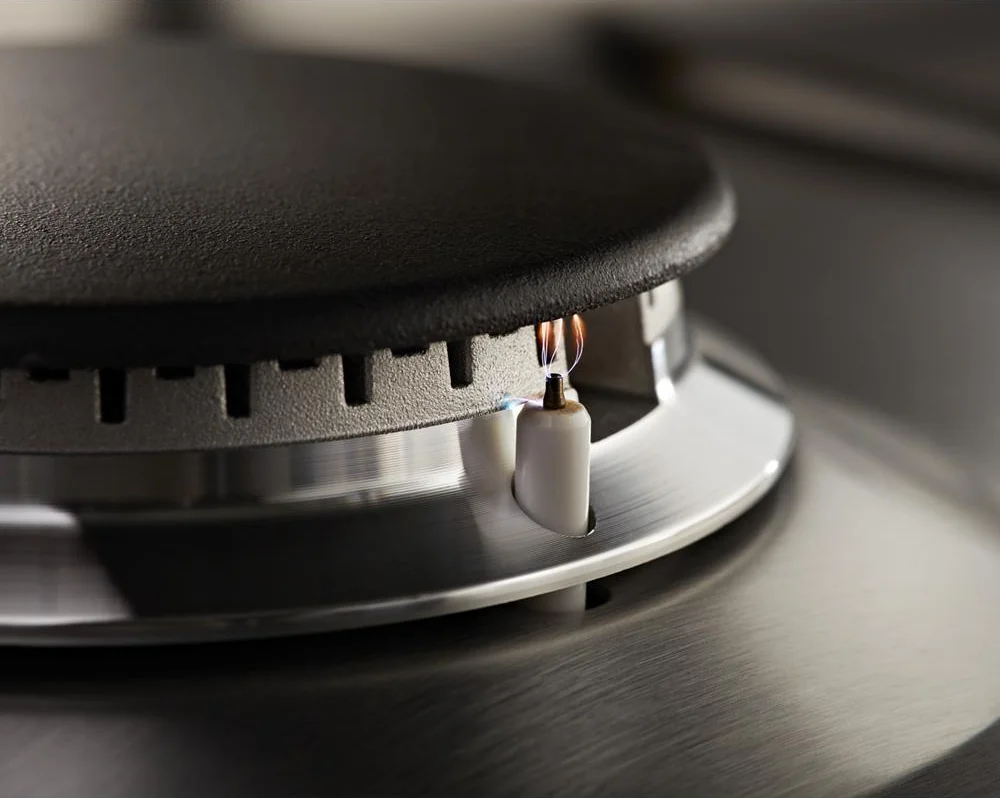

Electronic Ignition
Full-Width Cast-Iron Grates

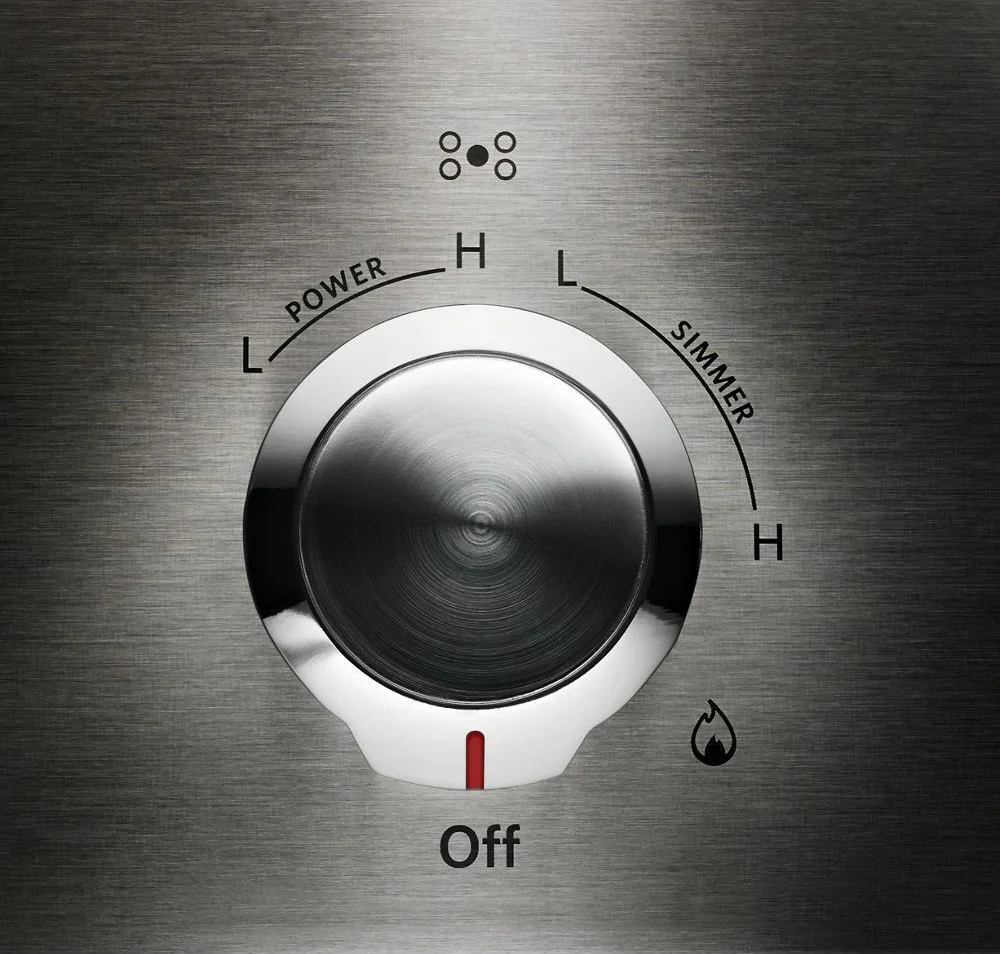

Multi-Finish Knobs
LP Conversion Kit
5,000 BTU Even-Heat™ Simmer Burner
UPC
883049330419
GTIN
00883049330419
EAN
0883049330419
Ada Compliant
ADA Height and Side Reach Compliant
Prop65
CA
Ul
Yes
Control Location
Front
Control Type
Knobs
Infinite Heat Controls
Yes
Cooktop Surface Color
Color Coordinated
Cooktop Surface Material
Stainless Steel
Digital Display
No
Griddle Included
Optional Accessory
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Ignition Type
Direct Spark Ignition
Number of Open Bays
N/A
Automatic Pan Detection
No
Fuel Type
Gas
Installs Over Built-in Oven
Yes
Lp Convertible
Yes - Kit Included
Power Outage Compatible
Yes
Product Height
3.6875
Carton Height
12.04
Gross Weight
69
Carton Width
44.41
Product Depth
21.0
Cutout Depth Max
20
Cutout Depth
19.938
Cutout Height
5.25
Carton Depth
25
Cutout Width
34.5
Cutout Width Max
35.25
Net Weight
0
Product Width
36.0
Power Cord Included
Yes
Center Rear Element-burner Power
19,000 BTU
Center Rear Element-burner Type
Dual
Cooktop Element Style
Sealed Burner
Cooktop Type
Standard
Left Front Element-burner Power
9,100 BTU
Left Front Element-burner Type
Burner
Left Rear Element-burner Power
9,100 BTU
Left Rear Element-burner Type
Burner
Number of Cooking Element-burners
5
Power Boost
No
Right Front Element-burner Power
12,000 BTU
Right Front Element-burner Type
Burner
Right Rear Element-burner Power
5,000 BTU
Right Rear Element-burner Type
Simmer
Knob Color
Stainless Steel
Knob Type
Metal
Combination Match With Oven
KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Cooktop Features
ADA Compliant; Even-Heat Melt Burner
Grate Details
Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Number of Grates
3
Downdraft Vent
No
