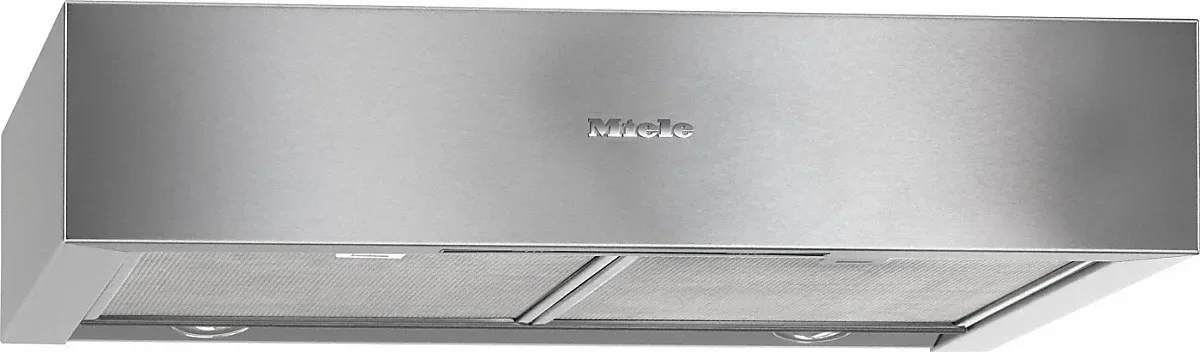

Miele DA 1260 Stainless steel - Built-under hood with energy-efficient LED lighting and sliding switch for simple operation. in Stainless Steel

Built-under ventilation hood

Yes

Color

Stainless steel

Recirculated mode

Can be retrofitted

OdorFree charcoal filter (order separately)

DKF 18-P

Recessed knob controls

Yes

Slide switch

Yes

Operation

Slide switch

Power levels (number excl. Intensive)

3

Booster levels

1

CleanCover

Yes

Easy-to-clean canopy interior - CleanCover

Yes

Number of dishwasher-safe stainless steel grease filters (10-ply)

2

Number x W

2 x 3 W

Light intensity in Lx

275 lx

Color temperature in K

3000 Kelvin

Single-action blower

Yes

Air throughput in CFM in Booster

220

Air throughput

Values upon request

Air throughput with Booster level 1 (m /h) according to EN 61591

320.19 (544)

Canopy width in in. (mm)

23 5/8 (598)

Canopy height in in. (mm)

5 (125)

Depth of hood canopy in in. (mm)

19 3/4 (500)

Minimum height above electric cooktops in mm

17 3/4 (450)

Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm

25 5/8 (650)

Net weight in lbs. (kg)

25 (11.2)

Length of electrical wire in ft. (m)

4 (1.5)

Standard plug fitted

Yes

Total connected load in kW

0.286

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

Vent connection at top

Yes

Diameter of vent connection in in. (mm)

6 (150)

Installation template

Yes

Non-return flap

Yes

Recirculation deflector

Yes

EAN

4002515882979

GTIN

04002515882979

EAN

4002515882979

Puristic design - space-saving solution 23 5/8 (598) in (mm) wide

Powerful - 320.19 (544) ft /min (m3/h) in Booster level

Efficient filtration- 10-ply stainless steel grease filters

Safe and easy to clean - Miele CleanCover

Suitable for every home - vented or recirculating

Manufactured with great care by Miele & Cie. KG

Safety information

Miele CleanCover

Stainless-steel grease filters (10-layer)
