PRODUCT DESCRIPTION
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Features
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Specifications

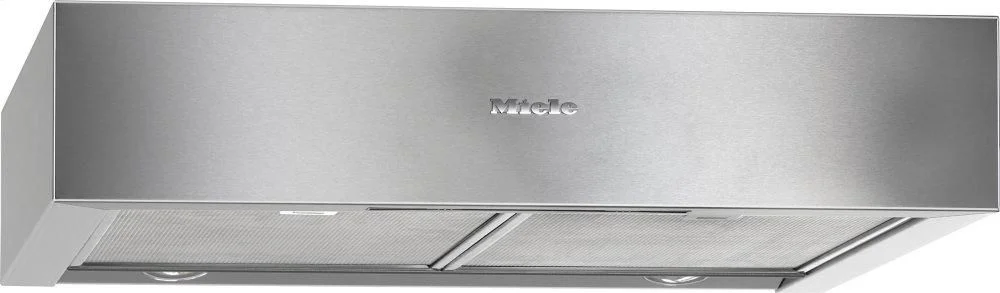

Built-under ventilation hood
•
Color
Stainless steel
Recirculated mode
Can be retrofitted
OdorFree charcoal filter (order separately)
DKF 18-P
Recessed knob controls
•
Slide switch
•
Operation
Slide switch
Power levels (number excl. Intensive)
3
Booster levels
1
CleanCover
Easy-to-clean CleanCover hood liner
•
Number of dishwasher-safe stainless-steel grease filters
2
LED ClearView lighting
•
Number x W
2 x 3 W
Light intensity in Lx
275 lx
Color temperature in K
3000 Kelvin
Single-action blower
•
AC motor
•
Maximum air throughput in cfm according to HVI
220
Air throughput
Values upon request
Canopy width in in. (mm)
23 5/8 (598)
Canopy height in in. (mm)
5 (125)
Depth of hood canopy in in. (mm)
19 3/4 (500)
Minimum distance above electric cooktops in in. (mm)
17 3/4 (450)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm
25 5/8 (650)
Net weight in lbs. (kg)
25 (11.2)
Length of electrical wire in ft. (m)
4 (1.5)
Standard plug fitted
•
Total connected load in kW
0.286
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
•
Diameter of vent connection in in. (mm)
6 (150)
Installation template
•
Non-return flap
•
Recirculation deflector
•
GTIN
04002515882979
EAN
4002515882979
Puristic design - space-saving solution 23 5/8 (598) in (mm) wide
Powerful - in Booster level
Efficient filtration- 10-ply stainless steel grease filters
Safe and easy to clean - Miele CleanCover
Suitable for every home - vented or recirculating
Miele CleanCover
Stainless-steel grease filters (10-layer)
