PRODUCT DESCRIPTION
Features
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Delayed shutdown
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Specifications

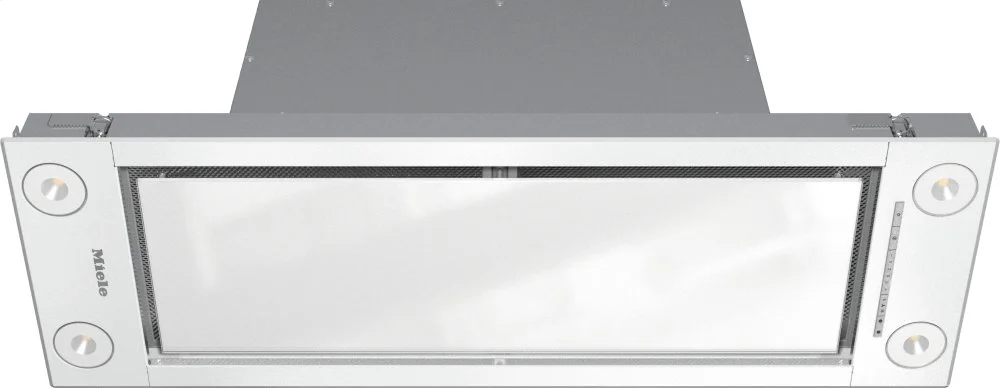

Insert ventilation extractor
Color
Brilliant white
Edge extraction
Recirculated mode
Can be retrofitted
OdorFree charcoal filter (order separately)
DKF 19-P
Miele@home
Automatic function Con@ctivity
Electronic controls
Operation
Light-touch switches with LEDs
Power levels (number excl. Intensive)
3
Booster levels
1
Programmable Intensive switch-off
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
Active charcoal filter saturation indicator
CleanCover
Easy-to-clean CleanCover hood liner
Number of dishwasher-safe stainless-steel grease filters
2
LED ClearView lighting
Number x W
4 x 3 W
Light intensity in Lx
650 lx
Color temperature in K
3500 Kelvin
Light dimmer function
Dual-action blower
AC motor
Maximum air throughput in cfm according to HVI
401
Air throughput
Values upon request
Safety shut-off
Single-ply safety glass (ESG)
Canopy width in in. (mm)
34 3/4 (880)
Canopy height in in. (mm)
2 1/2 (63)
Depth of hood canopy in in. (mm)
11 5/8 (293)
Minimum distance above electric cooktops in in. (mm)
24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
31 (14.0)
Length of electrical wire in ft. (m)
4 (1.5)
Standard plug fitted
Total connected load in kW
0.363
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
Vent connection at top and rear
Diameter of vent connection in in. (mm)
6 (150)
Non-return flap
Communication module for Con@ctivity XKM 2000 DA
XKS 3000 Z
GTIN
04002516023876
EAN
4002516023876
Customized kitchen design - fully integrated in 34 3/4 (880) in (mm) width
Unique user convenience - Con@ctivity
Energy-efficient and quiet
Elegant and efficient - edge vented panel
Safety turn off
Delayed shutdown
Stainless-steel grease filters (10-layer)
Con@ctivity
Miele CleanCover
Edge vented
filter saturation indicator
