PRODUCT DESCRIPTION
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Powerful and economical: The DC motor saves up to 50% electricity compared with conventional motors.
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
Features
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Delayed shutdown
Economy-Motor
Powerful and economical: The DC motor saves up to 50% electricity compared with conventional motors.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Specifications

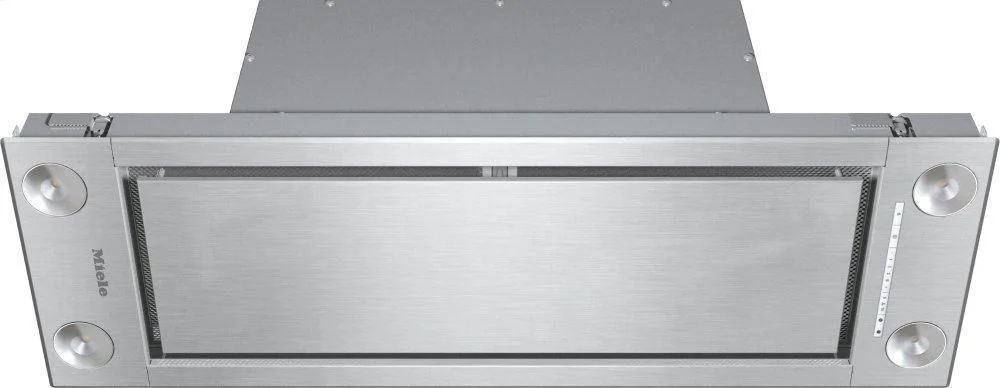

Insert ventilation extractor
•
Color
Stainless steel
Edge extraction
•
Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUU 151
OdorFree charcoal filter (order separately)
DKF 19-P
Miele@home
•
Automatic function Con@ctivity
•
Electronic controls
•
Operation
Light-touch switches with LEDs
Power levels (number excl. Intensive)
3
Booster levels
1
Programmable Intensive switch-off
•
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
•
Active charcoal filter saturation indicator
•
CleanCover
PowerManagement system
Easy-to-clean CleanCover hood liner
•
Number of dishwasher-safe stainless-steel grease filters
2
LED ClearView lighting
•
Number x W
4 x 3 W
Light intensity in Lx
650 lx
Color temperature in K
3500 Kelvin
Light dimmer function
•
Dual-action blower
•
DC motor
•
Maximum air throughput in cfm according to HVI
401
Air throughput
Values upon request
Safety shut-off
•
Canopy width in in. (mm)
34 3/4 (880)
Canopy height in in. (mm)
2 1/2 (63)
Depth of hood canopy in in. (mm)
11 5/8 (293)
Minimum distance above electric cooktops in in. (mm)
24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
31 (14.0)
Length of electrical wire in ft. (m)
4 (1.5)
Standard plug fitted
•
Total connected load in kW
0.36
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
•
Vent connection at top and rear
•
Diameter of vent connection in in. (mm)
6 (150)
Non-return flap
•
Communication module for Con@ctivity XKM 2000 DA
XKS 3000 Z
GTIN
04002516023906
EAN
4002516023906
Customized kitchen design - fully integrated in 34 3/4 (880) in (mm) width
Unique user convenience - Con@ctivity
Powerful - in Booster level
Energy-efficient and quiet
Elegant and efficient - edge vented panel
Economy-Motor
Stainless-steel grease filters (10-layer)
Miele CleanCover
Con@ctivity
Delayed shutdown
filter saturation indicator
Edge vented
Safety turn off
