PRODUCT DESCRIPTION
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Features
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Specifications

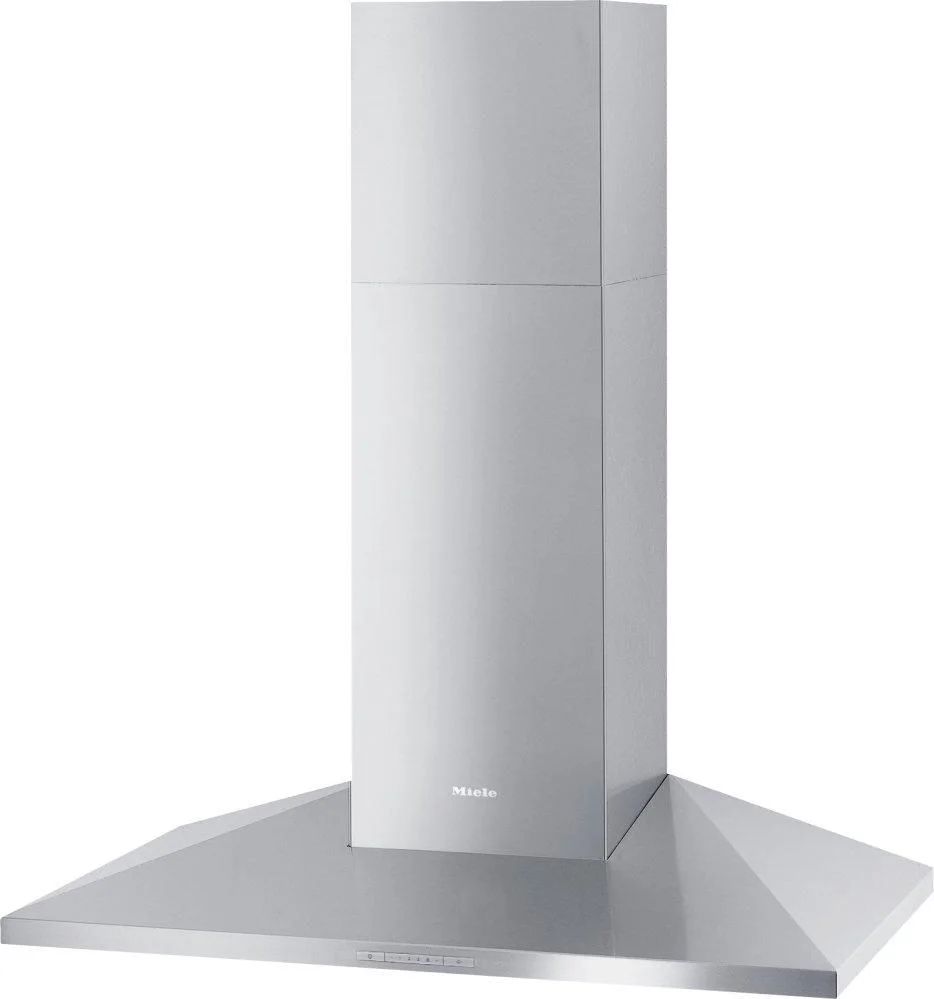

Wall ventilation hood
•
Color
Stainless steel
Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUW 20
OdorFree charcoal filter (order separately)
DKF 12-P
Electronic controls
•
Operation
Light-touch switches with LEDs
Power levels (number excl. Intensive)
3
Booster levels
1
Programmable Intensive switch-off
•
CleanCover
Easy-to-clean CleanCover hood liner
•
Number of dishwasher-safe stainless-steel grease filters
3
LED ClearView lighting
•
Number x W
2 x 3 W
Light intensity in Lx
300 lx
Color temperature in K
3000 Kelvin
Dual-action blower
•
AC motor
•
Maximum air throughput in cfm according to HVI
418
Air throughput
Values upon request
Safety shut-off
•
Overall min. height for vented and external in in. (mm)
27 3/8 (695)
Overall max. height for vented and external in in. (mm)
40 (1015)
Overall min. height for recirculation in in. (mm)
32 1/2 (825)
Overall max. height for recirculation in in. (mm)
45 1/8 (1145)
Canopy width in in. (mm)
35 3/8 (898)
Canopy height in in. (mm)
4 3/4 (120)
Depth of hood canopy in in. (mm)
20 1/2 (520)
Minimum distance above electric cooktops in in. (mm)
24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
58 (26.0)
Length of electrical wire in ft. (m)
4 (1.5)
Standard plug fitted
•
Total connected load in kW
0.356
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
•
Vent connection at top and rear
•
Diameter of vent connection in in. (mm)
6 (150)
Telescopic chimney
•
Non-return flap
•
GTIN
04002515802199
EAN
4002515802199
Design - 35 3/8 (898) in (mm) wide trapezoidal canopy
Powerful - in Booster level
Efficient filtration- 10-ply stainless steel grease filters
Safe and easy to clean - Miele CleanCover
For perfect functionality - accessories for proper venting
Stainless-steel grease filters (10-layer)
Miele CleanCover
Safety turn off
