PRODUCT DESCRIPTION
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Features
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Delayed shutdown
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Silence
Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Specifications

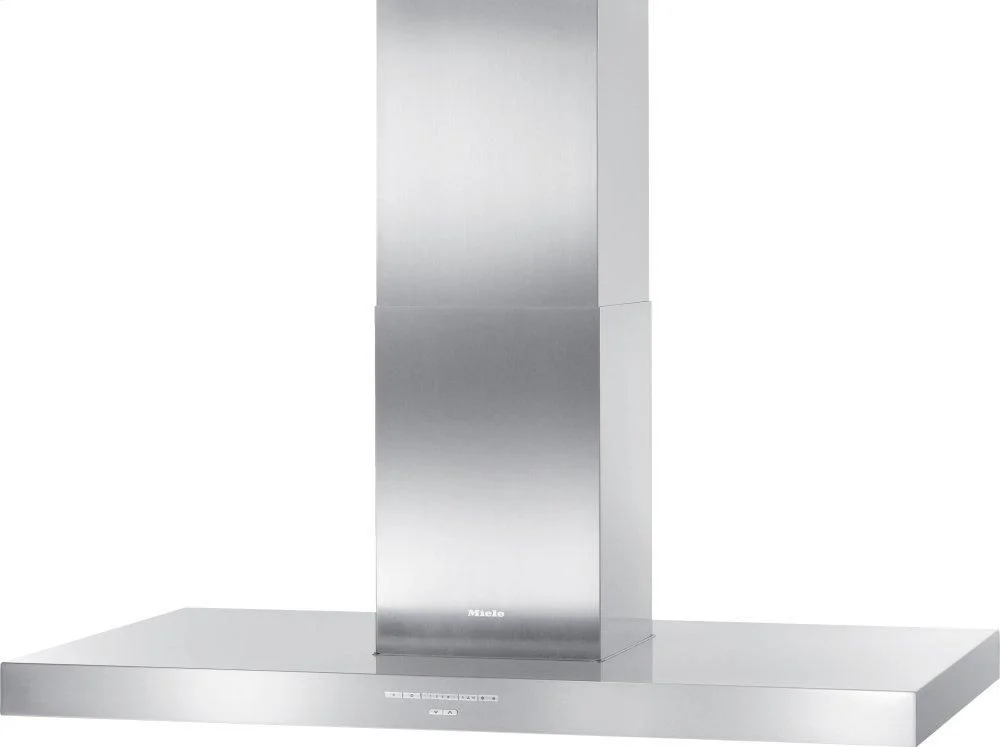

Island ventilation hood
•
Color
Stainless steel
Recirculated mode
Exhaust air
Miele@home
•
Automatic function Con@ctivity
•
Electronic controls
•
Operation
Light-touch switches with LEDs
Power levels (number excl. Intensive)
3
Booster levels
1
Programmable Intensive switch-off
•
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
•
Acoustic package
Hood in Motion
•
CleanCover
Easy-to-clean CleanCover hood liner
•
Number of dishwasher-safe stainless-steel grease filters
6
LED ClearView lighting
•
Number x W
4 x 3 W
Light intensity in Lx
600 lx
Color temperature in K
3500 Kelvin
Light dimmer function
•
Dual-action blower
•
AC motor
•
Maximum air throughput in cfm according to HVI
430
Air throughput
Values upon request
Safety shut-off
•
Overall hood height for vented mode and external in inches (mm)
29 3/4 (755)-41 1/4 (1045)
Overall min. height for vented and external in in. (mm)
29 3/4 (755)
Overall max. height for vented and external in in. (mm)
41 1/4 (1045)
Canopy width in in. (mm)
47 1/4 (1198)
Canopy height in in. (mm)
2 7/8 (70)
Depth of hood canopy in in. (mm)
27 1/2 (698)
Minimum distance above electric cooktops in in. (mm)
24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
109 (49.0)
Hard-wired
•
Total connected load in kW
0.512
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
•
Diameter of vent connection in in. (mm)
6 (150)
Telescopic chimney
•
Non-return flap
•
Communication module for Con@ctivity XKM 2000 DA
XKS 3000 Z
GTIN
04002515990162
EAN
4002515990162
Timeless design - stainless steel canopy 47 1/4 (1198) in (mm) wide
Unique user convenience - Con@ctivity
Motorized chimney
Powerful - in Booster level
Energy-efficient and quiet
Delayed shutdown
Miele CleanCover
Stainless-steel grease filters (10-layer)
filter saturation indicator
Con@ctivity
Silence
Safety turn off
