PRODUCT DESCRIPTION
Features
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

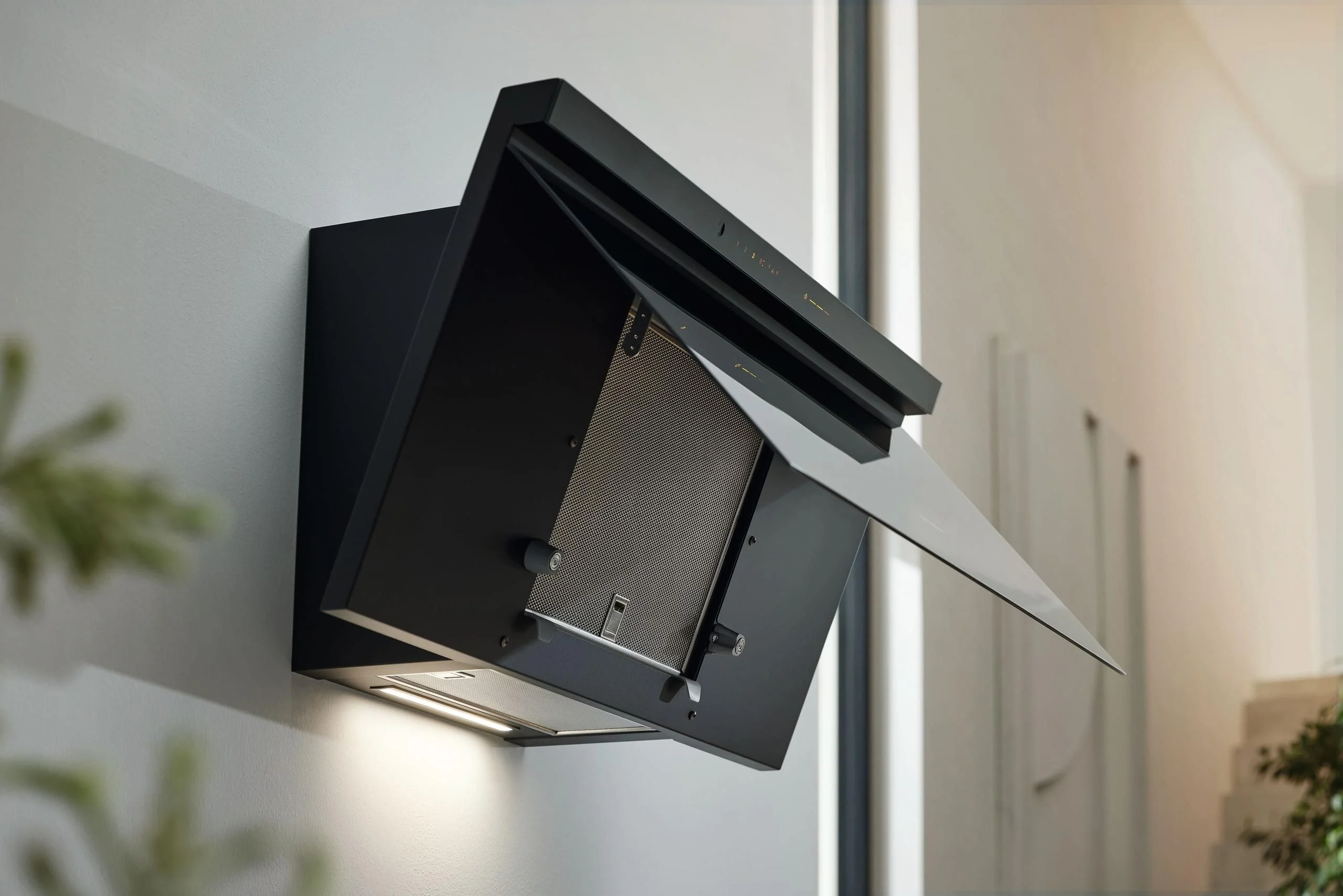

Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Silence
Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

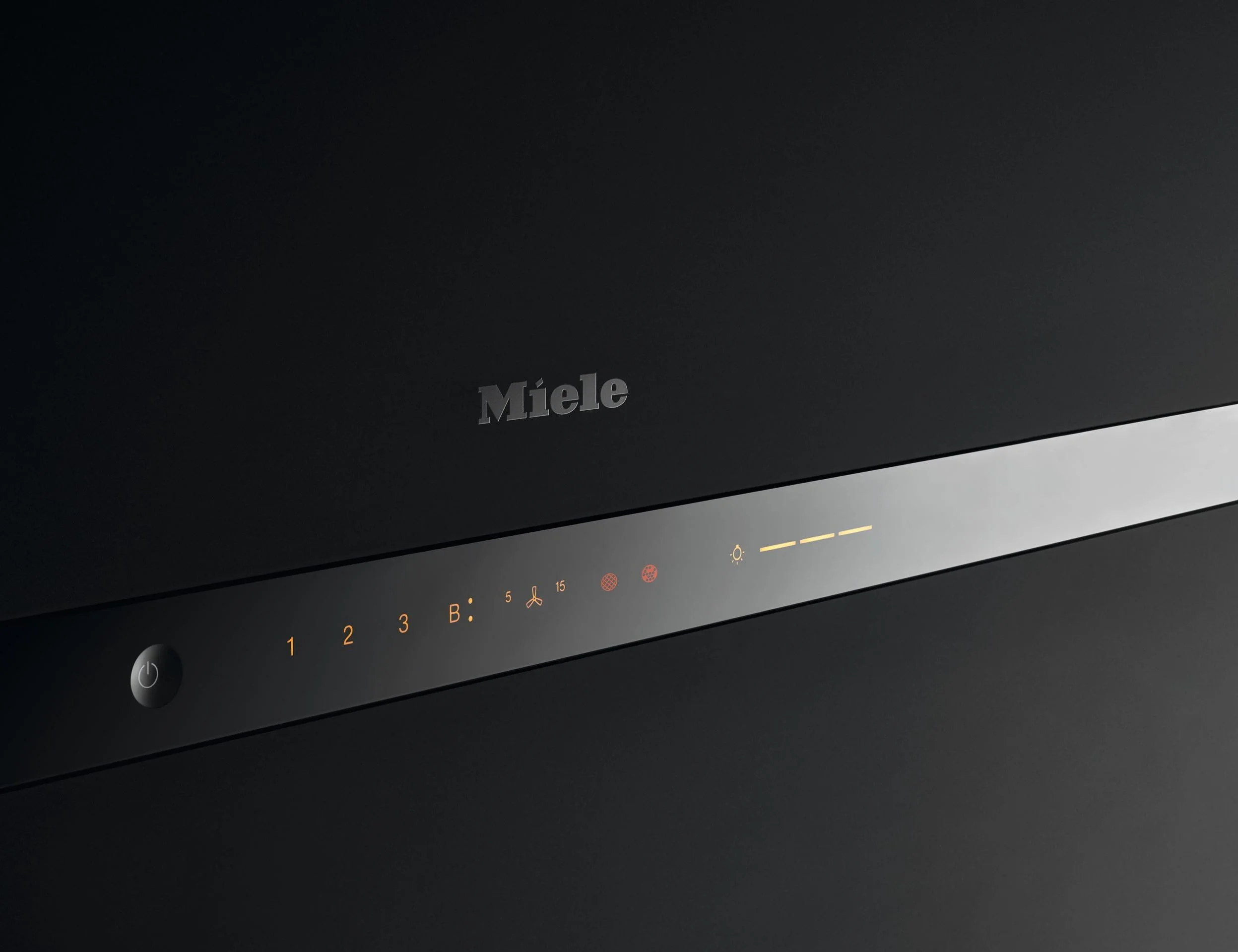

filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Specifications

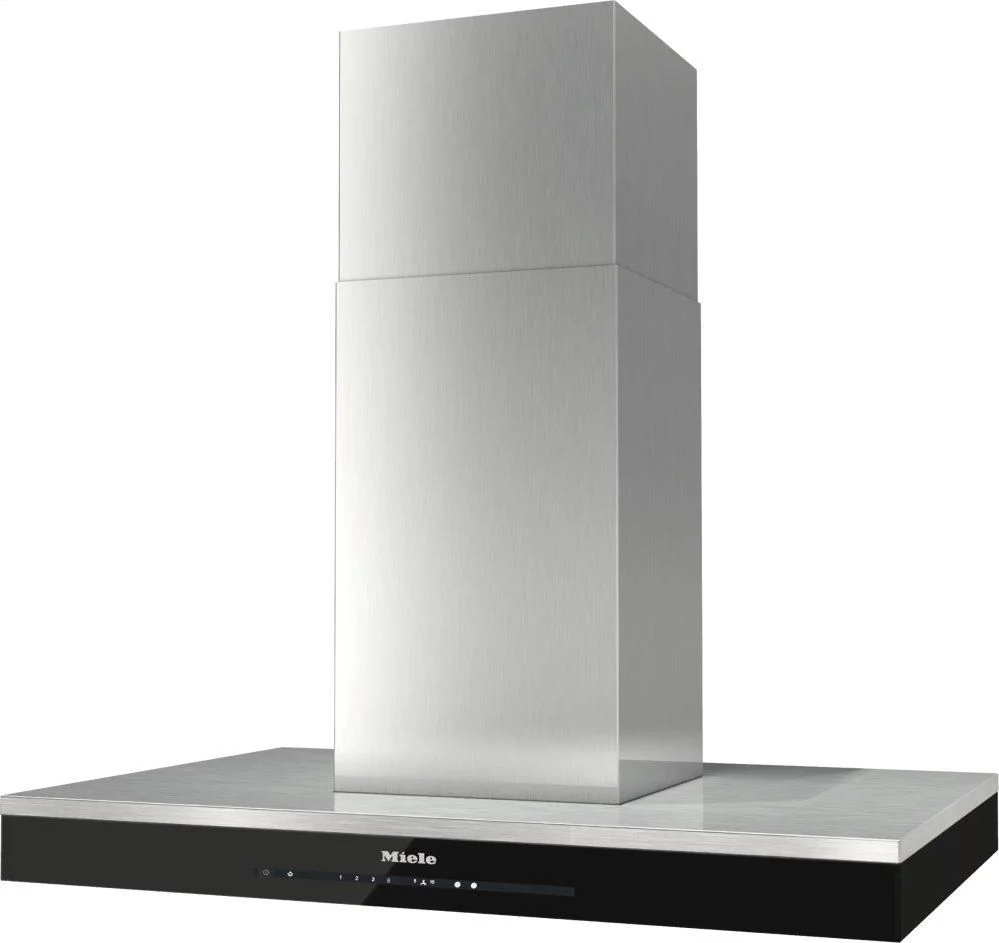

Island ventilation hood
Yes
Color
Stainless steel
Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUI 32
OdorFree charcoal filter (order separately)
DKF 12-P
Miele@home
Yes
Automatic function Con@ctivity
Yes
Electronic controls
Yes
Light-touch controls
Yes
Operation
Touch-on-glass controls
Power levels (number excl. Intensive)
3
Booster levels
1
Delayed shutdown for 5 or 15 minutes
Yes
Grease filter saturation indicator
Yes
Active charcoal filter saturation indicator
Yes
Acoustic package
Yes
CleanCover
Yes
Easy-to-clean canopy interior - CleanCover
Yes
Number of dishwasher-safe stainless steel grease filters (10-ply)
3
Number x W
4 x 3 W
Light intensity in Lx
820 lx
Color temperature in K
3500 Kelvin
Light dimmer function
Yes
Dual-action blower
Yes
Air throughput in CFM in Booster
430
Air throughput
Values upon request
Air throughput with Booster level 1 (m /h) according to EN 61591
506.18 (860)
Safety shut-off
Yes
Single-ply safety glass (ESG)
Yes
Overall hood height for vented mode and external in inches (mm)
27 7/8 (705)-39 5/8 (1005)
Overall height for recirculation mode ventilation hoods in mm
30 1/8 (765)-42 3/8 (1075)
Overall min. height for vented and external in in. (mm)
27 7/8 (705)
Overall max. height for vented and external in in. (mm)
39 5/8 (1005)
Overall min. height for recirculation in in. (mm)
30 1/8 (765)
Overall max. height for recirculation in in. (mm)
42 3/8 (1075)
Canopy width in in. (mm)
35 3/8 (898)
Canopy height in in. (mm)
3 3/8 (85)
Depth of hood canopy in in. (mm)
23 5/8 (598)
Minimum height above electric cooktops in mm
24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
78 (35.0)
Hard-wired
Yes
Total connected load in kW
0.362
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
Yes
Diameter of vent connection in in. (mm)
6 (150)
Telescopic chimney
Yes
Non-return flap
Yes
Communication module for Con@ctivity XKM 2000 DA
XKS 3000 Z
EAN
4002516024651
GTIN
04002516024651
EAN
4002516024651
Delayed shutdown
Miele CleanCover
Silence
Con@ctivity
Stainless-steel grease filters (10-layer)
Safety turn off
filter saturation indicator
