PRODUCT DESCRIPTION
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Features
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Delayed shutdown
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Specifications

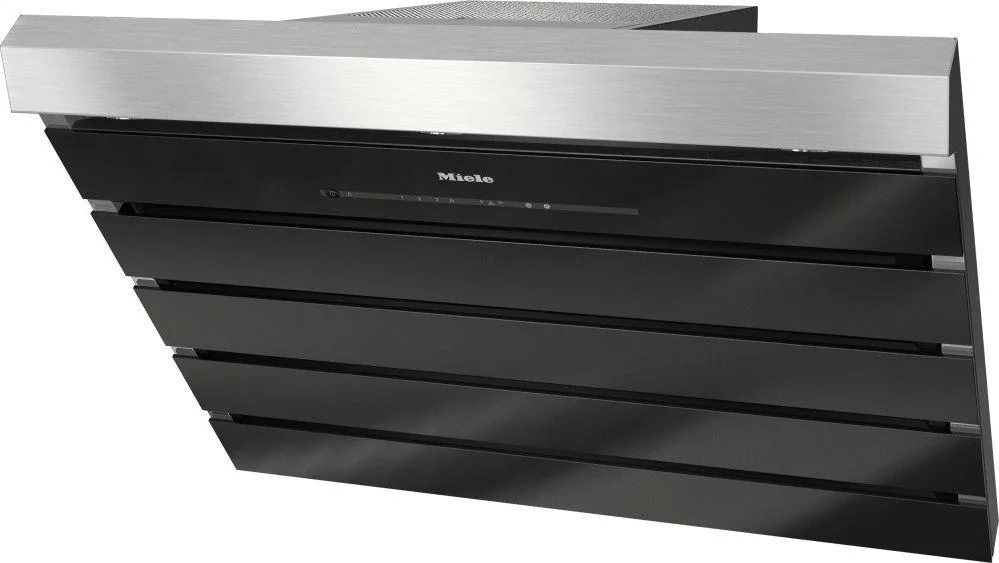

Wall ventilation hood
•
Color
Obsidian black
Recirculated mode
Can be retrofitted
OdorFree charcoal filter (order separately)
DKF 25-P
Miele@home
•
Automatic function Con@ctivity
•
Electronic controls
•
Touch controls
•
Operation
Touch-on-glass controls
Power levels (number excl. Intensive)
3
Booster levels
1
Programmable Intensive switch-off
•
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
•
Active charcoal filter saturation indicator
•
CleanCover
Easy-to-clean CleanCover hood liner
•
Number of dishwasher-safe stainless-steel grease filters
1
LED ClearView lighting
•
Number x W
3 x 3 W
Light intensity in Lx
320 lx
Color temperature in K
3500 Kelvin
Light dimmer function
•
Dual-action blower
•
AC motor
•
Maximum air throughput in cfm according to HVI
401
Air throughput
Values upon request
Safety shut-off
•
Single-ply safety glass (ESG)
•
Overall min. height for vented and external in in. (mm)
22 3/8 (568)
Overall max. height for vented and external in in. (mm)
22 3/8 (568)
Overall min. height for recirculation in in. (mm)
22 3/8 (568)
Overall max. height for recirculation in in. (mm)
22 3/8 (568)
Canopy width in in. (mm)
35 3/8 (898)
Canopy height in in. (mm)
22 3/8 (568)
Depth of hood canopy in in. (mm)
19 1/2 (493)
Minimum distance above electric cooktops in in. (mm)
24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
67 (30.0)
Length of electrical wire in ft. (m)
2 (0.7)
Standard plug fitted
•
Hard-wired
•
Total connected load in kW
0.36
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
•
Vent connection at top and rear
•
Diameter of vent connection in in. (mm)
6 (150)
Non-return flap
•
Communication module for Con@ctivity XKM 2000 DA
XKS 3000 Z
GTIN
04002516024613
EAN
4002516024613
Headroom - design based on Miele built-in appliances
Unique user convenience - Con@ctivity
Powerful - in Booster level
Energy-efficient and quiet
Safe and easy to clean - Miele CleanCover
Stainless-steel grease filters (10-layer)
Miele CleanCover
Safety turn off
Con@ctivity
filter saturation indicator
Delayed shutdown
