PRODUCT DESCRIPTION
Features
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Specifications

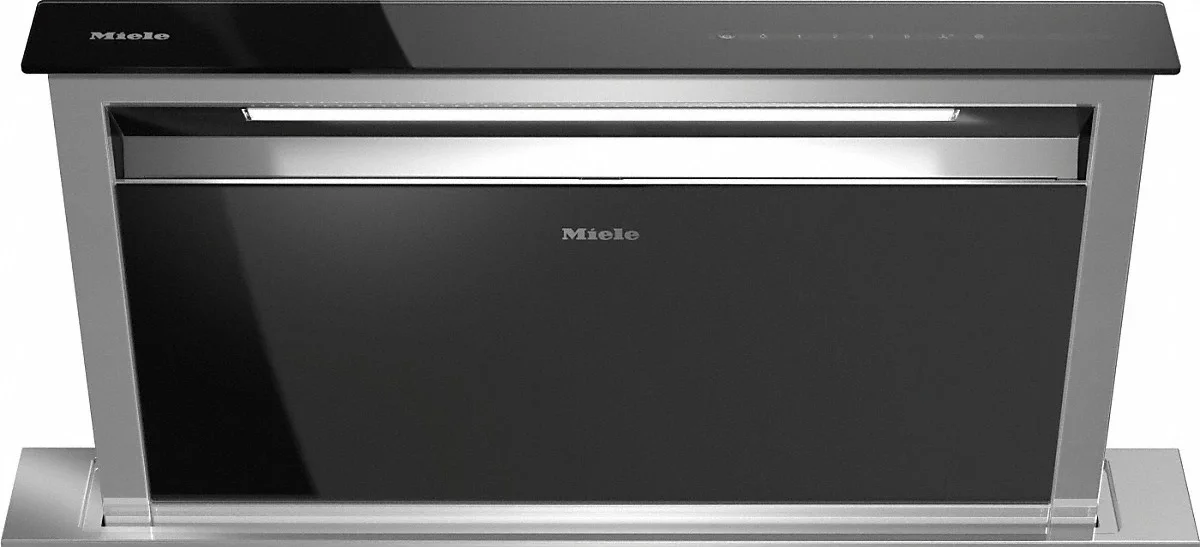

Downdraft
Yes
Color
Stainless steel
Edge extraction
Yes
Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUU 2900-900
OdorFree charcoal filter (order separately)
DKF18-900
Electronic controls
Yes
Operation
Light-touch switches with LEDs
Power levels (number excl. Intensive)
3
Booster levels
1
Run-on time 15 min.
Yes
Hood in Motion
Yes
Dishwasher-safe grease filters
2
Number x W
1x6W
Light intensity in Lx
280 lx
Color temperature in K
4000 Kelvin
Air throughput in CFM in Booster
240
Air throughput with Booster level 1 (m /h) according to EN 61591
423.78 (720)
Safety shut-off
Yes
Single-ply safety glass (ESG)
Yes
Overall hood height for vented mode and external in inches (mm)
41 1/2 (1052)
Overall height for recirculation mode ventilation hoods in mm
41 1/2 (1052)
Overall min. height for vented and external in in. (mm)
41 1/2 (1052)
Overall max. height for vented and external in in. (mm)
41 1/2 (1052)
Overall min. height for recirculation in in. (mm)
41 1/2 (1052)
Overall max. height for recirculation in in. (mm)
41 1/2 (1052)
Canopy width in in. (mm)
36 1/8 (916)
Canopy height in in. (mm)
25 1/2 (646)
Depth of hood canopy in in. (mm)
13 7/8 (351)
Net weight in lbs. (kg)
60 (27.0)
Length of electrical wire in ft. (m)
4 (1.5)
Standard plug fitted
Yes
Total connected load in kW
0.346
Voltage in V
120
Fuse rating in A
10
Frequency in Hz
60
Number of phases
1
Vent connection top,rear,side,bottom
Yes
Diameter of vent connection in in. (mm)
6 (150)
Reducer from 150 to 125 mm
Yes
EAN
4002515823972
GTIN
04002515823972
EAN
4002515823972
Striking design - telescopic canopy 36 1/8 (916) in (mm) inches wide.
Powerful - 423.78 (720) ft /min (m3/h) in Booster level
Practical - 15-minute automatic blower run-on
Suitable for every home - vented or recirculating
For perfect functionality - accessories for proper venting
Manufactured with great care by Miele & Cie. KG
Safety information
Safety turn off
Edge vented
