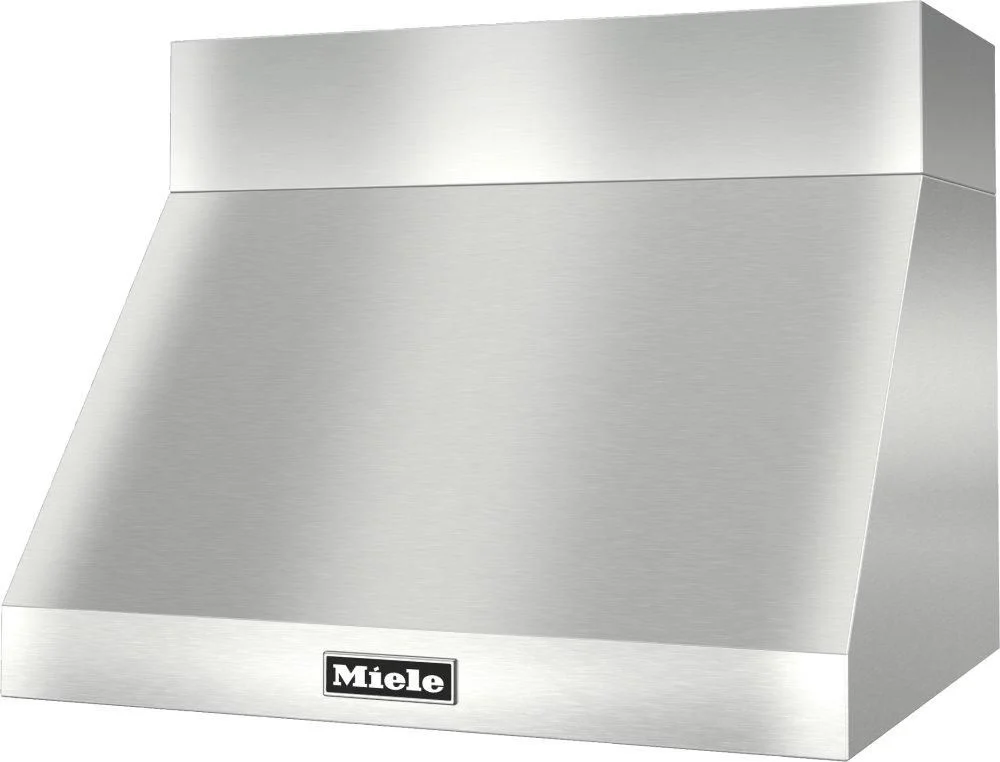

Miele 30" Convertible Ducted Wall Mount Range Hood in Stainless Steel

SKU: 9753400
MODEL: DAR1220STAINLESSSTEEL
2x Points
Free 2Y Warranty
Low-cost Install
  • Type: Convertible/Ducted
  • Width: 30.00"
  • Height: 18.00"
  • Depth: 24.13"
Miele |Authorized Dealer
Pre-Order

color: Stainless Steel

Miele DAR1220STAINLESSSTEEL

PRODUCT DESCRIPTION

MAINTENANCE
Dishwasher-Safe Stainless Steel Baffle Filters

Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.


USER CONVENIENCE
Knob controls

Matching convenience: Rotary control allow intuitive and easy operation of blower power and LED lighting.


EFFICIENCY AND SUSTAINABILITY
LED ClearView lighting

Environmentally friendly and long lasting: With up to 3 W they illuminate the cooktop evenly with a warm light.


Temperature sensor

Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.


QUALITY
Handcrafted in Germany

Know-how and craftsmanship: Our expertise goes into every ventilation hood, from development to finished product.


FEATURES
Miele CleanCover

Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.

Specifications

construction type

Wall ventilation hood
 •

required accessories

Blower
 •
Duct cover
 •

operating modes

Recirculated mode
Convertible
External operation possible
 •

control panel

Rotary knob
 •
Power levels (number excl. Intensive)
3
Temperature sensor
 •

cleaning convenience

Easy to clean canopy interior CleanCover
 •
Dishwasher-safe grease collection channel
 •

filter system

Number of dishwasher-safe stainless steel baffle filters
2

lighting

LED
 •
Number x W
2 x 3 W

blower options (to be purchased separately)

DRIB XL internal blower in CFM (m )
1189
DREB XL external blower in CFM (m )
1189

technical data

Canopy width in in.(mm)
30 (760)
Canopy width in inches
29 15/16
Canopy height in in.(mm)
18 (457)
Canopy depth in in.(mm)
24 1/8 (611)
Net weight in lbs. (kg)
60 (27.0)
Length of electrical wire in ft (m)
2 (0.8)
Standard plug fitted
 •
Overall height for extraction mode and external mo
617-1,067
Total connected load in kW
0.81
Voltage in V
120
Fuse rating in A
15
Number of phases
1
Overall height for recirculation mode cooker hoods
610-1,219

installation notes

Vent connection at top
 •
Diameter of vent connection in in.(mm)
9 7/8 (250)

optional accessories

Chimney cover (H: 152 mm)
DRDC 3006
Chimney cover (H: 305 mm)
DRDC 3012
Chimney cover (H: 457 mm)
DRDC 3018
Chimney cover (H: 610 mm)
DRDC 3024
Recirculation mode conversion kit
DRUU 30
DRRV 1200
Rear-wall panel (W: 760 mm)
RBS 30
Rear-wall panel (W: 913 mm)
RBS 36
Rear-wall panel (W: 1218 mm)
RBS 48
Active charcoal filter
DKF 23-1
