PRODUCT DESCRIPTION
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Features
LED ClearView lighting
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
Miele CleanCover
Temperature sensor
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
Knob controls
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
Specifications
Wall ventilation hood
•
Blower
•
Duct cover
•
Recirculated mode
Can be retrofitted
External operation possible
•
Rotary knob
•
Power levels (number excl. Intensive)
3
Temperature sensor
•
Easy to clean canopy interior CleanCover
•
Dishwasher-safe grease collection channel
•
Number of dishwasher-safe stainless steel baffle filters
3
LED
•
Number x W
3 x 3 W
DRIB XL internal blower in CFM (m (h)
1189
DRIB XXL internal blower in CFM (m /h)
1869
DREB XL external blower in CFM (m /h)
1189
DREB XXL external blower in CFM (m /h)
1869
Canopy width in in.(mm)
36 (913)
Canopy width in inches
35 15/16
Canopy height in in.(mm)
18 (457)
Canopy depth in in.(mm)
24 1/8 (611)
Net weight in lbs. (kg)
73 (33.0)
Length of electrical wire in ft (m)
2 (0.8)
Standard plug fitted
•
Total connected load in kW
0.809
Voltage in V
120
Fuse rating in A
15
Number of phases
1
Vent connection at top
•
Diameter of vent connection in in.(mm)
9 7/8 (250)
Non-return flap
•
GTIN
04002516546948
EAN
4002516546948

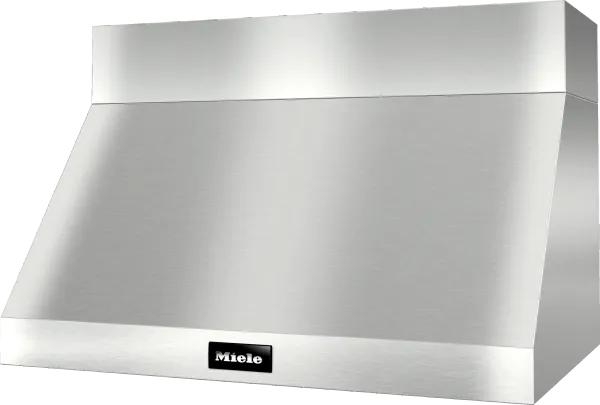

Professional design - stainless steel hood, 36 (913) in (mm) wide
Perfect illumination - LED ClearView lighting
Dishwasher-safe - 3 high-quality stainless steel grease filters
Safe and easy to clean - Miele CleanCover
Auto-vent safety sensor - protects against overheating
Miele CleanCover
Temperature sensor
LED ClearView lighting
Knob controls
