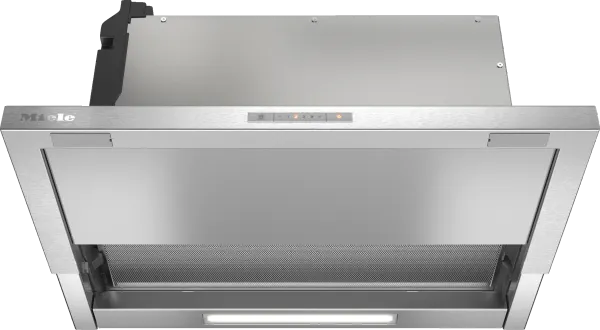

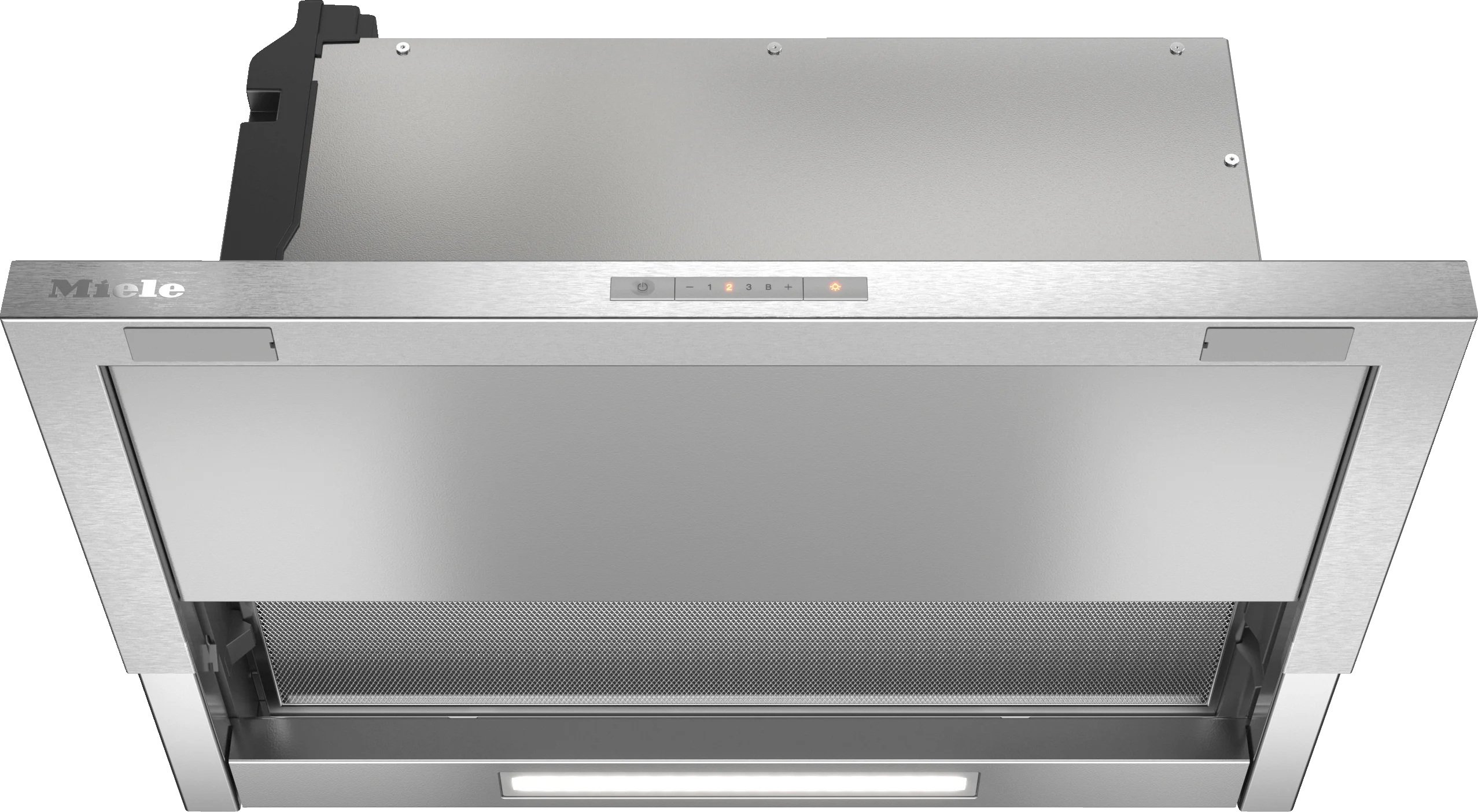

Miele DAS 2620 Stainless steel - Built-in ventilation hood in Stainless Steel

Built-in ventilation hood

Yes

Color

Stainless steel

Recirculated mode

Can be retrofitted

Recirculation conversion kit (order separately)

DUU 151,DUU 150

OdorFree charcoal filter (order separately)

[ "DKFS 31-R", "DKFS 31-900 P" ]

Electronic controls

Yes

Operation

Light-touch switches with LEDs

Booster levels

1

CleanCover

Yes

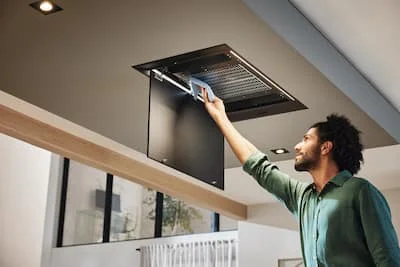

Easy-to-clean canopy interior - CleanCover

Yes

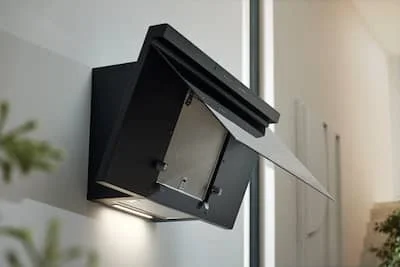

Number of dishwasher-safe stainless steel grease filters (10-ply)

1

Number x W

1 x 3,0 W

Light intensity in Lx

330 lx

Color temperature in K

3500 Kelvin

Dual-action blower

Yes

Air throughput in CFM in Booster

427

Air throughput with Booster level 1 (m /h) according to EN 61591

497.35 (845)

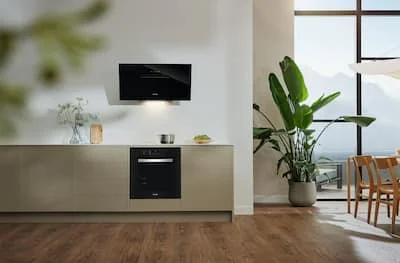

Safety shut-off

Yes

Canopy width in in. (mm)

23 1/2 (596)

Canopy height in in. (mm)

1 1/2 (36)

Depth of hood canopy in in. (mm)

10 3/4 (273)

Minimum height above electric cooktops in mm

24 1/8 (610)

Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm

26 (660)

Net weight in lbs. (kg)

31 (14.0)

Length of electrical wire in ft. (m)

2 (0.8)

Standard plug fitted

Yes

Total connected load in kW

0.353

Voltage in V

120

Fuse rating in A

15

Frequency in Hz

60

Number of phases

1

Vent connection at top

Yes

Diameter of vent connection in in. (mm)

6 (150)

Non-return flap

Yes

EAN

4002516495505

GTIN

04002516495505

EAN

4002516495505
