PRODUCT DESCRIPTION
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
High-quality and functional: Enjoy convenient touch controls with a dimmer function.
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Features
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Delayed shutdown
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
SmartControl
High-quality and functional: Enjoy convenient touch controls with a dimmer function.
Con@ctivity 3.0
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Specifications

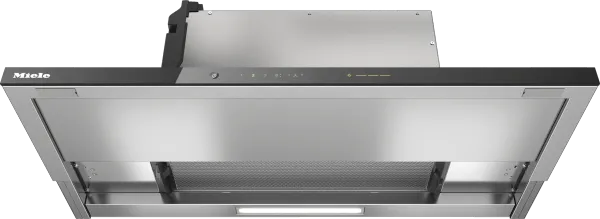

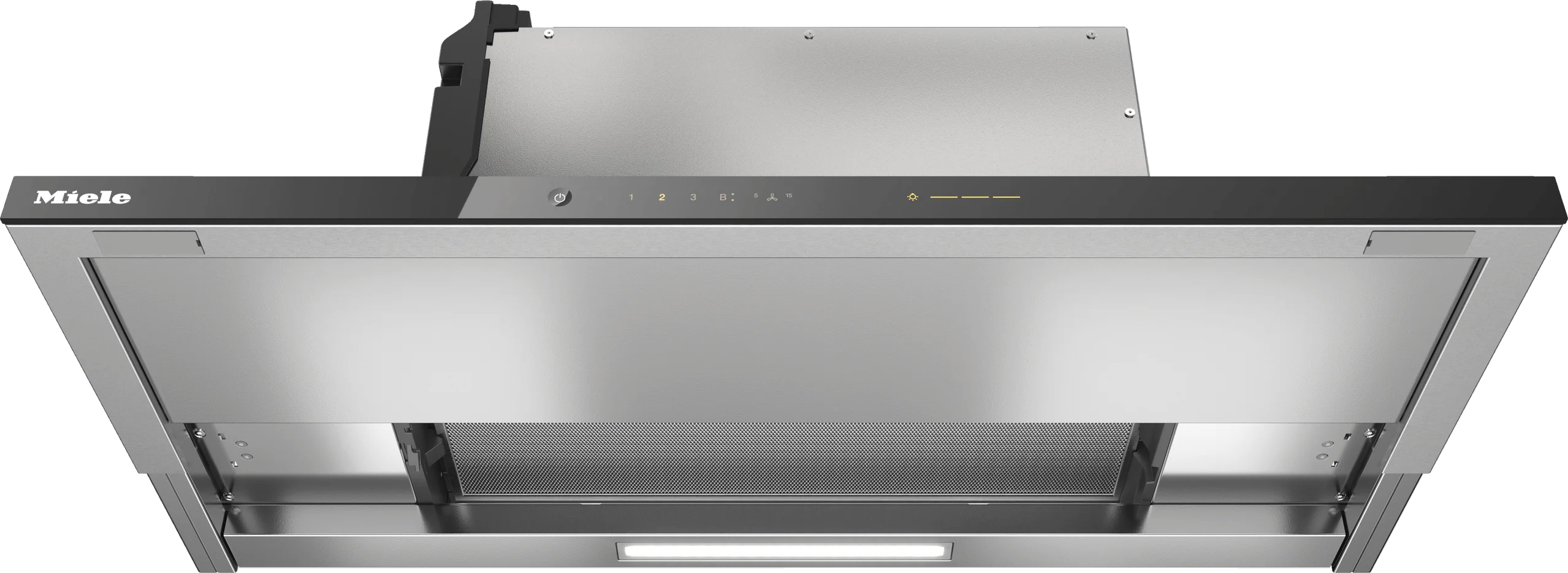

Built-in ventilation hood
•
Color
Obsidian black
Recirculated mode
Can be retrofitted
Recirculation conversion kit (order separately)
DUU 151,DUU 150
OdorFree charcoal filter (order separately)
DKFS 31-R DKFS 31-P
Miele@home
•
Automatic function
Con@ctivity 3.0
Electronic controls
•
SmartControl
•
Operation
SmartControl
Booster levels
1
Programmable Intensive switch-off
•
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
•
Active charcoal filter saturation indicator
•
CleanCover
Easy-to-clean CleanCover hood liner
•
Number of dishwasher-safe stainless-steel grease filters
1
LED ClearView lighting
•
Number x W
1 x 3 W
Light intensity in Lx
300 lx
Color temperature in K
3500 Kelvin
Light dimmer function
•
Dual-action blower
•
AC motor
•
Maximum air throughput in cfm according to HVI
427
Safety shut-off
•
Single-ply safety glass (ESG)
•
Canopy width in in. (mm)
35 3/8 (896)
Canopy height in in. (mm)
1 1/2 (36)
Depth of hood canopy in in. (mm)
10 3/4 (273)
Minimum distance above electric cooktops in in. (mm)
24 1/8 (610)
Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm
26 (660)
Net weight in lbs. (kg)
36 (16.0)
Length of electrical wire in ft. (m)
2 (0.8)
Standard plug fitted
•
Total connected load in kW
0.353
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
•
Non-return flap
•
GTIN
04002516496199
EAN
4002516496199
Elegant design - Obsidian Black control panel, 90 cm wide
Unique user convenience - Con@ctivity
LED strip for uniform lighting
Efficient filtration- 10-ply stainless steel grease filters
Recirculation mode - Active AirClean or Longlife AirClean filter
Stainless-steel grease filters (10-layer)
Delayed shutdown
Con@ctivity 3.0
filter saturation indicator
Safety turn off
SmartControl
Miele CleanCover
