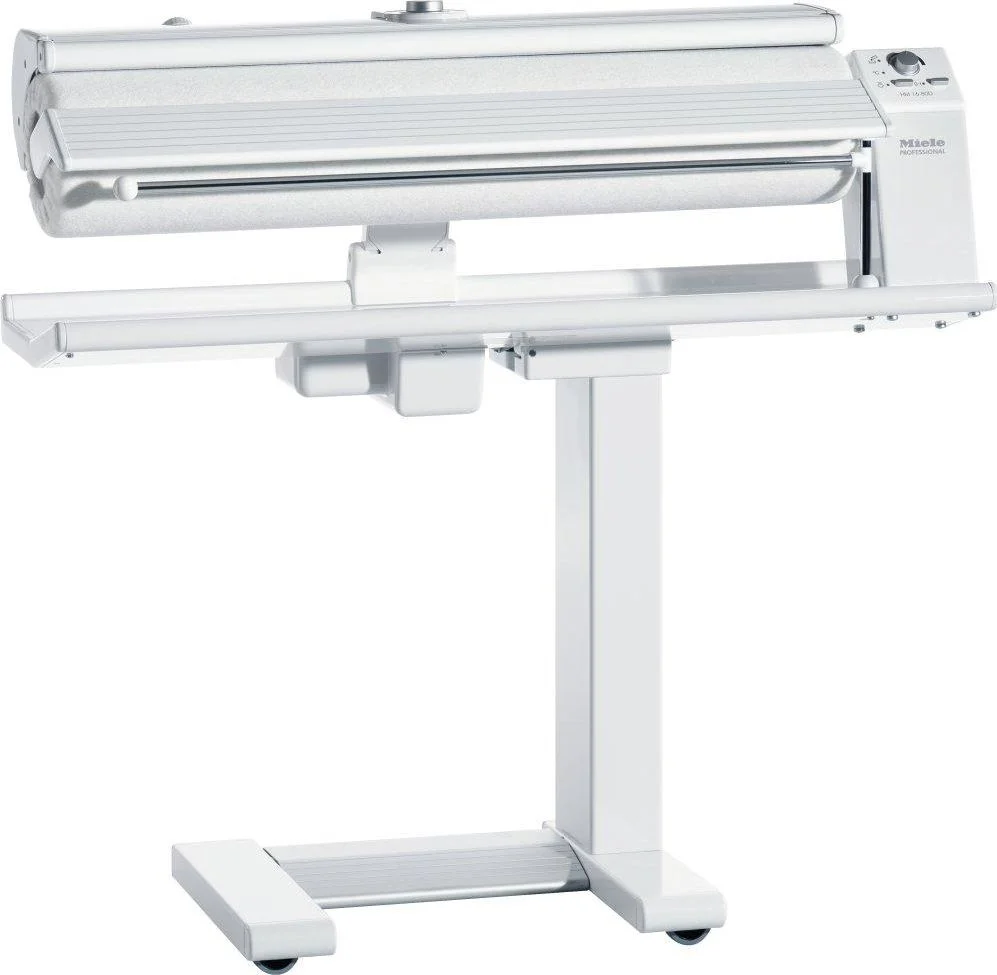

Miele HM 16-80 [D] - Rotary iron, electric with steam function for optimum results and maximum convenience.

SKU: 10238590
MODEL: HM1680D
  • Width: 38.88"
  • Height: 37.88"
  • Weight: 100.00 lbs
  • Depth: 15.00"
  • Wi-Fi Connected: No
Miele |Authorized Dealer
In Stock|Only 9 left
$4,490.00
4490
Sign in / Sign up to earn 4,490 points (
$112.25
)

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

USER CONVENIENCE
A wide range of accessories *

Consistently perfect work processes and efficiency - with a large selection of practical accessories.


Finger guard

A focus on safety: The finger guard is triggered if fingers come too close to the roller when feeding in laundry.

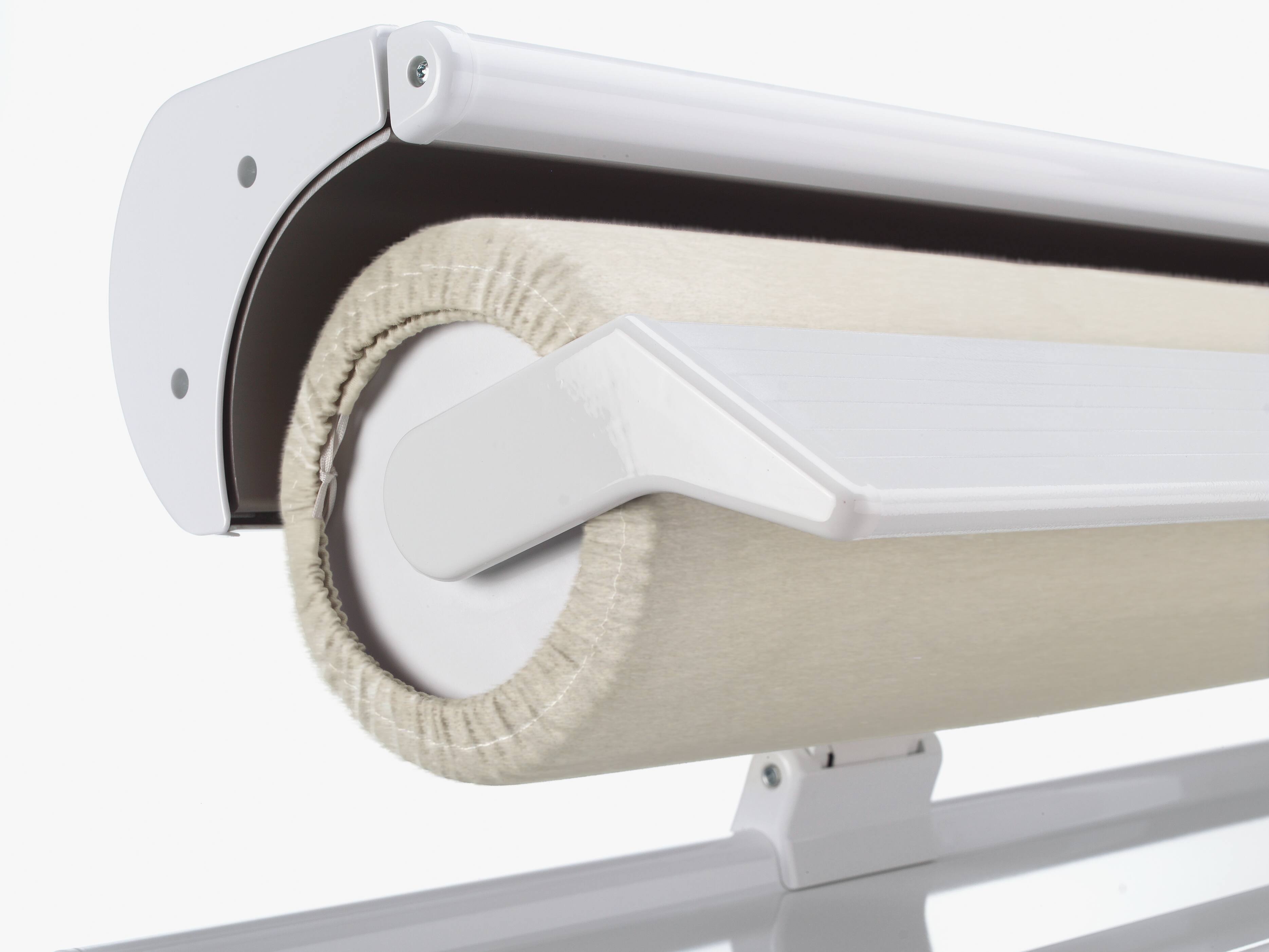

Free, unsupported roller end

The free roller end simplifies ironing of skirts, shirts and blouses.

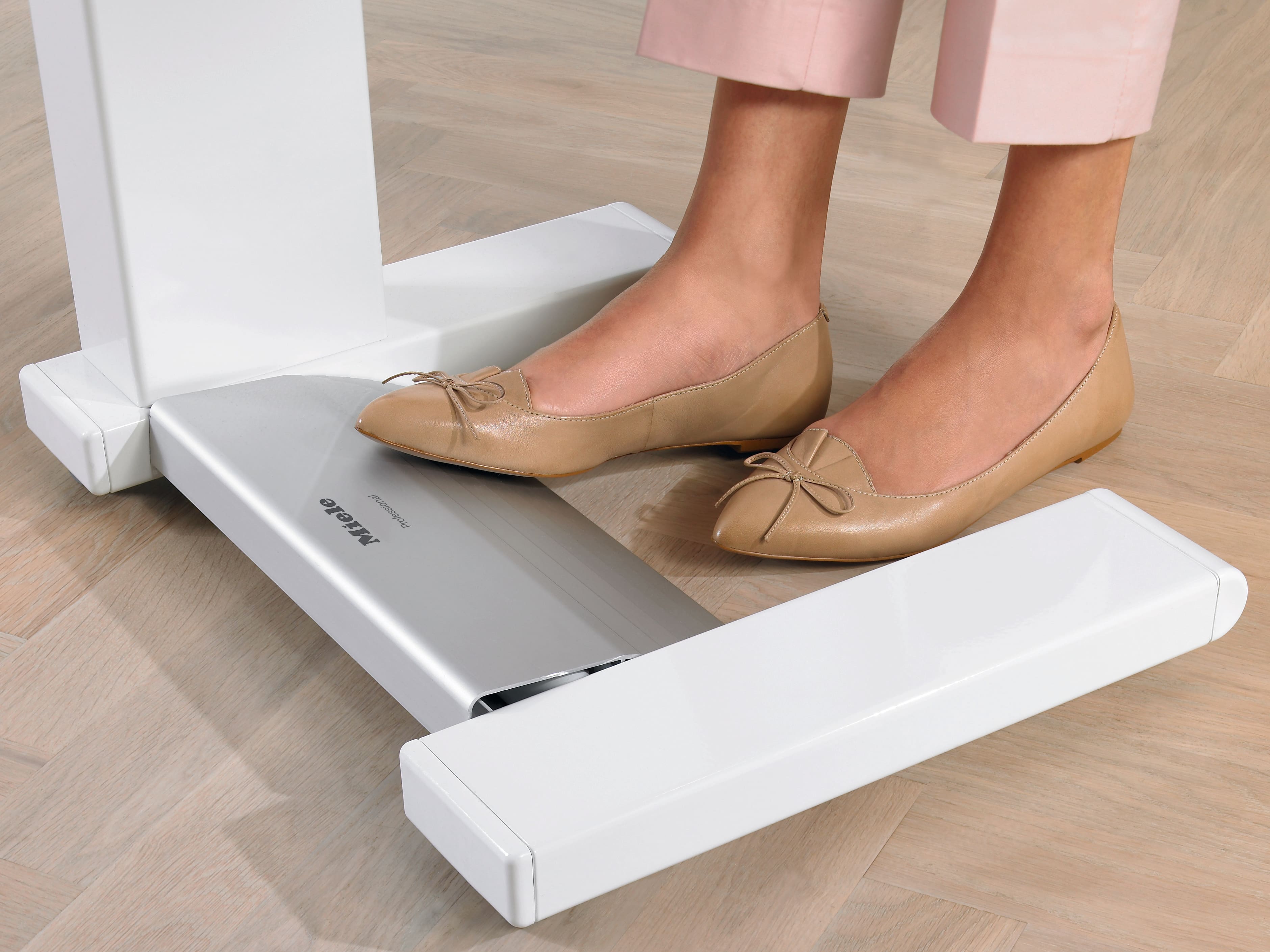

Convenient foot switch

The roller is operated via a foot switch. Both hands are free to arrange items.

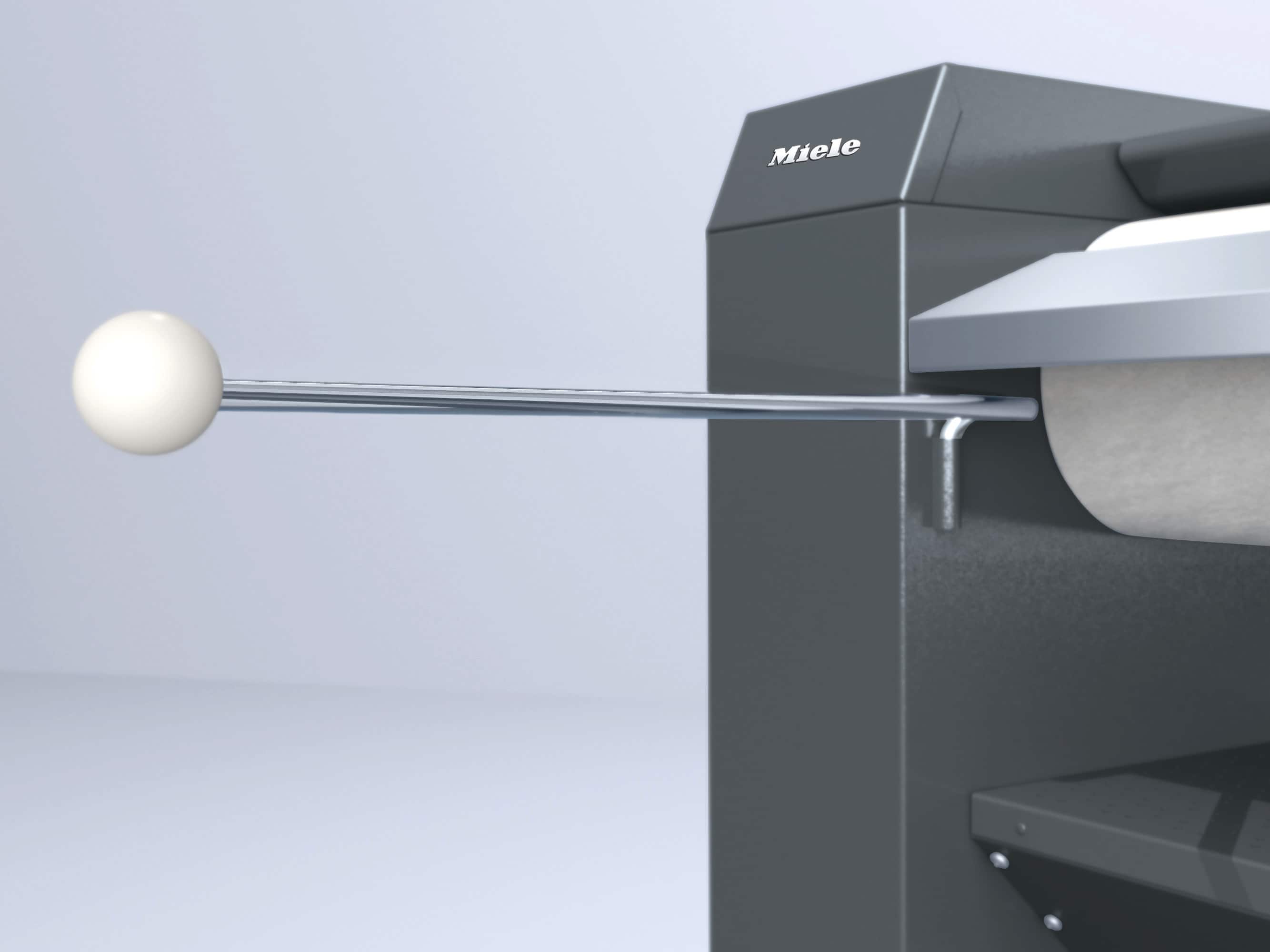

Convenient airing bar

The fold-out airing bar allows crease-free cooling and airing of ironed laundry.

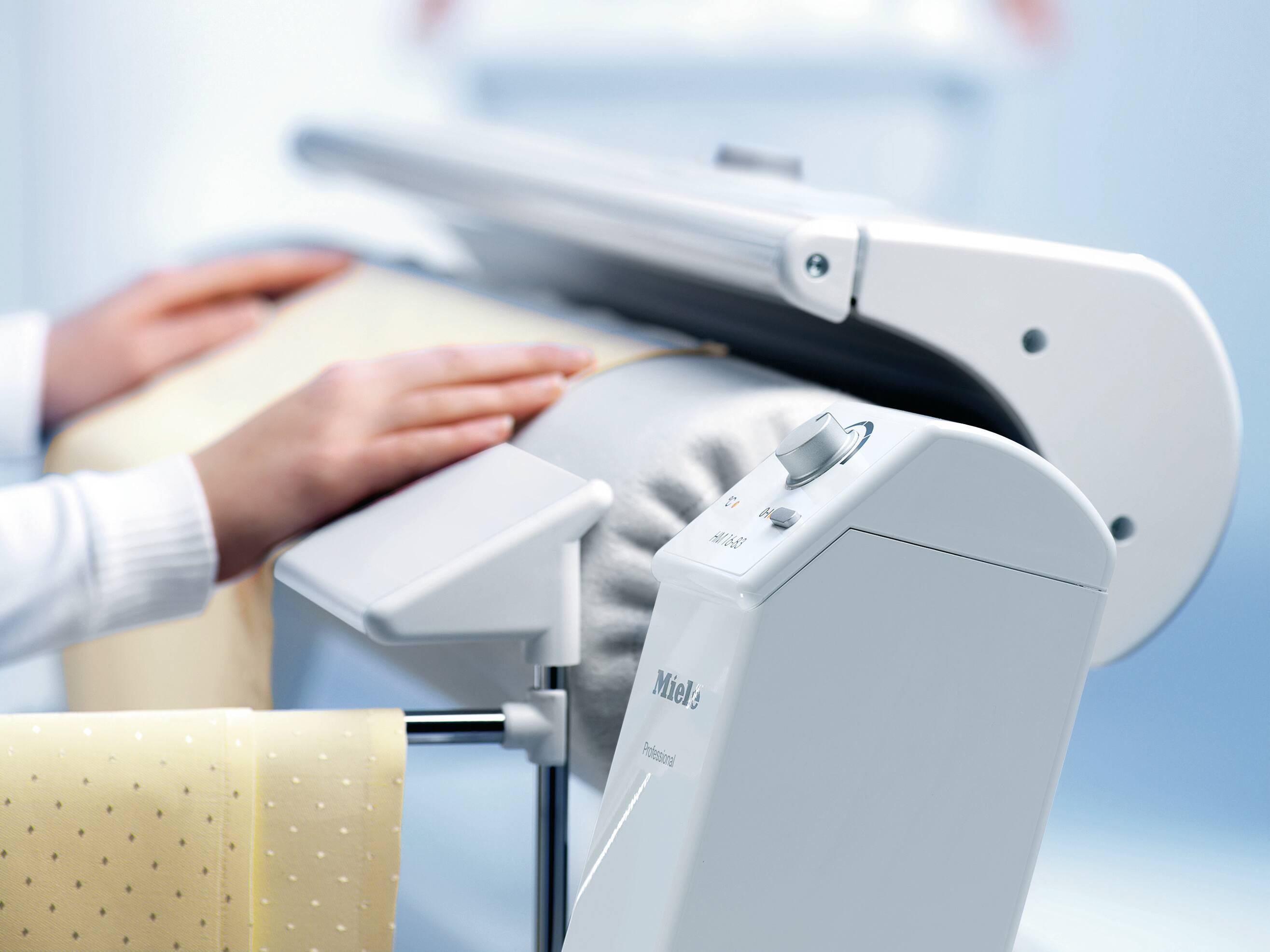

Easy feeding in of laundry

The feed-in board makes it easy to feed the laundry in accurately.


Convenient return feed

The ironed laundry is automatically returned to the input side.


Variable roller speed

Always the perfect speed when ironing - you decide!

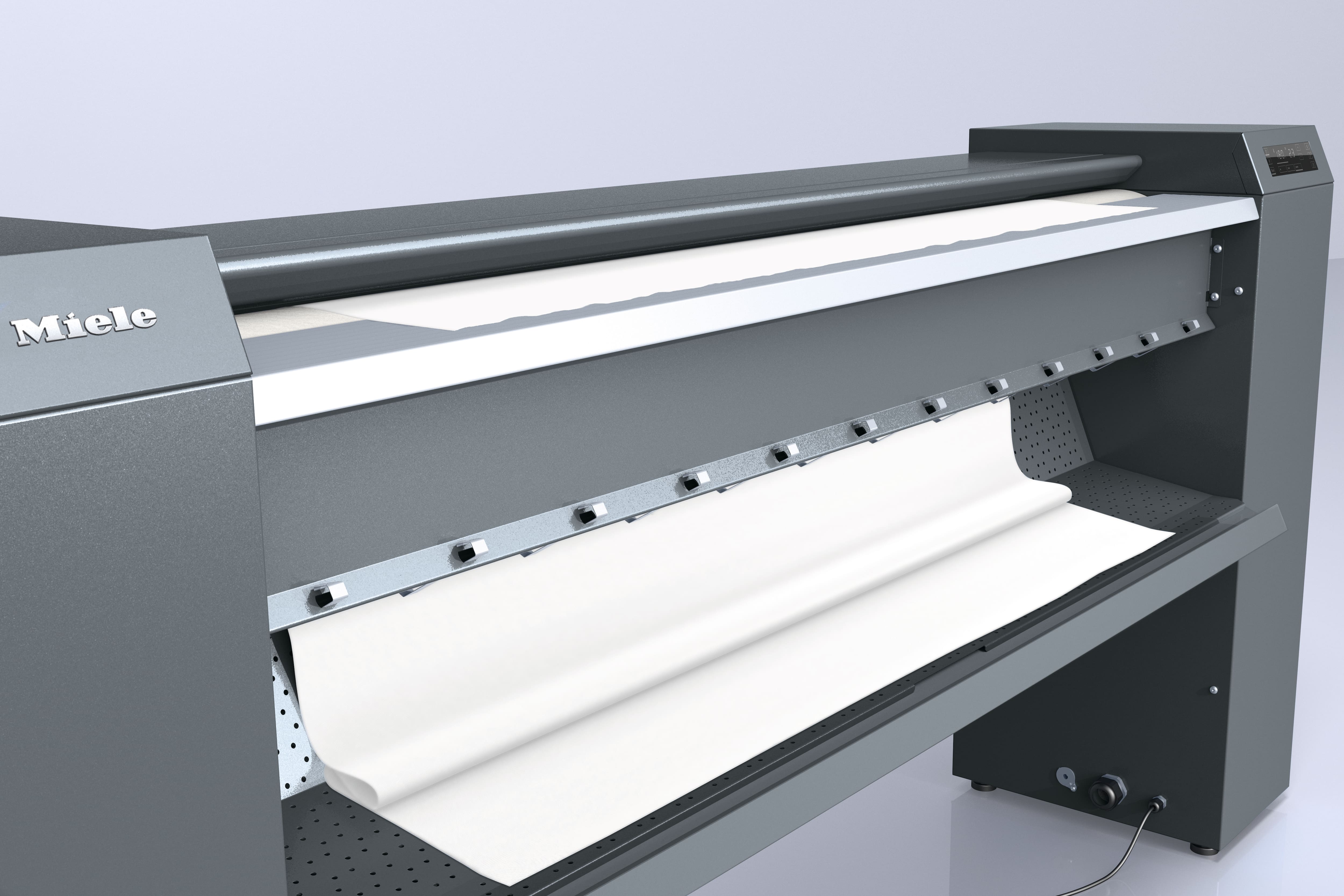

Feed-in and return at the front

When in use, the ironer requires only a minimum amount of space as it can be installed against a wall.


EFFICIENCY AND SUSTAINABILITY
Low consumption values

Economical and efficient: Miele Professional commercial laundry appliances impress with low consumption values.


GENTLE LAUNDRY CARE
Temperature selection to suit textiles

The temperature can be set according to the type of fabric, residual moisture level and ironing finish required.


PERFORMANCE
Steam function

Powerful against creases: Quick and uniform steam for perfect ironing results.


Perfect laundry finish

Uniform pressure over the entire working width guarantees a perfect laundry finish.


Quick-heating aluminum heater plate

The quick-heating aluminum heater plate ensures the ironer is ready to operate in the shortest time possible.


QUALITY

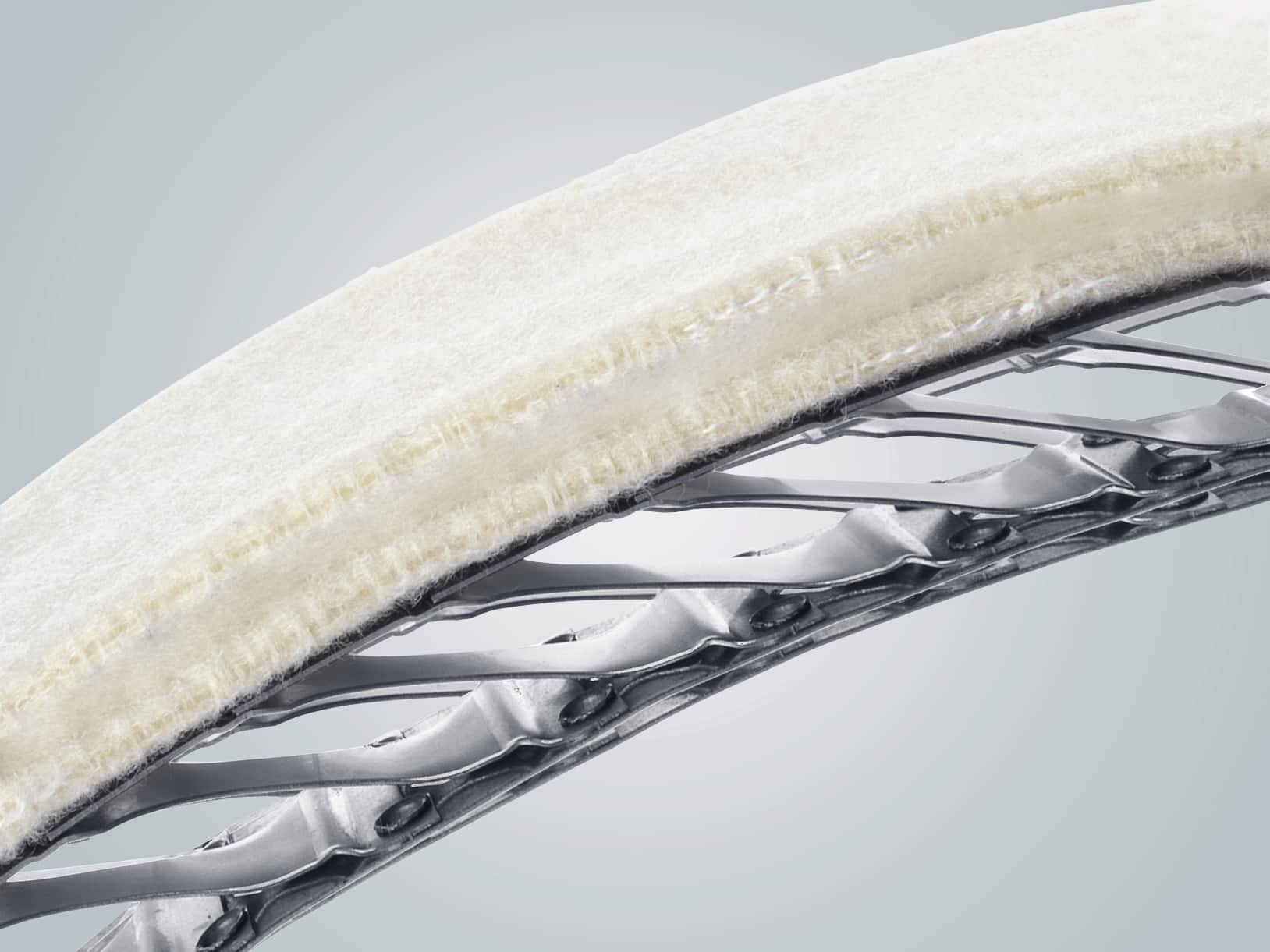

Durable roller cover

The extremely durable ironer covers are particularly long-lasting and heat-resistant.

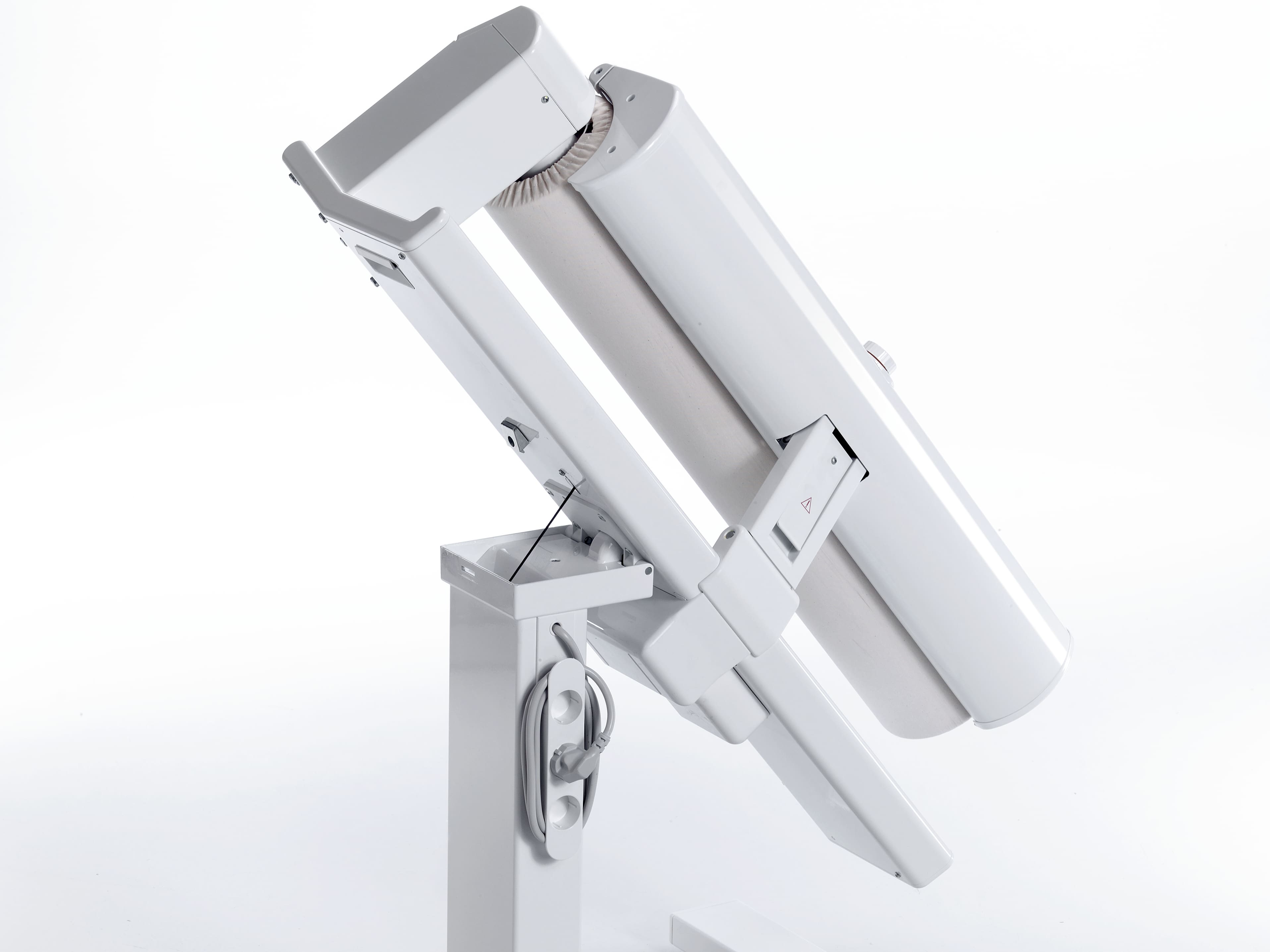

Space-saving storage

The appliance only needs 0.2 ft storage space.

Specifications

construction type and design

Design
Infeed and outfeed of laundry at the front
Can be set up against a wall
 •
Linie
Professional
Outer casing
Lotus white
Drum diameter in in.(mm)
6 3/8 (160)
Working width in in.(mm)
32 3/4 (830)
Heater plate material
Aluminium
Padding
Polyester needle-felt cloth
Ironer cover
ARAMID needle-felt cloth

application

Suitable for the hotel and catering industry
 •
Suitable for retirement and care homes
 •
Suitable for residential homes and apartments
 •
Suitable for commercial laundries
 •
Suitable for off-shore use
 •
Suitable for Marine use
 •
Suitable for camp sites
 •
Suitable for domestic use
 •

performance data

Max. ironing performance at 20 % residual moisture in kg/h
13.00
Tested operating hours
2500

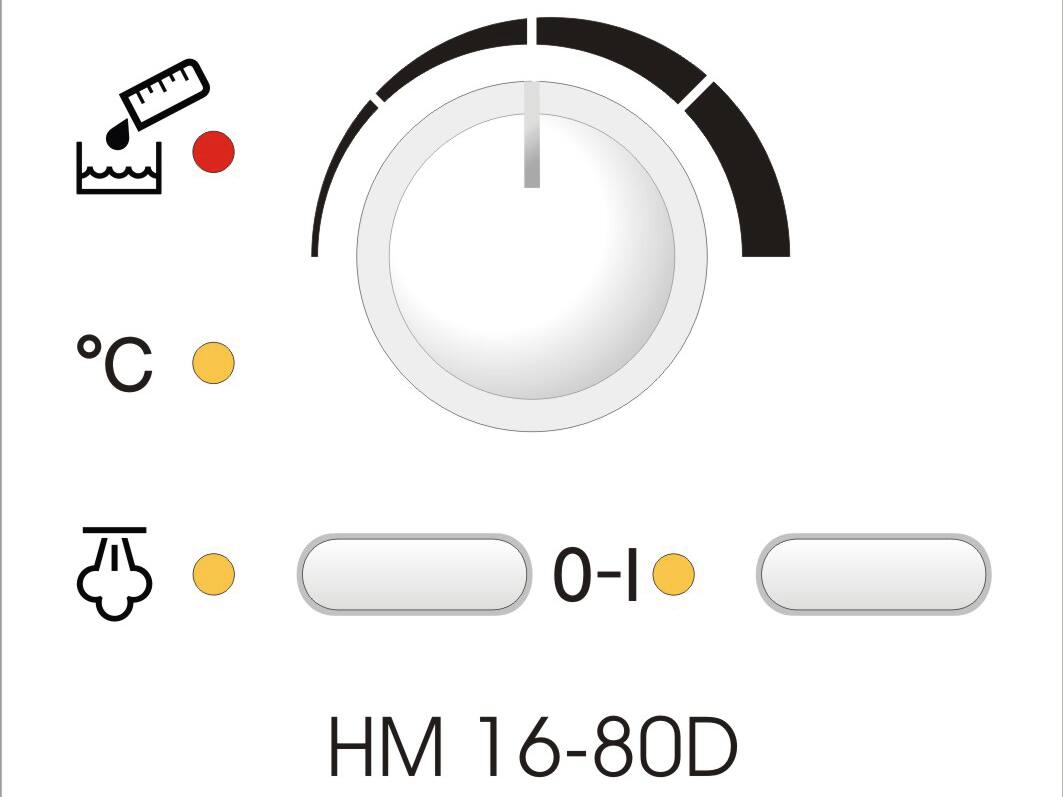

control

Control system
Selector dial
Touch display (optional)
Drehwahlschalter
Minimum ironer speed, can be set in ft/min
2.00
Maximum ironer speed, can be set in ft/min
4.50
Adjustable temperature
In temperature stages

standard electrical connection

Type of heating
Electric
Electrical connection
2AC 208-240V 50-60HZ
Electric heater rating in kW
2.80-3.70
Boiler heater rating in kW
0.85
Total connected load in kW
2.90-3.80
Fuse rating in A
20
NEMA Plug: Twist Lock 6-20
 •

dimensions and weight

External dimensions, height in mm
37 7/8 (959)
External dimensions, width in mm
38 7/8 (985)
External dimensions, depth in mm
15 (380)
External dimensions, gross height in inches
22 1/2 (570)
External dimensions, gross width in inches
44 1/8 (1120)
External dimensions, gross depth in inches
17 3/4 (450)
Net weight in kg
86 (39)
Gross weight in lbs.
100 (45)
Maximum floor loading in p/force
382

features

Steam function
 •
Free, unsupported roller end
 •
Fold-away function
 •
Finger guard
 •
Foot switch
Airing bar
 •
Feed-in board
 •
Laundry return feed
 •
Appliance-independent accessories
 •

standards, test certificates, and symbols

CSA-C-US
 •
Complies with Machinery Directive 2006/42/EC
 •
