Miele HM16-80 D [EL] - Rotary iron, electric with steam function for optimum results and maximum convenience.

Design

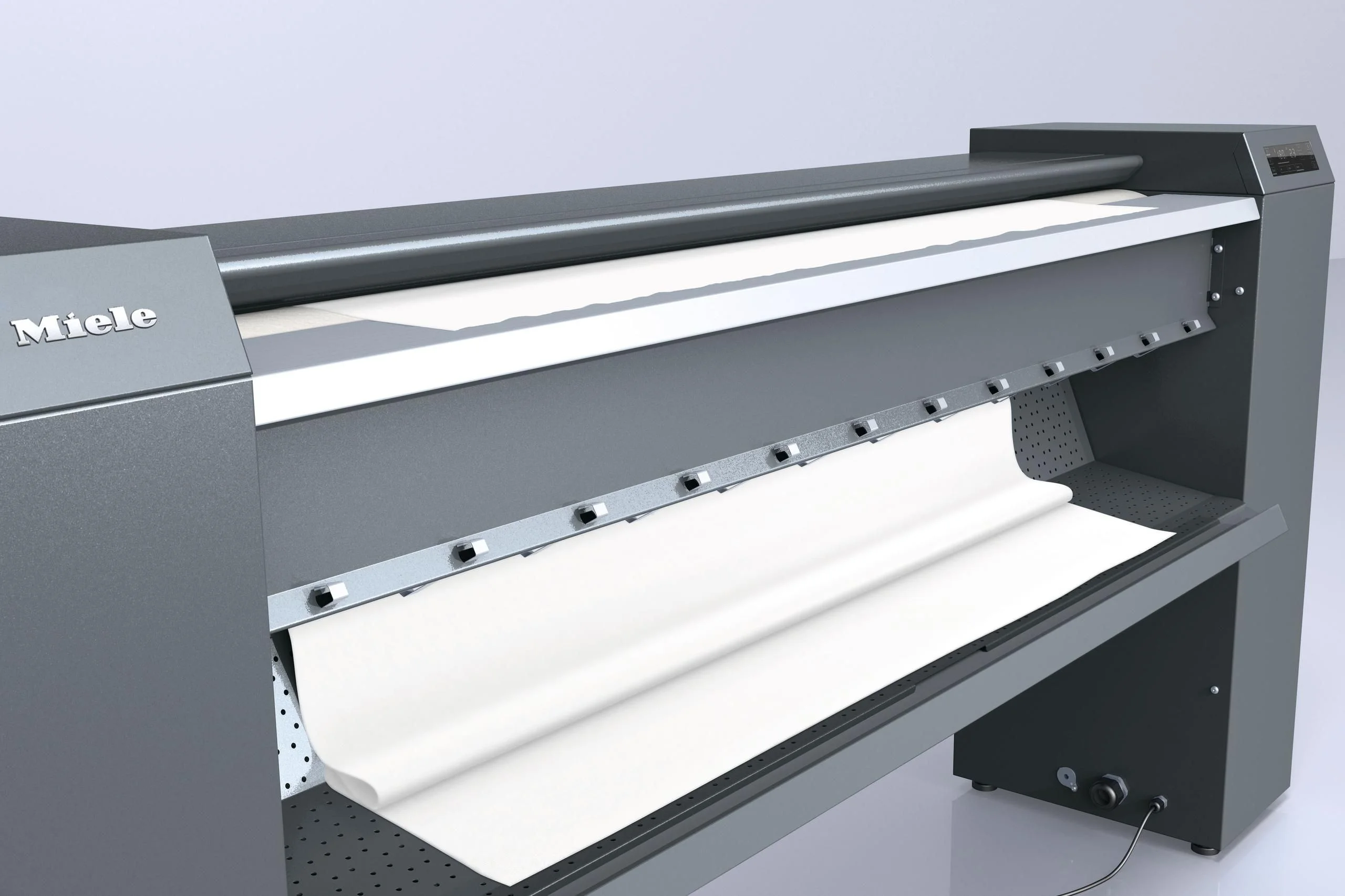

Infeed and outfeed of laundry at the front

Can be set up against a wall

Yes

Linie

Professional

Outer casing

Lotus white

Drum diameter in in.(mm)

6 5/16 (160)

Working width in in.(mm)

32 11/16 (830)

Heater plate material

Aluminium

Padding

Polyester needle-felt cloth

Ironer cover

ARAMID needle-felt cloth

Suitable for the hotel and catering industry

Yes

Suitable for retirement and care homes

Yes

Suitable for residential homes and apartments

Yes

Suitable for commercial laundries

Yes

Suitable for off-shore use

Yes

Suitable for Marine use

Yes

Suitable for camp sites

Yes

Suitable for domestic use

Yes

Max. ironing performance at 20 % residual moisture in lb/h (kg/h)

28.6 (13.0)

Tested operating hours

2500

Control system

Selector dial

Touch display (optional)

Drehwahlschalter

Minimum ironer speed, can be set in ft/min

2

Maximum ironer speed, can be set in ft/min

4.5

Adjustable temperature

In temperature stages

Type of heating

Electric

Electrical connection

2AC 208-240V 50-60HZ

Electric heater rating in kW

2.800-3.700

Boiler heater rating in kW

0.85

Total connected load in kW

2.900-3.800

Fuse rating in A

20

NEMA plug: 6-20

Yes

External dimensions, height in mm

37 13/16 (959)

External dimensions, width in mm

38 13/16 (985)

External dimensions, depth in mm

15 (380)

External dimensions, gross height in inches

22 1/2 (570)

External dimensions, gross width in inches

44 1/8 (1120)

External dimensions, gross depth in inches

17 3/4 (450)

Net weight in kg

86 (39)

Gross weight in lbs.

100 (45)

Maximum floor load in N

382

Steam function

Yes

Free, unsupported roller end

Yes

Fold-away function

Yes

Automatic finger guard/finger guard

Yes

Foot switch

Yes

Airing bar

Yes

Feed-in board

Yes

Laundry return feed

Yes

Appliance-independent accessories

Yes

CSA-C-US

Yes

Complies with Machinery Directive 2006/42/EC

Yes

EAN

4002515636459

GTIN

04002515636459

EAN

4002515636459
