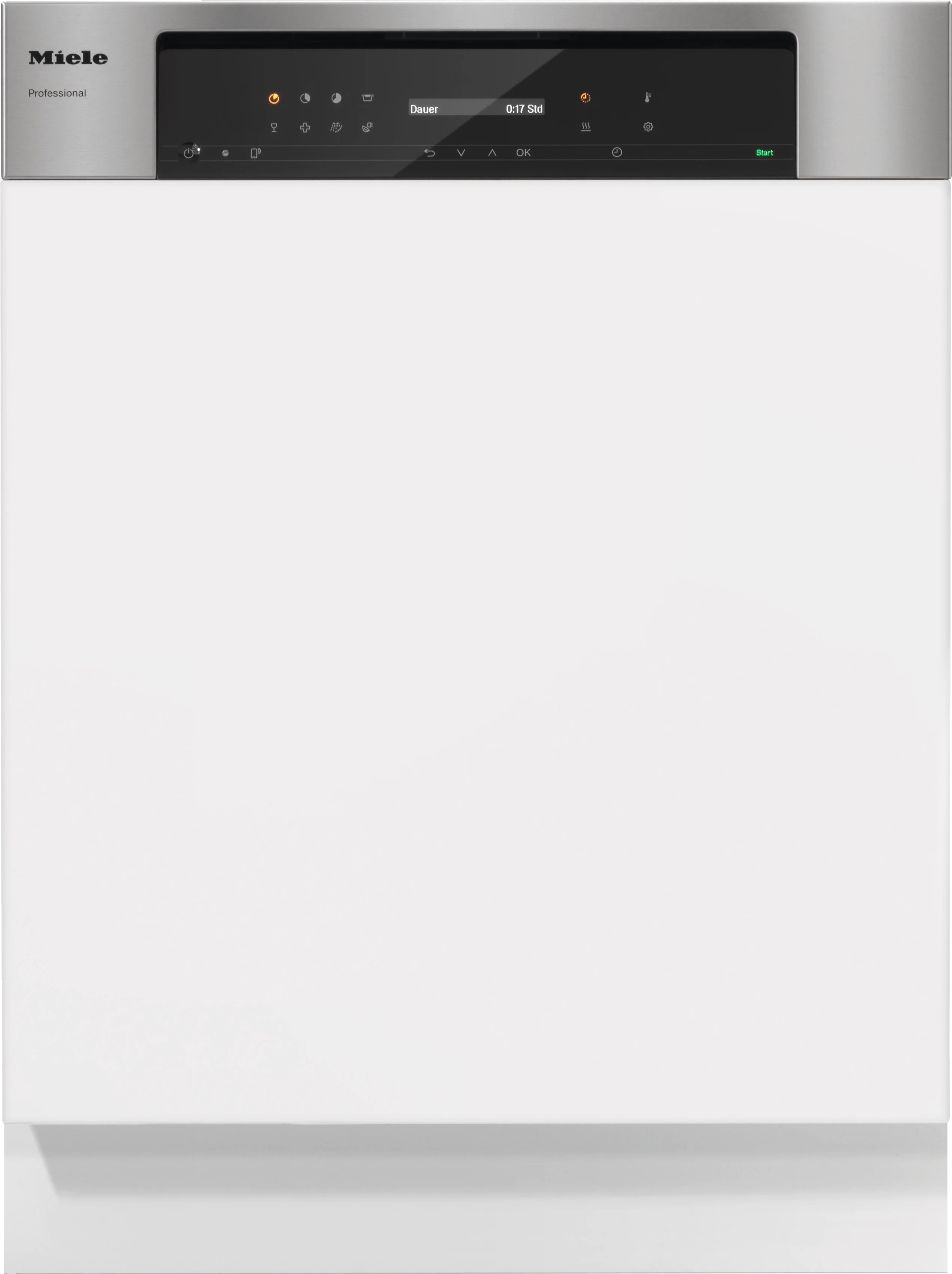

Miele 24" Built-In Dishwasher, 13 Place Setting Capacity in Without Front

Model

Integrated dishwasher

Range

ProfiLine

Wash system

Fresh water front loader

Number of levels

2

Front

Without front

Side walls

Galvanised

Control panel color

Clean Touch Steel

Minimum front panel weight in lbs (kg)

8 (4) lb (kg)

Maximum front panel weight in lbs (kg)

24 (11) lb (kg)

Suitable for retirement and care homes

Yes

Suitable for hospitals

Yes

Suitable for Bed & Breakfast

Yes

Suitable for child care facilities

Yes

Suitable for universities and schools

Yes

Suitable for offices

Yes

Suitable for domestic use

Yes

Suitable for small businesses

Yes

Suitable for sports clubs

Yes

Tested virucidal efficacy

Yes

Certified hygiene

Yes

Shortest program duration in min.

52

Maximum final rinse temperature in (degree)F ((degree)C)

180 (82)

Cleaning performance, place settings/cycle

13

Service life in wash cycles

12500

Network-enabled with Miele MOVE

Yes

Control system

Electronic controls

Program selection

Program selectors

Max. delay start in h

24

Countdown indicator

Yes

Dishwashing programs [number]

8

Program sequence indicator

Yes

Choice of display language

Yes

Check filter indicator

Yes

Electrical connection

AC 120V 60HZ

Heater rating in kW

1.300

Total connected load in kW

1.400

Fuse rating in A

15

Length of power cord in ft (m)

5 (1.70)

NEMA plug: 5-15

Yes

Electrical connection

2N AC 120/208-240V, 60HZ

Heater rating in kW

3.500-3.800

Total connected load in kW

3.700-4

Fuse rating in A

30

Cold or hot water [number]

1

Required flow pressure in bar

1-10

Drain hose [DN]

22

Maximum delivery head for drain pump in inches (cm)

39 3/8 (100)

Integrated water softener

Yes

Maximum water hardness in gpg (mmol/l)

38.025 (6.50)

Water protection system

Waterproof system

Length of water inlet hose in inches (cm)

59 1/8 (150)

Length of water drain hose in inches (cm)

59 1/8 (150)

External dimensions, net height in inches

31 3/4 (805)

External dimensions, net width in inches

23 9/16 (598)

External dimensions, net depth in inches

22 1/2 (570)

External dimensions, gross height in inches

38 1/4 (970)

External dimensions, gross width in inches

26 7/16 (670)

External dimensions, gross depth in inches

27 3/16 (690)

Usable space in wash cabinet, width in inches (mm)

21 5/16 (540)

Usable space in wash cabinet, height in inches (mm)

20 1/8 (510)

Usable space in wash cabinet, depth of upper basket in inches (mm)

17 3/4 (450)

Usable space in wash cabinet, depth of lower basket in inches (mm)

17 3/4 (450)

In-feed height above floor in inches (mm)

8 5/16 (210)

Required niche width in mm

23 5/8 (600)

Net weight [kg]

102 (46)

Gross weight in lbs.

122 (55)

Maximum floor load in N/m

1000

Emission sound pressure level in workplace (LpA)

35 dB(A) re 20 Pa

Sound power (LwA) in dB(A) re 1 pW

48

Normal Plus

Yes

Normal

Yes

SaniWash

Yes

Cold/Pre-wash

Yes

Glasses

Yes

Plastic

Yes

EnergySave/Economy

Yes

Intensive

Yes

ExtraComfort P baskets

Yes

Flexible FlexLine basket design

Yes

FlexCare glass holder [number]

2

FlexCare cup rack [number]

1

Cutlery basket

Yes

Height-adjustable upper basket

Yes

Combinable with APFD 210 bottle basket

Yes

Commercial-grade electrical connection

Yes

Drying

[ "AutoOpen assisted drying", "Additional drying", "Active condensation drying" ]

Adjustable final rinse temperature

Yes

Wi-Fi

Yes

1 Combi dispenser/door for powder and liquid media

Yes

LED Lighting

Yes

EcoFeedback

Yes

Child lock

Yes

Brilliant GlassCare

Yes

Wash cabinet made from high-quality stainless steel

Yes

Optical interface

Yes

SmartStart

Yes

FlexiTimer with EcoStart

Yes

Wash performance: 13 place settings in just 52 min

13% less energy consumption

Perfect lighting for easy loading - BrilliantLight

Everything completely dry - AutoOpen assisted drying

Intuitive to operate thanks to clear fascia panel design

Manufactured with great care by Miele & Cie. KG

Safety information

Choice of display languages

Future-proof networking via WiFi

Quality you can rely on

BrilliantLight *

Delay start and time left display

Integrated water softener

Commercial throughflow heater

FlexLine Baskets

Proven hygiene

Network-enabled with Miele MOVE

Commercial electrical connection

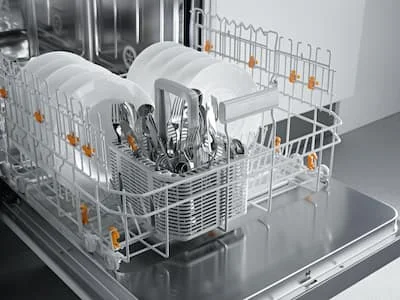

Cutlery basket

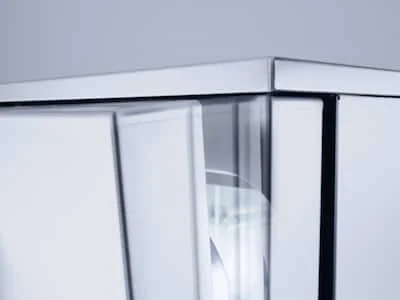

AutoOpen assisted drying

Fresh water system

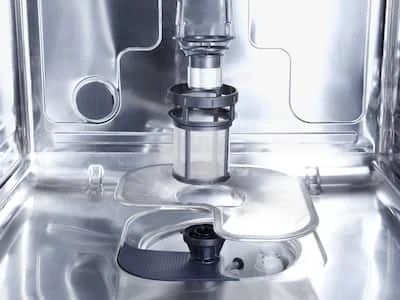

Highly effective filter system

Low consumption values

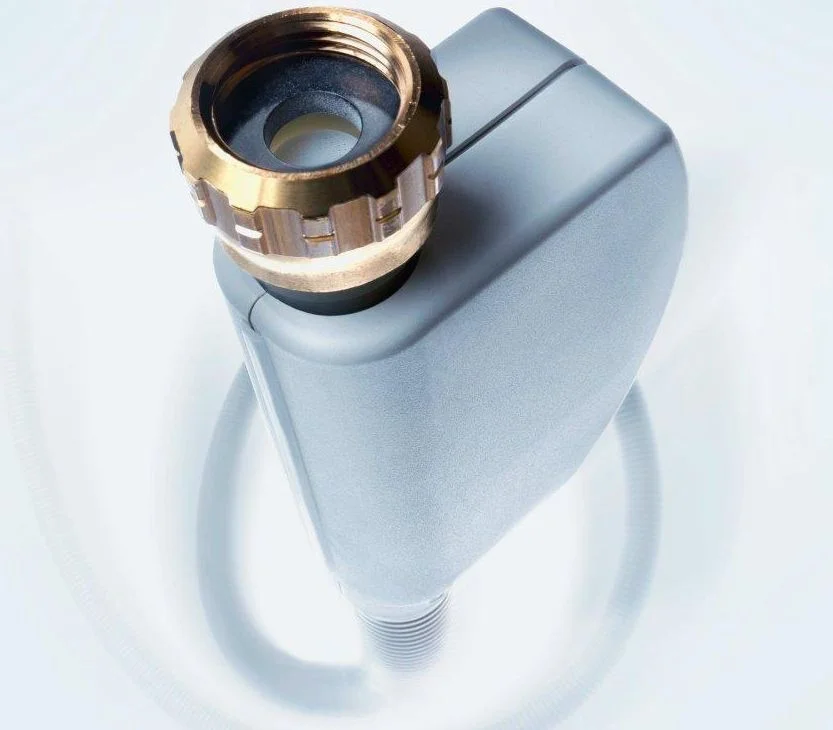

Reliable water protection *

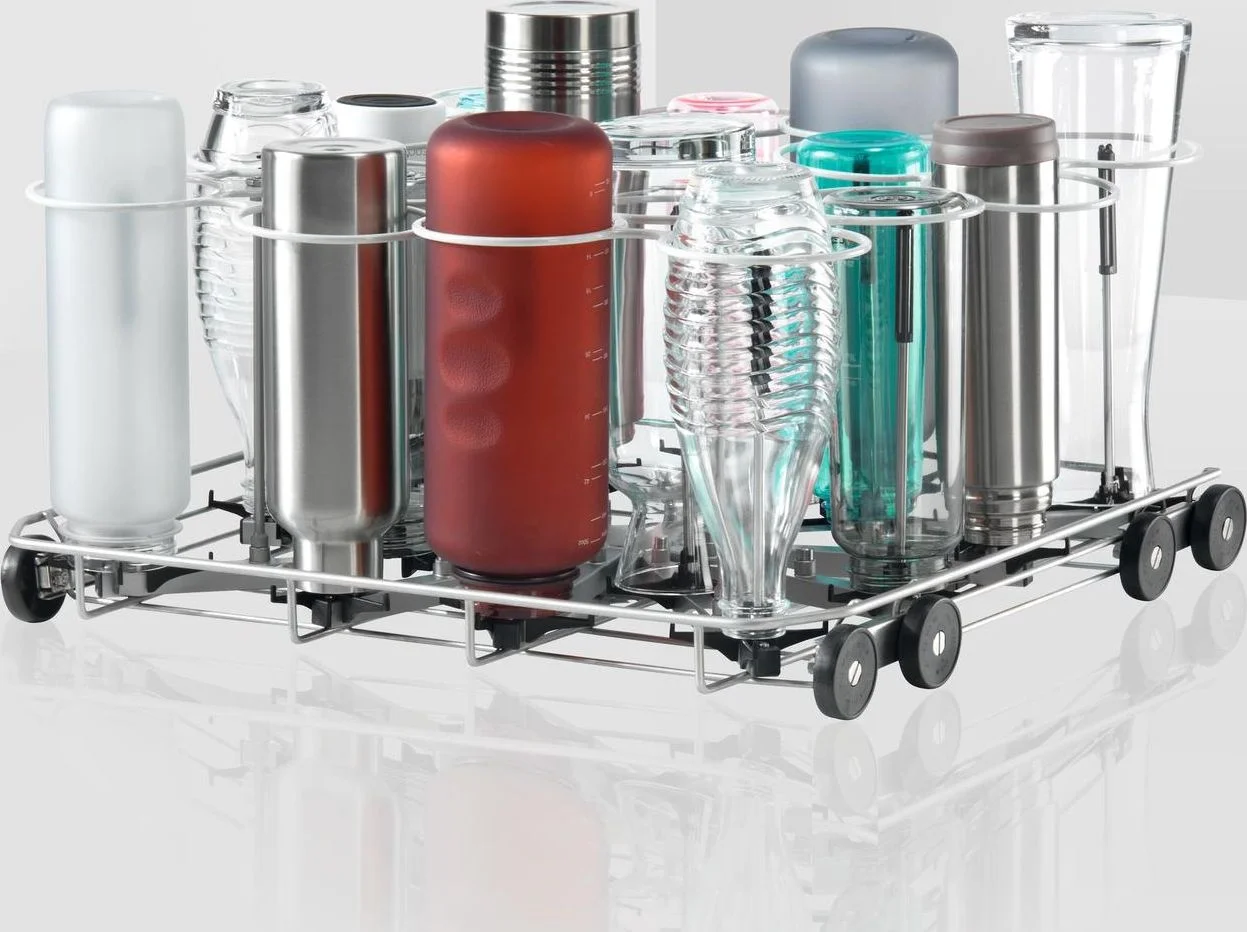

Practical bottle basket

CE

Yes

Complies with Machinery Directive 2006/42/EC

Yes

VDE

Yes

EMC radio suppressed

Yes

DIN EN 17735

Yes

EN 1717

Yes

UL

Yes

EAN

4002516366867

GTIN

04002516366867

EAN

4002516366867
