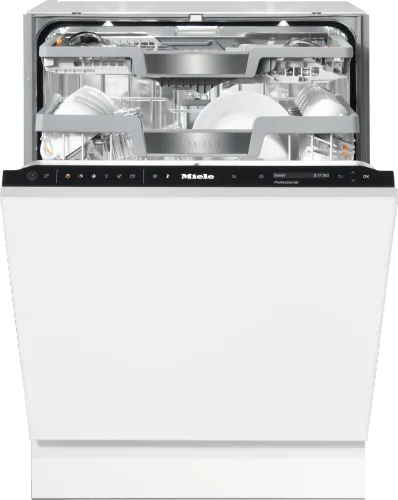

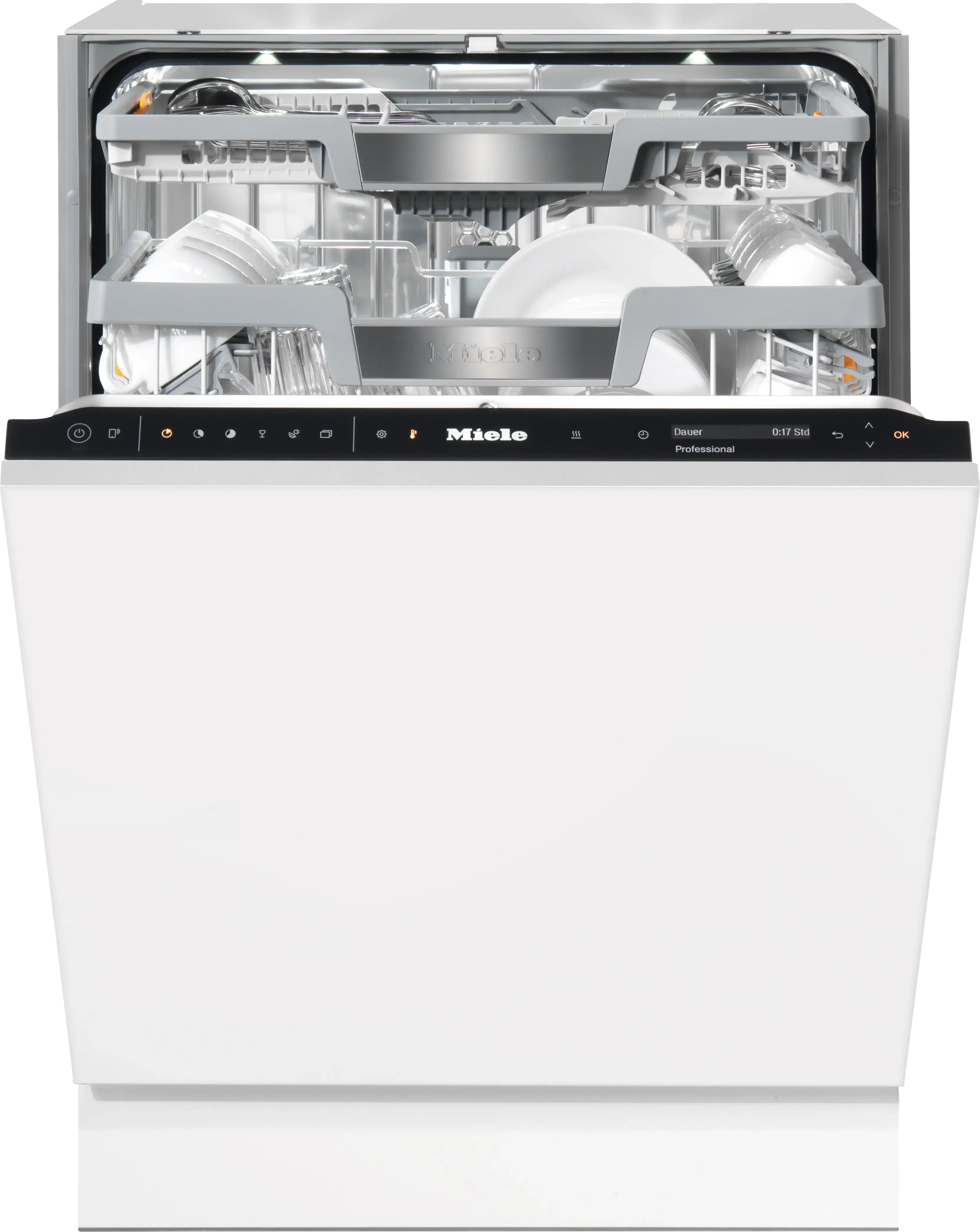

Miele 24" Dishwashers Dishwasher, 16 Place Setting Capacity in Without Front

SKU: PFD104SCVIXXL120V
2x Points
Free 2Y Warranty
Low-cost Install
  • Width: 24.00"
  • Height: 37.81"
  • Weight: 128.00 lbs
  • Type: Built-In
Miele |Authorized Dealer
In Stock|Only 1 left

color: Without Front

Miele PFD104SCVIXXL120V
  • An eye on the time
  • Automatically closing door
  • Brilliant visibility
  • Your dishwasher “speaks" multiple languages
  • Effective against viruses – scientifically proven
Learn More

GET READY FOR INSTALLATION

PRODUCT DESCRIPTION

Fully integrated Full-sized dishwasher with 3D MultiFlex Tray

Features

An eye on the time

An eye on the time

For maximum flexibility, a delay start time of up to 24 hours can be selected.

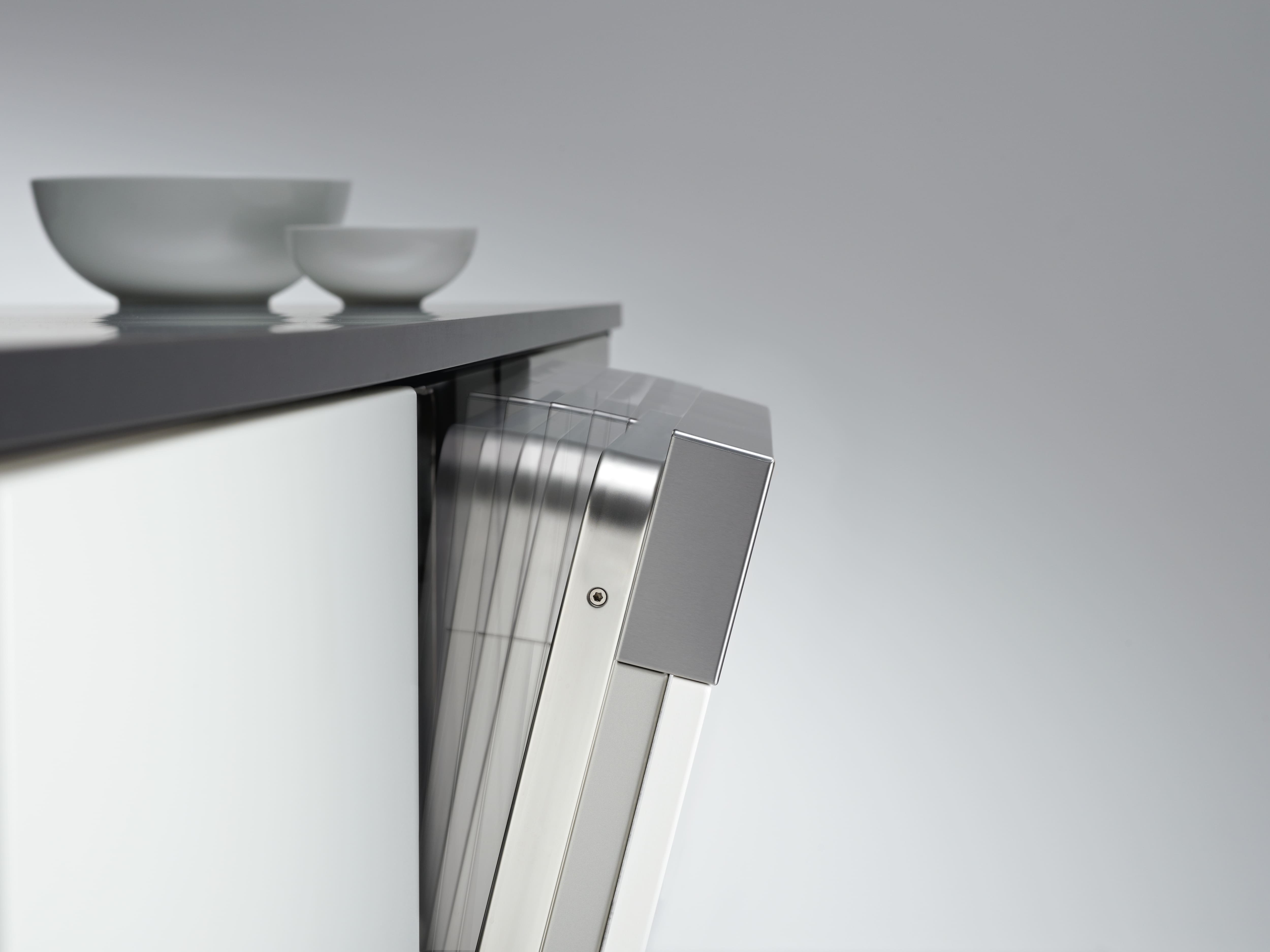

Automatically closing door

Automatically closing door

A light touch is all it takes: With AutoClose the door closes on its own.

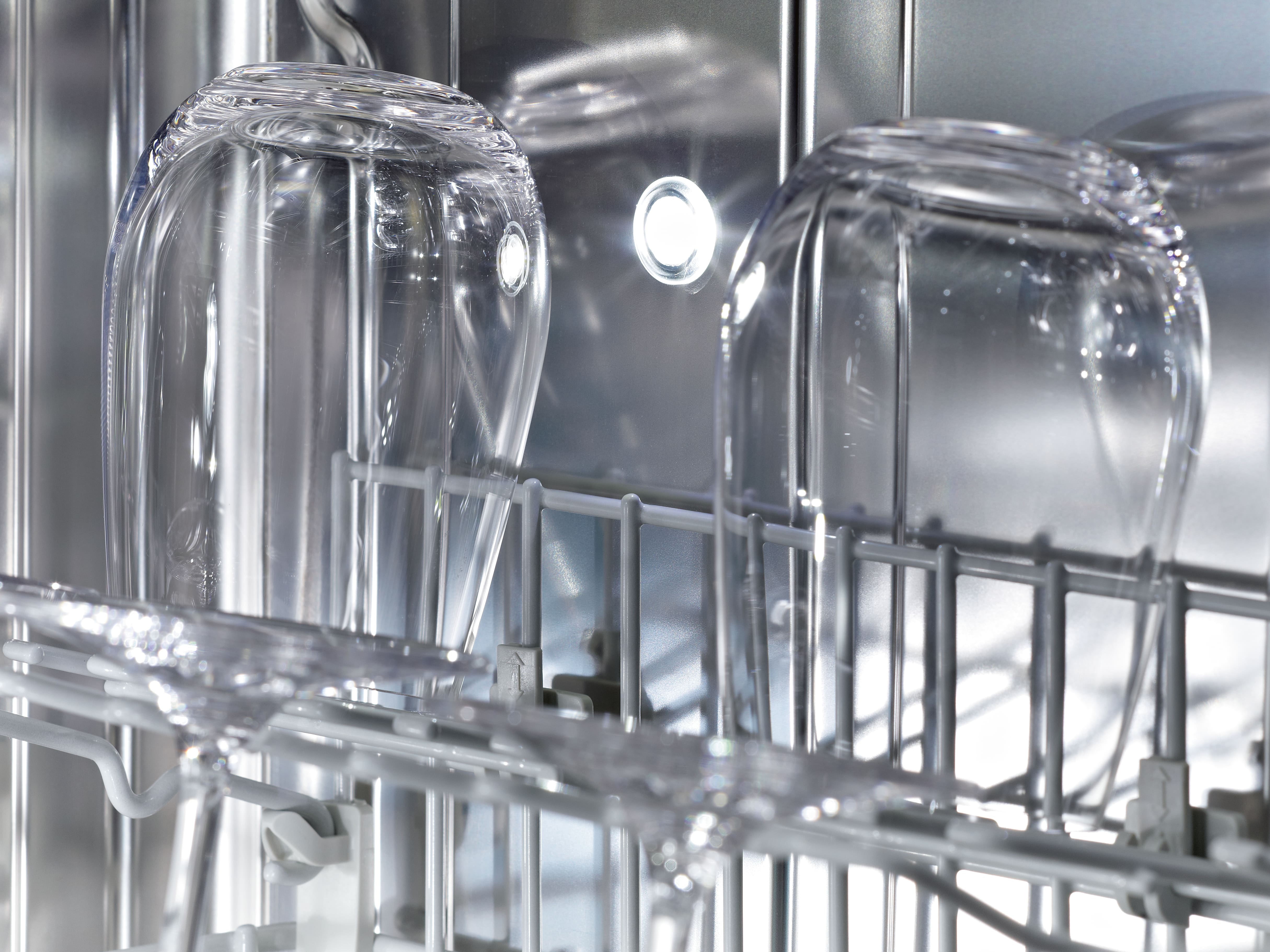

Brilliant visibility

Brilliant visibility

Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.

Your dishwasher “speaks

Your dishwasher “speaks" multiple languages

Multi-talented: set various languages on the display so that you fully understand every piece of information.

Effective against viruses – scientifically proven

Effective against viruses – scientifically proven

Our dishwashers in the PFD 10x series remove more than 99.9%* of all viruses (including coronaviruses).

Effective against bacteria – scientifically proven

Effective against bacteria – scientifically proven

Our dishwashers in the PFD 10x series remove 99.999%* of most bacteria.

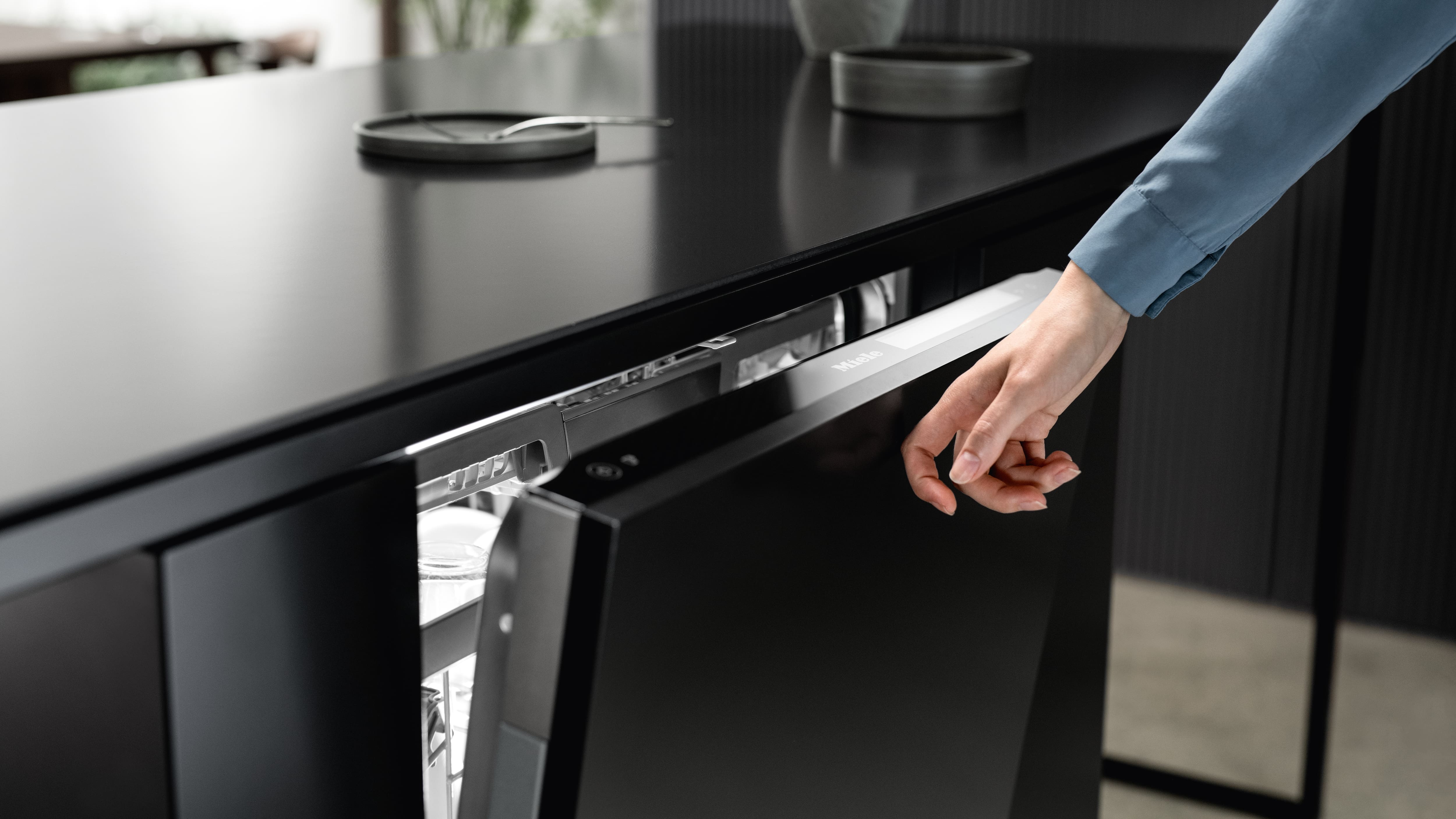

Handleless design, innovative opening

Handleless design, innovative opening

Ingenious: the dishwasher integrates seamlessly into handleless kitchens – and opens automatically with a knock.

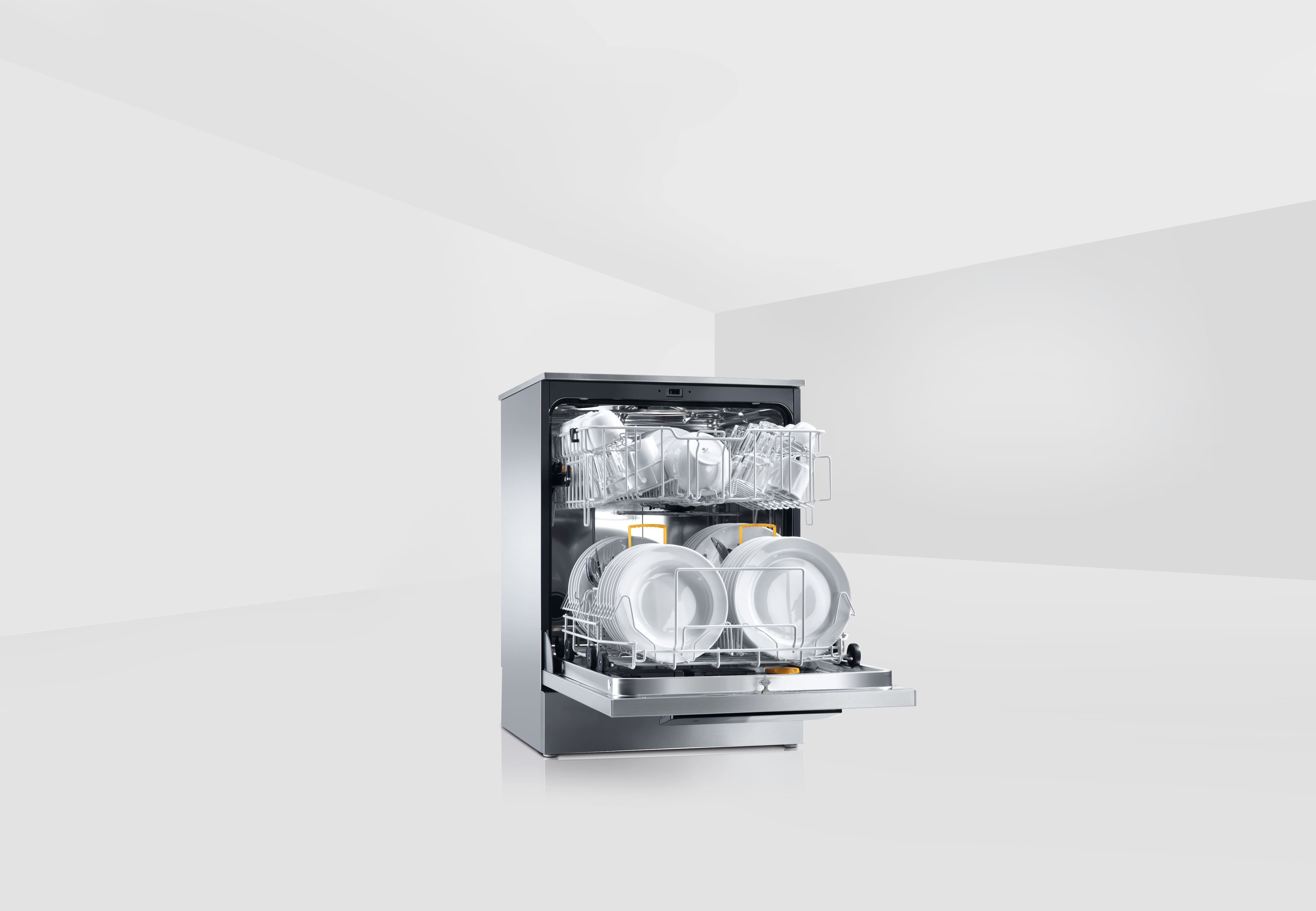

Maximum hygiene assurance

Maximum hygiene assurance

Constantly high cleaning performance and filtration thanks to repeated water changes.

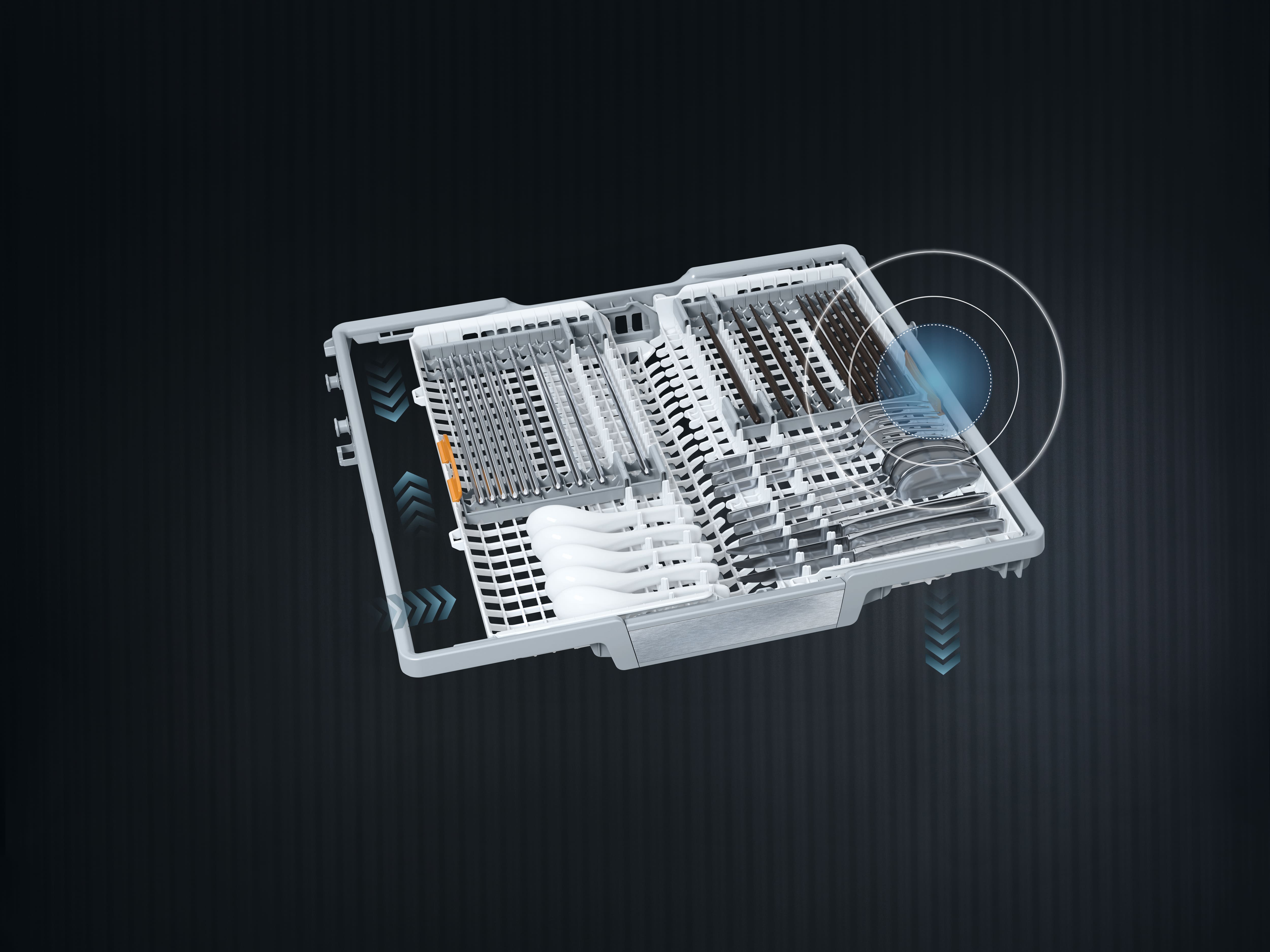

Maximum flexibility

Maximum flexibility

Efficient: ingenious adjustment options create space in the dishwasher even for small items.

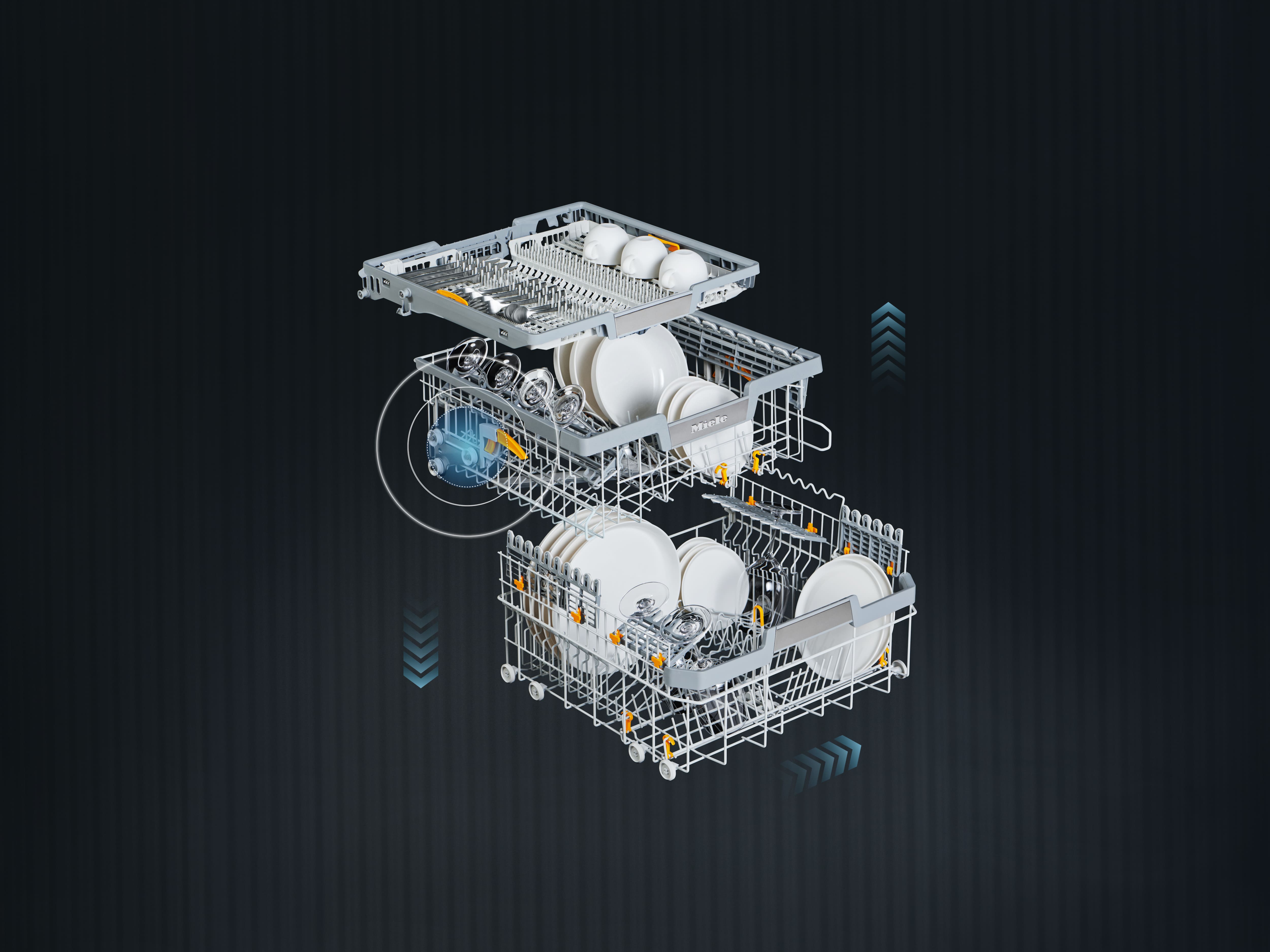

Intelligent basket design for all types of dishware

Intelligent basket design for all types of dishware

Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.

Economical

Economical

Economical and efficient: Miele Professional dishwashers stand out with low consumption values.

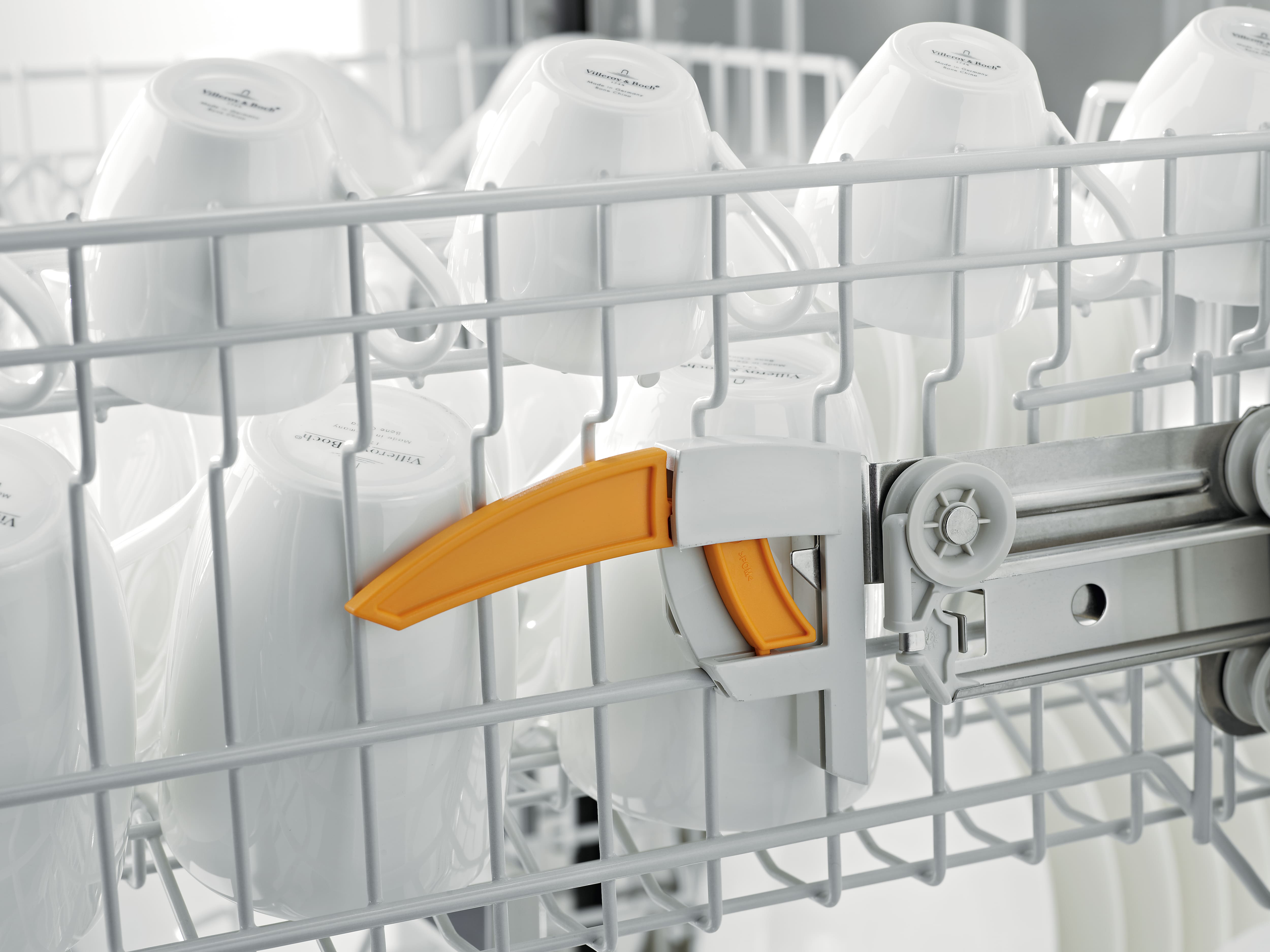

Versatile

Versatile

The height of the upper basket can be adjusted to suit the items being cleaned.

Ensures the optimum water hardness level

Ensures the optimum water hardness level

The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.

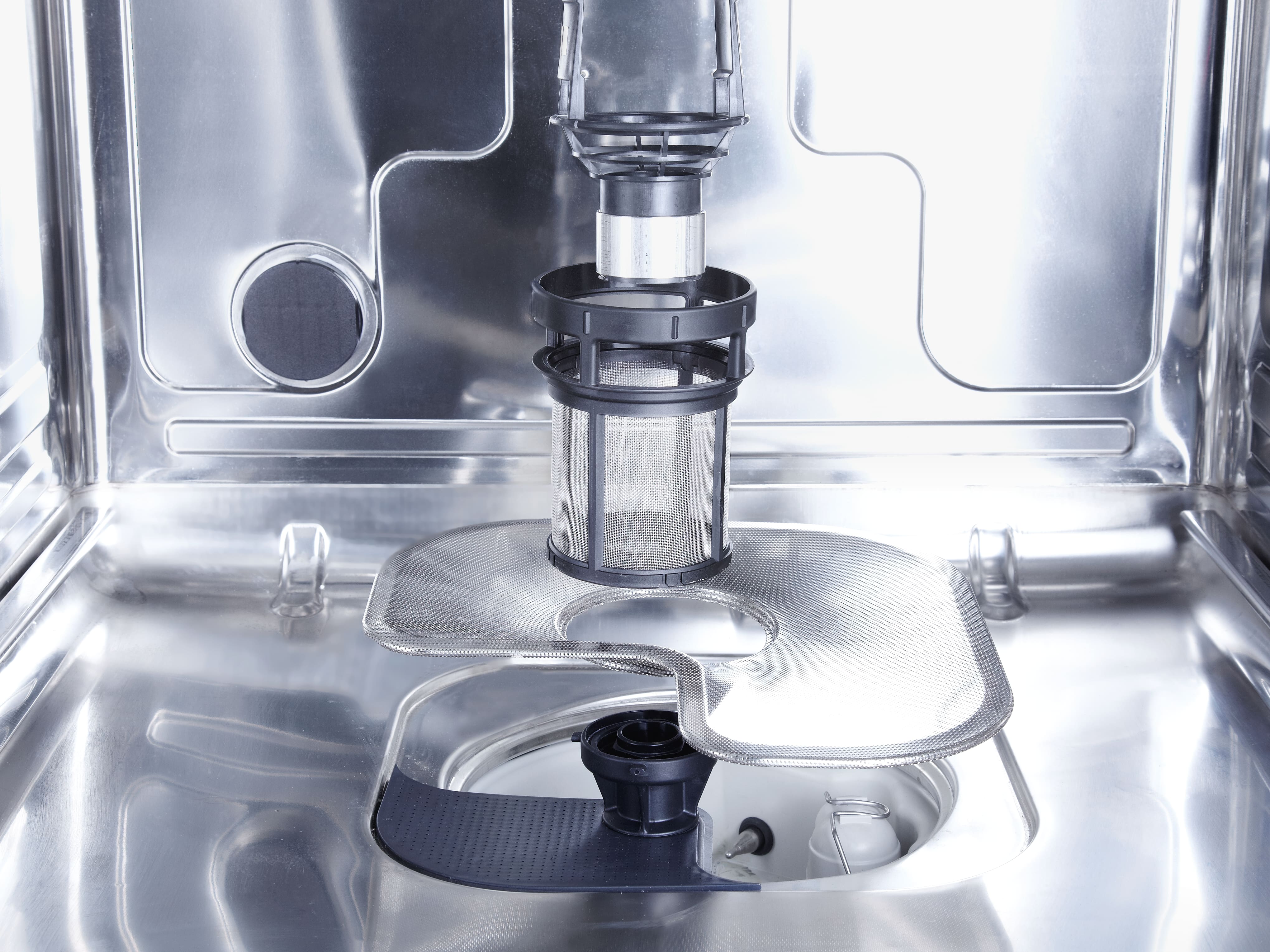

Professional and effective

Professional and effective

Outstanding dishwashing results and reliability are largely due to the highly effective filter system.

Consumption always visible

Consumption always visible

Economical: when a program is selected, estimated water consumption values are displayed.

Protects your wallet and the environment

Protects your wallet and the environment

Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.

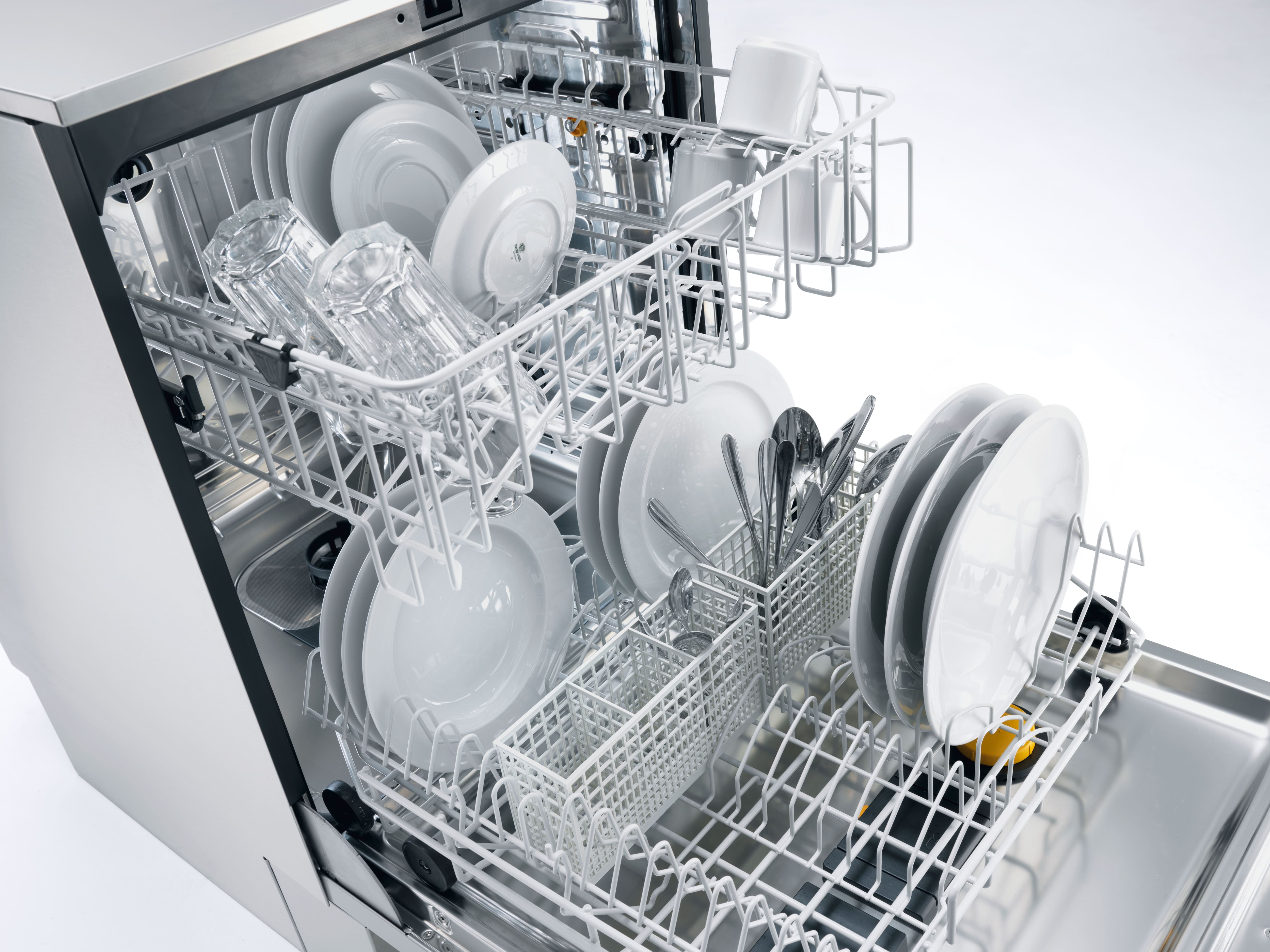

Large wash cabinet

Large wash cabinet

High capacity: The most diverse items can be arranged safely on two wash levels.

Save money intelligently

Save money intelligently

Practical: this function sets the appliance to work automatically when electricity is at its cheapest.

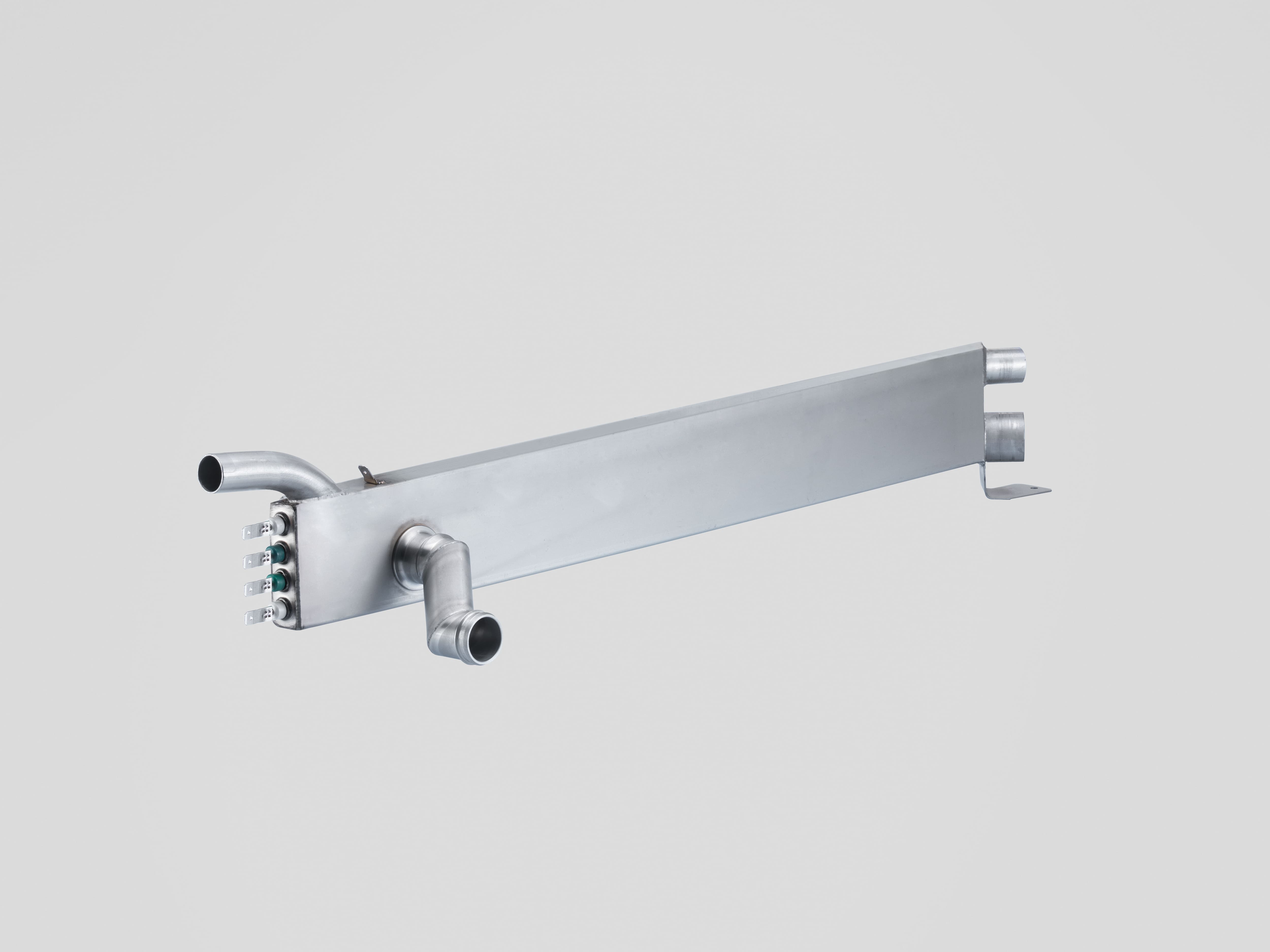

Full-size power

Full-size power

A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.

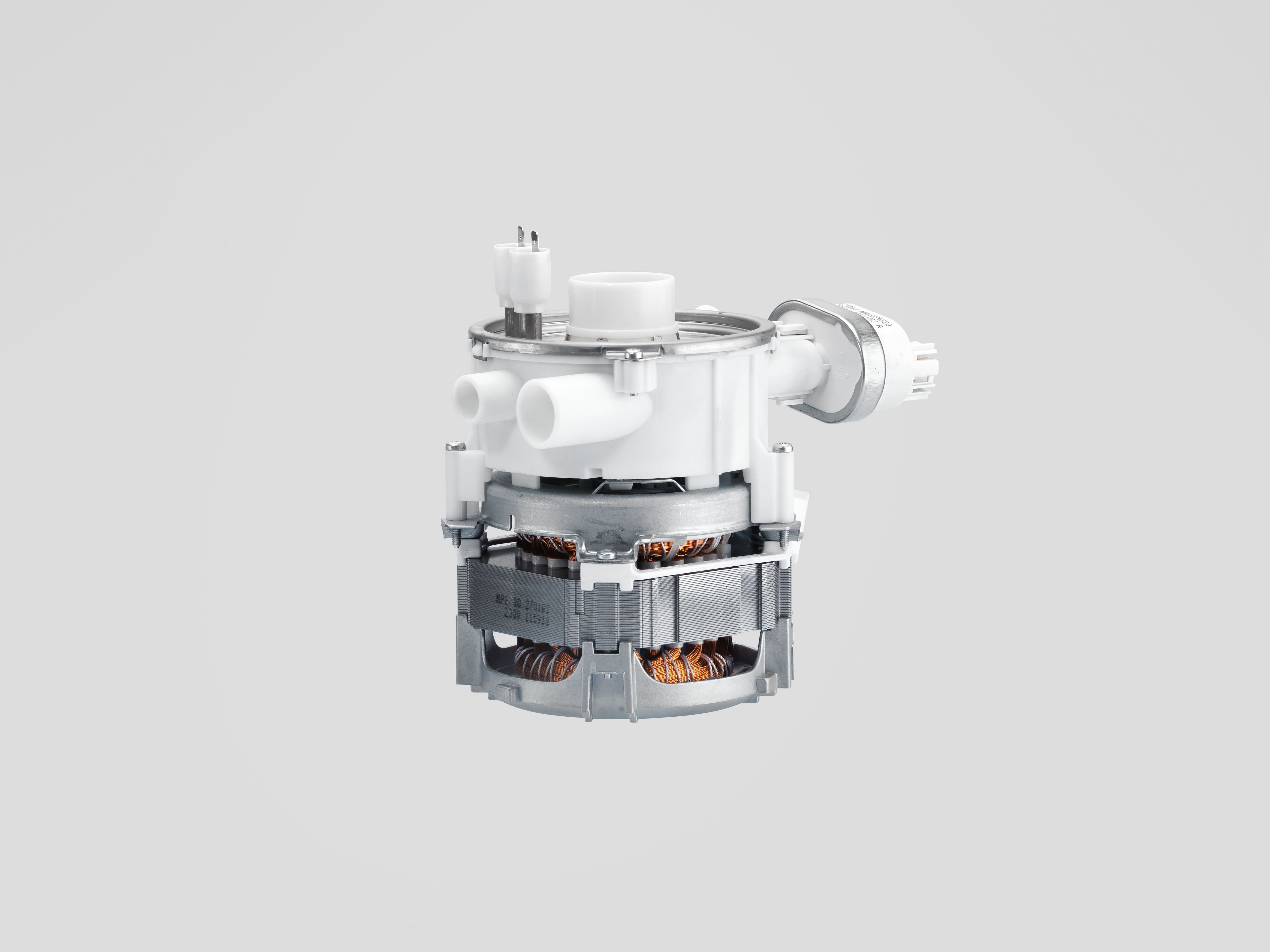

A strong combination

A strong combination

For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.

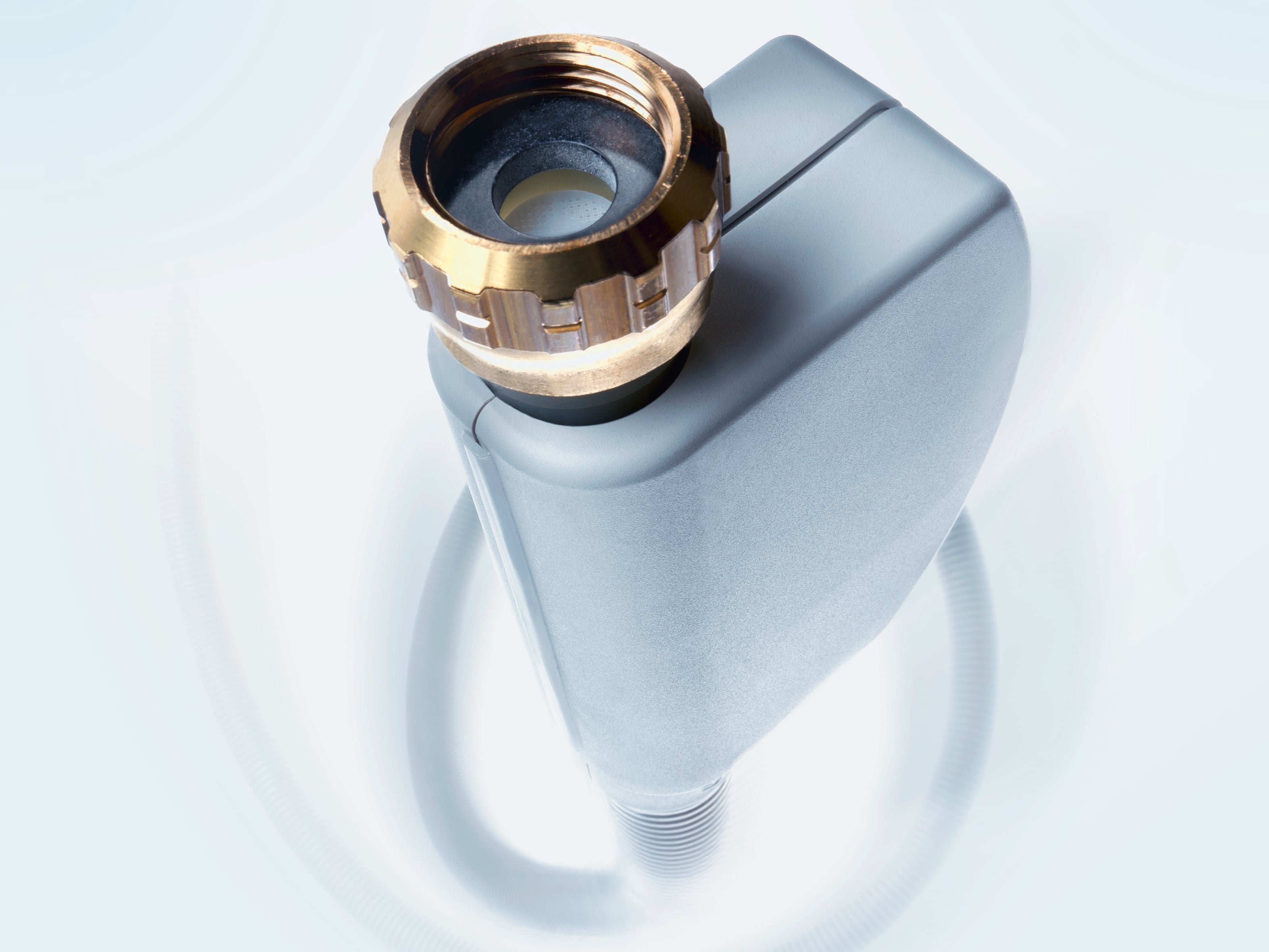

Water protection guarantee

Water protection guarantee

Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.

Long service life

Long service life

Durability: Miele Professional dishwashers are tested for a long service life.

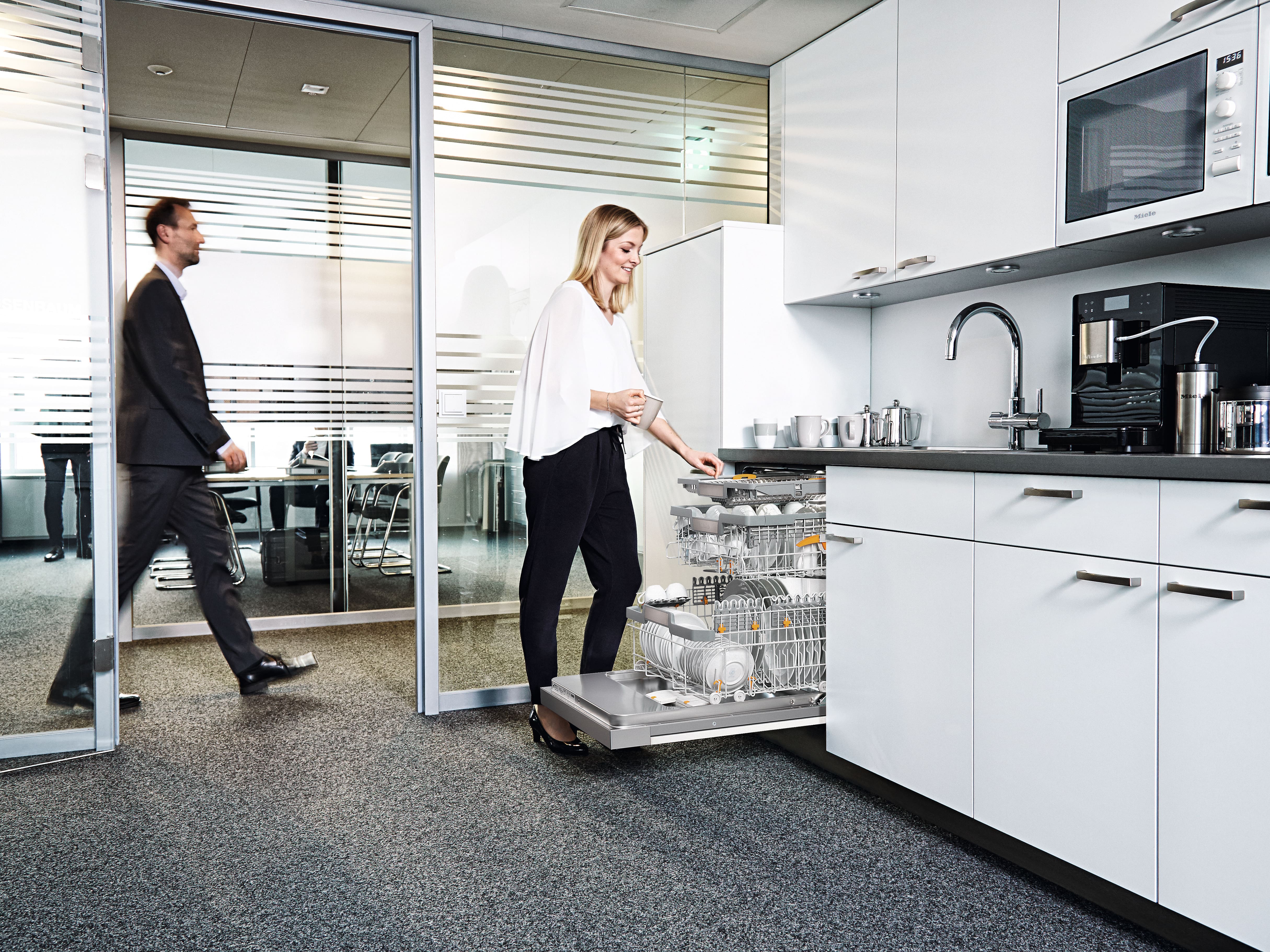

Dishwashing professionals for daily large loads of dishes

Dishwashing professionals for daily large loads of dishes

These dishwashers are ideally suited for all areas which deal with large amounts of dishware.

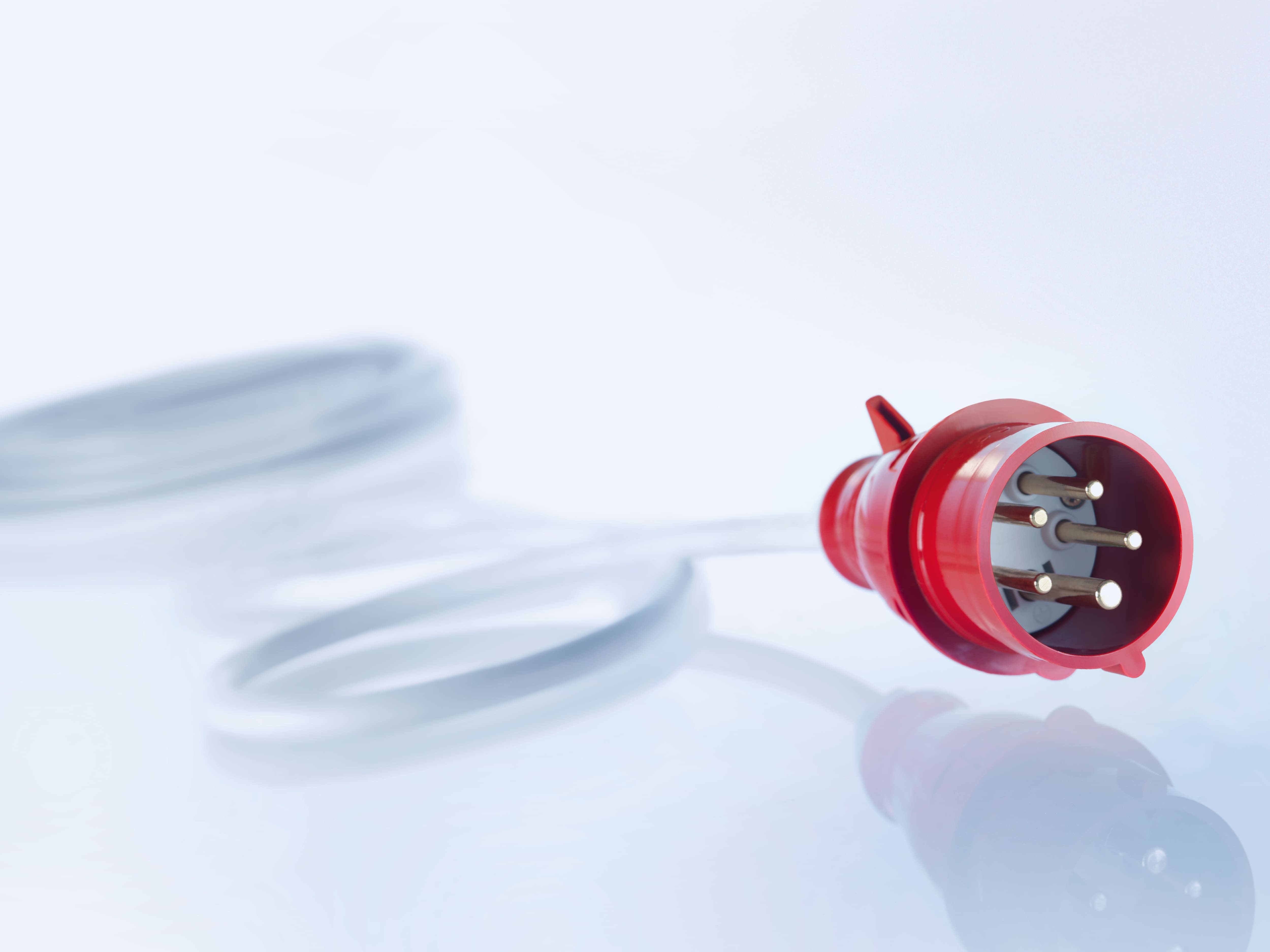

Enhanced performance for large amounts of dishware

Enhanced performance for large amounts of dishware

Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.

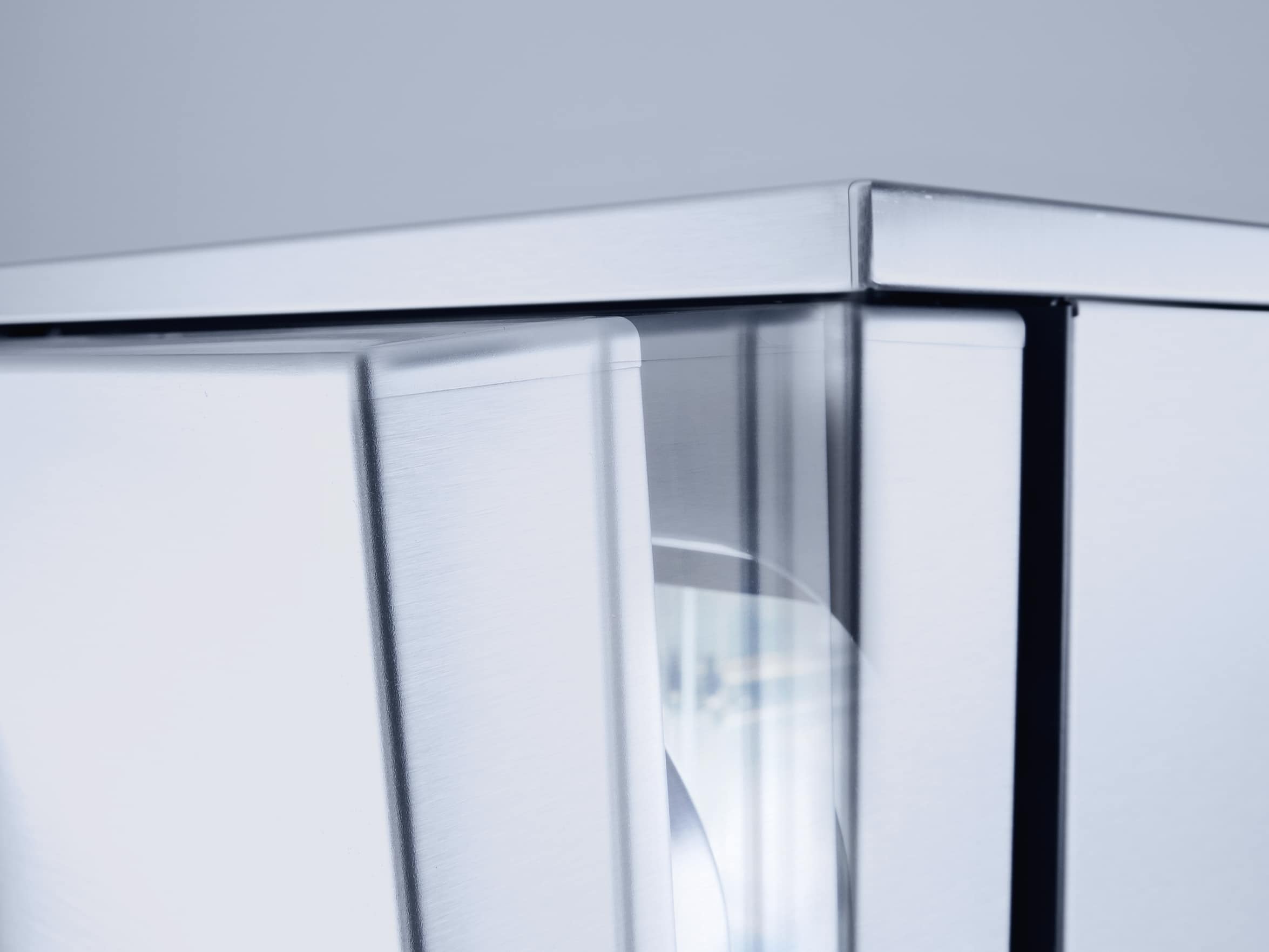

For dry dishware in next to no time

For dry dishware in next to no time

Completely dry: The dishwasher door opens automatically at the end of the program.

Gentle cleaning for delicate glassware

Gentle cleaning for delicate glassware

Gentle and delicate: Brilliant GlassCare cleans your glassware with care.

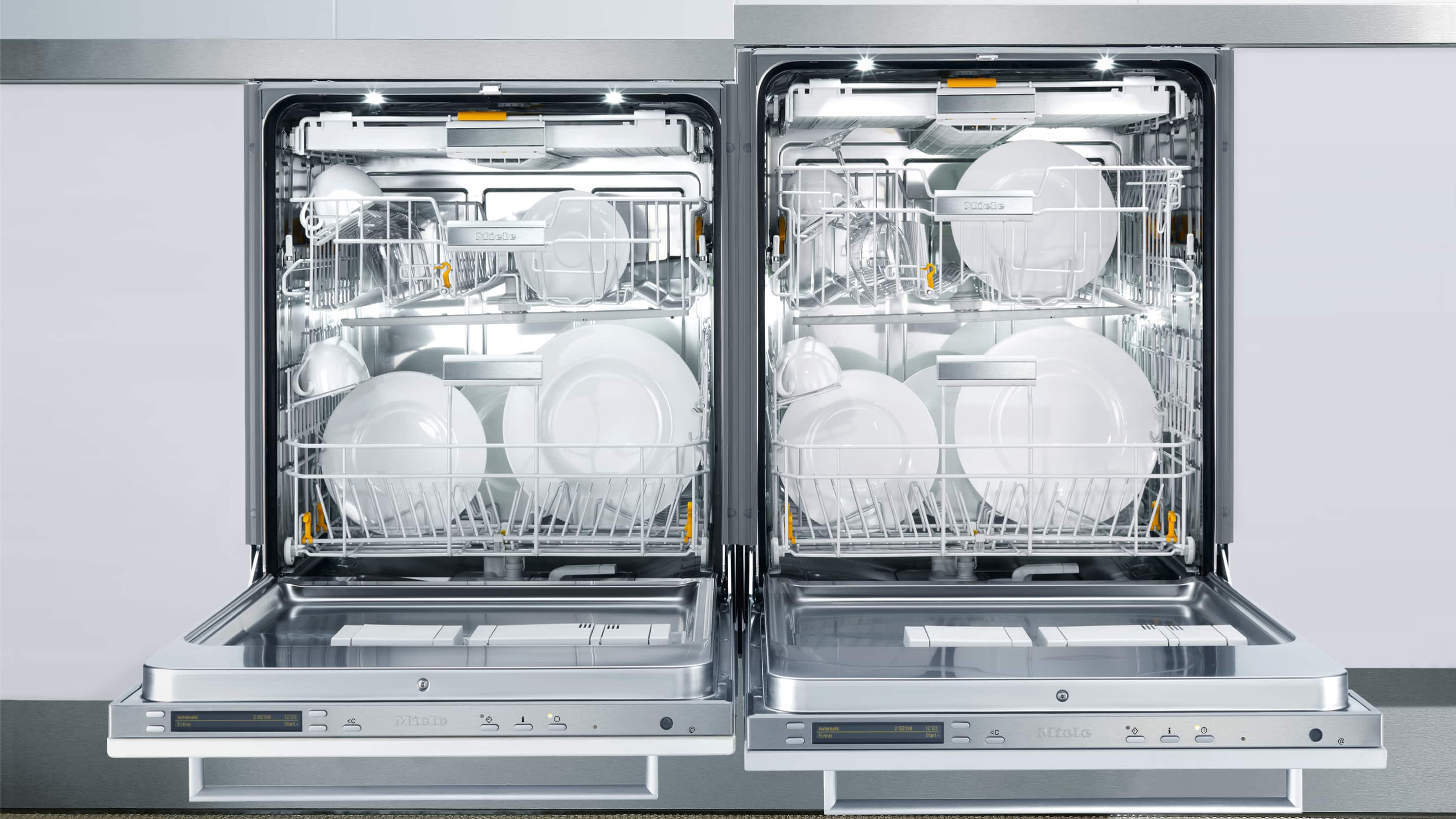

Lots of space

Lots of space

Large-capacity dishwasher with a height of 33 7/16" (85 cm), giving you even more room in the upper basket.

Machine data can be accessed at all times

Machine data can be accessed at all times

All terminal devices can access machine data at all times thanks to networking with Miele MOVE.

Convenience & efficiency in demanding applications

Convenience & efficiency in demanding applications

Fully informed with a high-performance network connection.

Specifications

construction type and design

Model
Fully integrated dishwasher
XXL dishwashers
Yes
Range
ProfiLine
Wash system
Fresh water front loader
Number of levels
2
Front
Without front
Side walls
Galvanised
Control panel color
Obsidian Black
Minimum front panel weight in lbs
5
Maximum front panel weight in lbs
12

application

Suitable for retirement and care homes
Yes
Suitable for hospitals
Yes
Suitable for Bed & Breakfast
Yes
Suitable for child care facilities
Yes
Suitable for universities and schools
Yes
Suitable for offices
Yes
Suitable for domestic use
Yes
Suitable for small businesses
Yes
Suitable for sports clubs
Yes

performance data

Tested virucidal efficacy
Yes
Certified hygiene
Yes
Circulation pump, Qmax in gal/min (l/min)
19.8 (75)
Shortest program duration in min.
52
Maximum final rinse temperature in °F (°C)
180 (82)
Cleaning performance, place settings/cycle
16
Service life in wash cycles
12500

miele move

Network-enabled with Miele MOVE
Yes

control

Control system
Electronic controls
Program selection
Program selectors
Max. delay start in h
24
Countdown indicator
Yes
Programs [quantity]
8
Program sequence indicator
Yes
Choice of display language
Yes
Check filter indicator
Yes

standard electrical connection

Electrical connection
AC 120V 60HZ
Heater rating in kW
1.30
Total connected load in kW
1.40
Fuse rating in A
15
Length of power cord in ft (m)
5 (1.70)
NEMA plug: 5-15
Yes

possible voltage variant 1

Electrical connection
2N AC 120/208-240V, 60HZ
Heater rating in kW
3.50-3.80
Total connected load in kW
3.70-4
Fuse rating in A
30

water connection/drainage

Cold or hot water [number]
1
Required flow pressure in bar
1-10
Drain hose [DN]
22
Maximum delivery head for drain pump in inches (cm)
39 3/8 (100)
Integrated water softener
Yes
Maximum water hardness in gpg (mmol/l)
6.5 (6.50)
Water protection system
Waterproof system
Length of water inlet hose in inches (cm)
59 1/8 (150)
Length of water drain hose in inches (cm)
59 1/8 (150)

emission values

Emission sound pressure level in workplace (LpA)
33 dB(A) re 20 µPa
Sound power (LwA) in dB(A) re 1 pW
45

programs

Universal
Yes
Short
Yes
SaniWash
Yes
Cold/Pre-wash
Yes
Glasses
Yes
Plastic
Yes
EnergySave/Economy
Yes
Intensive
Yes

baskets

MaxiComfort P baskets
Yes
Flexible FlexLine basket design
Yes
FlexCare glass holder [number]
4
FlexCare cup rack [number]
2
Height-adjustable upper basket
Yes
Patented 3D MultiFlex tray
Yes

features

Commercial-grade electrical connection
Yes
Drying
AutoOpen assisted drying Additional drying Active condensation drying
1 Combi dispenser/door for powder and liquid media
Yes
Wash cabinet made from high-quality stainless steel
Yes
LED Lighting
Yes
Knock2open
Yes
AutoClose
Yes
EcoFeedback
Yes
Brilliant GlassCare
Yes
Adjustable final rinse temperature
Yes
Optical interface
Yes
SmartStart
Yes
FlexiTimer with EcoStart
Yes
WiFi module
Yes
An eye on the time
Automatically closing door
Brilliant visibility
Your dishwasher “speaks" multiple languages
Effective against viruses – scientifically proven
Effective against bacteria – scientifically proven
Handleless design, innovative opening
Maximum hygiene assurance
Maximum flexibility
Intelligent basket design for all types of dishware
Economical
Versatile
Ensures the optimum water hardness level
Professional and effective
Consumption always visible
Protects your wallet and the environment
Large wash cabinet
Save money intelligently
Full-size power
A strong combination
Water protection guarantee
Long service life
Dishwashing professionals for daily large loads of dishes
Enhanced performance for large amounts of dishware
For dry dishware in next to no time
Gentle cleaning for delicate glassware
Lots of space
Machine data can be accessed at all times
Convenience & efficiency in demanding applications

standards, test certificates, and symbols

CE
Yes
Complies with Machinery Directive 2006/42/EC
Yes
VDE
Yes
EMC radio suppressed
Yes
DIN EN 17735
Yes
EN 1717
Yes
UL
Yes

warranty

Parts
2 Year
Labor
2 Year

other

Maximum floor load in N/m²
1000

dimensions & weight

Width
-
Height
37.81 in.
Length
-
Weight
128 lbs.

number of boxes, shipping dimensions, & shipping weight

Number of Boxes
1
Shipping Width
-
Shipping Height
42.81 in.
Shipping Length
-
Shipping Weight
133 lbs.
Total of Shipping Weight
133 lbs.
Source
Calculation

cubic feet measurement & dimensional weight

Cubic Feet Measurement
-
Dimensional Weight
-
Total of Cubes
-
Total of Dimensional Weight
-
