PRODUCT DESCRIPTION
For maximum flexibility, a delay start time of up to 24 hours can be selected.
Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.
A light touch is all it takes: With AutoClose the door closes on its own.
Ingenious: the dishwasher integrates seamlessly into handleless kitchens - and opens automatically with a knock.
Multi-talented: set various languages on the display so that you fully understand every piece of information.
Our dishwashers in the PFD 10x series remove more than 99.9% * of all viruses (including coronaviruses).
Constantly high cleaning performance and filtration thanks to repeated water changes.
Our dishwashers in the PFD 10x series remove 99.999% * of most bacteria.
The height of the upper basket can be adjusted to suit the items being cleaned.
Efficient: ingenious adjustment options create space in the dishwasher even for small items.
Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.
Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
Economical: when a program is selected, estimated water consumption values are displayed.
Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.
Practical: this function sets the appliance to work automatically when electricity is at its cheapest.
A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.
For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.
Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.
Durability: Miele Professional dishwashers are tested for a long service life.
These dishwashers are ideally suited for all areas which deal with large amounts of dishware.
Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.
Completely dry: The dishwasher door opens automatically at the end of the program.
Gentle and delicate: Brilliant GlassCare cleans your glassware with care.
Large-capacity dishwasher with a height of 33 7/16" (85 cm), giving you even more room in the upper basket.
All terminal devices can access machine data at all times thanks to networking with Miele MOVE.
Fully informed with a high-performance network connection.
Features
Knock2open *
Ingenious: the dishwasher integrates seamlessly into handleless kitchens - and opens automatically with a knock.
Choice of display languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.
Proven hygiene
Our dishwashers in the PFD 10x series remove more than 99.9% * of all viruses (including coronaviruses).
Fresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes.
Proven hygiene
Our dishwashers in the PFD 10x series remove 99.999% * of most bacteria.
Height-adjustable upper basket
The height of the upper basket can be adjusted to suit the items being cleaned.
3D MultiFlex Tray *
Efficient: ingenious adjustment options create space in the dishwasher even for small items.
FlexLine Baskets
Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.
Low consumption values
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Practical bottle basket
Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.
Integrated water softener
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
SmartStart
Practical: this function sets the appliance to work automatically when electricity is at its cheapest.
Delay start and time left display
For maximum flexibility, a delay start time of up to 24 hours can be selected.
AutoClose
A light touch is all it takes: With AutoClose the door closes on its own.
BrilliantLight *
Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.
FlexiTimer with EcoStart
Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.
Highly effective filter system
Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
EcoFeedback
Economical: when a program is selected, estimated water consumption values are displayed.
Commercial throughflow heater
A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.
Powerful heater pump
For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.
Water protection guarantee *
Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.
AutoOpen assisted drying
Completely dry: The dishwasher door opens automatically at the end of the program.
Quality you can rely on
Durability: Miele Professional dishwashers are tested for a long service life.
Commercial electrical connection
Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.
For businesses
These dishwashers are ideally suited for all areas which deal with large amounts of dishware.
Network-enabled with Miele MOVE
All terminal devices can access machine data at all times thanks to networking with Miele MOVE.
XXL dishwashers
Future-proof networking via WiFi
Fully informed with a high-performance network connection.
Brilliant GlassCare
Gentle and delicate: Brilliant GlassCare cleans your glassware with care.
Specifications
Model

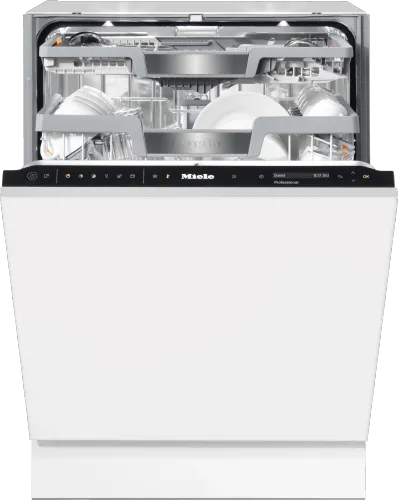

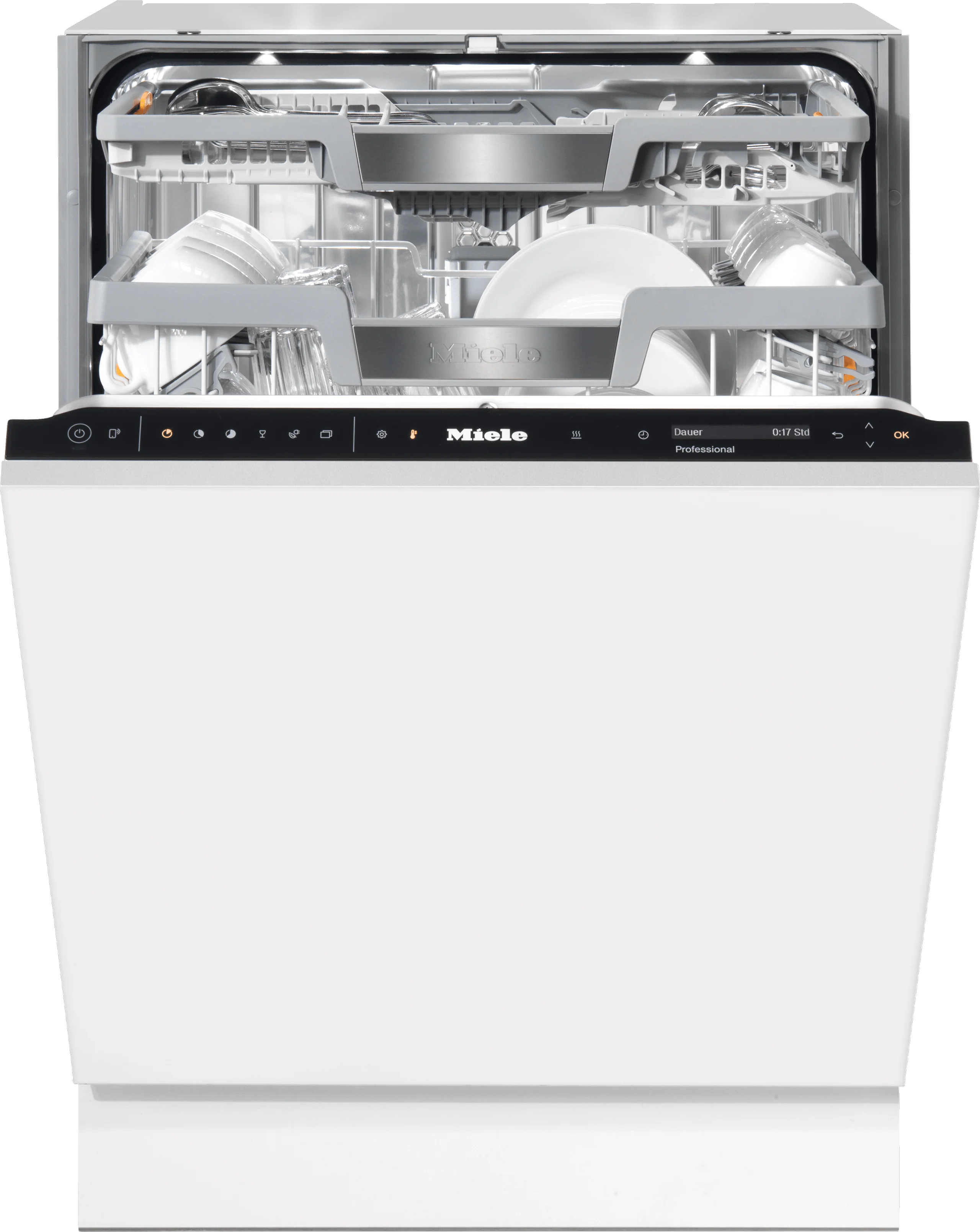

Fully integrated dishwasher
XXL dishwashers
•
Range
ProfiLine
Wash system
Fresh water front loader
Number of levels
2
Front
Without front
Side walls
Galvanised
Control panel color
Obsidian Black
Minimum front panel weight in lbs (kg)
11 (5) lb (kg)
Maximum front panel weight in lbs (kg)
26 (12) lb (kg)
Suitable for retirement and care homes
Suitable for hospitals
Suitable for Bed & Breakfast
Suitable for child care facilities
Suitable for universities and schools
Suitable for offices
Suitable for domestic use
Suitable for small businesses
Suitable for sports clubs
Tested virucidal efficacy
Certified hygiene
Circulation pump, Qmax in gal/min (l/min)
19.8 (75)
Shortest program duration in min.
52
Maximum final rinse temperature in (degree)F ((degree)C)
180 (82)
Cleaning performance, place settings/cycle
16
Service life in wash cycles
12500
Network-enabled with Miele MOVE
Control system
Electronic controls
Program selection
Program selectors
Max. delay start in h
24
Countdown indicator
•
Dishwashing programs [number]
8
Program sequence indicator
•
Choice of display language
•
Check filter indicator
Electrical connection
AC 120V 60HZ
Heater rating in kW
1.30
Total connected load in kW
1.40
Fuse rating in A
15
Length of power cord in ft (m)
5 (1.70)
NEMA plug: 5-15
•
Electrical connection
2N AC 120/208-240V, 60HZ
Heater rating in kW
3.50-3.80
Total connected load in kW
3.70-4
Fuse rating in A
30
Cold or hot water [number]
1
Required flow pressure in bar
1-10
Drain hose [DN]
22
Maximum delivery head for drain pump in inches (cm)
39 3/8 (100)
Integrated water softener
•
Maximum water hardness in gpg (mmol/l)
38.025 (6.50)
Water protection system
Waterproof system
Length of water inlet hose in inches (cm)
59 1/8 (150)
Length of water drain hose in inches (cm)
59 1/8 (150)
External dimensions, net height in inches
33 5/16 (845)
External dimensions, net width in inches
23 9/16 (598)
External dimensions, net depth in inches
21 11/16 (550)
External dimensions, gross height in inches
37 13/16 (960)
External dimensions, gross width in inches
26 7/16 (670)
External dimensions, gross depth in inches
27 9/16 (700)
Usable space in wash cabinet, width in inches (mm)
22 7/8 (580)
Usable space in wash cabinet, height in inches (mm)
20 1/8 (510)
Usable space in wash cabinet, depth of upper basket in inches (mm)
17 3/4 (450)
Usable space in wash cabinet, depth of lower basket in inches (mm)
17 3/4 (450)
In-feed height above floor in inches (mm)
8 5/16 (210)
Required niche width in mm
23 5/8 (600)
Net weight [kg]
113 (51)
Gross weight in lbs.
128 (58)
Maximum floor load in N/m
1000
Emission sound pressure level in workplace (LpA)
33 dB(A) re 20 Pa
Sound power (LwA) in dB(A) re 1 pW
45
Universal
Short
SaniWash
•
Cold/Pre-wash
•
Glasses
•
Plastic
•
EnergySave/Economy
•
Intensive
MaxiComfort P baskets
Flexible FlexLine basket design
•
FlexCare glass holder [number]
4
FlexCare cup rack [number]
2
Height-adjustable upper basket
Combinable with APFD 210 bottle basket
Patented 3D MultiFlex tray
•
Commercial-grade electrical connection
Drying
AutoOpen assisted drying Additional drying Active condensation drying
1 Combi dispenser/door for powder and liquid media
•
Wash cabinet made from high-quality stainless steel
•
LED Lighting
•
Knock2open
•
AutoClose
•
EcoFeedback
•
Brilliant GlassCare
•
Adjustable final rinse temperature
•
Optical interface
•
SmartStart
•
FlexiTimer with EcoStart
•
Wi-Fi
Wash performance: 16 place settings in just 52 min *
13% less energy consumption
Door opens automatically after two knocks - Knock2open
Everything completely dry - AutoOpen assisted drying
Innovative design and maximum convenience - 3D MultiFlex Tray
FlexLine Baskets
Powerful heater pump
AutoOpen assisted drying
Proven hygiene
Delay start and time left display
Future-proof networking via WiFi
Choice of display languages
3D MultiFlex Tray *
Water protection guarantee *
Height-adjustable upper basket
Commercial electrical connection
Highly effective filter system
BrilliantLight *
Fresh water system
Knock2open *
Commercial throughflow heater
Integrated water softener
Network-enabled with Miele MOVE
Low consumption values
XXL dishwashers
Quality you can rely on
For businesses
Practical bottle basket
CE
•
Complies with Machinery Directive 2006/42/EC
•
VDE
•
EMC radio suppressed
•
DIN EN 17735
•
EN 1717
•
UL
•
GTIN
04002516366881
EAN
4002516366881
