PRODUCT DESCRIPTION
Features

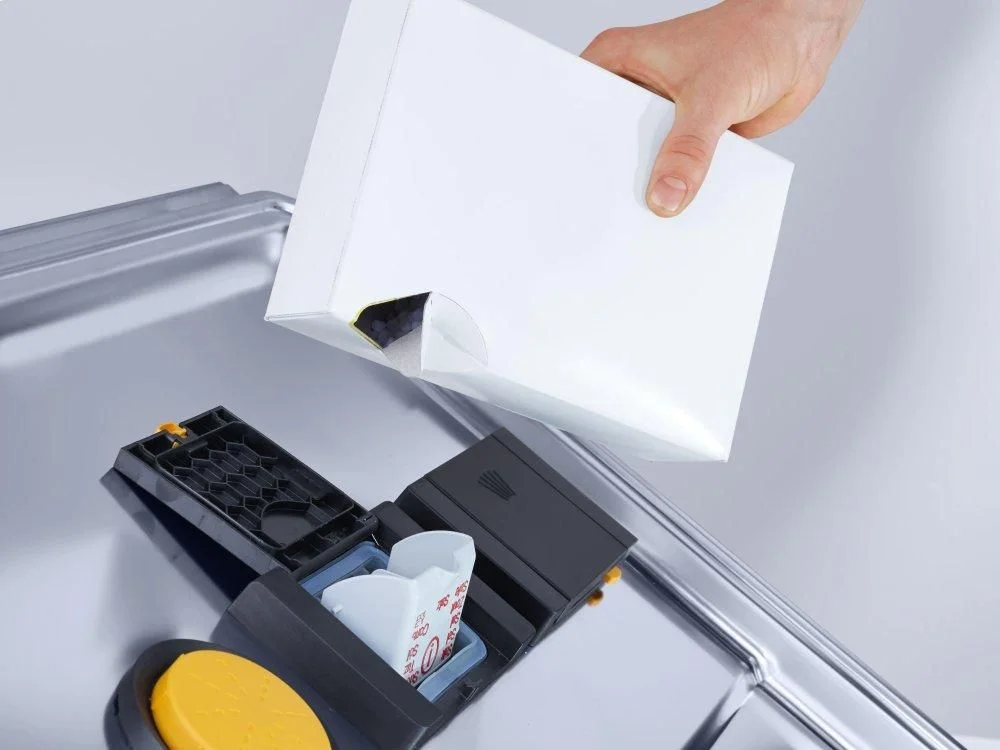

Door salt container
Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.

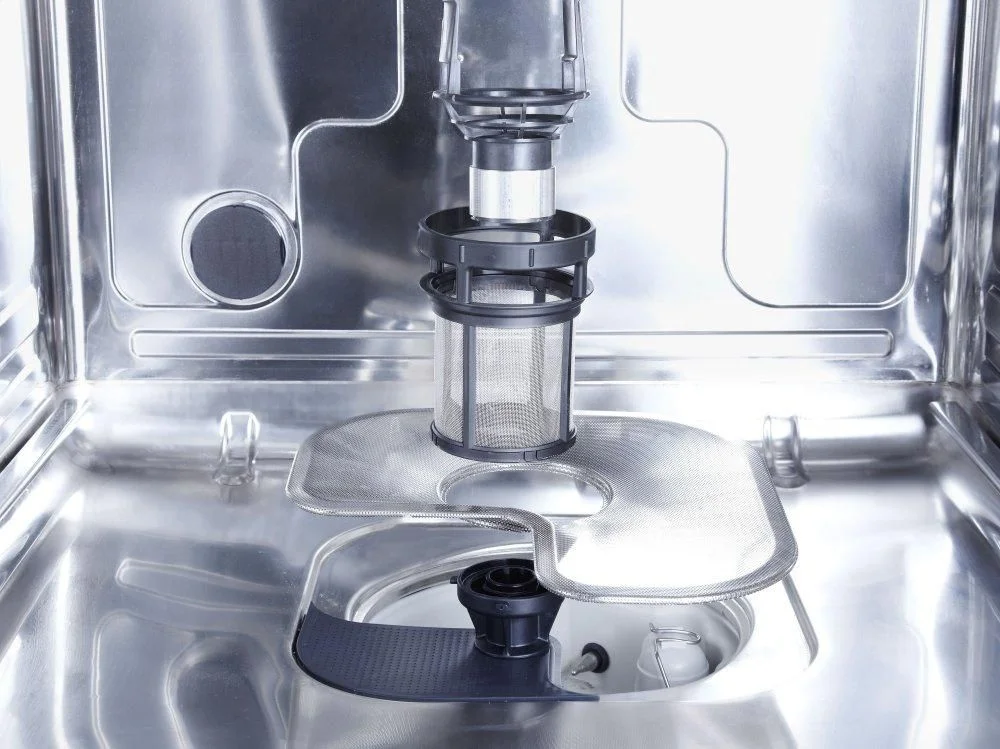

Highly effective filter system
Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
Adjustable program parameters
Adjusting the program parameters as required ensures consistently perfect dishwashing results
Quality you can rely on
Durability: Miele Professional dishwashers are tested for a long service life.
Perfect GlassCare
A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
Proven hygiene
Our dishwashers in the PFD 40x series remove more than 99.9% * of viruses (including coronaviruses).

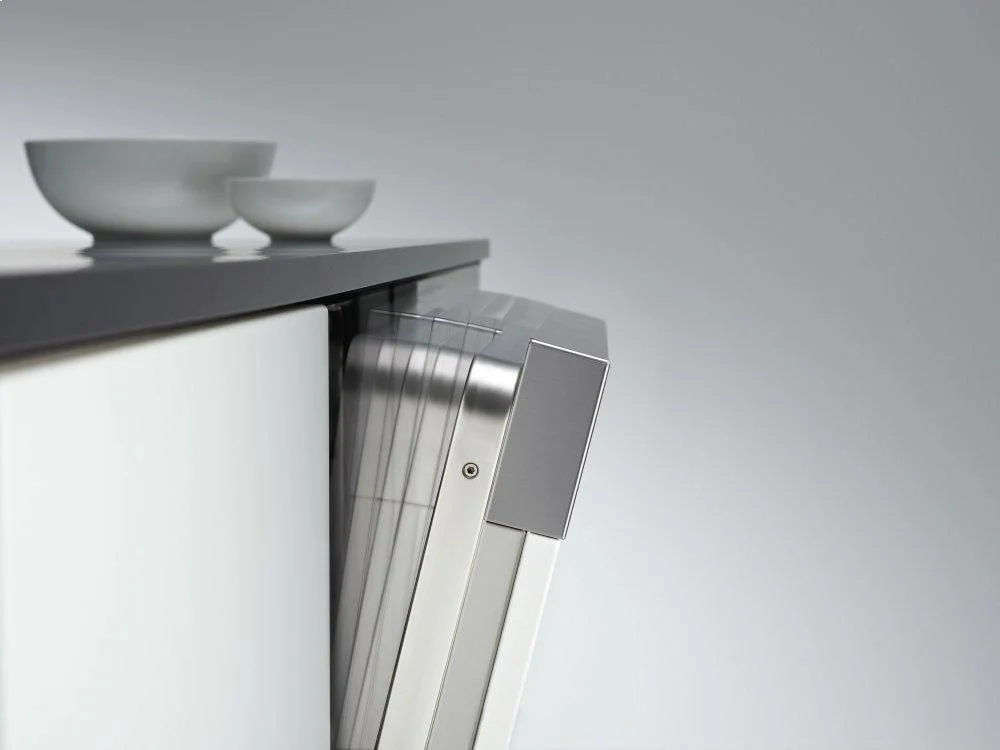

AutoClose
A light touch is all it takes: With AutoClose the door closes on its own.

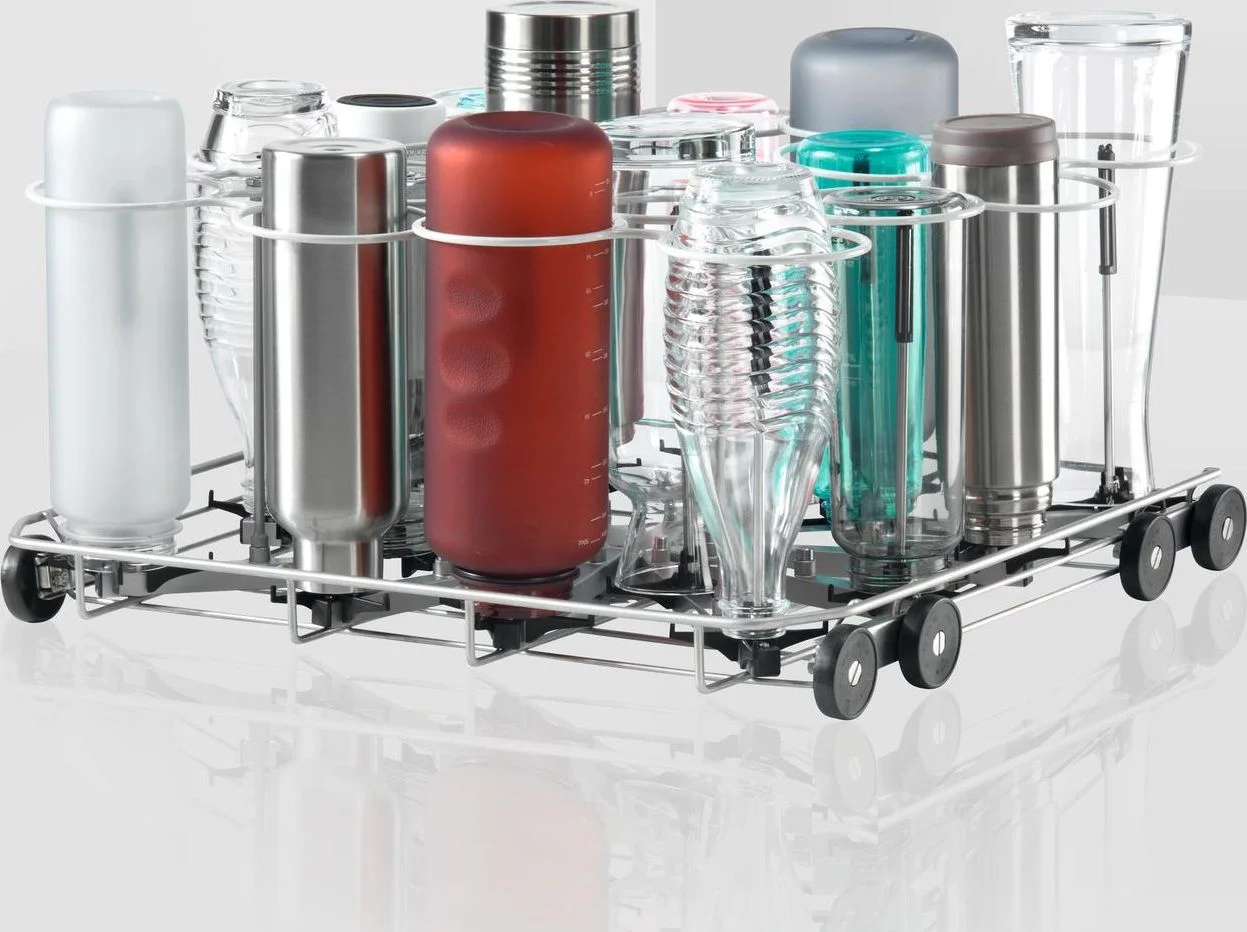

Practical bottle basket
Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.

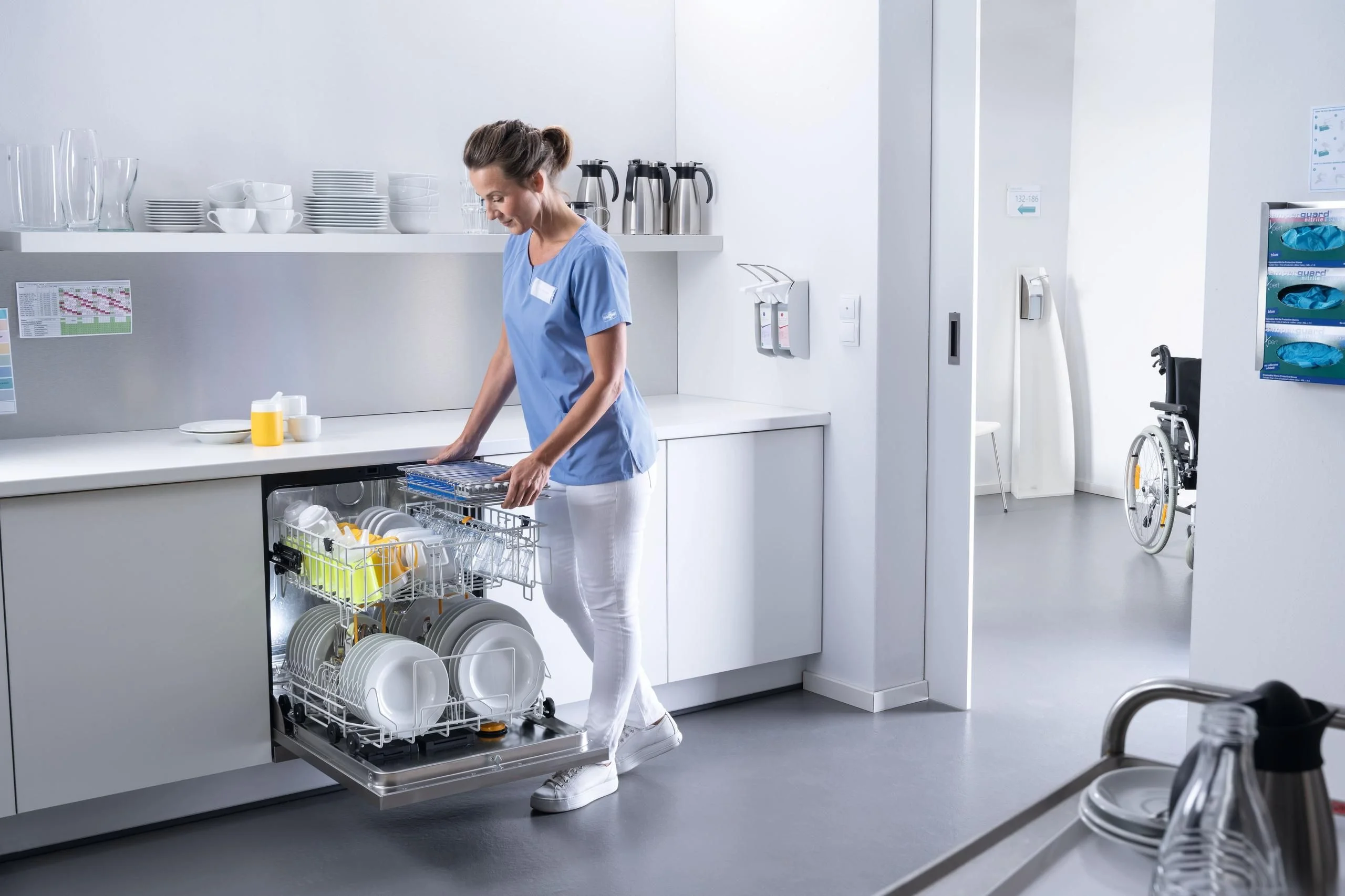

Hygienic cleanliness down to the very last detail
Medication cups and lids can also be cleaned hygienically using inserts that are available separately.

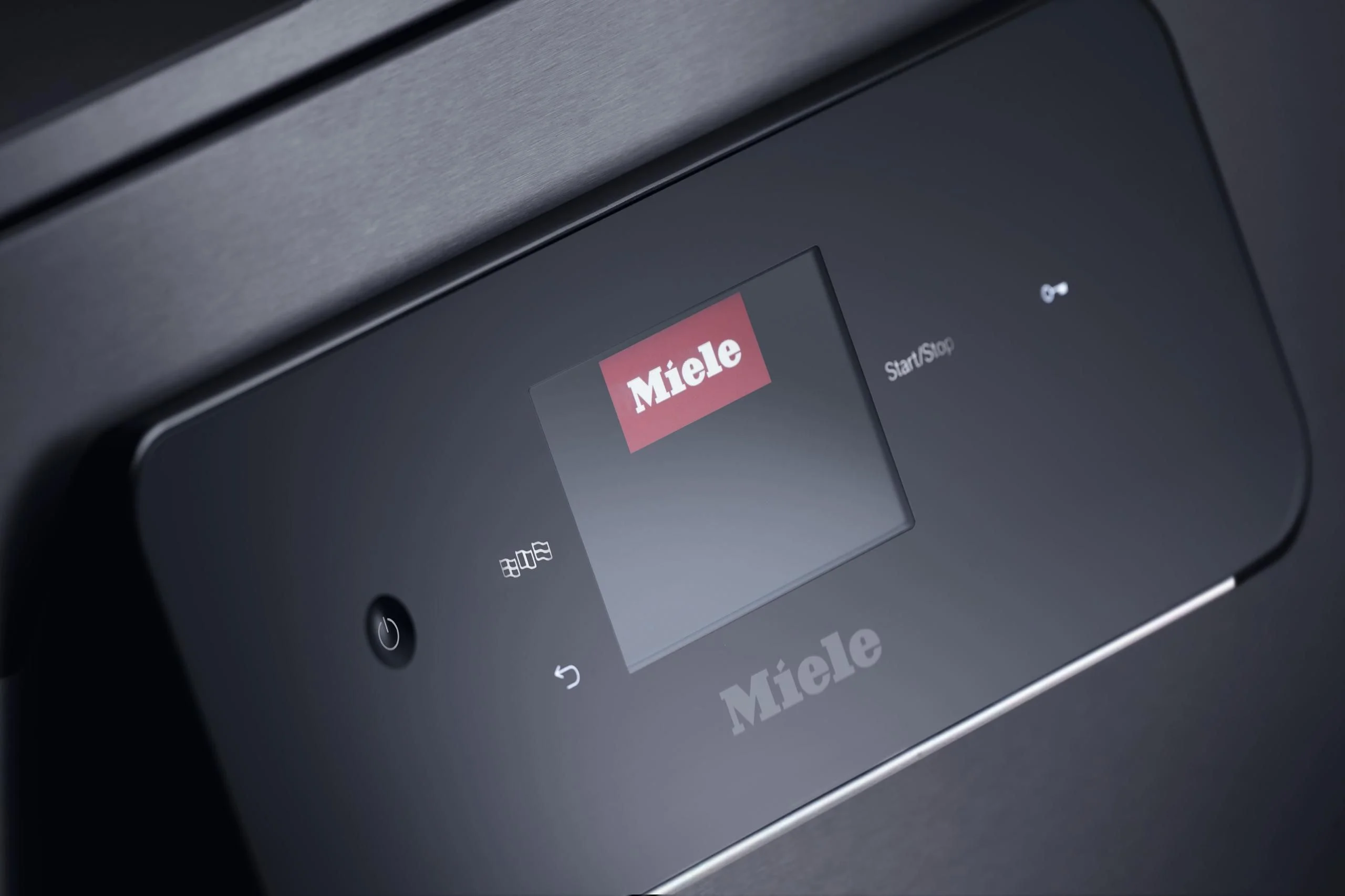

M Touch Flex controls
Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display.

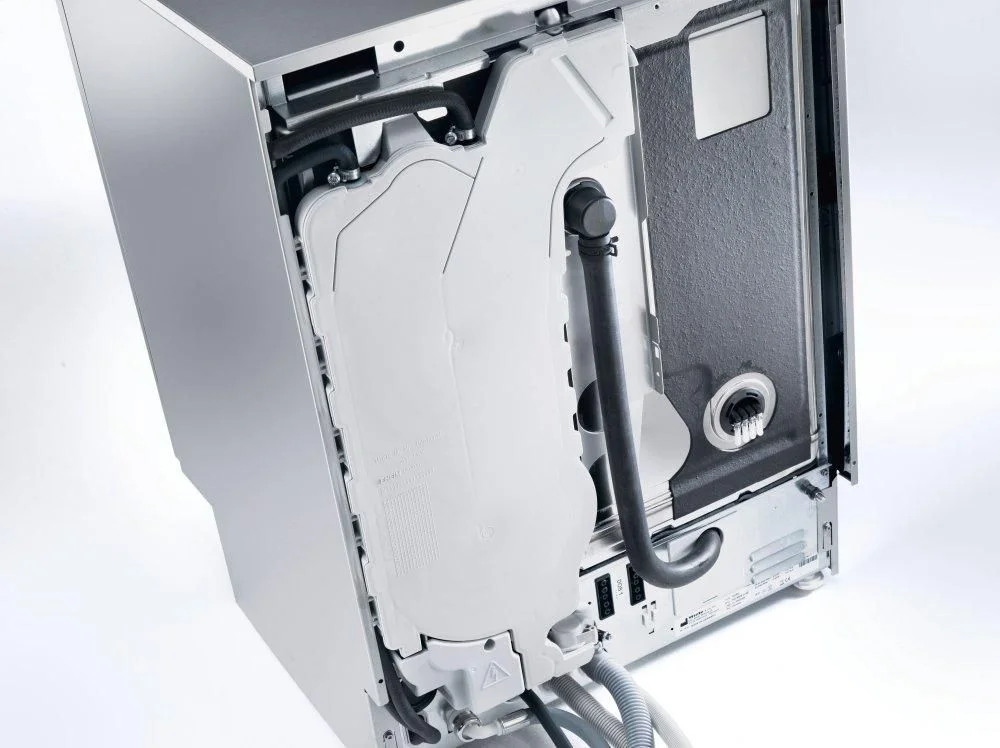

Aerosol steam condenser
Dry dishes and good room climate are the result of exceptional condensation performance.
Low consumption values
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Proven hygiene
Our dishwashers in the PFD 40x series remove 99.999% * of most bacteria.
Efficient hot water connection
Connection to a hot water supply shortens the program run times, reducing energy consumption.
Professional baskets
Functional design for superb washing and reliable drying results.
Integrated water softener
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Delay start and time left display
For maximum flexibility, a delay start time of up to 24 hours can be selected.

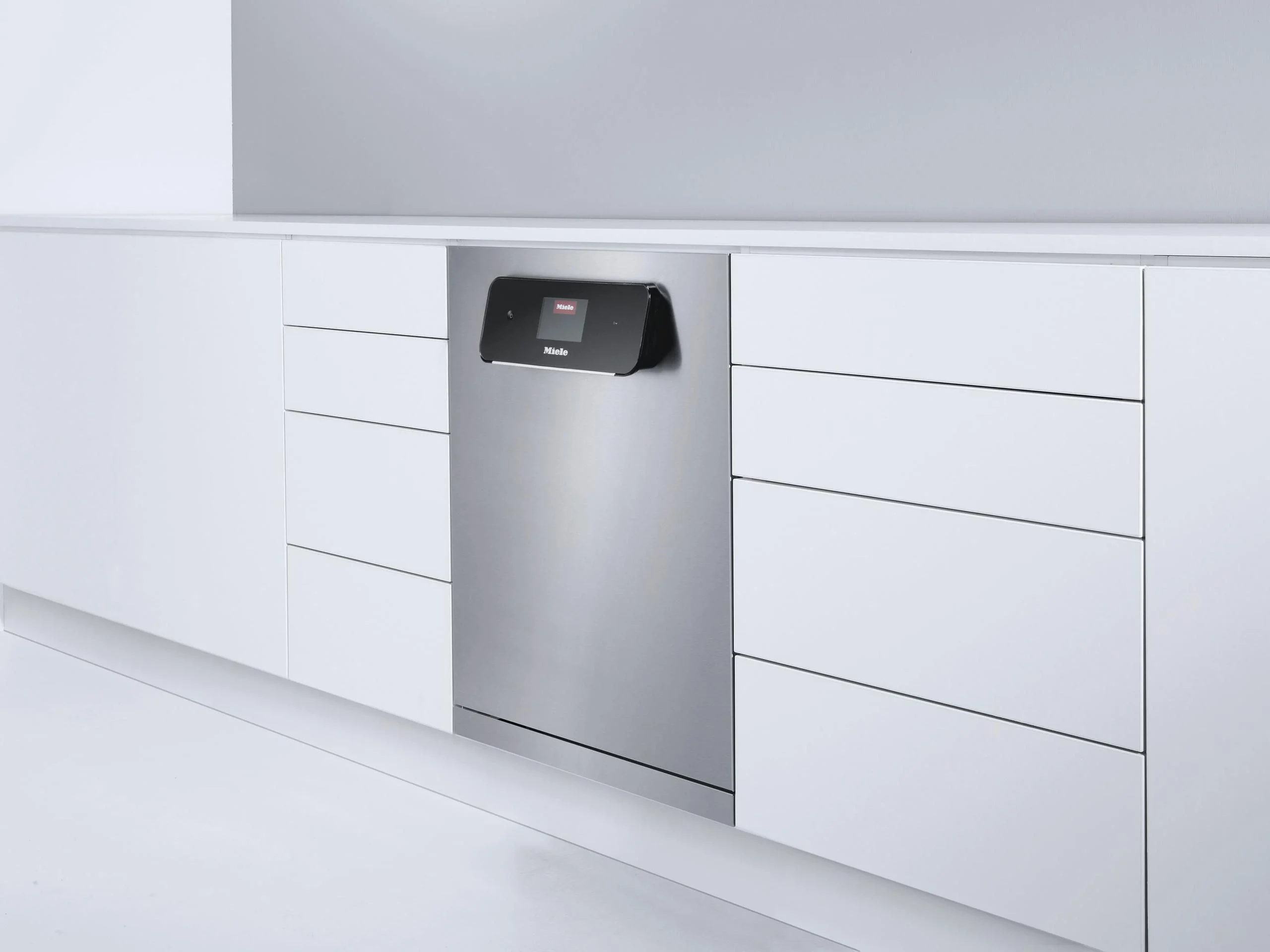

Perfect integration under countertops
Perfect appearance thanks to dishwashers that can be built-under.
Fresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes.

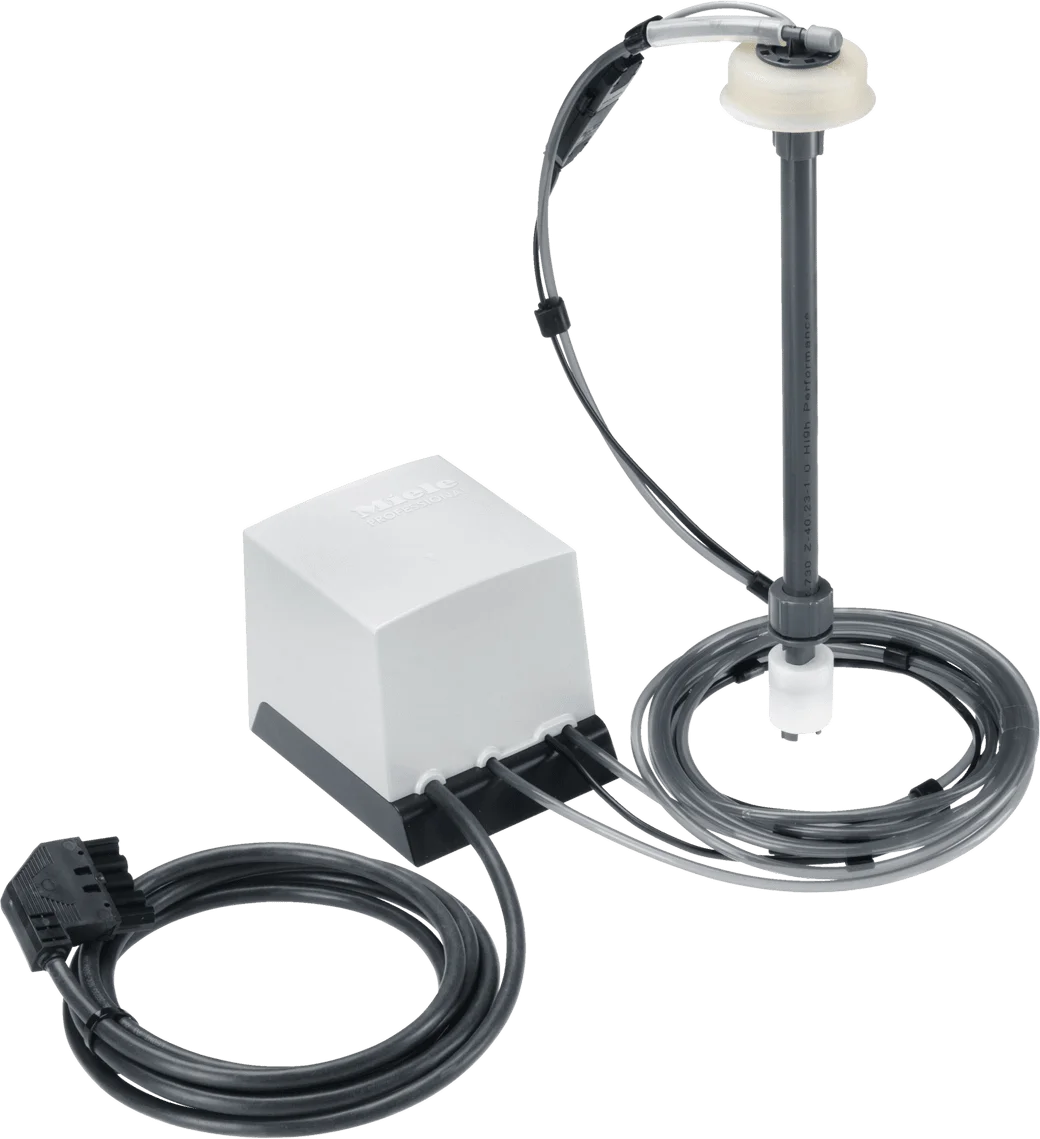

Connection for detergent dispenser module
An optional dispenser module can be connected for convenient and economical use of liquid agents.
Plastic baskets on two levels
It is possible to use the plastic baskets on two levels as an option.
Future-proof networking via WiFi
Fully informed with a high-performance network connection.
Very short cycle times
Thanks to intelligent professional technology you can benefit from very short programs and perfect results.
Extensive range of accessories
Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
Specifications
Model
Hygiene
Range
MasterLine
Wash system
Fresh water front loader
Number of levels
2
Front
Stainless steel
Lid
Without lid
Side walls
Galvanised
Suitable for retirement and care homes
Yes
Suitable for hospitals
Yes
Suitable for child care facilities
Yes
Suitable for universities and schools
Yes
Tested virucidal efficacy
Yes
Certified hygiene
Yes
Shortest program duration in min.
6
Maximum final rinse temperature in (degree)F ((degree)C)
185 (85)
Cleaning performance, plates/h
380
Cleaning performance, baskets/h
20
Possible to wash plastic baskets on two levels
Yes
Service life in wash cycles
28000
Control system
M Touch Flex
Max. delay start in h
24
Countdown indicator
Yes
Dishwashing programs [number]
12
Program sequence indicator
Yes
Choice of display language
Yes
Language-neutral operation
Yes
Electrical connection
2 AC 208V 60HZ
Heater rating in kW
5.400
Total connected load in kW
5.800
Fuse rating in A
30
Length of power cord in ft (m)
6 (1.90)
NEMA plug: Twist Lock L6-30
Yes
Electrical connection
3 AC 208V 60HZ
Heater rating in kW
5.400
Total connected load in kW
5.800
Fuse rating in A
20
Cold water [number]
1
Hot water [number]
1
Required flow pressure in bar
1-10
Drain hose [DN]
22
Maximum delivery head for drain pump in inches (cm)
39 3/8 (100)
Integrated water softener
Yes
Maximum water hardness in gpg (mmol/l)
62.595 (10.70)
Water protection system
Waterproof system
Water consumption per wash cycle in gal (l)
2.1 (8.00) gll (l)
Length of water inlet hose in inches (cm)
67 (170)
Length of water drain hose in inches (cm)
59 1/8 (150)
External dimensions, net height in inches
32 5/16 (820)
Maximum height adjustment in inches (mm)
60
External dimensions, net width in inches
23 9/16 (598)
External dimensions, net depth in inches
23 7/16 (595)
External dimensions, gross height in inches
36 1/4 (920)
External dimensions, gross width in inches
26 7/16 (670)
External dimensions, gross depth in inches
29 3/16 (740)
Usable space in wash cabinet, width in inches (mm)
22 1/16 (559)
Usable space in wash cabinet, height in inches (mm)
21 1/8 (536)
Usable space in wash cabinet, depth of upper basket in inches (mm)
18 11/16 (474)
Usable space in wash cabinet, depth of lower basket in inches (mm)
20 3/8 (516)
In-feed height above floor in inches (mm)
8 9/16 (216)
Required niche width in mm
23 5/8 (600)
Net weight [kg]
166 (75)
Gross weight in lbs.
188 (85)
Maximum floor load in N/m
1200
Emission sound pressure level in workplace (LpA)
45 dB(A) re 20 Pa
Sound power (LwA) in dB(A) re 1 pW
57
Heat dissipation into the room in MJ/h
1.44
Normal Plus
Yes
Rapid
Yes
Normal
Yes
SaniWash
Yes
SaniWash Plus
Yes
Cold/Pre-wash
Yes
Glasses
Yes
Beer glasses
Yes
Cutlery
Yes
Plastic
Yes
Intensive
Yes
Reactivation
Yes
Drainage by pump
Yes
2 x E 816 inserts for plates
Yes
1 x APFD 215 upper basket
Yes
1 x APFD 220 lower basket for inserts
Yes
2 x APFD 420 insert for cutlery
Yes
Height-adjustable upper basket
Yes
Combinable with APFD 210 bottle basket
Yes
Drying
AutoOpen assisted drying
Adjustable temperature holding time
Yes
Adjustable final rinse temperature
Yes
Wi-Fi
Yes
AutoClose
1 Combi dispenser/door for powder and liquid media
Yes
In-door salt container
Yes
Door lock, protected by code
Yes
Perfect GlassCare
Highly effective filter system with filter monitoring
Yes
Aerosol steam condenser
Wash cabinet made from high-quality stainless steel
Yes
Optical interface
Yes
A wide range of accessories (optional)
Yes
Max. cleaning performance : 380 plates/h or 20 baskets/h
First-class results thanks to fresh water system
Extremely hygienic results - final rinse temperature of 185 (85) (degree)F ((degree)C)
Safe and easy operation - automatic door opening
Max. user convenience with M Touch Flex full-touch color display
Manufactured with great care by Miele & Cie. KG
Safety information
Proven hygiene
Adjustable program parameters
Delay start and time left display
M Touch Flex controls
Perfect integration under countertops
Door salt container
Extensive range of accessories
Future-proof networking via WiFi
Highly effective filter system
Efficient hot water connection
Practical bottle basket
Connection for detergent dispenser module
Very short cycle times
Low consumption values
Plastic baskets on two levels
Fresh water system
Hygienic cleanliness down to the very last detail
Professional baskets
Integrated water softener
Quality you can rely on
External dispenser module for liquid cleaning agent
Yes
Complies with Machinery Directive 2006/42/EC
Yes
Splash protection IPX1
Yes
EMC radio suppressed
Yes
DIN 10512
Yes
DIN EN 17735
Yes
ETL
Yes
ADA compliant
Yes
EAN
4002516577348
GTIN
04002516577348
EAN
4002516577348
