PRODUCT DESCRIPTION
Features
The fine brass double burners and the hefty cast iron grills
The distinctive features of the Dual Fuel version are the fine brass double burners and the hefty cast iron grills that offer durability and refinement to the cooking surfaces. Lower down, the Fiorentina 30” encompasses customary luxury design details, such as solid yet elegant brass handles, while the intuitive touch-screen display panel enables optimal cooking control. The oven, equipped with double ventilation for total heat distribution, ensures that every recipe is exquisitely cooked. Telescopic slides made from hardy materials mean that dishes can be removed easily for a straightforward check. The wide door comes complete with an assisted shock-absorbent closure system.
Dual Convection Technology
The kitchen is equipped with a professional multifunction electronic oven with a capacity of 4.38 cubic feet. Equipped with Dual Convection Technology for the best distribution of the heat, for unsurpassed baking performance and even temperatures. Inside, telescopic chrome oven racks allow for convenient inspection of dishes during cooking and effortless removal when done. The wide oven door – available in two versions with and without window – is equipped with an assisted closing system that absorbs shocks and the internal lighting with 3 Halogen lights for flawless visibility.
Easy cleaning system
Black Porcelain enamel interior and the enamelled tray, supplied with the anti-splash grilled cover, facilitates the collection of liquids, while preventing them from dirtying the walls of the cooking compartment, thus facilitating cleaning. The oven also has a self-cleaning function with pyrolysis. Finally, thanks to the intuitive control display, all functions can be managed with a simple touch.
Specifications
Control Type
8 knobs
Oven Programming
Electronic with 6 Touch Keys
Display: Clock - Temperature - Function
White LED
Type
GAS (NG or LP)
Cooking Zones
6
Burners types
All Dual Flame/Simmer Burners
Power Front-L,Front-R (Max/Min) NG
-
Power Front-R (Max/Min) NG
20000 (BTU/h) - 5900W / 750 (BTU/h) - 220W
Power (Max/Min) NG
18000 (BTU/h) - 5300W / 750 (BTU/h) - 220W
Power (Max/Min) LP
15000 (BTU/h) - 4400W / 750 (BTU/h) - 220W
Electric Re-ignition system
Yes
Flame-out sensing
Yes
Top Mount Injectors
Yes
Dual Crown Brass Burner
Yes
2 Heavy Duty Cast Iron Grates
Yes
LP Conversion Kit
Yes
Oven Type
Electric Self-clean - Dual Convection (True Euro Conv.)
Temperature Regulation
Electronic Control (min/max 170/550°F - 75/290°C)
Pyrolytic Self-Clean
Yes
Dehydrate
Yes
True Convection
Yes
Thaw (Defrost)
Yes
Convection Broil
Yes
Proof (Warm)
Yes
Convection Roast
Yes
Keep warm (Warm Plus)
Yes
Pizza (Lower Convection)
Yes
Oven Lights
Yes
Bake
Yes
Broil
Yes
Preset/Last Used Temperature Memory
Yes
Preheat Indicator (25%, 50%, 75%, 100%)
Yes
Child Door Lock
Yes
Control Display Lock
Yes
Fast Preheat
Yes
12/24 Hour Clock Formats
Yes
Sabbath Mode
Yes
Temperature Display °C/°F
Yes
Meat Probe
Yes
Total Capacity
5,20 cu. ft. 147,2 lt
Cavity Enamel Color
Black
Rack Positions
6
Oven Lights
2x20W Halogen
Broil Upper Heating Element
3500 W
Upper Auxiliary Element Wattage
1032 W
Concealed Bake Lower Heating Element
3000 W
Convection Element
2 x 1300 W
Chrome Racks
2
Enameled Broiler Pan (basin + anti splash)
1
Telescopic Chrome Rack
1
Overall dim - Width
35-15/16” (912 mm)
Overall dim - Height (min - max)
37 - 3/8”, 31 - 5/8” (948 mm - 980 mm)
Overall dim - Depth
30 - 1/16” (764 mm)
Gross Weight
382 lbs (174 kg)
kW / Amps rating at 120-240V, 60Hz
3.84 kW - 16.9 A
kW / Amps rating at 120-208V, 60Hz
3.54 kW - 17.5 A
Power Cable
Nema 14-50P
Documents
QUESTIONS & ANSWERS
SEE WHAT OUR CUSTOMER HAVE TO SAY!

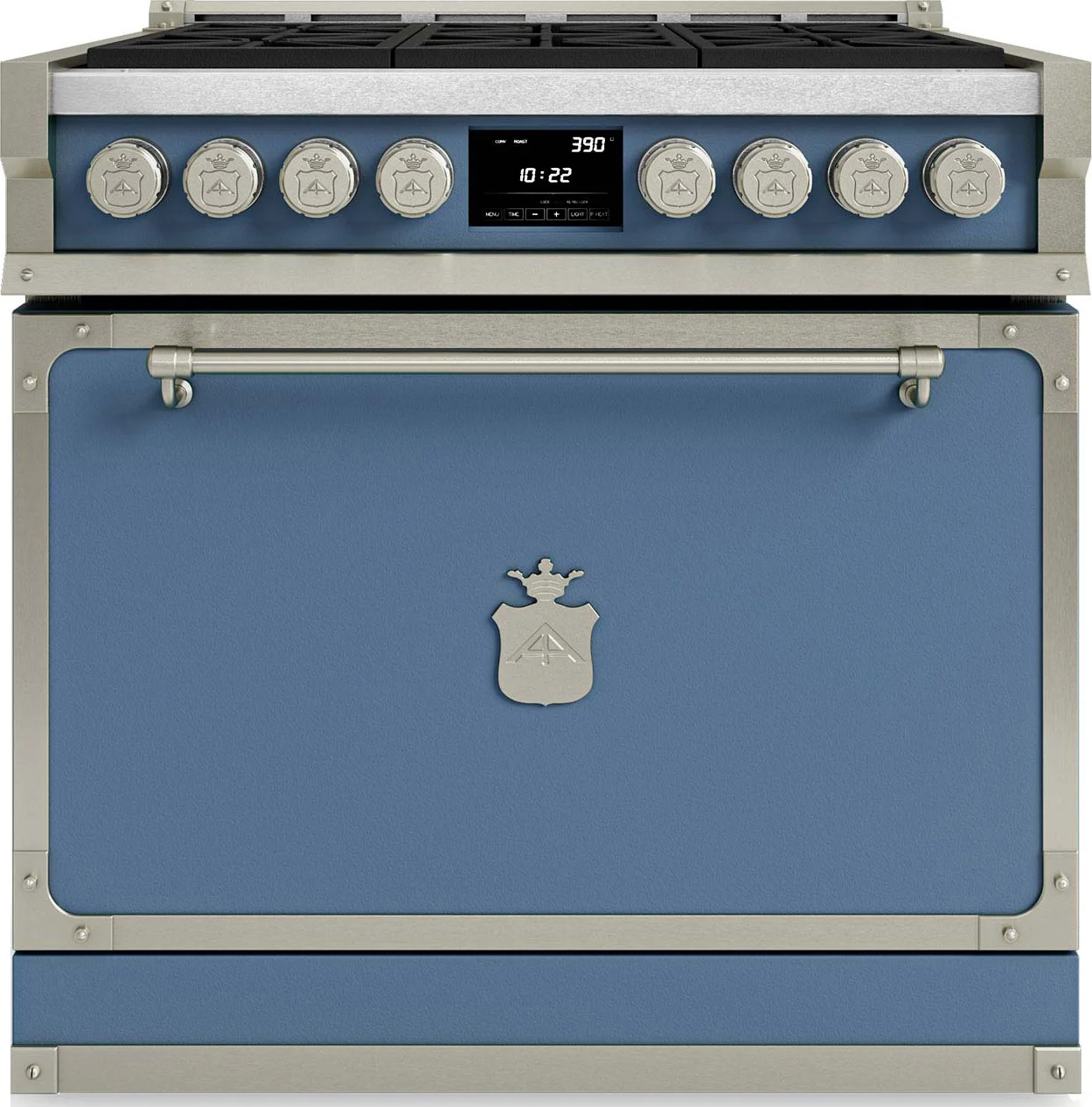

36" Freestanding Dual Fuel Range, Fiorentina Series, 5.20 cu. ft. Capacity, Solid Door
