Summit 23" Built-In Drawers Drawer Refrigerator, 3.7 cu. ft. Capacity

SKU: ADRD241PNR
  • Style: Drawers/Drawer
  • Type: Built-In
  • Width: 23.38"
  • Height: 31.88"
  • Depth: 23.88"
  • Energy Star Rated: yes
  • Wi-Fi Connected: No
  • Sabbath Mode: Yes
  • ADA Compliant: Yes
  • Total Capacity: 3.70 cu. ft.
  • Defrost: Frost-Free
  • Icemaker: No
  • Dispenser: No
  • Refrigerator Capacity: 3.7 cu. ft.
  • Number of Shelves: 0
  • Counter Depth: Yes
Summit |Authorized Dealer
In Stock
$2,650.00
Sign in / Sign up to earn 2,650 points (
$66.25
)

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

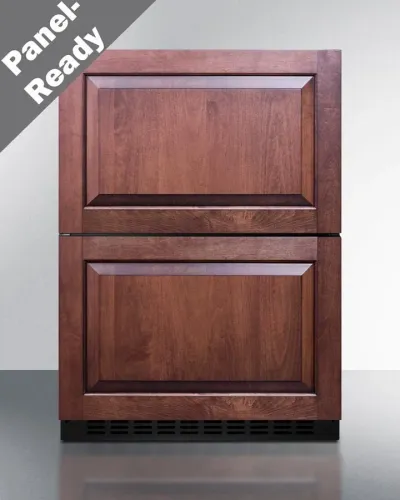

Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style. Sized at just under 24" wide and 32" high, model ADRD241PNR is a 2-drawer all-refrigerator perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The drawer fronts are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. This unit comes with a jet black cabinet and sealed back to protect all components from the elements. It can be used in indoor or outdoor spaces. Inside, the ADRD241PNR has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADRD241PNR is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching frost-free freezer (model ADFD243PNR) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244PNR). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.

Specifications

overview

Nominal Height
32.0" (81 cm)
Height of Cabinet
31.88" (81 cm)
Nominal Width
24.0" (61 cm)
Width
23.38" (59 cm)
Nominal Depth
23.0" (58 cm)
Depth
22.5" (57 cm)
Depth with Handle
23.88" (61 cm)
Depth with door at 90(degree)
34.25" (87 cm)
Capacity
3.7 cu.ft. (105 L)
Defrost Type
Frost-Free
Door
Panel-Ready
Cabinet
Black
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Sanitation
ETL-S
Energy Usage/Year
185.0kWh/year
Amps
1.0
Voltage/Frequency
115 V AC/60 Hz
Weight
106.0 lbs. (48 kg)
Parts & Labor Warranty
1 Year
Compressor Warranty
5 Years
UPC
761101088198

refrigerator features

Sabbath Mode
Yes
Door Swing
Drawer
Height Adjustable
Yes
Thermostat Type
Digital
Fan Type
Interior and Exterior
Refrigerant Type
R600a
Refrigerant Amount
1.38oz.
High Side PSI
270.0
Low Side PSI
105.0
Level Legs Qty
4
Interior Light
Yes
Temperature Range
36 to 43 F
Sound Level
33 dB

drawer dimensions

Interior Height 1
8.0" (20 cm)
Interior Width 1
17.0" (43 cm)
Interior Depth 1
14.5" (37 cm)
Interior Height 2
8.0" (20 cm)
Interior Width 2
17.0" (43 cm)
Interior Depth 2
14.5" (37 cm)

dimensions

Compressor Step Height
4.0" (10 cm)
Compressor Step Width
17.0" (43 cm)
Compressor Step Depth
3.5" (9 cm)

GS1

GTIN
00761101088198
EAN
0761101088198
UPC
761101088198
