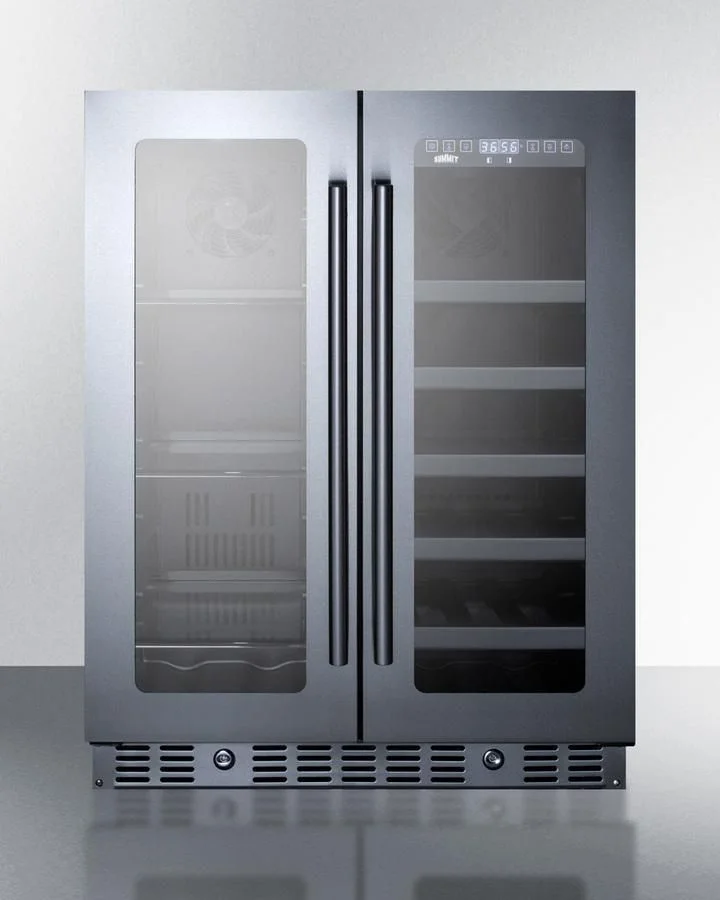

Summit 24" Built-in Wine/beverage Center, ADA Compliant in Stainless Steel
Width: 23.38"
Height: 32.00"
Weight: 105.00 lbs
Total Capacity: 4.60 cu. ft.
Defrost: Automatic
Type: Built-In/Freestanding
Style: Compact/Glass Door/Undercounter/Dual Zone
Depth: 24.63"
Wi-Fi Connected: No
Sabbath Mode: Yes
ADA Compliant: Yes
Icemaker: No
Dispenser: No
Freezer Capacity: 4.6 cu. ft.
Number of Shelves: 8
RELATED ITEMS
PRODUCT DESCRIPTION
NOTE: product image may vary slightly from actual product. Summit offers a unique selection of built-in wine and beverage coolers for use in ADA compliant settings, with user-friendly features and luxury design. Sized with a convenient 24" footprint, the ALFD24WBV is 32" high, allowing it to fit under lower ADA compliant counters. Adjustable leveling legs let you raise the height up to 33.5" for added versatility. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This model has a French door swing, with two double pane tempered glass doors in a seamless stainless steel trim. Each door includes a front lock and pro style handle in brushed stainless steel. The ALFD24WBV features two distinct temperature zones to best store beverages and wine at their proper temperatures. The digital temperature controls make it easy to manage the temperature of each compartment, with a readout switchable from Fahrenheit to Celsius at the touch of a button. The left side includes adjustable glass shelves for spill-proof beverage storage and features a 36 to 43 F temperature range. The right compartment includes adjustable wooden shelves in a jet black finish to store red or white wine between 41 and 72 F. LED lighting offers an attractive and energy efficient presentation. This unit is equipped with audible alarms that warn if the doors are opened for over one minute and if the temperature exceeds the recommended range. Sabbath mode allows you to disable certain electrical features during periods of observance. With its unique design and advanced features, the ALFD24WBV offers versatile storage for any undercounter space. Additional ADA compliant choices are available in Summit's line. Browse our website for more information.
Specifications
overview
21 items
Nominal Height
32.0" (81 cm)
Height of Cabinet
32.0" (81 cm)
Nominal Width
24.0" (61 cm)
Width
23.38" (59 cm)
Nominal Depth
23.0" (58 cm)
Depth
22.75" (58 cm)
Depth with Handle
24.63" (63 cm)
Depth with door at 90(degree)
33.0" (84 cm)
Capacity
4.6 cu.ft. (130 L)
Bottles
21 bottles
Defrost Type
Automatic
Door
Glass
Cabinet
Black
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Amps
1.0
Voltage/Frequency
115 V AC/60 Hz
Weight
105.0 lbs. (48 kg)
Parts & Labor Warranty
1 Year
Compressor Warranty
5 Years
UPC
761101058580
wine cellar
26 items
Number of Zones
2
Door Swing
French
Reversible
No
Height Adjustable
Yes
Adjustable Shelves
Yes
Shelf Type
Glass and Wood
Shelf Qty
7
Thermostat Type
Digital
Interior Light
Yes
Fan Type
Interior and Exterior
Refrigerant Type
R600a
Refrigerant Amount
1.06 oz.
High Side PSI
270.0
Low Side PSI
105.0
Interior Height 1
25.38" (64 cm)
Interior Width 1
8.38" (21 cm)
Interior Depth 1
17.5" (44 cm)
Compressor Step Height
3.5" (9 cm)
Compressor Step Width
8.38" (21 cm)
Compressor Step Depth
5.0" (13 cm)
Level Legs
4
Temperature Range
Beverage zone: 36 to 43(degree)F; Wine zone: 41 to 72 F
