SUMMIT ARG31PVBIADAAFZ2PVBIADASTACK | 20" Wine Cooler, 2.8 cu. ft. Capacity

Name: Summit ARG31PVBIADAAFZ2PVBIADASTACK 20" Wine Cooler, 2.8 cu. ft. Capacity
Brand: Summit
SKU: ARG31PVBIADAAFZ2PVBIADASTACK
Price: 4625.00 USD
Availability: InStock
Rating: 3.0 (14 reviews)

PRODUCT DESCRIPTION

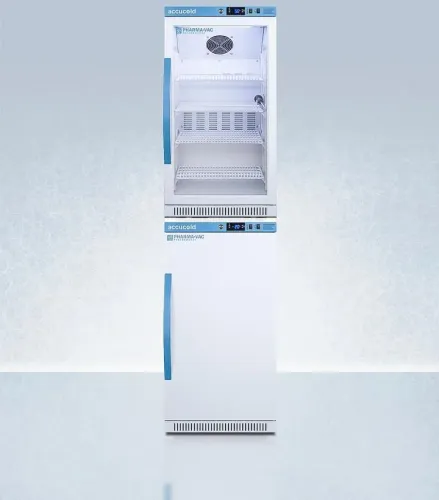

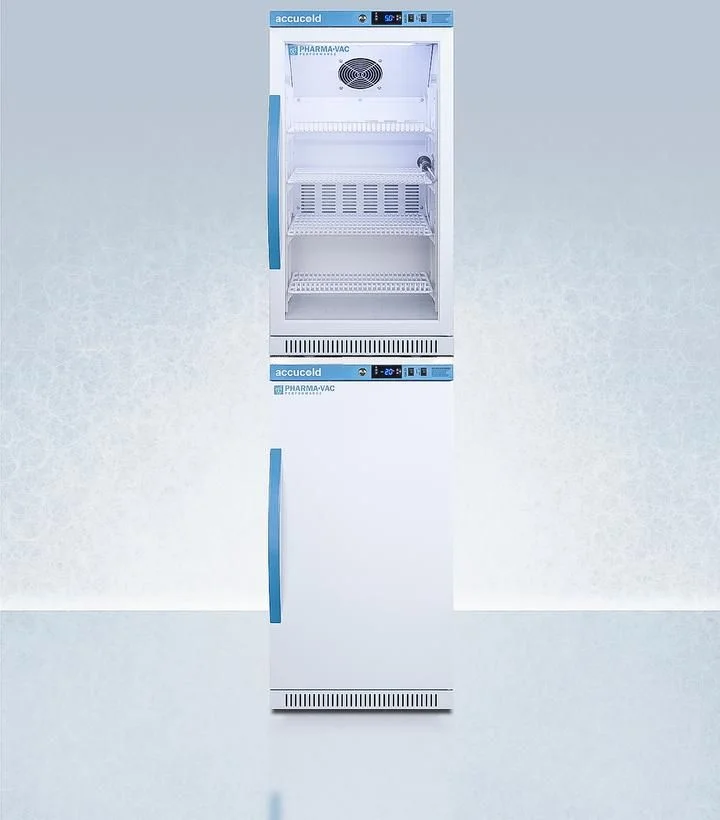

Accucold offers innovative solutions to vaccine storage with our Performance Series stackable purpose-built refrigerator-freezer combinations designed to support meeting CDC/VFC/VFA guidelines. Sized just under 20" wide, the ARG31PVBIADA-AFZ2PVBIADASTACK combines the 2.83 cu.ft. ARG31PVBIADA auto defrost all-refrigerator with AFZ5PVBIADA all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery. The Pharma-Vac Performance Series is designed to meet the demanding needs of vaccine storage. Both units utilize a microprocessor temperature controller (refrigerator range: +2 to +8 C; freezer range: -30 to -10 C). The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarms sound if the units' interiors go out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. Both units are equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. The factory-installed antimicrobial handles are powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, the ARS32PVBIADA refrigerator utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. The refrigerator is designed to be stacked on top of the AFZ2PVBIADA, our Performance Series 2.47 cu.ft. all-freezer that utilizes static manual defrost operation. The freezer includes four adjustable plastic-coated wire shelves for flexible storage. Both units include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal, with self-closing doors for added protection in high traffic settings. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8 C. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Specifications

Nominal Height

64.0" (163 cm)

Height of Cabinet

64.0" (163 cm)

Nominal Width

20.0" (51 cm)

Width

19.75" (50 cm)

Width with Door Open

20.25" (51 cm)

Nominal Depth

23.0" (58 cm)

Depth

22.63" (57 cm)

Depth with Handle

24.38" (62 cm)

Depth with door at 90(degree)

41.25" (105 cm)

Capacity

5.3 cu.ft. (150 L)

Door

Glass

Cabinet

White

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Voltage/Frequency

115 V AC/60 Hz

Parts & Labor Warranty

2 Years

Compressor Warranty

5 Years

UPC

761101104102

Door Swing

RHD

Reversible

Factory Reversible

Adjustable Shelves

Yes

Interior Light

Yes

Refrigerator - Interior Height

24.0" (61 cm)

Refrigerator - Interior Width

16.0" (41 cm)

Refrigerator - Interior Depth

15.0" (38 cm)

Refrigerator - Capacity

2.83 cu.ft

Refrigerator - Shelf Type

Wire

Refrigerator - Shelf Qty

Refrigerator - Temperature Range

2 to 8 C

Refrigerator - Refrigerant Type

R600a

Refrigerator - Refrigerant Amount

1.41 oz.

Freezer - Interior Height

22.0" (56 cm)

Freezer - Interior Width

14.25" (36 cm)

Freezer - Interior Depth

15.5" (39 cm)

Freezer - Capacity

2.47 cu.ft

Freezer - Shelf Type

Wire

Freezer - Shelf Qty

Thermostat Type

Digital

Fan Type

Interior

Freezer - Temperature Range

-30 to -10 C

Freezer - Refrigerant Type

R290a

Freezer - Refrigerant Amount

1.31 oz.

GTIN

00761101104102

EAN

0761101104102

UPC

761101104102

Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint

Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top

Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs

Intuitive controls let you adjust the interior temperature between +2 to +8 C (refrigerator) and -30 to -10 C (freezer)

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Static cooling system for reduced temperature fluctuations

Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment

Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Battery-powered alarms sound if the power connection is interrupted

Audible and visual alarms warn if the sensor is disrupted

Control panels require password entry to adjust the parameters beyond the set point

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Control panels provide a readout of the low and high temperatures in 15 minute increments

Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)

Designed to accommodate a variety of sizes for flexible storage

Secure three-pronged cord for added unit safety

Energy efficient LED lighting with internal on/off switch

Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing

Quality door gaskets ensure a tight seal for energy savings and improved performance

2 years parts and labor/5 years compressor

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Compatible with Pyxis(R), Omnicell(R), and AcuDose RX(R)

Environmentally friendly design without ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
