Summit 15" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included) in Black

SKU: ASDW1522PNRLHD
  • Total Capacity: 1.80 cu. ft.
  • Defrost: Automatic
  • Sabbath Mode: Yes
Summit |Authorized Dealer
In Stock
$2,000.00
Sign in / Sign up to earn 2,000 points (
$50.00
)

color: Black

Summit ASDW1522PNRLHD
  • 15" wide wine cellar
  • Less than 18" deep
  • ADA compliant
  • Adjustable height
  • Built-in capable
Learn More

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

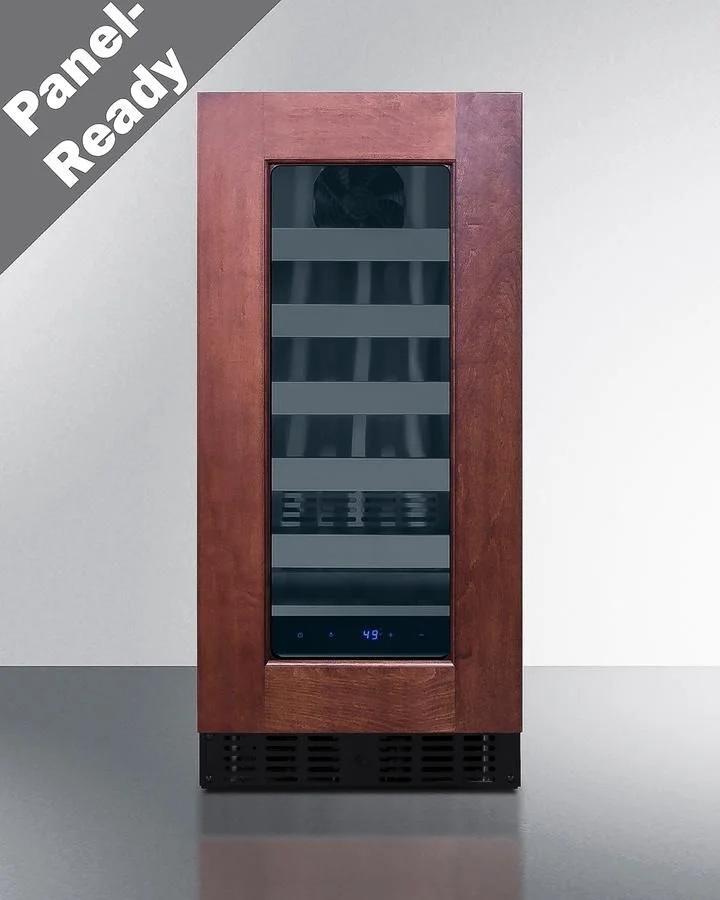

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDW1522PNRLHD is a 15" wide single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door ships with a left hand door swing and includes a front lock to protect your collection. Inside, the ASDW1522PNRLHD features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41º and 64ºF to accommodate red, white, or sparkling wine. Store bottles on the removable steel shelves complete with stainless steel front trim. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDG1521PNR beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.

Features

15" wide wine cellar

Single zone wine cooler for residential cold storage

Less than 18" deep

Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant

Sized at 32" high for use under lower ADA compliant counters

Adjustable height

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Double pane tempered glass door

Elegant design offers a clear but protected view of your interior

Panel-ready door

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 14 5/8" W with a 3 1/4" H x 3 1/4" W inner frame

Seamless stainless steel door trim

Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Stainless steel interior

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Digital thermostat

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Premium wine shelving

Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

Dimmable LED lighting

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Frost-free operation

No-frost operation for minimum user maintenance

Internal fan

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Open door alarm

Alarm sounds if the door is left open for more than 60 seconds

High temperature alarm

Audible alarm sounds if the interior temperature rises out of set range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

Fully articulating European style hinge

Smoother opening and a better fit with an integrated European hinge

Left

For this unit with the door opening from the other side, see model ASDW1522PNR

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

overview wine cellar

Nominal Height
32.0" (81 cm)
Height of Cabinet
32.0" (81 cm)
Nominal Width
15.0" (38 cm)
Width
14.75" (37 cm)
Nominal Depth
18.0" (46 cm)
Depth
17.75" (45 cm)
Depth with door at 90°
31.0" (79 cm)
Capacity
1.8 cu.ft. (51 L)
Bottles
18 bottles
Defrost Type
Automatic
Door
Glass/Panel-Ready Frame
Cabinet
Black
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Amps
1.0
Voltage/Frequency
115 V AC/60 Hz
Weight
68.0 lbs. (31 kg)
Parts & Labor Warranty
1 Year
Compressor Warranty
5 Years
UPC
761101108193
Number of Zones
1
Door Swing
LHD
Reversible
No
Height Adjustable
Yes
Adjustable Shelves
Yes
Shelf Type
Steel
Shelf Qty
5
Thermostat Type
Digital
Interior Light
Yes
Fan Type
Interior and Exterior
Refrigerant Type
R600a
Refrigerant Amount
0.64 oz.
High Side PSI
270.0
Low Side PSI
105.0
Interior Height 1
20.5" (52 cm)
Interior Width 1
10.75" (27 cm)
Interior Depth 1
12.25" (31 cm)
Compressor Step Height
3.75" (10 cm)
Compressor Step Width
10.75" (27 cm)
Compressor Step Depth
5.0" (13 cm)
Level Legs
4
Temperature Range
41º to 64ºF
Sabbath Mode
Yes
Sound Level
33 dB

features

15" wide wine cellar
Less than 18" deep
ADA compliant
Adjustable height
Built-in capable
Double pane tempered glass door
Panel-ready door
Seamless stainless steel door trim
Stainless steel interior
Factory installed lock
Digital thermostat
Premium wine shelving
Dimmable LED lighting
Frost-free operation
Internal fan
Open door alarm
High temperature alarm
Sabbath mode setting
Temperature Memory Function
Right angle plug
Sealed back
Fully articulating European style hinge
Left
Fully finished black cabinet
100% CFC Free
CARB Compliant
