PRODUCT DESCRIPTION
Specifications
Height of Cabinet
24.5" (62 cm)
Height to Hinge Cap
25.0" (64 cm)
Width
14.88" (38 cm)
Width with Door Open
15.13" (38 cm)
Depth
16.75" (43 cm)
Depth with door at 90(degree)
32.25" (82 cm)
Defrost Type
Manual
Door

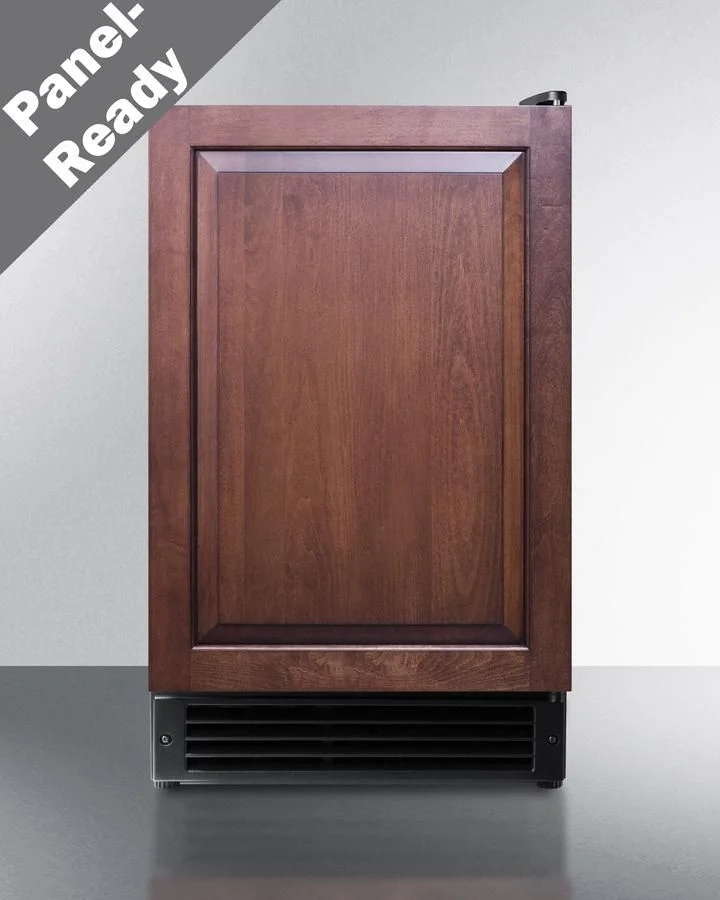

Panel-Ready
Cabinet
Black
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Amps
1.2
Voltage/Frequency
115 V AC/60 Hz
Weight
50.0 lbs. (23 kg)
Compressor Warranty
5 Years
UPC
761101144801
Parts & Labor Warranty
1 Year
Door Swing
RHD
Reversible
Factory Reversible
Height Adjustable
No
Daily Ice Production
15.0 lbs. (7 kg)
Ice Storage Capacity
12.0 lbs. (5 kg)
Ice Shape
Crescent
Size of Cube
7/8" x 7/8" x 2-3/8"
Number of Ice Cube Sizes
1
Refrigerant Type
R600a
Refrigerant Amount
1.69 oz.
High Side PSI
120.0
Low Side PSI
55.0
Interior Height
12.25" (31 cm)
Interior Width
11.0" (28 cm)
Interior Depth
12.25" (31 cm)
Level Legs
4
Built-in or undercounter capable icemaker designed for kitchen islands, home bars, break rooms, health offices, RVs, and even boat kitchens.
Make the best use of space by installing your icemaker under the counter
Produces 15 lbs of crescent-shaped ice and stores up to 12 lbs
Convenient design allows more flexibility in positioning the unit
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
Space-saving design with easier cleanability
Operates with a standard 1/4 OD water supply line
Large ice scoop and holder included for your convenience
Crescent-shaped ice provides a harder and longer-lasting ice
Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
GTIN
00761101144801
EAN
0761101144801
UPC
761101144801
