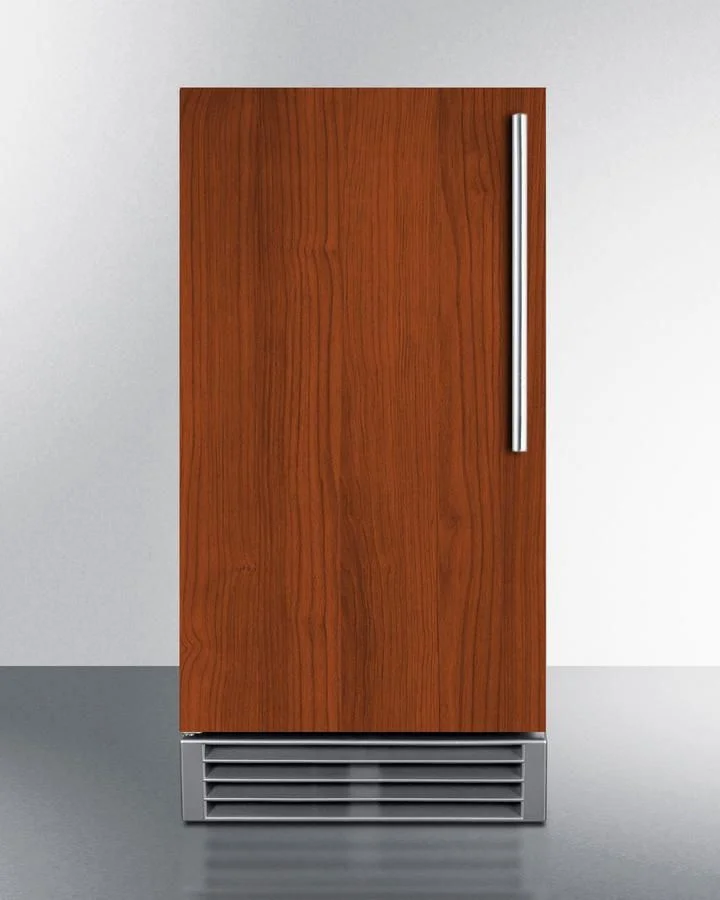

Summit Built-in 45 Lb. Clear Icemaker (panel Not Included) in Panel Ready

Nominal Height

33.0" (84 cm)

Height of Cabinet

33.63" (85 cm)

Nominal Width

15.0" (38 cm)

Width

14.63" (37 cm)

Nominal Depth

24.0" (61 cm)

Depth

22.5" (57 cm)

Depth with door at 90(degree)

36.25" (92 cm)

Defrost Type

Automatic

Door

Panel-Ready

Cabinet

Stainless Steel

US Electrical Safety

UL

Canadian Electrical Safety

ULC

Sanitation

ETL-S

Amps

2.5

Voltage/Frequency

115 V AC/60 Hz

Weight

100.0 lbs. (45 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101077239

Height to Hinge Cap

33.88" (86 cm)

Depth with Panel

23.25" (59 cm)

Door Swing

LHD

Reversible

Factory Reversible

Drain Required

Yes

Daily Ice Production

45.0 lbs. (20 kg)

Ice Storage Capacity

25.0 lbs. (11 kg)

Ice Shape

Cube

Size of Cube

7/8" x 7/8" x 7/8"

Number of Ice Cube Sizes

1

Fan Type

Exterior

Refrigerant Type

R290a

Refrigerant Amount

1.87 oz.

High Side PSI

286.0

Low Side PSI

110.0

Interior Height

18.75" (48 cm)

Interior Width

11.25" (29 cm)

Interior Depth

15.5" (39 cm)

Level Legs

4

Interior Light

Yes

GTIN

00761101077239

EAN

0761101077239

UPC

761101077239

ETL-S listed to NSF-12 commercial standards

Make the best use of space by installing your icemaker under the counter

Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)

Efficient performance saves on energy use and costs

Internal pump affords more flexibility in placing the unit

Reduced maintenance with auto defrost system

Provides easy operation of the unit with indicator lights for each stage of the production process

Ice stays solid longer in this cold-protected bin

Lighting in a soft blue hue for easy viewing of the interior

Interior wall includes brackets to hang for easy storage

Allows the unit to be used freestanding

Space saving design for easier cleanability

Four leveling legs help to keep the unit level on uneven surfaces

Environmentally friendly design without ozone-damaging chemicals

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)

Produces 7/8" x 7/8" x 7/8" clear ice cubes
