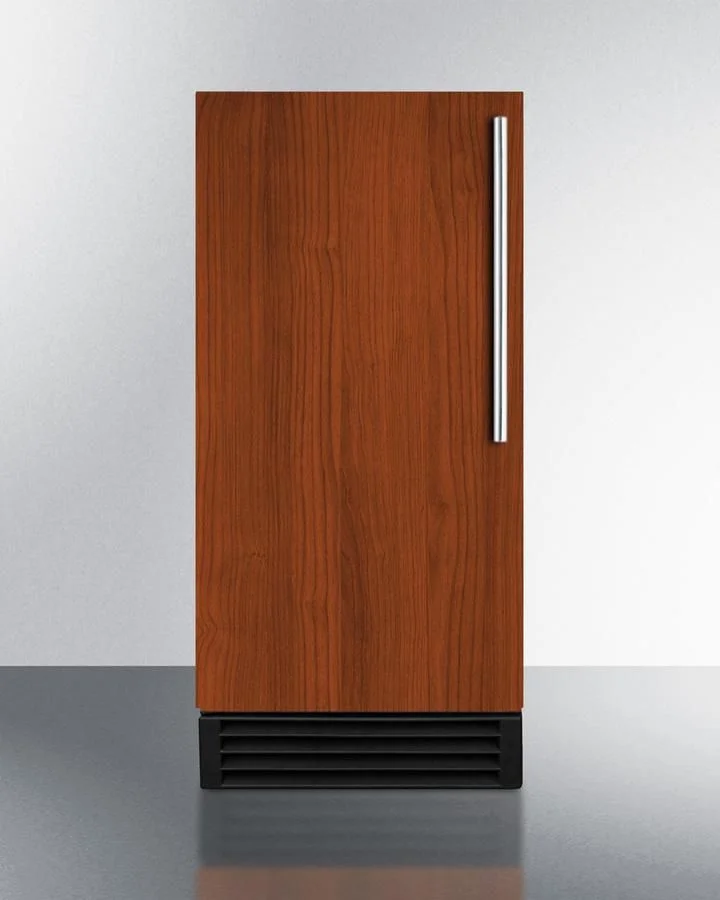

Summit Built-in 45 Lb. Clear Icemaker (panel Not Included) in Panel Ready

Nominal Height

33.0" (84 cm)

Height of Cabinet

33.63" (85 cm)

Nominal Width

15.0" (38 cm)

Width

14.63" (37 cm)

Nominal Depth

24.0" (61 cm)

Depth

22.5" (57 cm)

Defrost Type

Automatic

Door

Panel-Ready

Cabinet

Black

US Electrical Safety

UL

Canadian Electrical Safety

ULC

Sanitation

ETL-S

Amps

2.5

Voltage/Frequency

115 V AC/60 Hz

Weight

100.0 lbs. (45 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101027128

Height to Hinge Cap

33.88" (86 cm)

Depth with Panel

23.25" (59 cm)

Depth with door at 90(degree)

26.25" (67 cm)

Plug Type

NEMA 5-15P

Door Swing

LHD

Reversible

Factory Reversible

Drain Required

Yes

Daily Ice Production

45.0 lbs. (20 kg)

Ice Storage Capacity

25.0 lbs. (11 kg)

Ice Shape

Cube

Size of Cube

7/8" x 7/8" x 7/8"

Number of Ice Cube Sizes

1

Fan Type

Exterior

Refrigerant Type

R290a

Refrigerant Amount

1.87 oz.

High Side PSI

286.0

Low Side PSI

110.0

Interior Height

18.75" (48 cm)

Interior Width

11.25" (29 cm)

Interior Depth

15.5" (39 cm)

Level Legs

4

Interior Light

Yes

GTIN

00761101027128

EAN

0761101027128

UPC

761101027128

Efficient performance for commercial use

NSF listed for use in commercial establishments

Make the best use of space by installing your appliance under the counter

Internal pump allows more flexibility in placing the unit

Reduced maintenance with auto defrost system

Ice stays frozen longer inside this cold-protected bin

Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop

Allows the unit to be used freestanding

Environmentally friendly design with no ozone-damaging chemicals

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
