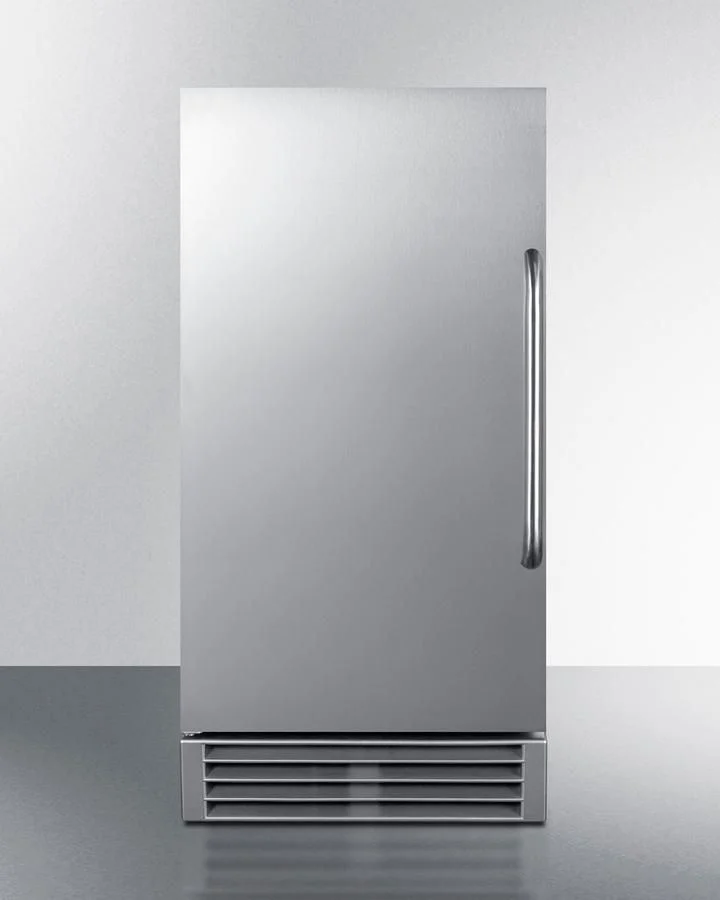

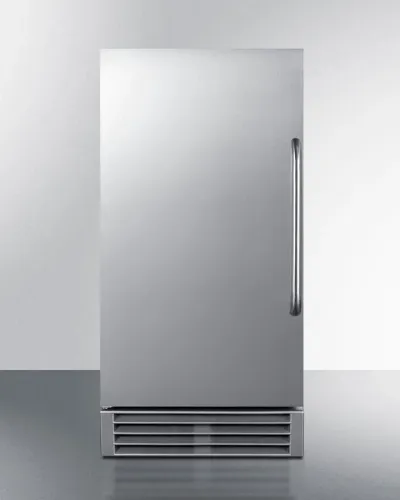

Summit Built-in Outdoor 45 Lb. Clear Icemaker, ADA Compliant in Stainless Steel

SKU: BIM47OSADA
  • Width: 14.50"
  • Height: 32.38"
  • Weight: 100.00 lbs
  • Defrost: Automatic
  • Type: Built-In/Freestanding
  • Style: Undercounter
  • Depth: 25.25"
  • Wi-Fi Connected: No
  • ADA Compliant: Yes
  • Outdoor Use: Yes
Summit |Authorized Dealer
In Stock
$2,770.00
Sign in / Sign up to earn 2,770 points (
$69.25
)

Estimates for:

Protect Your Item

PRODUCT DESCRIPTION

Summit's line of commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any indoor or outdoor kitchen space. ENERGY STAR certified for commercial use, BIM47OSADA is just 328" high, ideal for use under lower counters following ADA compliant guidelines. It features a complete stainless steel exterior specially built to hold up to the outdoor elements. The front-breathing design allows built-in use under counters, while the fully finished stainless steel cabinet also allows freestanding use, with a sealed back for added outdoor protection and easier cleanup. The user-reversible stainless steel door includes a curved towel bar handle for a professional look. NOTE: this unit ships with a left hand door swing that can be reversed before delivery (add suffix RHD) or at home. Inside, the BIM47OSADA has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 45 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided scoop. We include a handy hook in the upper interior cabinet that lets you store the scoop in easy reach. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces. Sized at 15" wide, BIM47OSADA is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. For this unit in a standard height, see the BIM47OS.

Specifications

overview

Nominal Height
32.0" (81 cm)
Height of Cabinet
31.88" (81 cm)
Height to Hinge Cap
32.0" (81 cm)
Nominal Width
15.0" (38 cm)
Width
14.63" (37 cm)
Nominal Depth
24.0" (61 cm)
Depth
22.5" (57 cm)
Depth with Handle
24.5" (62 cm)
Depth with door at 90(degree)
36.25" (92 cm)
Defrost Type
Automatic
Door
Stainless Steel
Cabinet
Stainless Steel
US Electrical Safety
UL
Canadian Electrical Safety
ULC
Sanitation
ETL-S
Amps
2.5
Plug Type
NEMA 5-15P
Voltage/Frequency
115 V AC/60 Hz
Weight
100.0 lbs. (45 kg)
Parts & Labor Warranty
1 Year
Compressor Warranty
5 Years
UPC
761101067766

icemaker

Door Swing
LHD
Reversible
Yes
Drain Required
Yes
Daily Ice Production
45.0 lbs. (20 kg)
Ice Storage Capacity
25.0 lbs. (11 kg)
Ice Shape
Cube
Size of Cube
7/8" x 7/8" x 7/8"
Number of Ice Cube Sizes
1
Interior Light
Yes
Fan Type
Exterior
Refrigerant Type
R290a
Refrigerant Amount
1.87 oz.
High Side PSI
286.0
Low Side PSI
110.0
Interior Height
18.75" (48 cm)
Interior Width
11.25" (29 cm)
Interior Depth
15.5" (39 cm)
Level Legs
4

GS1

GTIN
00761101067766
EAN
0761101067766
UPC
761101067766
