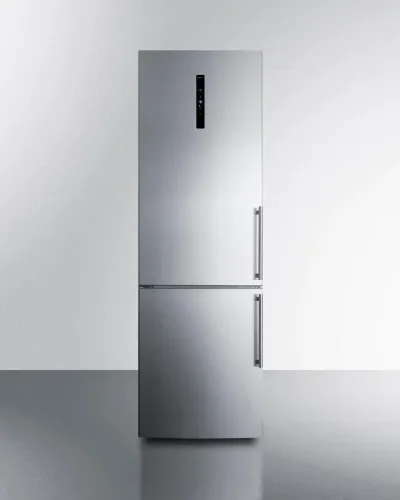

Summit 23" Freestanding Bottom Freezer Refrigerator, 10.6 cu. ft. Capacity

Nominal Height

73.0" (185 cm)

Height of Cabinet

72.25" (184 cm)

Height to Hinge Cap

73.75" (187 cm)

Nominal Width

24.0" (61 cm)

Width

23.38" (59 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.75" (60 cm)

Depth with Handle

25.75" (65 cm)

Depth with door at 90(degree)

45.38" (115 cm)

Capacity

10.6 cu.ft. (300 L)

Defrost Type

Frost-Free/Automatic

Door

Stainless Steel

Cabinet

Platinum

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Energy Usage/Year

454.0kWh/year

Amps

2.5

Voltage/Frequency

115 V AC/60 Hz

Weight

175.0 lbs. (79 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101089690

Door Swing

LHD

Reversible

Factory Reversible

Adjustable Shelves

Yes

Interior Drawers

Yes

Drawer Qty

4

Crisper Qty

2

Crisper Finish

Transparent

Crisper Cover

Glass

Wine Bottle Shelving

Yes

Interior Light

Yes

Refrigerator - Interior Height

36.0" (91 cm)

Refrigerator - Interior Width

19.63" (50 cm)

Refrigerator - Interior Depth

14.63" (37 cm)

Refrigerator - Capacity

7.1 cu.ft

Refrigerator - Shelf Type

Glass and Scalloped

Refrigerator - Shelf Qty

3

Refrigerator - Full Door Shelves

3

Refrigerator - Temperature Range

34 to 46 F

Freezer - Interior Height

27.0" (69 cm)

Freezer - Interior Width

17.25" (44 cm)

Freezer - Interior Depth

17.63" (45 cm)

Freezer - Capacity

3.5 cu.ft

Thermostat Type

Digital

Fan Type

Interior

Refrigerant Type

R600a

Refrigerant Amount

1.13 oz.

Level Legs

2

Condensor Location

Rear of Unit

Freezer - Temperature Range

-6 to 6 F

Compressor Step Height

10.5" (27 cm)

Compressor Step Width

17.25" (44 cm)

Compressor Step Depth

5.38" (14 cm)

Sound Level

32.8 dB

GTIN

00761101089690

EAN

0761101089690

UPC

761101089690

Professional look in high quality stainless steel, with a unique curve to add a modern touch to any kitchen

Convenient design keeps all refrigerated storage at eye level for easier use

Separate digital controls located on the door let you adjust the refrigerator and freezer sections, with a digital display for added convenience

Built-in icemaker in the freezer section keeps an 8 lb. supply of ice on hand, eliminating the need for cumbersome ice trays

Innovative sensors allow the unit to adjust to your habits, reading your patterns to manage the temperature based on the frequency of door openings and grocery loading

Spill-proof safety glass with attractive steel trim ensure durable and easy-to-clean storage that can be rearranged as needed

Three door racks can be adjusted in height to accommodate a variety of sizes

Adjustable scalloped steel rack lets you store wine or other bottles in a space-saving horizontal position

Large crisper drawer allows you to ensure the optimum storage of fruits and vegetables

Slide-out drawer allows you to store meats and other deli items at a slightly colder temperature, or convert to a second crisper using the easy slide control

Automatically illuminates when you open the door

Unique freezer design keeps the cold inside, even when the door is opened

Audible and visual alarm will alert if the doors have been left ajar for over 2 minutes

Audible and visual alarms will alert if the temperature in the refrigerator or freezer compartment is too high

All alarms are both audible and visual, with lamps in the control panel that will illuminate when the alarm is sounded

Frost-free freezer section and automatic defrost refrigerator offer low maintenance operation

Advanced internal fan system helps to ensure even temperature distribution throughout the refrigerator interior

Allows you to rapidly cool the freezer section, ideal for bringing newly loaded groceries to a safer storage temperature

Allows you to run the unit at its most efficient settings

Temperature controls include a locking function to prevent accidental setting changes

32.8 dB for a quiet performance in your kitchen

Space-saving design with no exposed coils for easier cleanability

For this unit with a standard right hand door swing, see model FFBF249SS2

Environmentally friendly design without ozone-damaging chemicals

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
