PRODUCT DESCRIPTION
Specifications
Nominal Height
6.0" (15 cm)
Height of Cabinet
5.5" (14 cm)
Nominal Width
20.0" (51 cm)
Width
20.0" (51 cm)
Nominal Depth
20.0" (51 cm)
Depth
20.0" (51 cm)
Cabinet
White
US Electrical Safety
ETL
Canadian Electrical Safety
ETL-C
Amps
1.7
Voltage/Frequency
115 V AC/60 Hz
Weight
11.0 lbs. (5 kg)
Parts & Labor Warranty
1 Year
UPC
761101107189
Installation
Under Cabinet
Venting
Convertible
Controls
Dial
Number of Fan Speeds
2
Maximum Air Movement
270.0 CFM
Sone Rating
6
Duct Shape
3"1/4" x 10" rectangular or 7" round with transition
GTIN
00761101107189
EAN
0761101107189
UPC
761101107189

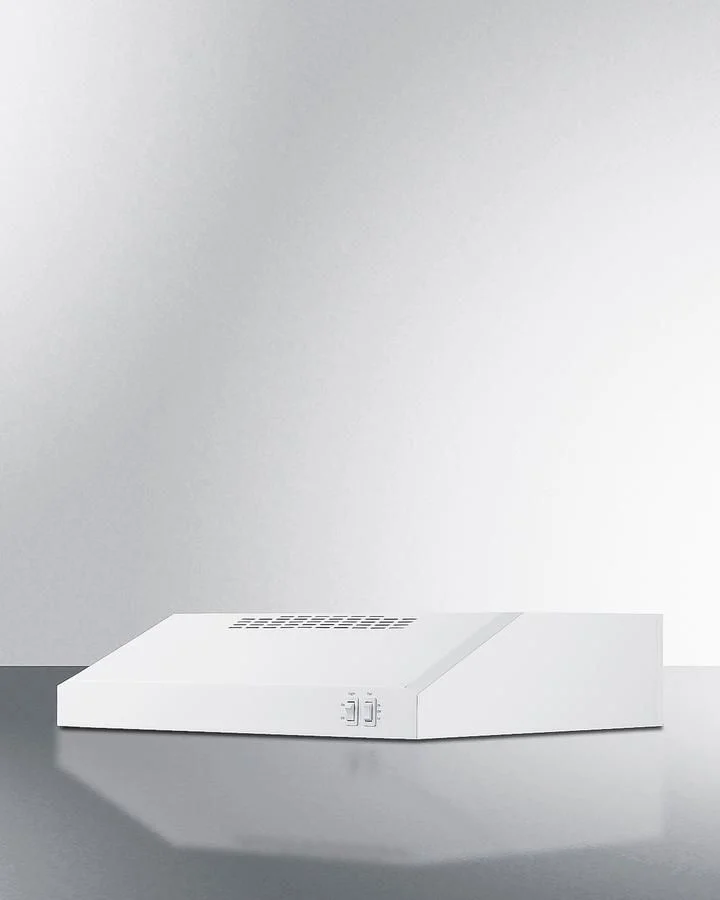

Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
Low profile design offers classic style to finish your kitchen
Sized for use over 20 inch cooking surfaces (additional sizes available)
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
Matte finish in classic white suits any kitchen space
Ships pre-set for recirculating mode but can be converted in a few simple steps
Can operate at 270 CFM to ensure thorough ventilation of your cooking surface
High and low setting to allow proper ventilation of your kitchen as needed
Designed to hold a standard incandescent light bulb with easy installation and no tools required
Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience
Snap-in design allows you to easily remove the filter for fast replacing as needed
Front-located on/off and high/low switches make it easy to manage the light and fan
Designed to be hard-wired by a licensed professional
TAA compliant
