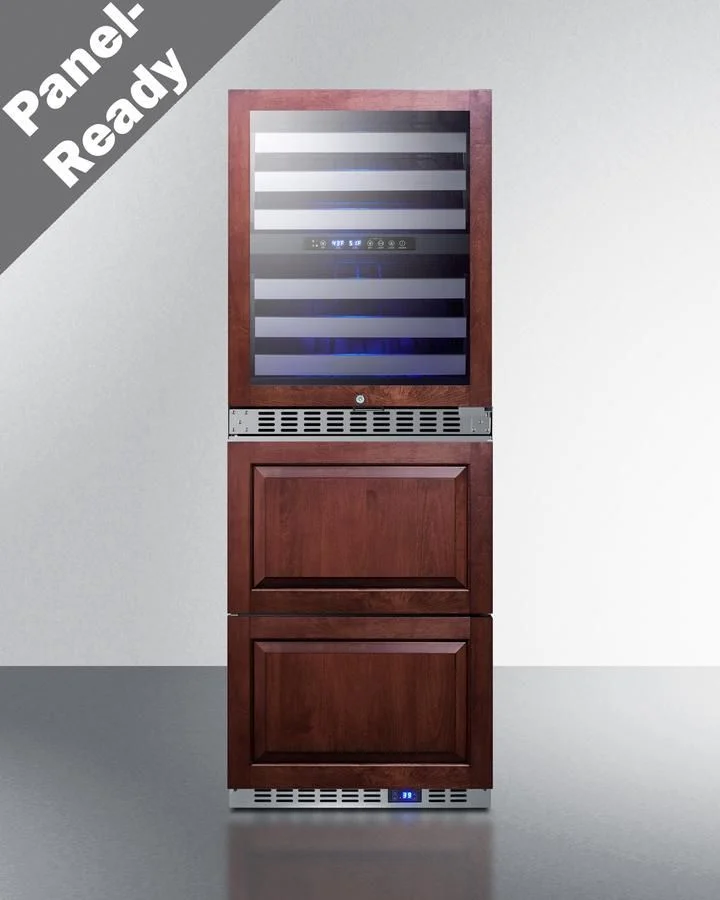

Summit 24" Dual Zone Wine Cooler, 3.4 cu. ft. Capacity

SKU: SWCDAR24PNR
  • Width: 23.63"
  • Height: 65.63"
  • Depth: 23.50"
  • Energy Star Rated: no
  • Wi-Fi Connected: No
  • Sabbath Mode: Yes
  • ADA Compliant: No
  • Total Capacity: 3.40 cu. ft.
  • Defrost: Automatic
  • Style: Dual Zone
  • Icemaker: No
  • Dispenser: No
  • Counter Depth: No
  • Refrigerator Capacity: 3.4 cu. ft.
  • Number of Shelves: 6
Summit | Authorized Dealer
Pre-Order

Estimates for:

Protect Your Item

$5,320.00
EARN 5,320 POINTS (sign in / sign up for free)

Protect Your Item

PRODUCT DESCRIPTION

Summit brings an innovative, elegant solution to store wine, food, and beverages with its combination two-zone wine cellar and two-drawer refrigerator - the perfect entertainment station for the home. Sized at just under 24" wide, the SWCDAR24PNR combines the 46 bottle capacity two-zone wine cellar (model ALWC532)with the 3.4 cu.ft. two-drawer refrigerator (model FF642D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. The sealed back offers added space savings when placing the unit, while the included 6' Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. The wine cellar door frame and refrigerator drawer fronts can be customized with overlay panels to match or accent an existing cabinetry design. Users provide their own handles to complete the look. An anti-tip bracket is included and recommended for use to avoid forward tipping. For user convenience, this model ships fully assembled. The upper two-zone wine cellar has a double pane tempered glass door featuring a seamless stainless steel trim, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41(degree)F and 50 F for white wine, while the lower zone is designed to store red wine between 50(degree)F and 64 F. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. The bottom two-drawer refrigerator features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. The digital thermostat makes it simple to manage the interior temperature. An internal fan ensures both drawers are evenly cooled. Two adjustable dividers allow you to separate the drawer compartments into two or four zones to accommodate a variety of sizes, perfect for storing canned beverages or meats and cheeses to pair with your favorite wine. A sliding chrome basket offers additional storage convenience as needed, while the LED lighting makes it easy to view interior contents when loading or unloading both drawers. Additional features include a high-temperature alarm and an open drawer alarm for added peace of mind. Sabbath Mode disables certain electrical features during periods of religious observance, while a temperature memory function helps to recover all settings in the event of power loss. Offering complete refrigeration convenience in a slim-fitting design, the SWCDAR24PNR is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. Additional panel-ready options are available with a bottom freezer (model SWCDAF24PNR) or a bottom refrigerator-freezer (model SWCDRF24PNR). Note: Panels are not included. The images provided are meant only to be suggestive of what the product with wood panels installed could look like. Users must supply their own wood panels.

Specifications

Nominal Height

66.0" (168 cm)

Height of Cabinet

65.63" (167 cm)

Nominal Width

24.0" (61 cm)

Width

23.63" (60 cm)

Nominal Depth

24.0" (61 cm)

Depth

23.5" (60 cm)

Depth with door at 90(degree)

45.75" (116 cm)

Capacity

3.4 cu.ft. (96 L)

Bottles

46 bottles

Defrost Type

Automatic

Door

Glass/Panel-Ready Frame

Cabinet

Stainless Steel

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Energy Usage/Year

275.0kWh/year

Other Energy Info

ALWC532: 1.25Ams; FF642D: 0.8 Amps

Amps

2.05

Voltage/Frequency

115 V AC/60 Hz

Weight

229.0 lbs. (104 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101082813

Number of Zones

2

Door Swing

RHD

Reversible

Factory Reversible

Shelf Type

Wire

Shelf Qty

6

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Interior Height 1

11.88" (30 cm)

Interior Width 1

20.5" (52 cm)

Interior Depth 1

18.0" (46 cm)

Interior Height - Drawer 1

9.25" (23 cm)

Interior Width - Drawer 1

17.25" (44 cm)

Interior Depth - Drawer 1

15.5" (39 cm)

Interior Height - Drawer 2

10.0" (25 cm)

Interior Width - Drawer 2

17.25" (44 cm)

Interior Depth - Drawer 2

15.5" (39 cm)

Temperature Range

ALWC532: 41(degree)F to 64(degree)F; FF642D: 36(degree)F to 43(degree)F

Interior Height 2

11.63" (30 cm)

Interior Width 2

20.5" (52 cm)

Interior Depth 2

18.0" (46 cm)

GTIN

00761101082813

EAN

0761101082813

UPC

761101082813

Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532PNR) and two-drawer all-refrigerator (model FF642D), perfect for home bars, kitchens, and similar residential spaces

Front-breathing design allows this unit be built in for added space savings

Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius

LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of both drawer interiors for easy access

Provides a full display of the interior, with two levels of glass for added protection

Smoother opening and a better fit with an integrated European style door hinge on the wine cellar

Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F

Shelves move smoothly on ball-bearing glides for easier loading and unloading

Reduced maintenance with auto defrost system

Keyed lock for secure interior, with two keys included

Complete stainless steel construction offers added durability in an easy-cleaning design

Two adjustable dividers make it simple to organize the drawer interiors

Removable chrome basket included for easier storage convenience

No-frost operation for minimum user maintenance

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Protects from everyday wear and tear in a durable, elegant design

Audible alarm will sound if the drawers are left ajar for over a minute

Unit will retain its last settings when power is restored in the event of power loss

Optional setting lets you disable the lighting and alarm for up to 48 hours

Included and recommended for user-installation to reduce the risk of tipping

Allows the unit to be used freestanding

Unit comes fully assembled for user convenience

This unit is also available with a bottom freezer (see the SWCDAF24PNR) or a bottom refrigerator-freezer (see the SWCDRF24PNR)

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Environmentally friendly design with no ozone-damaging chemicals
