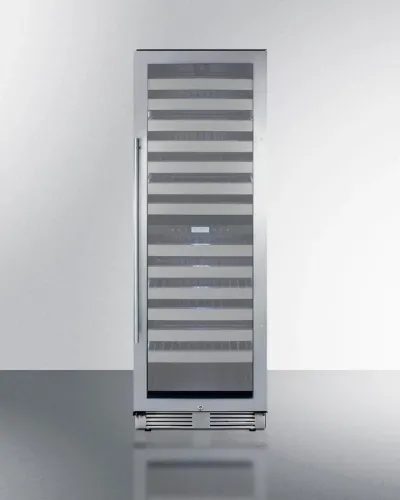

Summit 24" Dual Zone Wine Cooler

Nominal Height

70.0" (178 cm)

Height of Cabinet

69.5" (177 cm)

Nominal Width

24.0" (61 cm)

Width

23.63" (60 cm)

Nominal Depth

27.0" (69 cm)

Depth

26.5" (67 cm)

Depth with Handle

28.25" (72 cm)

Depth with door at 90(degree)

48.75" (124 cm)

Bottles

163 bottles

Defrost Type

Automatic

Door

Glass

Cabinet

Black

US Electrical Safety

ETL

Canadian Electrical Safety

ETL-C

Sanitation

ETL-S

Amps

2.0

Voltage/Frequency

115 V AC/60 Hz

Weight

269.0 lbs. (122 kg)

Parts & Labor Warranty

1 Year

Compressor Warranty

5 Years

UPC

761101066356

Number of Zones

2

Door Swing

RHD

Reversible

Factory Reversible

Shelf Type

Wire

Shelf Qty

13

Thermostat Type

Digital

Interior Light

Yes

Fan Type

Interior and Exterior

Refrigerant Type

R600a

Refrigerant Amount

1.76 oz.

High Side PSI

320.0

Low Side PSI

120.0

Interior Height 1

31.0" (79 cm)

Interior Width 1

20.38" (52 cm)

Interior Depth 1

21.0" (53 cm)

Level Legs

2

Temperature Range

41-54(degree)F (upper zone); 54-65(degree)F (lower zone)

Interior Height 2

29.75" (76 cm)

Interior Width 2

20.38" (52 cm)

Interior Depth 2

21.0" (53 cm)

Sound Level

34 dB

GTIN

00761101066356

EAN

0761101066356

UPC

761101066356

ETL-S listed to NSF-7 standards for use in restaurants, bars, and other foodservice settings

Provides a full display of the interior, with two levels of glass for added protection

Single-piece door trim offers a more deluxe look

Chill white wine in the upper zone while preserving your reds at a warmer temperature below

Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

13 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity

Fronts feature a stainless steel accent to elevate your presentation

Interior can hold up to 163 standard 750ml Bordeaux style bottles (20 bottles stacked on the upper shelf, 11 bottles per middle 12 shelves, and 11 on the slotted floor). If storing wider Burgundy style bottles (typically used for Pinot Noir or Chardonnay), you can accommodate up to 110 bottles (8 per shelf with 6 stacked on the slotted floor)

Nine LED lights provide an attractive and energy-efficient illumination of your collection with a gentle white hue

Keyed lock secures both zones (2 keys included)

Upper zone: 41-54(degree)F ideal for chilling white and sparkling wine; Lower zone: 54-65(degree)F for holding reds at a warmer temperature

Allows for front ventilation in an elegant design

Helps to purify air for an odor-free interior

Audibly sounds if the interior rises or falls out of recommended range

Alerts if unit door is ajar for more than 5 minutes

Ensures a tight seal for energy savings and improved performance

Flush back allows for a better fit and easier cleanability

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Allows the unit to be used freestanding

Environmentally friendly design with no ozone-damaging chemicals

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
