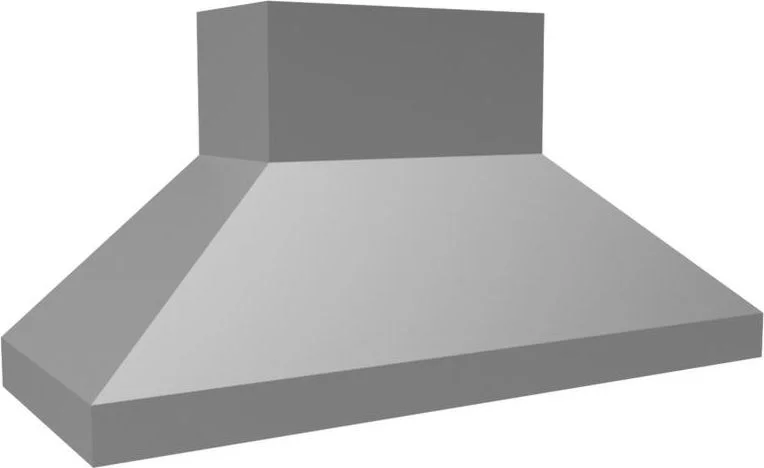

Ventahood 42" Ducted Hood

SKU: EPTH18342
On Sale
  • Width: 42.00"
  • Height: 18.00"
  • Depth: 24.00"
  • Energy Star Rated: no
Ventahood | Authorized Dealer
Pre-Order

Estimates for:

Protect Your Item

$4,340.00

$4,470.00 Save$130.00
EARN 4,340 POINTS (sign in / sign up for free)

Protect Your Item

PRODUCT DESCRIPTION

This Euroline Pro with squared lip is boldly designed to cover light residential, "commercial type" cooking equipment. To order a 27" depth, add an 'X' after 'EP' in the model number. The Euroline Pro Series with Emerald Lip is also available with a 26" wide x 14" deep top to allow for higher CFM requirements . Heat lamps are not available on this model. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. Recommended mounting height is 30" from the cooking surface. Shown with matching wall mount duct cover [sold separately], available in standard sizes for 8', 9', and 10' ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.

Specifications

Model

Volts

115

Amps+

6.0

Hz

60

RPM

1550

CFM SP@0.0"

900

Equiv. CFM$

1350

CFM SP@0.1"

804

CFM SP@0.2"

725

CFM SP@0.3"

655

Min. Round Duct Size

Sones#

6.3

WIDTH :

42"

DEPTH :

24"

HEIGHT :

18"

CFM :

900

SONES :

6.3

Amps :

6.0

Num. Lights :

3

Model

B200 Dual & B100 Single

Volts

115

Amps+

6.0

Hz

60

RPM

1550

CFM SP@0.0"

900

Equiv. CFM$

1350

CFM SP@0.1"

804

CFM SP@0.2"

725

CFM SP@0.3"

655

Min. Round Duct Size

10" (79 sq. in.)

Sones#

6.3
