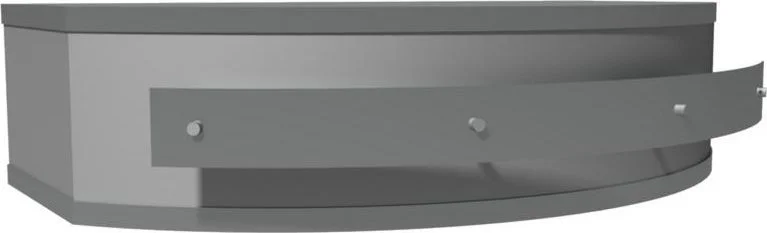

Ventahood 48" Ducted Hood

SKU: JCWR9348
  • Width: 48.00"
  • Height: 9.00"
  • Depth: 21.00"
  • Energy Star Rated: no
Ventahood |Authorized Dealer
Pre-Order

PRODUCT DESCRIPTION

Rounded front with stand-off trim styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need. This model is available in stainless steel with standard mirror stainless trim. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 24" - 27" above the cooking surface.

Specifications

Model

Volts

115

Amps+

6.0

Hz

60

RPM

1550

CFM SP@0.0"

900

Equiv. CFM$

1350

CFM SP@0.1"

804

CFM SP@0.2"

725

CFM SP@0.3"

655

Min. Round Duct Size

Sones#

6.3

WIDTH :

48"

DEPTH :

21"

HEIGHT :

9"

CFM :

900

SONES :

6.3

Amps :

6.0

Num. Lights :

3

Model

B200 Dual & B100 Single

Volts

115

Amps+

6.0

Hz

60

RPM

1550

CFM SP@0.0"

900

Equiv. CFM$

1350

CFM SP@0.1"

804

CFM SP@0.2"

725

CFM SP@0.3"

655

Min. Round Duct Size

10" (79 sq. in.)

Sones#

6.3

QUESTIONS & ANSWERS

SEE WHAT OUR CUSTOMER HAVE TO SAY!

Ventahood-JCWR9348
SKU: JCWR9348

Call to Get a Quote
